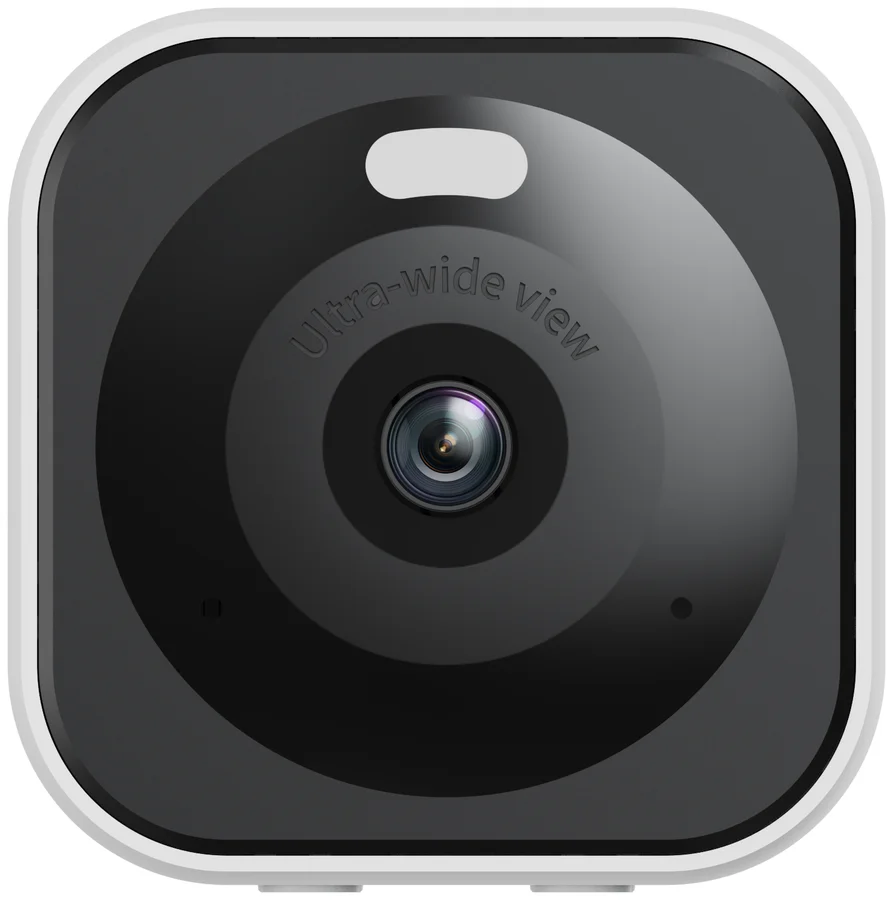

Uho-C1-M4F2D
4MP fixed-lens Wi-Fi 6 cube camera for indoor use — dual-light illumination gives full-color video after dark, magnetic base mounts anywhere in seconds, no network cable, no PoE. Built-in mic & speaker for two-way audio, human/vehicle/pet detection, crying detection.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.
The Uniarch Uho-C1-M4F2D is a 4MP Wi-Fi 6 cube camera built for indoor monitoring where a clean, cable-free setup matters. Its dual-light illuminator switches on a warm light to keep video in full color after dark, while its magnetic base sticks to almost any surface for instant repositioning. It combines human/vehicle/pet detection, crying and high-decibel detection, and built-in mic-and-speaker two-way audio in a compact 60×60×60mm body.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
- PoE power — this camera has no PoE port, it needs a USB-C 5V/1.5A power source
- Wired network connection — this is Wi-Fi only, there is no RJ45 Ethernet port
- Outdoor or wet-location mounting — this camera has no IP rating, it's designed for indoor use only
- Fully discreet night operation — the warm-light illuminator lights up the room when triggered, unlike an IR-only camera that stays invisible
- Zoom or a longer reach — the lens is a fixed super-wide-angle only, made for covering a whole room up close, not for zooming in on something far away
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Night vision: dual light (IR + warm)
Switchable Auto/Manual IR — set it per site.
Invisible infrared — discreet black & white night vision
Smart IR up to 10 m (32.8 ft.) at 850 nm. The camera watches without lighting up the room — nothing shows it is recording.
Full-color night vision when it matters
An added warm-light illuminator switches on to keep video in full color instead of black-and-white IR — useful for telling colors and faces apart at night. The datasheet does not list a separate range figure for the warm light.
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance.
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 132.2° |
|---|---|
| 5 m16 ft | 22.6 m74.0 ft |
| 10 m33 ft | 45.1 m148 ft |
| 15 m49 ft | 67.7 m222 ft |
| 20 m66 ft | 90.3 m296 ft |
| 30 m98 ft | 135 m444 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Max Resolution | 4 MP |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Colour: 0.003 lux (F2.0, AGC ON), 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
Lens
| Iris Type | Fixed |
| Iris | F2.0 |
| Field of View (H) | 132.2° |
| Field of View (V) | 71.5° |
| Field of View (D) | 157.7° |
| Lens Type | Fixed |
DORI
| DORI Distance (Lens) | 2.1 mm |
| DORI Distance (Detect) | 47.3 m (155.0 ft.) |
| DORI Distance (Observe) | 18.9 m (62.0 ft.) |
| DORI Distance (Recognize) | 9.5 m (31.0 ft.) |
| DORI Distance (Identify) | 4.7 m (15.5 ft.) |
Illuminator
| Supplemental Light | Dual light |
| Illumination Distance (IR) | 10 m (32.8 ft.) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
Video
| Video Compression | H.265, H.264 |
| Frame Rate | Main Stream: 2560×1440@15fps; Sub Stream: 640×360@15fps |
| U-code | Support |
| OSD | Up to 1 OSD |
| ROI | N/A |
| Video Stream | Dual streams |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
Events
| Basic Detection | Crying detection, High-Decibel detection, Ultra motion detection (human/ vehicle/ pet detection) |
Audio
| Audio Compression | G.711U |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
Interface
| Video Output | N/A |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | Support |
| Network | N/A |
Storage
| Edge Storage | MicroSD, up to 512 GB |
Network
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna |
| Compatible Integration | API |
| Client | APP |
Wi-Fi
| Wireless Standards | IEEE802.11b/g/n/ax |
| Frequency Range | 2.4 GHz to 2.4835 GHz |
| Channel Bandwidth | 20/40 MHz Support |
| Modulation Mode | 802.11b: CCK; 802.11g/n: OFDM; 802.11ax: OFDMA |
| Wi-Fi Security | WPA-PSK/WPA2-PSK |
| Transmit Power | 802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 16±1.5 dBm@54 Mbps; 802.11n: 16±1.5 dBm@MCS7; 802.11ax: 16±1.5 dBm@MCS11 |
| Receive Sensitivity | 802.11b: -90 dBm@11 Mbps (Typical); 802.11g: -75 dBm@54 Mbps (Typical); 802.11n: -74 dBm@150 Mbps (Typical); 802.11ax: -62 dBm@MCS11, HE40 (Typical) |
| Transmission Rate | 802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps; 802.11ax: up to 270 Mbps |
Certification
| EMC | CE-EMC (EN 55032, EN 61000-3-2, EN IEC 61000-3-3, EN 50130); FCC (SDoC 47 CFR Part 15, Subpart B) |
| RF | FCC ID (FCC CFR 47 part15, Subpart C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN IEC 62311) |
| Safety | CE LVD (EN IEC 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
General
| Material | Plastic |
| Power | DC 5 V/1.5 A, USB typeA-C interface |
| Power Consumption | Max. 2.9 W |
| Dimensions | Φ60 mm × 60 mm × 60 mm (Φ2.4" × 2.4" × 2.4") |
| Weight | 0.09 kg (0.2 lb.) |
| Working Environment | -10 °C to 50 °C (14 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -10 °C to 50 °C (14 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing) |
| Reset Button | Support |
| LED Indicator | 1, red/blue |
Dimensions

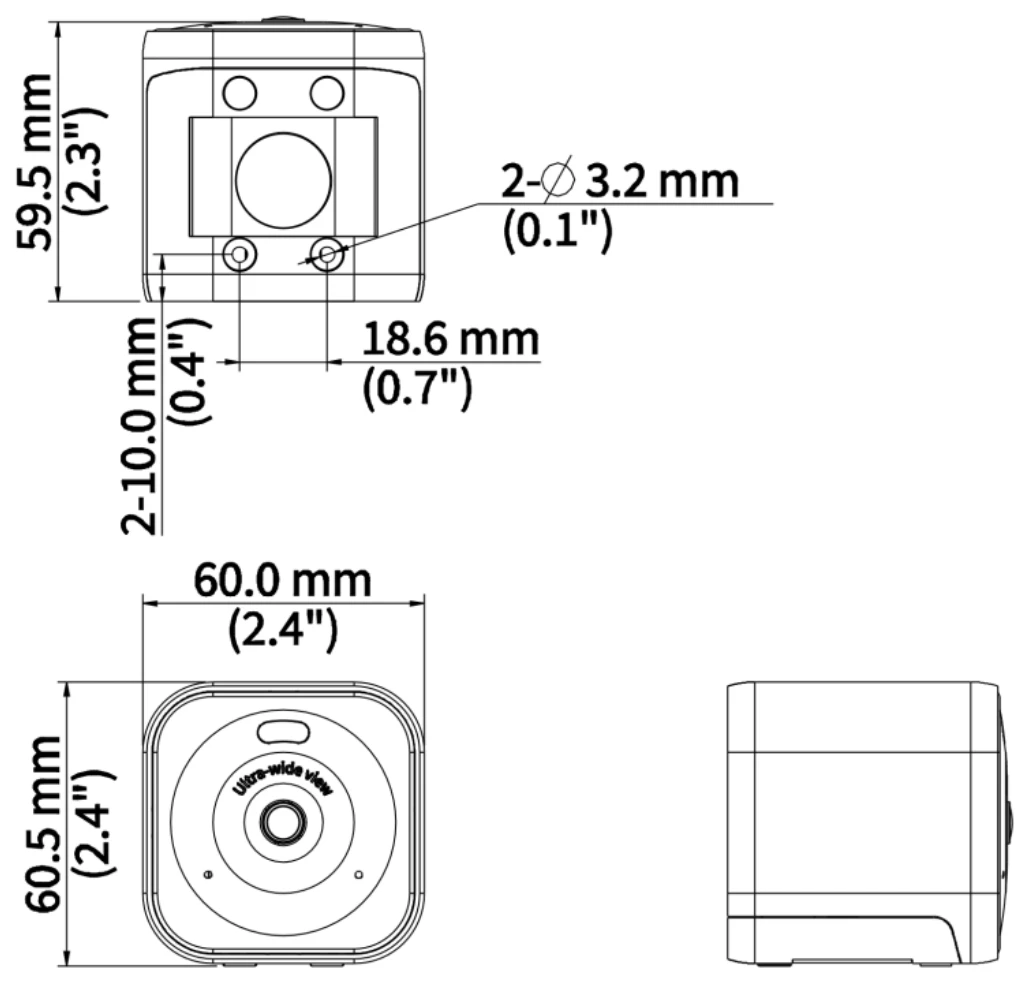

Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | Φ60 mm × 60 mm × 60 mm (Φ2.4" × 2.4" × 2.4") |
| Weight | 0.09 kg (0.2 lb.) |
| Material | Plastic |
4MP Wi-Fi 6 Cube Camera FAQ — Uho-C1-M4F2D
What does Wi-Fi 6 change for a security camera?
Does it show color at night?
What smart detections does it run — can it work as a baby monitor?
How wide is the view and how sharp is the image?
Can I talk through it, and how much video does it store?
