IP Cameras › Uho-P1G-M3F4D-LA

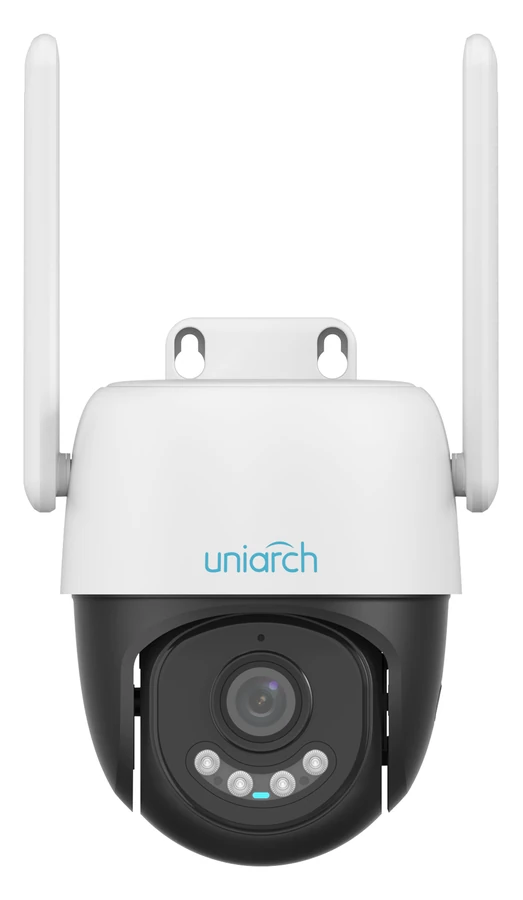

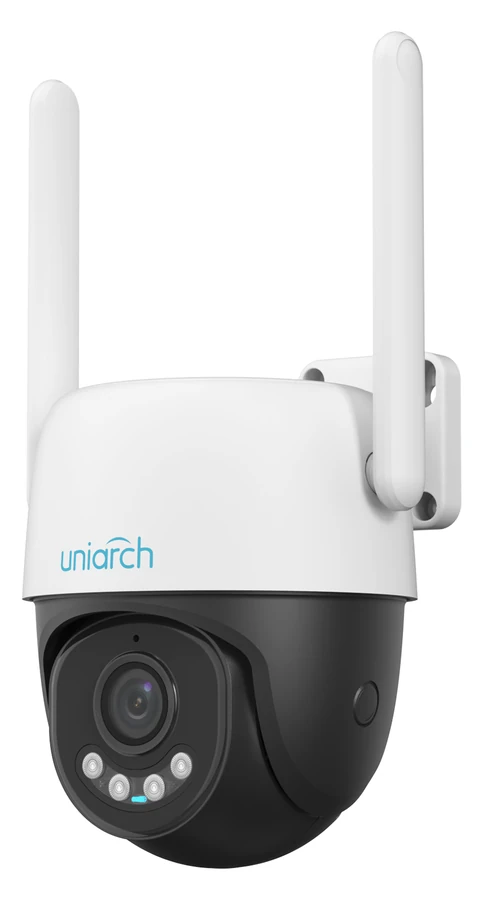

3MP Outdoor 4G PT Camera Uho-P1G-M3F4D-LA — view 1

3MP Outdoor 4G PT Camera Uho-P1G-M3F4D-LA — view 2

Uniarch4G PT Camera

3MP Outdoor 4G PT Camera

Uho-P1G-M3F4D-LA

Name: Uniarch Uho-P1G-M3F4D-LA
Brand: Uniarch
SKU: Uho-P1G-M3F4D-LA

3MP pan-tilt camera that connects over the 4G cellular network — no Wi-Fi, no network cable required at the camera. Auto tracking, dual light IR+warm 30m, two-way audio, IP66.

3 MP · 2304×1296@25fps4G · LTE-FDD/TDD, Nano-SIMDual Light · IR 30m + warm 30mAuto Tracking · follows motionTwo-Way Audio · mic + speakerIP66 · outdoorPT · 345° pan / 90° tilt

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP66

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4GCellular, no Wi-Fi/cable needed

30 mIR + warm light

IP66Outdoor rated

345°Pan range

The Uniarch Uho-P1G-M3F4D-LA is a 3MP pan-tilt camera that connects over the 4G cellular network instead of Wi-Fi or a network cable, for sites with no fixed internet connection nearby. It combines auto tracking, a built-in mic and speaker with two-way audio and sound-and-light warning, and equal-reach 30m infrared plus 30m warm-light illumination, recording locally to a MicroSD card up to 512GB. It carries a fixed 4.0mm lens (75° view) and moves on a 345° pan / 90° tilt head with 20 presets, in an IP66 body rated −30°C to 60°C.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Remote sites with no Wi-Fi or EthernetA Nano-SIM with a data plan gets it online — no site Wi-Fi network or NVR cable run needed. Good for construction sites, farms, remote equipment yards, temporary events.

Yards & drivewaysAuto tracking follows a moving person or vehicle across the pan/tilt range, instead of leaving them at the frame edge.

Gates & entrancesTwo-way audio lets you speak to a visitor or warn off an intruder directly through the camera, with a sound-and-light alarm to back it up.

Warehouse & site perimetersIR and warm light both reach 30 m, and 20 saved presets let one camera patrol several fixed points in sequence.

Sites without easy NVR accessMicroSD recording up to 512 GB keeps footage on the camera itself when running a full NVR to the site isn't practical.

Quick relocation between sitesBecause it connects by cellular signal rather than a fixed site Wi-Fi access point, the same camera can be moved to a new location without matching it to local network coverage.

Not the right pick if you need…

Wi-Fi connectivity — this camera has no Wi-Fi radio; it connects via 4G SIM, or over the wired RJ45 Ethernet port as a fallback
No ongoing running cost — a 4G data SIM plan is required from a local carrier for the cellular connection to work
Third-party VMS via ONVIF — this model connects through Uniarch's own SDK/API and APP, no ONVIF profile is listed
Optical zoom — the lens is fixed at 4.0 mm; only the pan/tilt head moves, the lens itself does not zoom
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 3MP, 1/3.0" CMOS sensor

2304×1296@25fps in the main stream

Support 4G access to the network

Ultra 265, H.265, H.264

Support digital WDR (Wide Dynamic Range)

Built-in Mic & Speaker, support two-way audio, offer better interaction

Support sound and light warning, makes warning and alarming more noticeable

Smart IR, up to 30 m (98 ft) IR and 30 m (98 ft) warm light distance, suitable for more scenes

Supports 512 GB Micro SD card

IP66 ingress protection

Dual Light: two ways to see the night

Switchable Auto/Manual IR and warm light — set it per site.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording.

WARM LIGHT MODE

Visible warm light — full-time color and active deterrence

Warm white light up to 30 m (98.4 ft.) — the same reach as IR mode — keeps faces and clothing colors visible at night, backed up by the sound-and-light alarm.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

66.7 m218.7 ft

Observewhat is happening

26.7 m87.5 ft

Recognizesomeone you know

13.3 m43.7 ft

Identifya stranger's face

6.7 m21.9 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	75.0°
5 m16 ft	7.7 m25.2 ft
10 m33 ft	15.3 m50.3 ft
15 m49 ft	23.0 m75.5 ft
20 m66 ft	30.7 m101 ft
30 m98 ft	46.0 m151 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	3 MP
Sensor	1/3.0" CMOS
Min. Illumination	Colour: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
S/N	> 52 dB
WDR	DWDR

Lens

Digital Zoom	4X
Focal Length	4.0 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	75.0°
Field of View (V)	40.0°
Lens Type	Fixed

DORI

DORI Distance (Lens)	4.0 mm
DORI Distance (Detect)	66.7 m (218.7 ft.)
DORI Distance (Observe)	26.7 m (87.5 ft.)
DORI Distance (Recognize)	13.3 m (43.7 ft.)
DORI Distance (Identify)	6.7 m (21.9 ft.)

Illuminator

Supplemental Light	Dual light
Illumination Distance (IR)	30 m (98.4 ft.)
Illumination Distance (Warm Light)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
Frame Rate	Main Stream: 3MP (2304×1296), Max 25fps; 2MP (1920×1080), Max 30fps; 720P (1280×720), Max 30fps · Sub Stream: 640×360, Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30fps
Video Bit Rate	128 Kbps to 2048 Kbps
U-code	Support
OSD	Up to 2 OSDs
Privacy Mask	Support (only NVR)
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	N/A
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection (based on human body and vehicle detection), High-Decibel detection
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Intelligent

Auto Tracking

Support

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP, ARP, UPnP, RTP, RTCP
Compatible Integration	API, SDK
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

4G Network

4G Network Frequency	LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD: B38/B40/B41
4G Network Standard	LTE-FDD, LTE-TDD
4G Card Type	Nano-SIM

PTZ

Pan Range	0° ~ 345°
Pan Speed	1°/s ~ 40°/s Preset speed: 40°/s
Tilt Range	0° ~ 90°
Tilt Speed	1°/s ~ 30°/s Preset speed: 30°/s
Number of Presets	20

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP66 (IEC 60529)

General

Power Consumption	8.0 W
Power	DC 12V±25%
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Φ110 mm × 141 mm × 151 mm (Φ4.3" × 5.6" × 6.0")
Weight	0.39 kg (0.85 lb.)
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
LED Indicator	1, red/blue

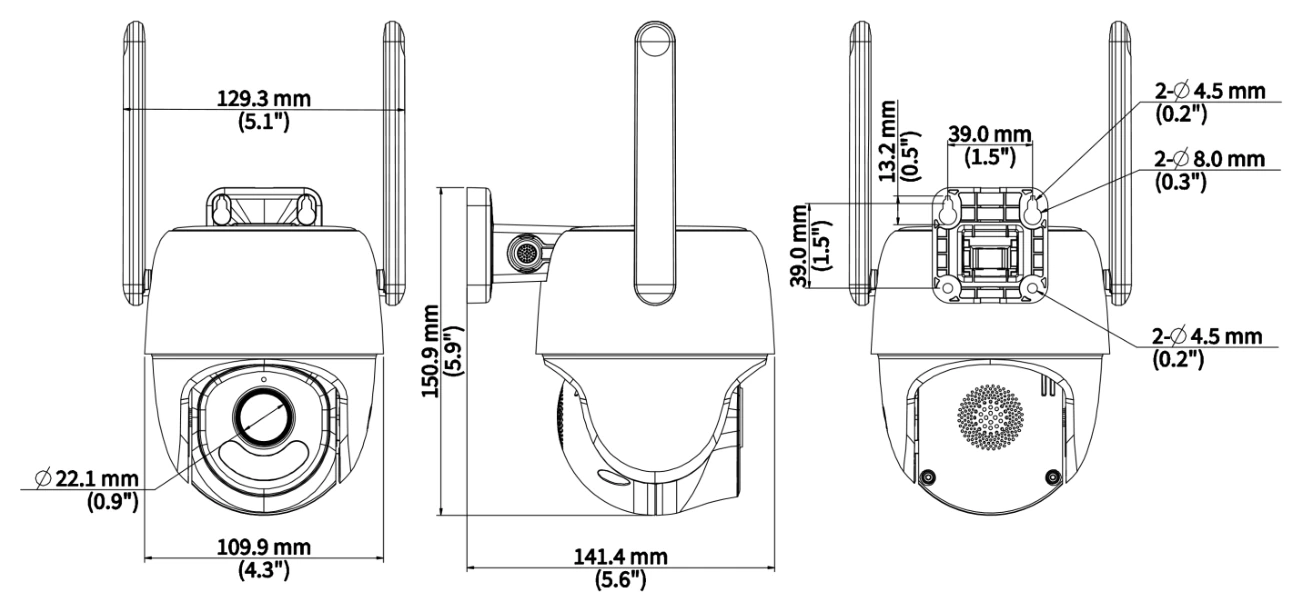

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Φ110 mm × 141 mm × 151 mm (Φ4.3" × 5.6" × 6.0")
Weight	0.39 kg (0.85 lb.)
Mount adjustment	Pan 0–345° · Tilt 0–90° · 20 presets

4G PT Camera FAQ — Uho-P1G-M3F4D-LA

Does it work on a site with no internet and no Wi-Fi?

Yes — that is the point of this model. It connects through a 4G SIM card, so a farm, construction site, warehouse yard or remote gate needs no router, no fixed line and no network cabling. Insert the SIM, power the camera and it is online.

How good is the night vision — does it stay in color?

Dual light with equal reach: 850 nm invisible IR up to 30 m for discreet black-and-white video, or warm white light also up to 30 m that keeps the scene in full color at the same distance — unusual, since warm light is often shorter. The sound-and-light alarm backs it up as a deterrent.

How do I keep mobile data usage under control?

Record locally, view remotely only when needed. The camera writes to a MicroSD card up to 512 GB, and Ultra 265 compression with U-code plus an adjustable bit rate (128–2048 Kbps) keeps each viewing session light. Dual streams let the phone pull the small sub stream instead of full video.

What area does one camera watch?

The motorized head pans 345° and tilts 90°, and auto tracking follows people and vehicles picked up by ultra motion detection. The 4.0 mm lens gives a 75° horizontal view with DORI detection at 66.7 m and identification at 6.7 m; resolution is 3 MP (2304×1296) at up to 25 fps with 4X digital zoom.

Is the LA version the right one for South America?

Yes — the -LA suffix marks the regional variant intended for Latin American-market networks. It takes a standard 4G SIM; confirm 4G band compatibility with your local carrier for the specific country before ordering. The IP66 housing is built for outdoor pole and wall mounting.
