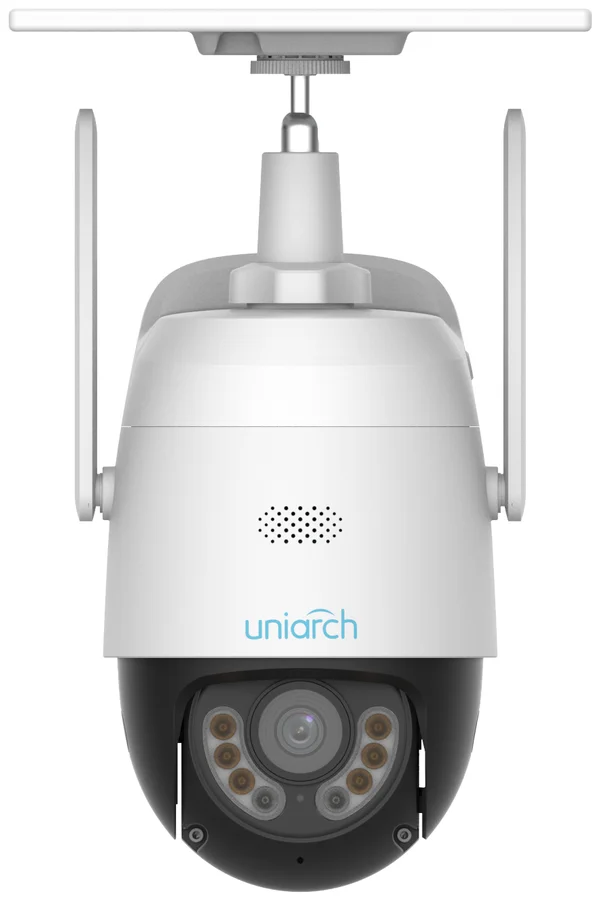

3MP 4G Solar Battery PT Camera Uho-P2G-M3F4D-AS — view 1

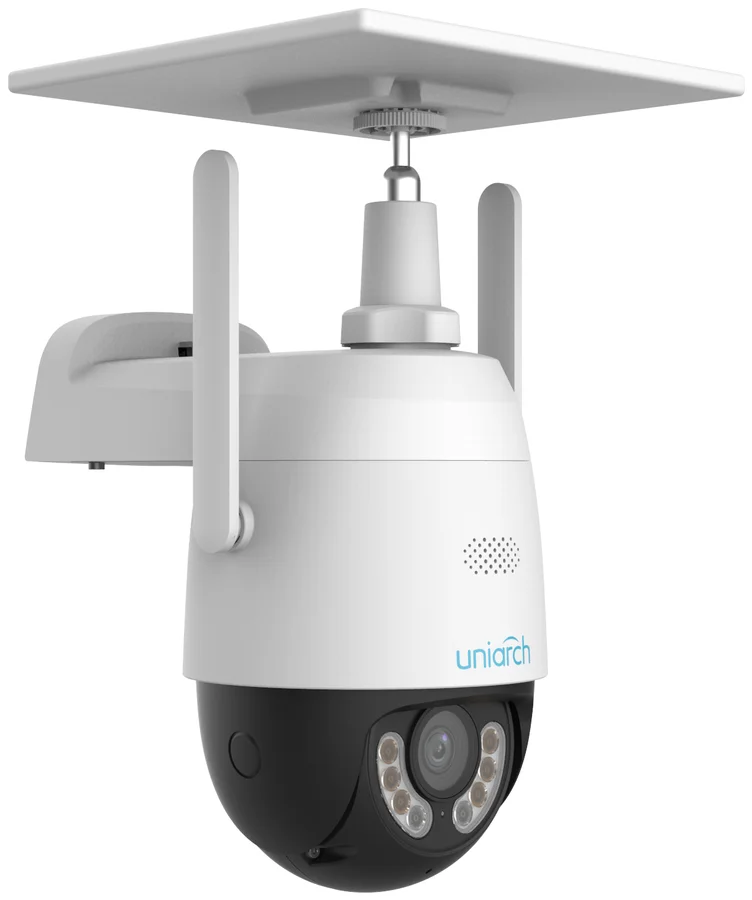

3MP 4G Solar Battery PT Camera Uho-P2G-M3F4D-AS — view 2

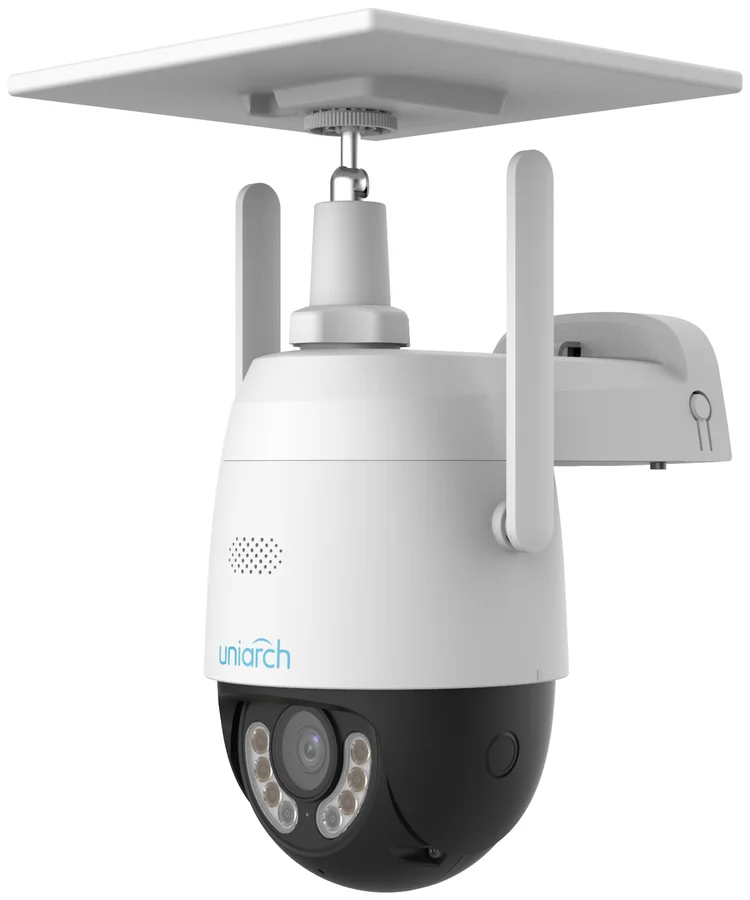

3MP 4G Solar Battery PT Camera Uho-P2G-M3F4D-AS — view 3

Uniarch4G Solar PT Camera

3MP 4G Solar PT Camera

Uho-P2G-M3F4D-AS

Name: Uniarch Uho-P2G-M3F4D-AS
Brand: Uniarch
SKU: Uho-P2G-M3F4D-AS

3MP 4G pan-tilt camera with a 10Ah battery and 5W solar panel — no power line, no network cable, no Wi-Fi router needed. Just cellular signal and sunlight.

3 MP · 2304×1296@15fps4G · Nano-SIM cellular dataSolar + Battery · 5W panel, 10Ah batteryDual Light · IR + warm, 30mPTZ · 345° pan · 90° tiltIP66 · outdoor

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CERoHSWEEEIP66

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4GCellular network

10 AhBattery capacity

345°/90°Pan / tilt range

IP66Outdoor rated

The Uniarch Uho-P2G-M3F4D-AS is a 3MP pan-tilt camera built for sites with no power line and no network cable at all — it runs on 4G cellular data and a 10Ah rechargeable battery topped up by its own 5W solar panel, so it can go up anywhere with cell coverage and sunlight. Motorized pan (0° to 345°) and tilt (0° to 90°), dual IR + warm-light night vision to 30m, and a built-in mic and speaker cover the rest. The RJ45 port on this model is for local testing only — it is not a usable network cable connection in the field.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Farms & remote agricultureNo grid power or network cable at the site? Run it on 4G data and its own solar+battery — mount it on a post at the field edge and it keeps working.

Construction & temporary sitesMove it from site to site as the project progresses — no electrician, no cable trench, just a mounting post and cell signal.

Remote perimeters & fence linesMotorized 345° pan and 90° tilt covers long fence lines and wide perimeters from a single mounting point, with dual IR+warm-light vision after dark.

Disaster relief & pop-up securityDeploy in minutes wherever there is cell coverage — no site survey for power or fiber, no waiting on an ISP installation appointment.

Checking in from your phonePair it with the Uniarch APP for live view, push alerts and playback from anywhere the camera has signal.

Local backup you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — useful when cellular data is limited or intermittent.

Not the right pick if you need…

Wi-Fi connectivity — this camera has no Wi-Fi radio at all, it connects only via 4G cellular (Nano-SIM)
A wired network connection on site — the RJ45 port is for local testing/configuration only, it cannot serve as the camera's live network link in the field
Saved patrol presets — Number of Presets is not supported on this model despite the motorized pan/tilt
Automatic object tracking — pan/tilt must be aimed manually or by preset, it does not follow moving subjects on its own
Wide dynamic range scenes — WDR is not supported, so very high-contrast backlit scenes may lose shadow or highlight detail

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 3MP, 1/2.8" CMOS sensor

2304*1296@15fps in the main stream

Support 4G access to the network

Ultra 265, H.265

Built-in Mic & Speaker, support two-way audio, offer better interaction

Smart IR, up to 30 m (98 ft) IR and 30m (98 ft) warm light distance, suitable for more scenes

Supports 512 GB Micro SD card

IP66 ingress protection

The front face is made of grapheme, which has better heat dissipation and more environmental protection

Support standard and polor night scene modes

Dual Light: two ways to see the night

Automatic switching between infrared and warm light based on ambient light.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording.

WARM LIGHT MODE

Visible warm light — full-color footage and active deterrence

Warm light up to 30 m (98.4 ft.) keeps faces and clothing colors visible at night — and tells visitors and intruders the area is watched.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

62.1 m203.6 ft

Observewhat is happening

24.8 m81.5 ft

Recognizesomeone you know

12.4 m40.7 ft

Identifya stranger's face

6.2 m20.4 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	87.5°
5 m16 ft	9.6 m31.4 ft
10 m33 ft	19.1 m62.8 ft
15 m49 ft	28.7 m94.2 ft
20 m66 ft	38.3 m126 ft
30 m98 ft	57.4 m188 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	3 MP
Sensor	1/2.8" CMOS
Min. Illumination	Colour: 0.001 Lux (F1.0, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
S/N	> 52 dB
WDR	N/A

Lens

Focal Length	4.0 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	87.5°
Field of View (V)	46.3°
Field of View (D)	92.4°
Lens Type	Fixed

DORI

DORI Distance (Lens)	4.0 mm
DORI Distance (Detect)	62.1 m (203.6 ft.)
DORI Distance (Observe)	24.8 m (81.5 ft.)
DORI Distance (Recognize)	12.4 m (40.7 ft.)
DORI Distance (Identify)	6.2 m (20.4 ft.)

Illuminator

Supplemental Light	Dual light
Illumination Distance (IR)	30 m (98.4 ft.)
Illumination Distance (Warm Light)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto

Video

Video Compression	Ultra 265, H.265
Frame Rate	Main Stream: 3MP (2304×1296), Max. 15 fps; 720P (1280×720), Max. 15 fps; D1 (720×576), Max. 15 fps
Video Bit Rate	256 Kbps to 1024 Kbps
U-code	Support
OSD	Up to 1 OSD
ROI	N/A
Video Stream	Single stream


White Balance	Auto
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal
Dewarping	N/A
HLC	N/A
BLC	N/A

Events

Basic Detection	Ultra motion detection
General Function	RTSP authentication, User authentication, HTTP authentication

Intelligent

Auto Tracking

N/A

Audio

Audio Compression	G.711U
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

4G Network Frequency	LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41
4G Network Standard	LTE-FDD, LTE-TDD
4G Card Type	Nano-SIM
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, HTTP, SSL/TLS
Compatible Integration	API
Client	APP, Uniarch client

PTZ

Pan Range	0° to 345°
Pan Speed	1°/s to 40°/s (Preset speed: 40°/s)
Tilt Range	0° to 90°
Tilt Speed	1°/s to 30°/s (Preset speed: 30°/s)
Number of Presets	N/A

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet (for testing purposes only, cable connection is not available)

Certification

EMC	CE EMC (EN 50130-4, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection	IP66 (IEC 60529)

Solar Panel

Output Voltage	5 V
Output Current	1 A
Output Power	5 W

Structure / Environment

Battery Capacity

10 Ah

General

Power	DC 12 V±25%
Power Consumption	Max. 4.0 W (AOV mode: 100 mW)
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Φ118 mm × 170 mm × 263 mm (Φ4.6" × 6.7" × 10.4")
Weight	1.06 kg (2.33 lb.)
Working Environment	0 °C to 50 °C (32 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	0 °C to 50 °C (32 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
LED Indicator	1, green

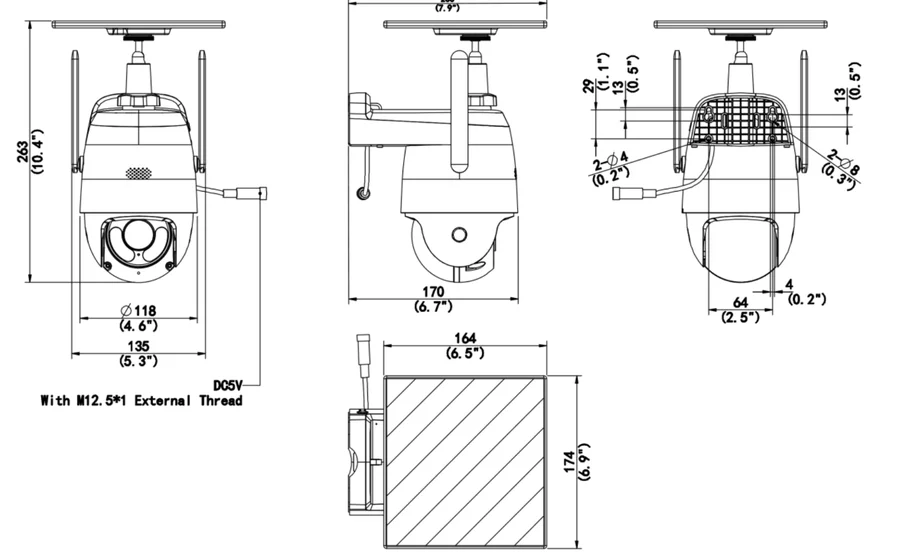

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Φ118 mm × 170 mm × 263 mm (Φ4.6" × 6.7" × 10.4")
Weight	1.06 kg (2.33 lb.)
Pan / Tilt range	Pan 0° to 345° · Tilt 0° to 90°
Solar input connector	DC5V, M12.5×1 external thread

3MP Solar 4G Camera FAQ — Uho-P2G-M3F4D-AS

Does the Uho-P2G-M3F4D-AS work with no electricity and no internet on site?

Yes. A 5W solar panel keeps the 10Ah battery charged, and video travels over the 4G cellular network — no power line, no network cable, no Wi-Fi router. That makes it a practical solar 4G camera for farms, construction sites, remote gates and unpowered plots.

Do I need a SIM card, and how much mobile data does it use?

Yes, you insert a local 4G data SIM. The camera sends a single 3MP (2304×1296) stream at up to 15 fps, with bit rate capped between 256 Kbps and 1024 Kbps, and Ultra 265/H.265 compression keeps monthly data low when you mainly view motion events.

How is the night vision on this model?

It uses dual lights: invisible 850 nm infrared up to 30 m (98.4 ft) for discreet black-and-white night video, plus a visible warm light also reaching 30 m for full-color footage that shows the area is watched. An IR-cut filter switches day/night automatically.

How long does the battery last without sun?

The built-in battery is 10Ah, recharged by the 5W solar panel. Real autonomy depends on how often Ultra motion detection wakes the camera and how long the pan-tilt and 30 m lights run each night — tell us your site and season and we can help size it.

What is the difference between the AS, EU and LA versions?

The camera ships as three regional variants — Uho-P2G-M3F4D-AS, -EU and -LA — with identical 3MP image specs, dual 30 m lights, 10Ah battery and IP66 body. Order the suffix sold for your market: tell us your country and mobile carrier and we confirm the right one.

Can I talk to someone at the gate through the camera?

Yes, two-way audio is supported with G.711U compression at 64 Kbps and 8 kHz sampling — enough for a clear voice challenge at a gate or yard. The motorized pan-tilt lets you look around the site remotely, and Ultra motion detection flags activity for review.
