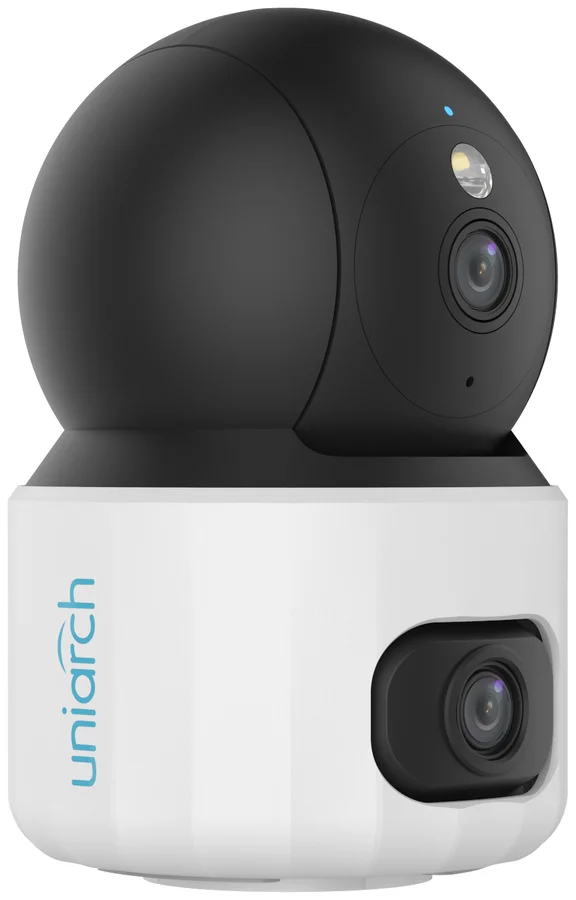

3MP+3MP Indoor Dual-lens Pan-Tilt Wi-Fi Camera Uho-S3S-M33F36D — view 2

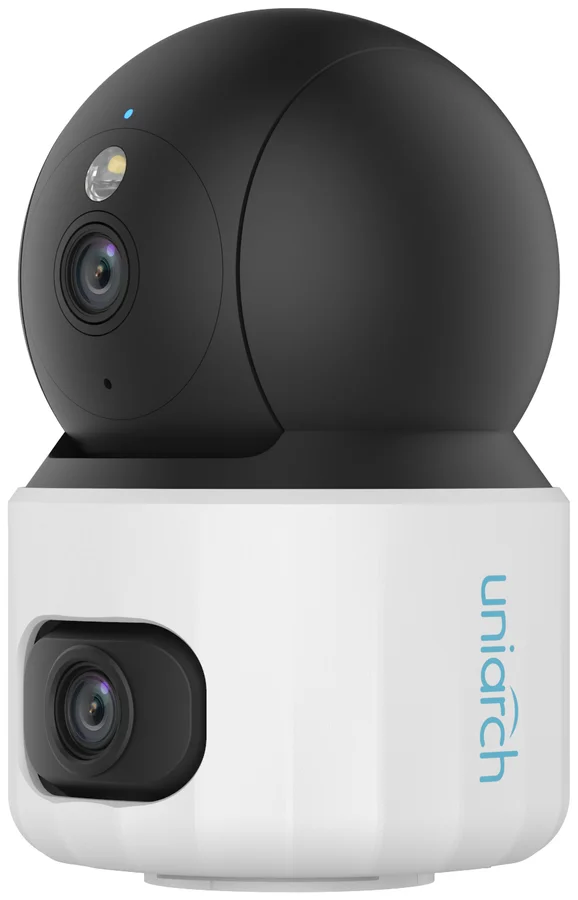

3MP+3MP Indoor Dual-lens Pan-Tilt Wi-Fi Camera Uho-S3S-M33F36D — view 3

UniarchIndoor Dual-lens PT Wi-Fi

3MP+3MP Indoor Dual-lens PT

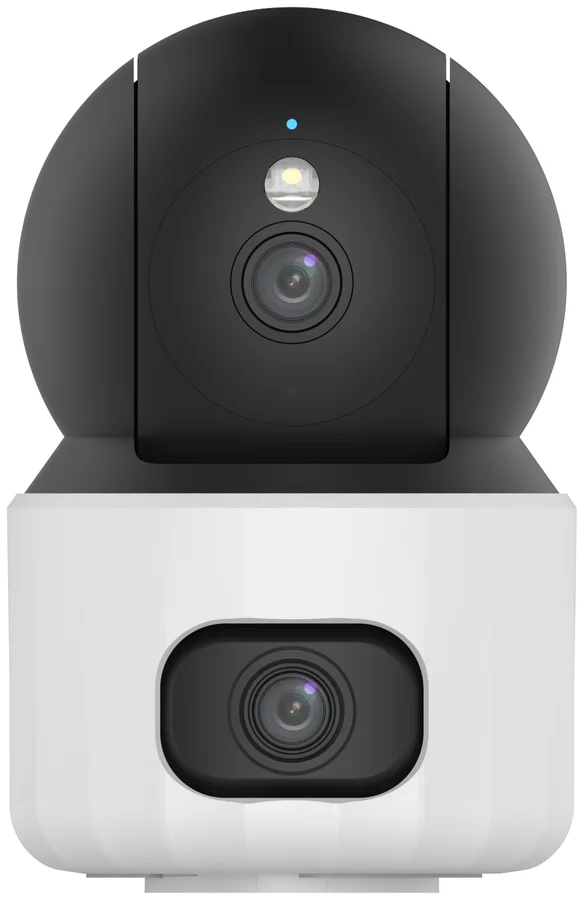

Uho-S3S-M33F36D

Name: Uniarch Uho-S3S-M33F36D
Brand: Uniarch

Indoor Wi-Fi pan-tilt camera with two lenses sharing one IP address: a fixed 2.8mm 3MP Panorama lens (109.2° view) covers the whole room, while a motorized 6.0mm 3MP Detail lens pans 355°, tilts -15°~90° and digitally zooms 4X for a longer, narrower reach.

3MP+3MP · Panorama + Detail resolutionDual-lens · one body, one IP addressPT · 355° pan · -15°~90° tiltHuman/Vehicle/Pet · ultra motion detectionDual-light · IR + warm light, 10mTwo-way Audio · mic + speaker

TWO LENSES, ONE IP ADDRESS

Panorama2.8mm · 109.2° fixed wide view

Detail6.0mm · 355° pan · 4X zoom, motorized

Both lenses run through the same network cable or Wi-Fi link and the same power supply — no second camera, no second IP to manage. View them side by side in a split screen, or switch to Detail alone to zoom in on what Panorama just spotted.

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEE

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

2-in-1Panorama + Detail, one IP

355°Detail lens pan range

10 mIR + warm-light distance

Wi-Fi2.4GHz, no cable needed

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Living rooms & nurseriesPanorama keeps the whole room in view all the time; when something needs a closer look — is the baby's face clear, is the stove really off — swing Detail over and zoom 4X without ever losing the wide shot.

Small shops & reception countersPanorama covers the whole counter and doorway; Detail pans over to follow one specific customer or zoom in on the register, all from a single camera and a single app.

Pet ownersPet detection tells a cat or dog apart from a person, and warm-light night vision shows their real colors after dark instead of black-and-white IR.

Fewer false phone alertsUltra motion detection classifies human, vehicle and pet separately, and crying detection flags a baby's cry specifically — so notifications point to what actually matters.

Local backup you controlMicroSD edge storage up to 512GB keeps footage from both lenses on the camera itself — no monthly cloud subscription required to have a recording.

Quick DIY installsNo electrician or cable-puller needed — set it on a shelf or mount it, plug in the USB-C power, and connect to Wi-Fi from the app in a few minutes.

Not the right pick if you need…

Outdoor use — this is an indoor camera with no IP-rated body, working range is -10°C to 50°C
Continuous 360° rotation — the Detail lens pans up to 355° (not a full circle) and the Panorama lens does not move at all, it is fixed
True optical zoom — Detail's 4X zoom is digital, not optical; Panorama has no zoom at all
ONVIF or third-party NVR integration — this camera's integration path is its own API/SDK and the Uniarch app/client, not a listed ONVIF profile
PoE power — there is no PoE port, power comes only from the included USB-C DC 5V/1.5A supply

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

This camera has two channels on one IP. Two-color rows below give a separate value per lens; single-color rows are one shared value for the whole camera, exactly as published in the manufacturer's own specification table:PanoramaDetail

Camera

Sensor	1/2.8" CMOS
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
S/N	> 52 dB
WDR	DWDR

Lens

	Panorama	Detail
Digital Zoom	N/A	4X
Iris	F2.0
Field of View (H)	109.2°	55.1°
Field of View (V)	57.9°	29.3°
Field of View (D)	117.8°	62.6°
Lens Type	Fixed

DORI

	Panorama	Detail
DORI Distance (Lens)	2.8 mm	6.0 mm
DORI Distance (Detect)	51.4 m (168.7 ft.)	110.2 m (361.6 ft.)
DORI Distance (Observe)	20.6 m (67.5 ft.)	44.1 m (144.6 ft.)
DORI Distance (Recognize)	10.3 m (33.7 ft.)	22.0 m (72.3 ft.)
DORI Distance (Identify)	5.1 m (16.9 ft.)	11.0 m (36.2 ft.)

Illuminator

	Panorama	Detail
Light On/Off Control	Auto/Manual
Illumination Distance (IR)	10 m (32.8 ft.)
Illumination Distance (Warm Light)	N/A	10 m (32.8 ft.)
Wavelength	850 nm

Video

Video Compression	Ultra 265, H.265, H.264
Frame Rate (Main Stream)	3MP (2304×1296), max. 15 fps; 2MP (1920×1080), max. 15 fps; 720P (1280×720), max. 15 fps
Frame Rate (Sub Stream)	640×360, max. 15 fps; 2CIF (704×288), max. 15 fps; CIF (352×288), max. 15 fps
Video Bit Rate	128 Kbps to 2048 Kbps
ROI	Up to 8 areas
OSD	Up to 4 OSDs
Privacy Mask	Support (only NVR)
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	N/A
BLC	N/A
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection (human/vehicle/pet), Loud sound detection, Crying detection, Tampering alarm
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration	API
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless Standards	IEEE802.11b/g/n/ax
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20/40 MHz Support
Modulation Mode	802.11b: CCK; 802.11g/n: OFDM; 802.11ax: OFDMA
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 16±1.5 dBm@54 Mbps; 802.11n: 16±1.5 dBm@MCS7; 802.11ax: 16±1.5 dBm@MCS9
Receive Sensitivity	802.11b: -76 dBm@11 Mbps (Typical); 802.11g: -65 dBm@54 Mbps (Typical); 802.11n: -61 dBm@MCS7, HT40 (Typical); 802.11ax: -54 dBm@MCS9, HE40 (Typical)
Transmission Rate	802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps; 802.11ax: up to 270 Mbps

PTZ

	Panorama	Detail
Pan Range	N/A	0° ~ 355°
Pan Speed	N/A	17°/s ~ 50°/s (Preset speed: 50°/s)
Tilt Range	0° ~ 15°	-15° ~ 90°
Tilt Speed	N/A	17°/s ~ 50°/s
Number of Presets	20

Interface

Built-in Mic	Support
Built-in Speaker	Support
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

Power	DC 5V/1.5A, USB Type-C interface

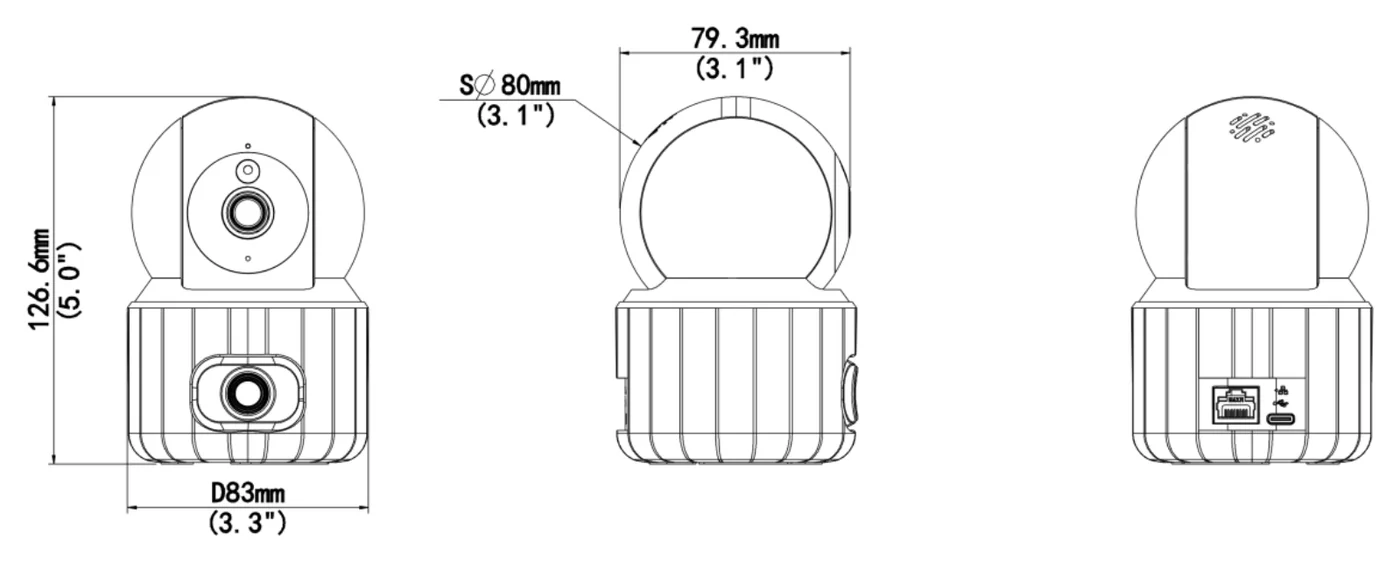

Dimensions	Ø83 × 126.6 mm (Ø3.3" × 5.0") (D × H)
Working Environment	-10 °C to 50 °C (14 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-10 °C to 50 °C (14 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	N/A
Reset Button	Support
LED Indicator	1, red/blue

Dual-Lens Wi-Fi Camera FAQ — Uho-S3S-M33F36D

What is the lens setup on the Uho-S3S-M33F36D?

A fixed 2.8 mm 3MP Panorama lens gives a 109.2° wide view of the whole room, while a motorized 6.0 mm 3MP Detail lens pans 355° with 4X digital zoom to get closer to what matters. Both share one IP address and one mounting point.

Which Wi-Fi network does it connect to?

It uses 2.4 GHz Wi-Fi (IEEE 802.11b/g/n/ax) with a built-in antenna. 2.4 GHz carries further through walls than 5 GHz, which suits homes and shops where the router sits in another room. Make sure your router broadcasts a 2.4 GHz SSID before installing.

How far can it see with the wide lens?

DORI figures for the 2.8 mm panorama lens: detect 51.4 m, observe 20.6 m, recognize 10.3 m, identify 5.1 m. That covers a living room, small shop or office comfortably; for a tighter look at distance, the 6.0 mm Detail lens takes over.

Does night vision show color?

You choose per scene: 850 nm IR on the Detail lens lights up to 10 m in discreet black-and-white, or warm light up to 10 m keeps the picture in full color after dark. Control is auto or manual, so switch to IR-only when nothing should be visible.

What alerts can it send?

Detection covers motion, Ultra motion detection with human/vehicle/pet classification, loud sound detection, crying detection and a tampering alarm. Classification filters alerts so a passing pet or a moving curtain does not trigger the same response as a person entering the room.

How does it record and how much data does it use?

Main stream is 3MP (2304×1296) at up to 15 fps, bit rate 128–2048 Kbps with Ultra 265/H.265/H.264 compression — manageable on a modest connection. Storage is a MicroSD card up to 512 GB in the camera, plus ANR to backfill network storage after a dropout.
