IP Cameras › Uho-S3S-M55D

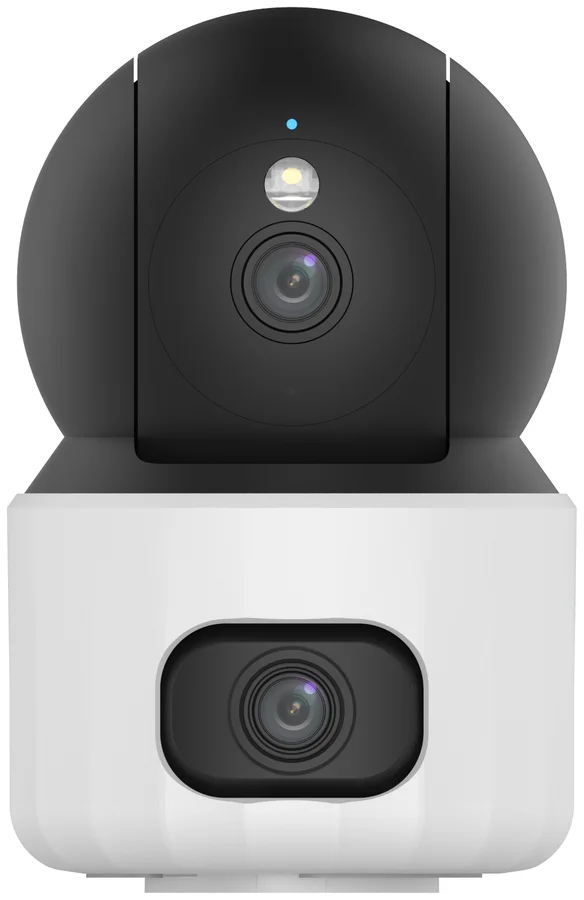

5MP+5MP Indoor Dual-lens Pan-Tilt Wi-Fi Camera Uho-S3S-M55D — view 1

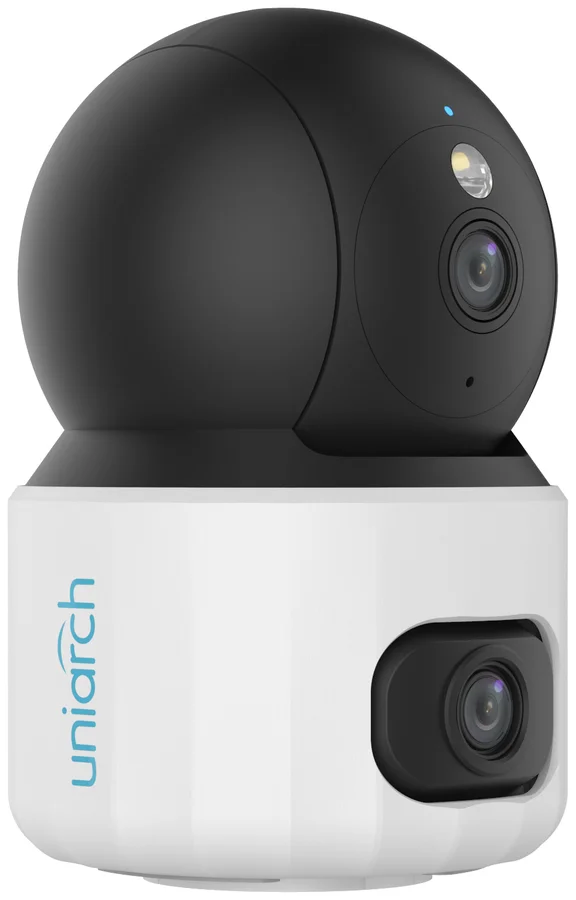

5MP+5MP Indoor Dual-lens Pan-Tilt Wi-Fi Camera Uho-S3S-M55D — view 2

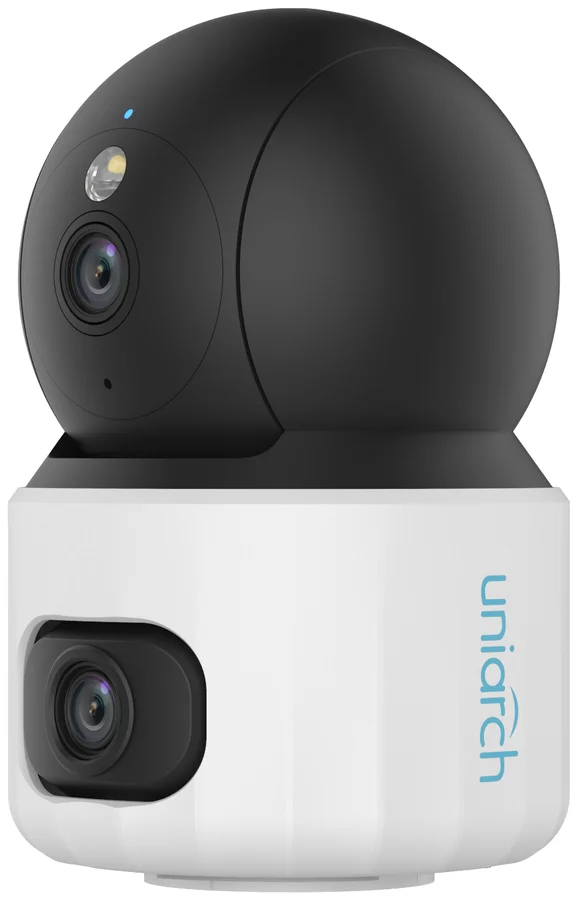

5MP+5MP Indoor Dual-lens Pan-Tilt Wi-Fi Camera Uho-S3S-M55D — view 3

UniarchIndoor Dual-lens PT Wi-Fi

5MP+5MP Indoor Dual-lens PT

Uho-S3S-M55D

Name: Uniarch Uho-S3S-M55D
Brand: Uniarch
SKU: Uho-S3S-M55D

Indoor Wi-Fi pan-tilt camera with two lenses sharing one IP address: a fixed 5MP Panorama lens covers the whole room, while a motorized 5MP Detail lens pans 355°, tilts -15°~90° and digitally zooms 4X onto anything that matters.

5MP+5MP · Panorama + Detail resolutionDual-lens · one body, one IP addressPT · 355° pan · -15°~90° tiltHuman/Vehicle/Pet · ultra motion detectionDual-light · IR + warm light, 10mTwo-way Audio · mic + speaker

TWO LENSES, ONE IP ADDRESS

Panorama79.0° fixed wide view

Detail355° pan · 4X zoom, motorized

Both lenses run through the same network cable or Wi-Fi link and the same power supply — no second camera, no second IP to manage. View them side by side in a split screen, or switch to Detail alone to zoom in on what Panorama just spotted.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEE

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

2-in-1Panorama + Detail, one IP

355°Detail lens pan range

10 mIR + warm-light distance

Wi-Fi2.4GHz, no cable needed

The Uniarch Uho-S3S-M55D puts two independent 5MP lenses on one indoor Wi-Fi camera body, sharing a single IP address and a single USB-C power connection. The fixed Panorama lens (79.0° view) keeps the whole room in frame at all times, while the motorized Detail lens (355° pan, -15°~90° tilt, 4X digital zoom) moves in to check on a person, pet or object without ever losing the wide view. It adds human/vehicle/pet classification, crying detection, two-way audio, IR + warm-light night vision to 10m and MicroSD storage up to 512GB, powered by USB-C (DC 5V/1.5A) with either 2.4GHz Wi-Fi or a wired Ethernet port for the network connection.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Living rooms & nurseriesPanorama keeps the whole room in view all the time; when something needs a closer look — is the baby's face clear, is the stove really off — swing Detail over and zoom 4X without ever losing the wide shot.

Small shops & reception countersPanorama covers the whole counter and doorway; Detail pans over to follow one specific customer or zoom in on the register, all from a single camera and a single app.

Pet ownersPet detection tells a cat or dog apart from a person, and warm-light night vision shows their real colors after dark instead of black-and-white IR.

Fewer false phone alertsUltra motion detection classifies human, vehicle and pet separately, and crying detection flags a baby's cry specifically — so notifications point to what actually matters.

Local backup you controlMicroSD edge storage up to 512GB keeps footage from both lenses on the camera itself — no monthly cloud subscription required to have a recording.

Quick DIY installsNo electrician or cable-puller needed — set it on a shelf or mount it, plug in the USB-C power, and connect to Wi-Fi from the app in a few minutes.

Not the right pick if you need…

Outdoor use — this is an indoor camera with no IP-rated body, working range is -10°C to 50°C
Continuous 360° rotation — the Detail lens pans up to 355° (not a full circle) and the Panorama lens does not move at all, it is fixed
True optical zoom — Detail's 4X zoom is digital, not optical; Panorama has no zoom at all
ONVIF or third-party NVR integration — this camera's integration path is its own API/SDK and the Uniarch app/client, not a listed ONVIF profile
PoE power — there is no PoE port, power comes only from the included USB-C DC 5V/1.5A supply

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Fixed camera and PT camera integration, dual channels with one IP, look at overall situation and consider details at the same time

Ultra 265, H.265, H.264

Support digital WDR (Wide Dynamic Range)

Built-in Mic & Speaker, support two-way audio, offer better interaction

Support sound and light warning, makes warning and alarming more noticeable

Smart IR, up to 10m (33ft) IR and 10m (33ft) warm light distance, suitable for more scenes

IR & warm light illumination to deal with different scenes and achieve full-color illumination

Supports 512 GB Micro SD card

Wi-Fi connection and easy installation

Night vision: infrared + warm light

Both illuminators live on the Detail lens — switch Auto/Manual per site. The fixed Panorama lens has no illuminator of its own.

IR MODE

Invisible infrared — discreet black & white night vision

IR illumination up to 10 m (32.8 ft.) at 850nm on the Detail lens. The camera watches without lighting up the room — nothing shows it is recording.

WARM LIGHT MODE

Full-color night vision with warm light

Warm-light illumination up to 10 m (32.8 ft.) on the Detail lens keeps video in full color after dark. Switch back to IR-only whenever discretion matters more than color.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Uniview's own datasheet publishes DORI distances only for the motorized Detail lens (4.0mm) — the fixed Panorama lens does not have a separately rated DORI figure in the manufacturer's specification table.

Detectsomething is there

90 m295.3 ft

Observewhat is happening

36 m118.1 ft

Recognizesomeone you know

18 m59.1 ft

Identifya stranger's face

9 m29.5 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	79.0°
5 m16 ft	8.2 m27.0 ft
10 m33 ft	16.5 m54.1 ft
15 m49 ft	24.7 m81.1 ft
20 m66 ft	33.0 m108 ft
30 m98 ft	49.5 m162 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

This camera has two channels on one IP. Two-color rows below give a separate value per lens; single-color rows are one shared value for the whole camera, exactly as published in the manufacturer's own specification table:PanoramaDetail

Camera

Sensor	1/3.0" CMOS
Min. Illumination	Colour: 0.01 lux (F2.0, AGC ON); 0 lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	DWDR
S/N	> 52 dB

Lens

	Panorama	Detail
Lens Type	Fixed
Digital Zoom	N/A	4X
Iris	F2.0
Field of View (H)	79.0°
Field of View (V)	42.3°
Field of View (D)	85.1°

DORI

DORI Distance (Lens)	4.0 mm
DORI Distance (Detect)	90.0 m (295.3 ft.)
DORI Distance (Observe)	36.0 m (118.1 ft.)
DORI Distance (Recognize)	18.0 m (59.1 ft.)
DORI Distance (Identify)	9.0 m (29.5 ft.)

Illuminator

	Panorama	Detail
Illumination Distance (IR)	10 m (32.8 ft.)
Illumination Distance (Warm Light)	N/A	10 m (32.8 ft.)
Wavelength	850 nm
Light On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
Frame Rate (Main Stream)	5MP (2880×1620), max. 15 fps; 4MP (2560×1440), max. 15 fps; 3MP (2304×1296), max. 15 fps; 2MP (1920×1080), max. 15 fps
Frame Rate (Sub Stream)	720P (1280×720), max. 15 fps; D1 (720×576), max. 15 fps; 640×360, max. 15 fps
Video Bit Rate	128 Kbps to 2048 Kbps
ROI	Up to 4 areas
Video Stream	Dual streams
OSD	Up to 4 OSDs
Privacy Mask	Support (only NVR)


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	N/A
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection (human/vehicle/pet), Loud sound detection, Crying detection, Tampering alarm
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration	API
Client	Uniarch client, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless Standards	IEEE802.11b/g/n/ax
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20/40 MHz Support
Modulation Mode	802.11b: CCK; 802.11g/n: OFDM; 802.11ax: OFDMA
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 16±1.5 dBm@54 Mbps; 802.11n: 16±1.5 dBm@MCS7; 802.11ax: 16±1.5 dBm@MCS9
Receive Sensitivity	802.11b: -76 dBm@11 Mbps (Typical); 802.11g: -65 dBm@54 Mbps (Typical); 802.11n: -61 dBm@MCS7, HT40 (Typical); 802.11ax: -54 dBm@MCS9, HE40 (Typical)
Transmission Rate	802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps; 802.11ax: up to 270 Mbps

PTZ

	Panorama	Detail
Pan Range	N/A	0° ~ 355°
Pan Speed	N/A	17°/s ~ 50°/s (Preset speed: 50°/s)
Tilt Range	0° ~ 15°	-15° ~ 90°
Tilt Speed	N/A	17°/s ~ 50°/s
Number of Presets	20

Interface

Built-in Mic	Support
Built-in Speaker	Support
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

Power	DC 5V/1.5A, USB Type-C interface
Dimensions	Ø83 × 126.6 mm (Ø3.3" × 5.0") (D × H)
Weight	0.22 kg (0.49 lb.)
Working Environment	-10 °C to 50 °C (14 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-10 °C to 50 °C (14 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	N/A
Reset Button	Support
LED Indicator	1, red/blue

Dimensions

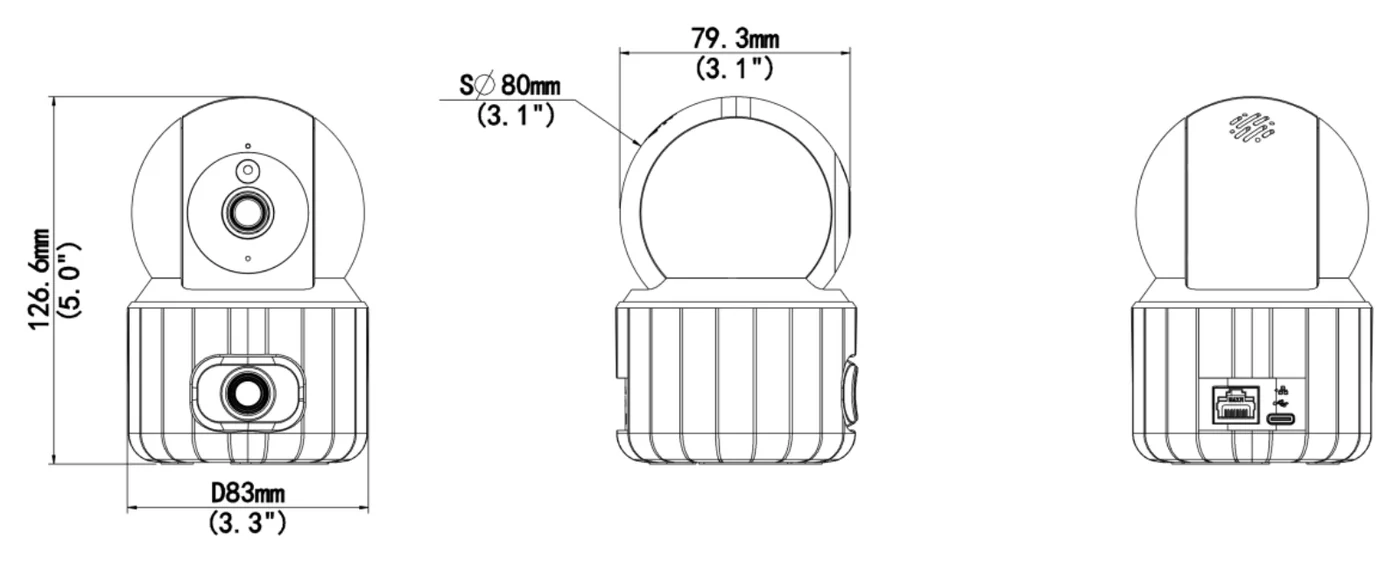

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø83 × 126.6 mm (Ø3.3" × 5.0")
Weight	0.22 kg (0.49 lb.)

5MP Dual-Lens Wi-Fi Camera FAQ — Uho-S3S-M55D

What do the two 5MP lenses on the Uho-S3S-M55D do?

The fixed 5MP Panorama lens keeps the whole room in view permanently, while the motorized 5MP Detail lens pans 355° with 4X digital zoom to follow subjects closely. Both run on a single IP address, so you install and manage one camera instead of two.

How far can it see?

With the 4.0 mm lens the DORI distances are: detect 90 m, observe 36 m, recognize 18 m and identify 9 m. Horizontal field of view is 79°, so it suits rooms and halls where you need reach more than width.

How does it perform in low light?

Minimum illumination is 0.01 lux in colour (F2.0, AGC on) and 0 lux with IR active. The Detail lens carries 850 nm infrared up to 10 m for discreet black-and-white night vision, or warm light up to 10 m for full-color video after dark.

What recording resolution and frame rate does it deliver?

Main stream runs 5MP (2880×1620) at up to 15 fps, with 4MP, 3MP and 2MP options also at 15 fps. Compression is Ultra 265/H.265/H.264 at 128–2048 Kbps with dual streams, so a 5MP feed stays light on bandwidth.

Does it store video without an NVR?

Yes. A MicroSD card up to 512 GB records at the edge, and ANR support means footage cached on the card backfills network storage after a connection drop. Privacy mask is available when the camera is paired with an NVR.

What detection and audio features are included?

Detection: motion, Ultra motion detection (human/vehicle/pet), loud sound detection, crying detection and tampering alarm. Audio: built-in two-way audio with G.711U/G.711A at 64 Kbps, 8 kHz sampling and noise suppression, so you can listen and answer back through the camera.
