REALLYSelf-Emissive · Flexible 55″

OLED Display Unit · 55″ · M×N Splicing

OLED Display · RLCD-550P01

Name: REALLY OLED Display Unit (RLCD-550P01)
Brand: REALLY

A 55″ self-emissive OLED unit that bends — concave or convex, portrait or landscape — and tiles M×N into curved walls. For spaces where the display is part of the architecture, not a rectangle on it.

150000:1 · contrast, true blackR1000 mm · max bend, concave/convex120 Hz · refresh rate10 bit · 1.07B colorsM×N · tiled walls, DP loop-through

SINGLE MODEL — 55″ FLEXIBLE OLED UNIT

One model covers this line; walls are built by tiling units horizontally and vertically with DP loop-through. Send your wall size and curve radius on WhatsApp and we will work out the unit count and layout.

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

150000:1contrast, self-emissive

120 Hzrefresh, 8 ms response

R1000mm max curvature

20 kgper unit, sheet metal

The RLCD-550P01 is built on an imported self-emissive OLED cell: every pixel switches on and off independently, so blacks are truly black and measured contrast reaches 150000:1 with no backlight bleed. The 55″ FHD panel refreshes at 120 Hz, shows 1.07 billion colors (10-bit) and responds in 8 ms. What sets it apart is the mechanics: the flexible panel accepts concave and convex curvature in both orientations up to R1000 mm, and units tile M×N horizontally or vertically — columns, waves and ribbons are all buildable. Each unit carries DP in and DP out for loop-through plus one HDMI input, weighs 20 kg in a sheet-metal housing, and mounts on walls, ceilings or floor stands. Industrial-grade power modules support 7×24 operation beyond 30,000 hours.

Is this the right display for your project?

Plain-language guide — based only on what this product actually does.

Transit hubs & public buildingsAirports, high-speed rail and metro stations, science museums — curved feature walls that follow the building's own lines instead of fighting them.

Retail & brand spacesShopping centers, flagship and brand-image stores, exhibitions — true-black OLED image quality that reads as premium at close viewing distance.

Landmark & architectural installsColumns, waves and ribbon shapes built from tiled flexible units — landscape and portrait curvature both supported, wall, ceiling or floor-stand mounted.

Not the right pick if you need…

A bright sunlit atrium or shopfront — this panel runs 400/150 nit (center, typ.); high-ambient-light spaces belong to LED walls
A flat, budget-driven video wall — the LCD Video Wall series does that for far less per square metre

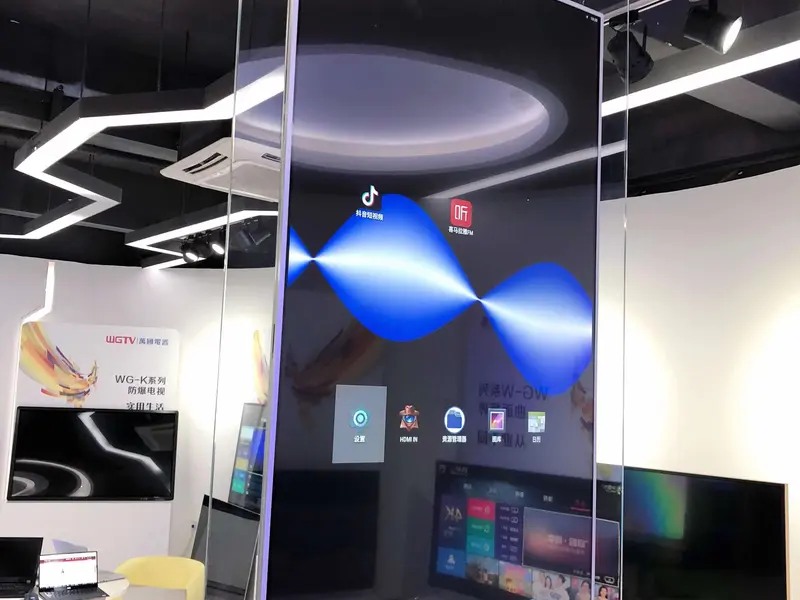

Double-sided shop-window advertising — see the Dual-Side Transparent Signage page

Worried about the source? Order under your own company name.

For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume DiscountBulk quantities of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The complete series capability list.

Self-emissive pixels switch on and off independently — pure black, no light leakage, effectively unlimited contrast

Per-pixel light control without a backlight — accurate, stable color reproduction

Ultra-wide viewing angle — the image holds up from every direction

M×N tiling, horizontal or vertical — build the wall size the space calls for

Flexible panel — concave and convex curvature in both orientations for versatile shapes

Slim, light industrial design — 20 kg per 55″ unit in a sheet-metal housing

Lower blue-light radiation and flicker-free image compared with LCD

Industrial-grade power modules — fast start-up, 7×24 operation beyond 30,000 hours

Full Specifications

Series specifications — technical values in English.

Highlighted column = the model selected above. Values are series data — confirm the final configuration with us before ordering.

Panel

	RLCD-550P01
Size	55″
Aspect ratio	16:9
Resolution	1920×1080
Refresh rate	120 Hz
Curvature	Concave / convex, vertical and horizontal, max R1000 mm
Active display area	1209.6 (H) × 680.4 (V) mm
Color	1.07B colors, 10 bit
Panel type	OLED self-emissive
Brightness	400 nit / 150 nit (center 1 point, typ.)
Contrast	150000:1
Response time	8 ms
Viewing angle	Min 60/60/60/60
Left / right bezel	3.94 mm / 3.94 mm
Top / bottom bezel	3.94 mm / 9.64 mm

Signal interfaces

	RLCD-550P01
DP input	1 channel (max 1920×1080 @ 60 Hz)
DP output (loop-through)	1 channel (max 1920×1080 @ 60 Hz)
HDMI input	1 channel (max 1920×1080 @ 60 Hz)

Power

	RLCD-550P01
Voltage range	AC 100–240 V, 50/60 Hz
Power consumption	<250 W

Environment & build

	RLCD-550P01
Operating temperature	0 °C to 50 °C
Operating humidity	10–90% RH
Storage temperature	−20 °C to 60 °C
Storage humidity	5–90% RH
Unit outer size	1217.48 × 693.94 mm (H×V)
Tiling	M×N horizontal or vertical splicing
Mounting	Wall, ceiling or floor-stand installation
Housing material	Sheet metal
Weight	20 kg
Note	Specifications, functions and appearance are subject to the actual product and may change without notice.

Engineering note: Signal runs on DP loop-through — one DP in and one DP out per unit, 1920×1080@60 Hz maximum on the loop, plus one HDMI input — so plan source routing and daisy-chain lengths early. The achievable bend radius also differs between landscape and portrait mounting: freeze the curve design with us before the enclosure or wall structure is fabricated.

Curved OLED Display FAQ — RLCD-550P01

How much can the panel actually curve?

The 55″ self-emissive OLED panel bends both concave and convex, vertically and horizontally, down to a minimum radius of R1000 mm. That lets you wrap columns, build wave ceilings or curve a wall face — the creative formats used in airports, rail stations, museums and flagship stores.

How do I tile several units into one big surface?

Units tile M×N horizontally or vertically. Each panel has one DP input and one DP loop-through output (both up to 1920×1080 at 60 Hz), so you daisy-chain from unit to unit instead of running one cable per screen. Bezels are 3.94 mm on three sides and 9.64 mm at the bottom.

What image quality does self-emissive OLED give versus LCD?

Because each pixel emits its own light, contrast reaches 150000:1 with true blacks — no backlight bleed. The panel renders 1.07 billion colors at 10-bit depth, refreshes at 120 Hz and responds in 8 ms. Brightness is 400 nit / 150 nit typical at center, suited to indoor spaces.

How is it mounted and how heavy is each unit?

Each unit weighs 20 kg in a sheet-metal housing of 1217.48×693.94 mm and installs on walls, ceilings or floor stands — the ceiling option is what enables curved overhead installations. Plan the structure per unit weight times your M×N count.

What are the power and environment requirements?

Each unit draws under 250 W from a wide-range AC 100–240 V, 50/60 Hz input, so a 2×3 wall stays under 1.5 kW. Operating range is 0–50 °C at 10–90% RH, with storage rated −20 °C to 60 °C. Besides DP, each unit also has one HDMI input up to 1080p60.
