NVR / Recorders › NVR-104S3-P4-ECO / 108S3-P8-ECO

4/8-Channel PoE Network Video Recorder NVR-104S3-P4-ECO / NVR-108S3-P8-ECO — view 1

4/8-Channel PoE Network Video Recorder NVR-104S3-P4-ECO / NVR-108S3-P8-ECO — view 2

4/8-Channel PoE Network Video Recorder NVR-104S3-P4-ECO / NVR-108S3-P8-ECO — view 3

4/8-Channel PoE Network Video Recorder NVR-104S3-P4-ECO / NVR-108S3-P8-ECO — view 4

UniarchS3-P-ECO Series · 1× SATA HDD

4/8-Channel PoE Network Video Recorder · S3-P-ECO Series

NVR-104S3-P4 / 108S3-P8-ECO

Name: Uniarch NVR-104S3-P4 / 108S3-P8-ECO
Brand: Uniarch
SKU: NVR-104S3-P4 / 108S3-P8-ECO

4 / 8-channel PoE network video recorder — built-in 4/8-port PoE switch, Ultra 265 compression, records cameras up to 6MP, works with third-party ONVIF cameras.

6MP · max recordingUltra 265 · low storage4/8× PoE · built-in, no switch needed1× SATA · up to 6 TBONVIF · S / G / T profiles21 languages · local interface

CHOOSE YOUR SIZE — TWO MODELS ON THIS PAGE

Rule of thumb: count your cameras, then match the PoE ports — the 104S3-P4-ECO powers 4 cameras straight from the recorder; pick the 108S3-P8-ECO for 8. Highlighted rows in the spec table below show every difference between the two.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

How many terabytes for your channels and days? Use the storage calculator →

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4/8Channel options

64 MbpsIncoming bandwidth

6 TBMax HDD capacity

1080pHDMI output

The Uniarch S3-P-ECO Series is a PoE network video recorder offered in two sizes: NVR-104S3-P4-ECO (4-ch, 4 built-in PoE ports) and NVR-108S3-P8-ECO (8-ch, 8 built-in PoE ports). Both record cameras up to 6MP with Ultra 265 / H.265 / H.264 compression, output simultaneously over HDMI and VGA, and accept third-party cameras via ONVIF (Profile S, G, T). One SATA bay takes a hard disk up to 6 TB; the local interface is available in 21 languages including Spanish (Latin America), Portuguese (Brazil) and French.

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Small shops & homesThe 4-ch 104S3-P4-ECO has 4 PoE ports built in — plug 4 cameras straight into the recorder, no separate PoE switch or injector needed.

Growing businessesThe 8-ch 108S3-P8-ECO steps up to 8 built-in PoE ports — more cameras powered from the same box as the site grows.

One cable per cameraPoE means a single Ethernet cable carries both power and video to each camera — no extra power adapters or wiring runs.

Remote viewing on phoneP2P protocol built in — the owner checks the shop from a phone app without a fixed IP or network skills.

Local-language interface21 GUI languages including Spanish (Latin America), Portuguese (Brazil) and French — your customer operates it in their own language.

Mixed-brand projectsONVIF Profile S/G/T means existing third-party IP cameras keep working over the general network port — no need to replace the whole site.

Not the right pick if you need…

4K HDMI output — this ECO model outputs Full HD (1920×1080) max over HDMI/VGA, and records up to 6MP per channel
A second hard disk or RAID — this series has a single SATA bay (up to 6 TB)
Gigabit uplink — the network interface is 10/100M (fine for 8 cameras at 64 Mbps total incoming bandwidth)
Alarm in/out wiring for sirens or sensors — the rear panel has no dedicated alarm terminal block
Audio input — it has a 3.5mm audio output only (camera-side mics still record)

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Support Ultra 265 / H.265 / H.264 video formats

4 / 8-channel input

Plug & Play with 4/8 independent PoE network interfaces

Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

Support 1-ch HDMI, 1-ch VGA

HDMI and VGA simultaneous output

Up to 6MP resolution recording

Support cloud upgrade

Powers your cameras. Saves your disk.

The two capabilities that decide whether an entry PoE NVR feels cheap or smart.

POE BUILT-IN

Camera power and video, one cable

4 or 8 independent PoE ports (IEEE 802.3af/at) built into the recorder — up to 30 W per port, 30 W total on the 104S3-P4-ECO or 45 W total on the 108S3-P8-ECO. No separate PoE switch or power injector to buy.

ULTRA 265

Half the storage, same image

Ultra 265 compression cuts recording size dramatically versus H.264 — on the same 6 TB disk you keep footage for weeks longer.

Which size fits your project?

Bars show camera capacity per model — that's also how many built-in PoE ports it has. Click the model buttons above to switch — the spec table highlights every other difference.

NVR-104S3-P4-ECOlive view split 1/4 · 4 PoE ports

4cameras

NVR-108S3-P8-ECOlive view split up to 9 · 8 PoE ports

8cameras

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:NVR-104S3-P4-ECO · 4-chNVR-108S3-P8-ECO · 8-ch

Decoding

Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	104S3-P4-ECO · 2×6MP@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 4×1080P@30108S3-P8-ECO · 2×6MP@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 6×1080P@30, 8×720P@30
Decoding Capability Description	The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width
Audio Compression	G.711A, G.711U

Network

Incoming Bandwidth	64 Mbps
Outgoing Bandwidth	48 Mbps
Max Users Can Be Added	32
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input

104S3-P4-ECO · 4-ch108S3-P8-ECO · 8-ch

Video/Audio Output

Video Output	Support 1-ch HDMI, 1-ch VGA, HDMI and VGA simultaneous output
HDMI Output	1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
VGA Output	1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
3.5mm Audio Output	1-ch
Liveview Display	104S3-P4-ECO · 1/4108S3-P8-ECO · 1/4/6/8/9
Corridor Mode Screen	104S3-P4-ECO · 3/4108S3-P8-ECO · 3/4/5/7/9

Recording

Recording Resolution	6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Num of Concurrent Playback	104S3-P4-ECO · 8-ch108S3-P8-ECO · 16-ch
Synchronous Playback (Local)	104S3-P4-ECO · 4-ch108S3-P8-ECO · 8-ch

Smart Features

VCA Detection by IPC	SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
VCA Search	Behavior Search
Smart by IPC	Total 4-ch (SIP and UMD supports channel 1-4, Alarm only, no image)

Alarm

General Alarm	Auto Tracking, Motion Detection, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access

Local Interface

GUI Language

21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian

Hard Disk

SATA	1 SATA Interface
Capacity	Up to 6 TB for each HDD (the maximum HDD capacity varies with environment temperature)

External Interface

Network Interface	1 × RJ45 10 M/100 M self-adaptive Ethernet
USB	Rear panel: 2 × USB 2.0
Power Supply	104S3-P4-ECO · DC 48 V / 1 A108S3-P8-ECO · DC 48 V / 1.35 A

PoE

PoE Interface	104S3-P4-ECO · 4 × RJ45 10 M/100 M self-adaptive Ethernet Interface108S3-P8-ECO · 8 × RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power	104S3-P4-ECO · Max 30 W for single port, Max 30 W in total108S3-P8-ECO · Max 30 W for single port, Max 45 W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af

General

Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 9 W
Weight (without HDD)	≤ 1 kg (2.2 lb)
Dimensions	190 mm × 195 mm × 42 mm (7.5" × 7.7" × 1.6")

Certification

Certification	CE; FCC; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

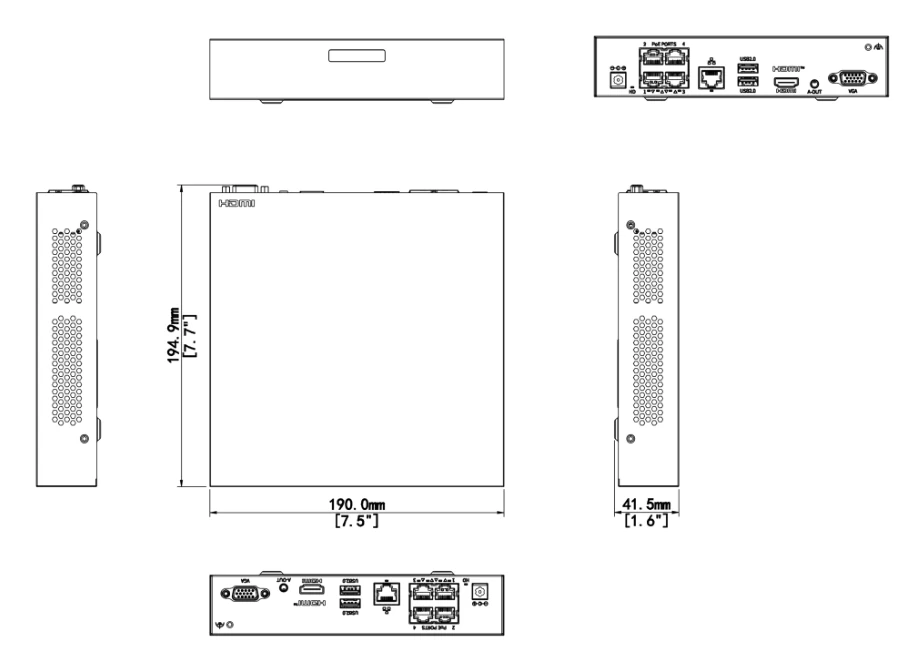

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	190 × 195 × 42 mm (7.5" × 7.7" × 1.6")
Weight (without HDD)	≤ 1 kg (2.2 lb)
Power supply	DC 48 V / 1 A (104S3-P4-ECO) · DC 48 V / 1.35 A (108S3-P8-ECO)
Consumption (without HDD)	≤ 9 W

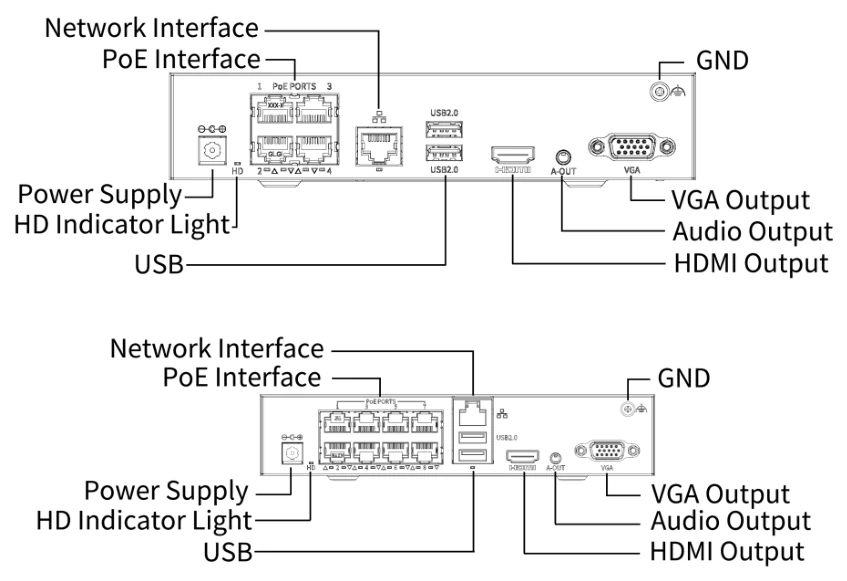

Rear panel — all interfaces (4-port model above, 8-port model below)

4/8 Channel PoE NVR FAQ — NVR-104S3-P4-ECO/108S3-P8-ECO

How much PoE power do the ECO models provide?

The 104S3-P4-ECO has 4 independent PoE ports with a 30W total budget (about 7.5W average per camera); the 108S3-P8-ECO has 8 ports with 45W total (about 5.6W average). A single port can still deliver up to 30W (IEEE 802.3af/at). Size the load to typical fixed cameras.

What resolution and how many channels does it record?

The 104S3-P4-ECO records 4 IP cameras and the 108S3-P8-ECO records 8, at up to 6MP per channel. Incoming bandwidth is 64 Mbps. Concurrent playback covers 8 channels on the 4-channel model and 16 on the 8-channel model, with synchronous local playback of 4 or 8 channels.

What hard drive can I put in and how long will it last me?

One SATA bay accepts a surveillance hard drive up to 6 TB (maximum capacity varies with ambient temperature). Ultra 265 compression cuts recording size dramatically versus H.264, so the same 6 TB disk keeps footage for weeks longer than an H.264 recorder would.

What alarms and detections does it support?

General alarms include motion detection, human body detection, audio detection, video loss and auto tracking, plus camera-side SIP rules (intrusion, cross line, enter/leave area) and Ultra Motion Detection on up to 4 channels. System alerts cover IP conflict, network disconnect, disk offline or abnormal, and illegal access.

Can I connect two monitors?

Yes — 1 HDMI and 1 VGA output work simultaneously, both up to 1920×1080 at 60 Hz, plus a 1-channel 3.5mm audio output. The 108S3-P8-ECO shows up to 9 windows in live view, with corridor mode layouts for vertical scenes such as aisles and corridors.

How do remote users connect?

Via P2P, DDNS, HTTP/HTTPS or RTSP — up to 128 remote users, with 32 local user accounts and 48 Mbps of outgoing bandwidth. Browser access works with Chrome 45+, Edge 79+, Firefox 52+ and IE10/11 via plugin, so a distributor can support clients from any office PC.
