NVR301-04S3-P4 / 08S3-P8
4 / 8-channel network video recorder with built-in PoE ports — Ultra 265 compression, 4K HDMI output, records cameras up to 8MP, no separate PoE switch needed.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
How many terabytes for your channels and days? Use the storage calculator →
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.
The Uniview NVR301-S3-P Series is a 1-HDD PoE network video recorder offered in two sizes: NVR301-04S3-P4 (4-ch, 4 built-in PoE ports) and NVR301-08S3-P8 (8-ch, 8 built-in PoE ports). Both record cameras up to 8MP with Ultra 265 / H.265 / H.264 compression and output simultaneously over 4K HDMI and VGA. One SATA bay takes a hard disk up to 10 TB; the local interface is available in 21 languages including Spanish (Latin America), Portuguese (Brazil) and French.
Is this the right recorder for you?
Plain-language guide for buyers and installers — based only on what this recorder actually does.
- A second hard disk or RAID — this series has a single SATA bay
- Gigabit uplink — the network port is 10/100M
- Alarm in/out wiring for sirens or sensors — this series has no physical alarm terminals
- Audio input — it has an RCA audio output only (camera-side mics still record)
- High-power PoE devices beyond budget — each port is capped at 30 W, and total PoE budget is 54 W (04S3-P4) or 75 W (08S3-P8)
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Saves your disk. Catches what matters.
Two real capabilities from the datasheet that matter every day: storage efficiency and smart detection.
Half the storage, same image
Ultra 265 compression cuts recording size dramatically versus H.264 — on the same 10 TB disk you keep footage for weeks longer, or record more cameras at higher resolution.
Catches intrusions, not just motion
Built-in Face Detection plus SIP smart rules (Intrusion Detection, Cross Line Detection, Enter/Leave Area) and Ultra Motion Detection on up to 4 channels — backed by Face Snapshot Search and Behavior Search to jump straight to the right clip.
Which size fits your project?
Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Decoding
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 04S3-P4 · 1×4K@30, 4×5MP@25, 4×4MP@25, 4×3MP@2508S3-P8 · 1×4K@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 6×1080P@30, 8×720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width |
| Audio Compression | G.711A, G.711U |
Network
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Video/Audio Input
| IP Video Input | 04S3-P4 · 4-ch08S3-P8 · 8-ch |
Video/Audio Output
| HDMI Output | 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
| VGA Output | 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 04S3-P4 · 1/408S3-P8 · 1/4/6/8/9 |
| Corridor Mode Screen | 04S3-P4 · 3/408S3-P8 · 3/4/5/7/9 |
| Snapshot | FTP/Schedule/Event Snapshot; 1-ch snapshot (max. D1 (720×576) video resolution, with D1 snapshot resolution) |
Recording
| Recording Resolution | 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Synchronous Playback in Local | 04S3-P4 · 4-ch08S3-P8 · 8-ch |
Smart
| VCA Detection by IPC | Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD) |
| Smart by IPC | Total 4-ch (Face Detection, SIP, UMD) |
| VCA Search | Face Snapshot Search, Behavior Search |
Alarm
| General Alarm | Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
GUI Language
| GUI Language | 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian |
Hard Disk
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size) |
External Interface
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| USB | Rear panel: 2 × USB 2.0 |
| RS485 | N/A |
| RS232 | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Power Supply | 04S3-P4 · DC 48 V / 1.35 A08S3-P8 · DC 52 V / 1.8 A |
PoE
| PoE Interface | 04S3-P4 · 4 × RJ45 10 M/100 M self-adaptive Ethernet Interface08S3-P8 · 8 × RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | 04S3-P4 · Max 30 W for single port, Max 54 W in total08S3-P8 · Max 30 W for single port, Max 75 W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
Working Environment
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 9 W |
Dimensions
| Weight (without HDD) | ≤ 1.1 kg (2.43 lb) |
| Dimensions | 260 mm × 240 mm × 46 mm (10.2" × 9.4" × 1.8") |
Certification
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |

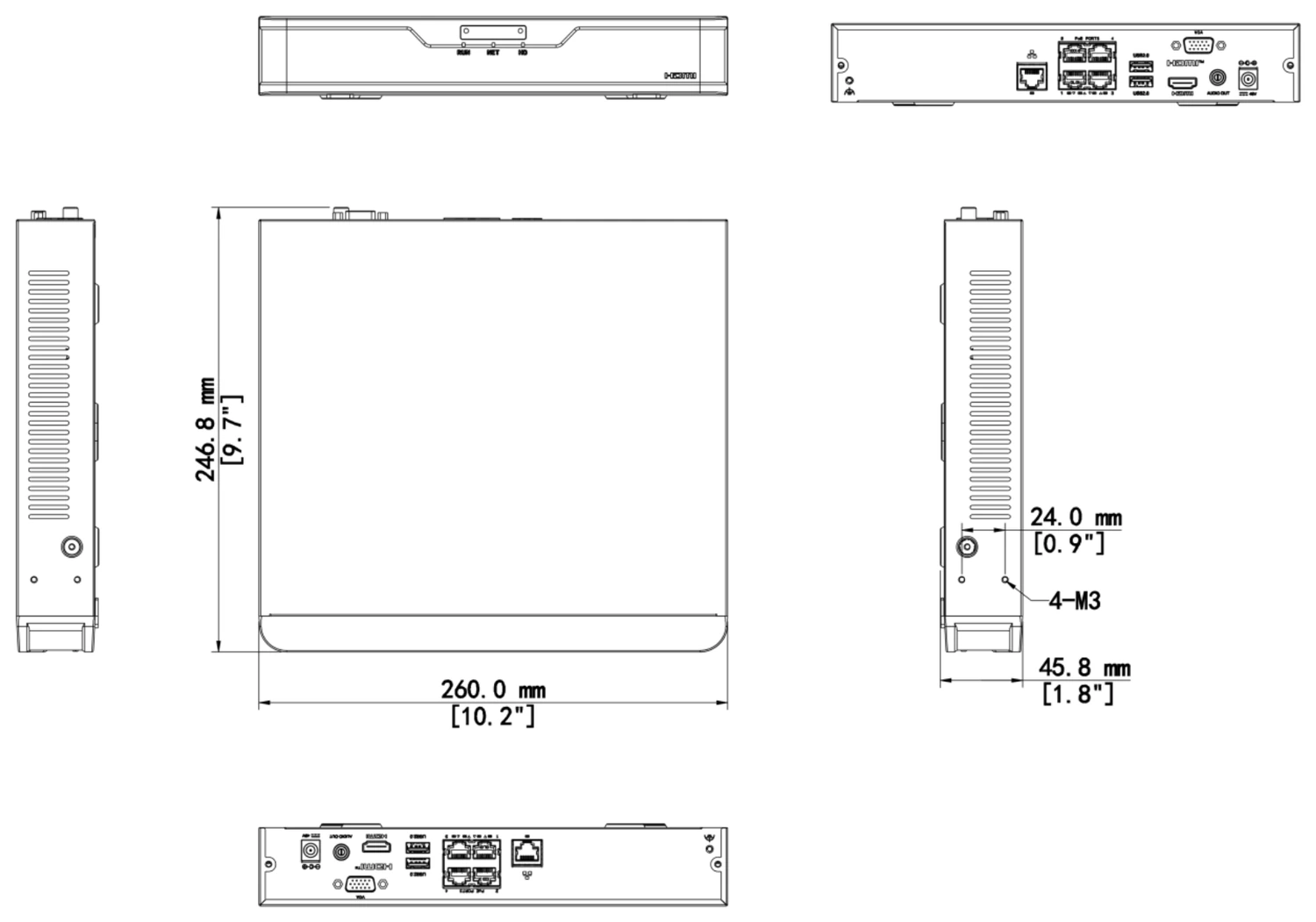

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 260 × 240 × 46 mm (10.2" × 9.4" × 1.8") |
| Weight (without HDD) | ≤ 1.1 kg (2.43 lb) |
| Power supply | DC 48 V / 1.35 A (04S3-P4) · DC 52 V / 1.8 A (08S3-P8) |
| Consumption (without HDD) | ≤ 9 W |
Optional Mounting Accessories
Order together with the camera to save shipping.
4/8-Channel PoE NVR FAQ — NVR301-S3-P Series
How many cameras can the NVR301-08S3-P8 power directly?
How many hard drives fit and what is the maximum capacity?
How much storage does Ultra 265 save compared with H.264?
What is the maximum camera resolution it records?
Can I view live video remotely?
Does it support face detection and smart search?
