NVR301-04 / 08 / 16S3
4 / 8 / 16-channel network video recorder — Ultra 265 compression, 4K HDMI output, records cameras up to 8MP, ONVIF certified for third-party IP cameras.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
How many terabytes for your channels and days? Use the storage calculator →
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

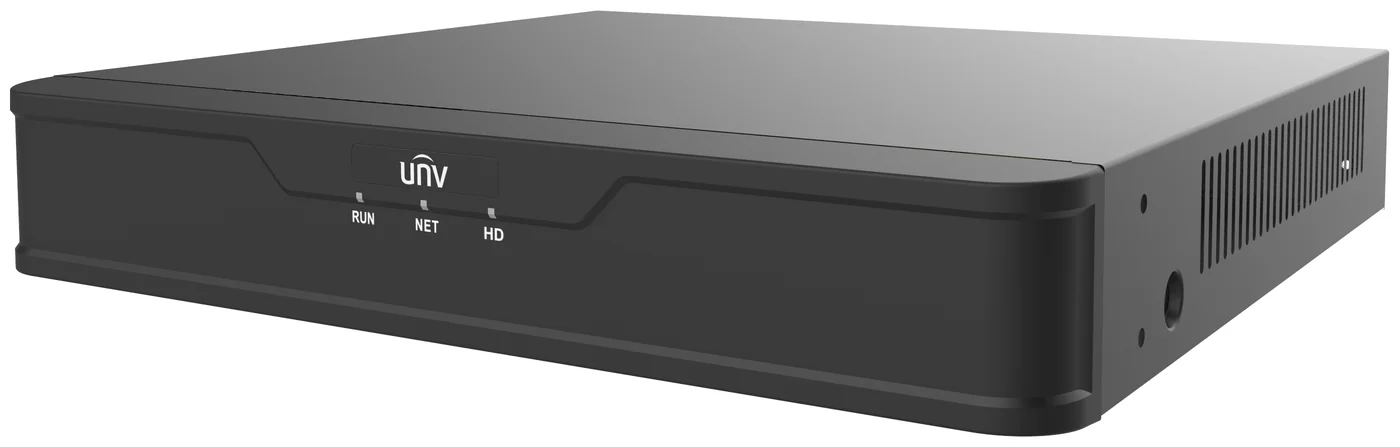

The Uniview NVR301-S3 Series is a 1-HDD network video recorder offered in three sizes: NVR301-04S3 (4-ch), NVR301-08S3 (8-ch) and NVR301-16S3 (16-ch). All three record cameras up to 8MP with Ultra 265 / H.265 / H.264 compression, output simultaneously over 4K HDMI and VGA, and carry ONVIF certification. One SATA bay takes a hard disk up to 10 TB; the local interface is available in 21 languages including Spanish (Latin America), Portuguese (Brazil) and French.
Is this the right recorder for you?
Plain-language guide for buyers and installers — based only on what this recorder actually does.
- PoE ports — cameras need a separate PoE switch (we bundle one at combo price)
- A second hard disk or RAID — this series has a single SATA bay
- Gigabit uplink — the network port is 10/100M (fine for 16 cameras at 64 Mbps total)
- Alarm in/out wiring for sirens or sensors
- Audio input — it has a 3.5mm audio output only (camera-side mics still record)
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Saves your disk. Finds the moment.
Two real capabilities from the datasheet that matter every day: storage efficiency and fast retrieval.
Half the storage, same image
Ultra 265 compression cuts recording size dramatically versus H.264 — on the same 10 TB disk you keep footage for weeks longer, or record more cameras at higher resolution.
Find the moment, not the footage
Built-in face detection on up to 4 channels feeds Face Snapshot Search and Behavior Search — the recorder indexes up to 2 million face snapshots so you jump straight to the clip you need instead of scrubbing hours of footage.
Which size fits your project?
Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Decoding
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 04S3 · 1×4K@30, 4×5MP@25, 4×4MP@25, 4×3MP@2508S3 · 1×4K@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 6×1080P@30, 8×720P@3016S3 · 1×4K@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 6×1080P@30, 8×720P@30, 16×D1@25 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width |
| Audio Compression | G.711A, G.711U |
Network
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Video/Audio Input
| IP Video Input | 04S3 · 4-ch08S3 · 8-ch16S3 · 16-ch |
Video/Audio Output
| HDMI Output | 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
| VGA Output | 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
| 3.5mm Audio Output | 1-ch |
| Liveview Display | 04S3 · 1/408S3 · 1/4/6/8/916S3 · 1/4/6/8/9/16 |
| Corridor Mode Screen | 04S3 · 3/408S3 · 3/4/5/7/916S3 · 3/4/5/7/9/10/12/16 |
| Snapshot | FTP/Schedule/Event Snapshot; 1-ch snapshot (max. D1 (720×576) video resolution, with D1 snapshot resolution) |
Recording
| Recording Resolution | 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Synchronous Playback in Local | 04S3 · 4-ch08S3 · 8-ch16S3 · 16-ch |
Smart
| Smart by IPC | Total 4-ch (Face Detection, SIP, UMD) |
| VCA Search | Face Snapshot Search, Behavior Search |
| Capacity of Snapshot Records | 2 millions records for face snapshot |
Alarm
| General Alarm | Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
GUI Language
| GUI Language | 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian |
Hard Disk
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size) |

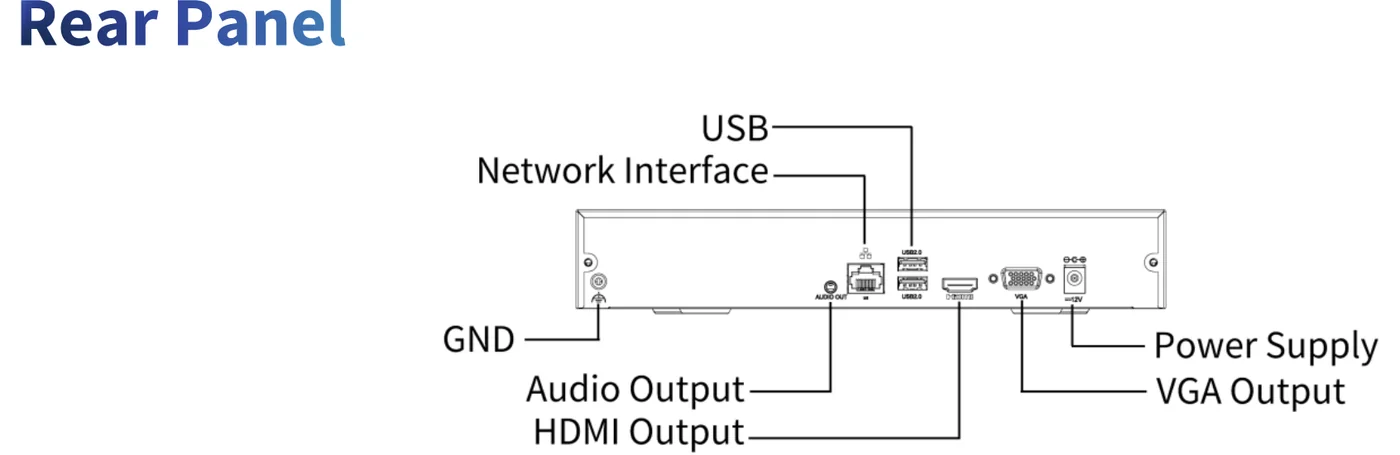

External Interface
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| USB | Rear panel: 2 × USB 2.0 |
| RS485 | N/A |
| RS232 | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Power Supply | DC 12 V / 2 A |
Working Environment
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 5 W |
Dimensions
| Weight (without HDD) | ≤ 0.98 kg (2.16 lb) |
| Dimensions | 260 mm × 240 mm × 46 mm (10.2" × 9.4" × 1.8") |
Certification
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |

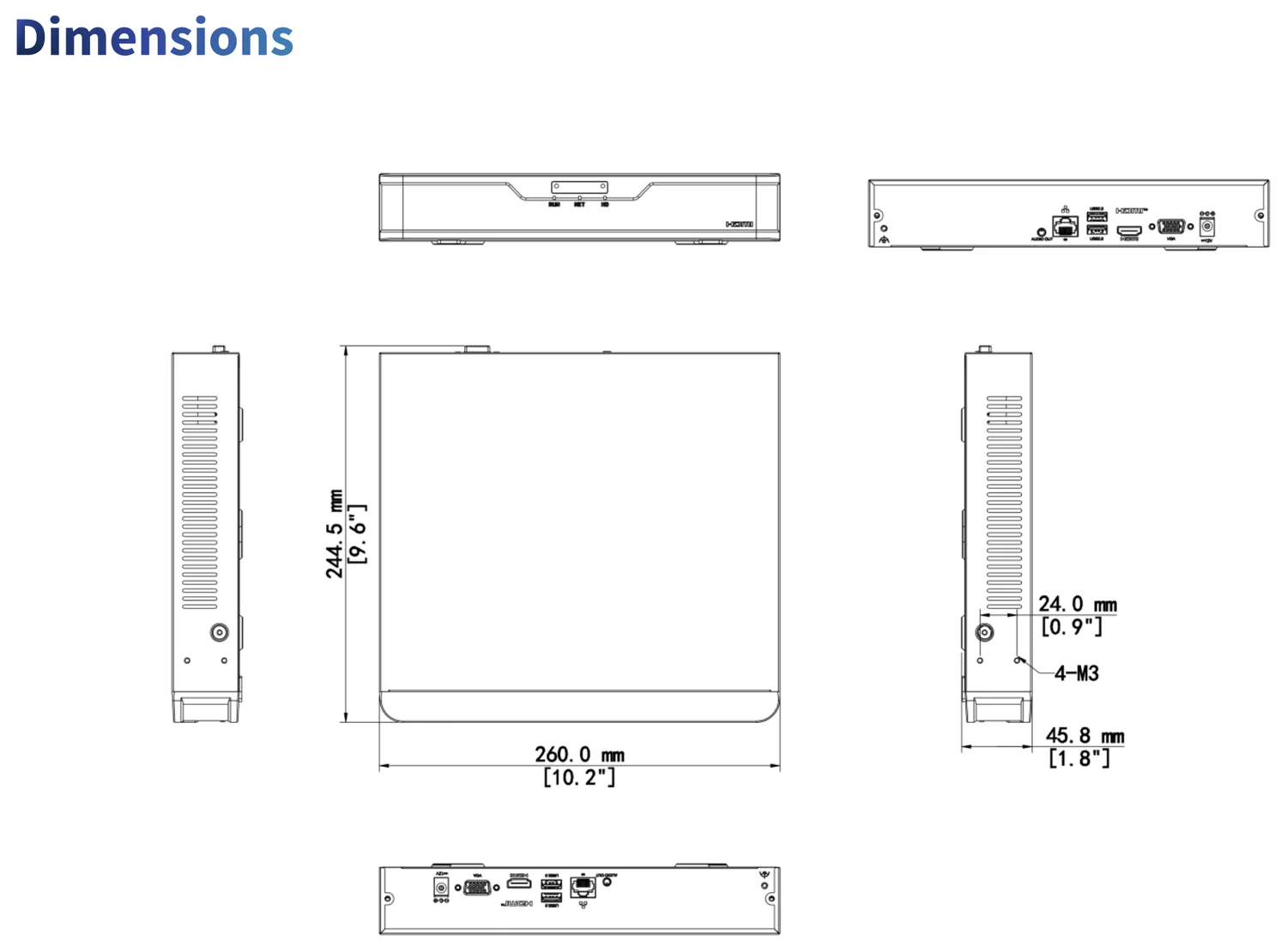

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 260 × 240 × 46 mm (10.2" × 9.4" × 1.8") |
| Weight (without HDD) | ≤ 0.98 kg (2.16 lb) |
| Power supply | DC 12 V / 2 A |
| Consumption (without HDD) | ≤ 5 W |
Optional Mounting Accessories
Order together with the camera to save shipping.
4/8/16 Channel NVR FAQ — NVR301-04S3/08S3/16S3
How many IP cameras does each model take?
Does it have PoE, and how do I power the cameras?
What is the maximum HDD size?
Can it find a person in the recordings?
Is it ONVIF certified for third-party cameras?
What outputs does it have for monitors and remote viewing?
