NVR / Recorders › NVR501-04B / 08B / 16B
Uniview NVR501-B Series

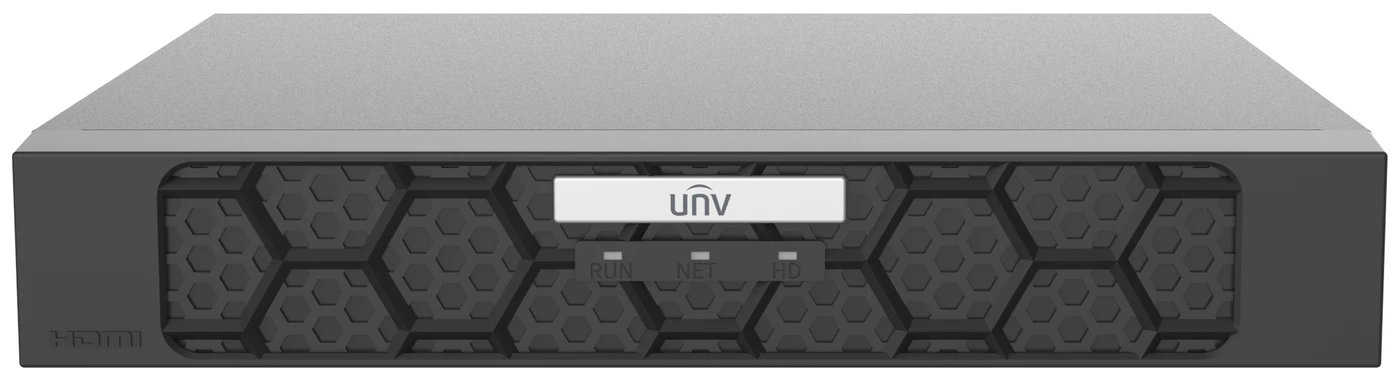

4/8/16-Channel 1-HDD Network Video Recorder NVR501-04B / NVR501-08B / NVR501-16B — view 1
4/8/16-Channel 1-HDD Network Video Recorder NVR501-04B / NVR501-08B / NVR501-16B — view 2

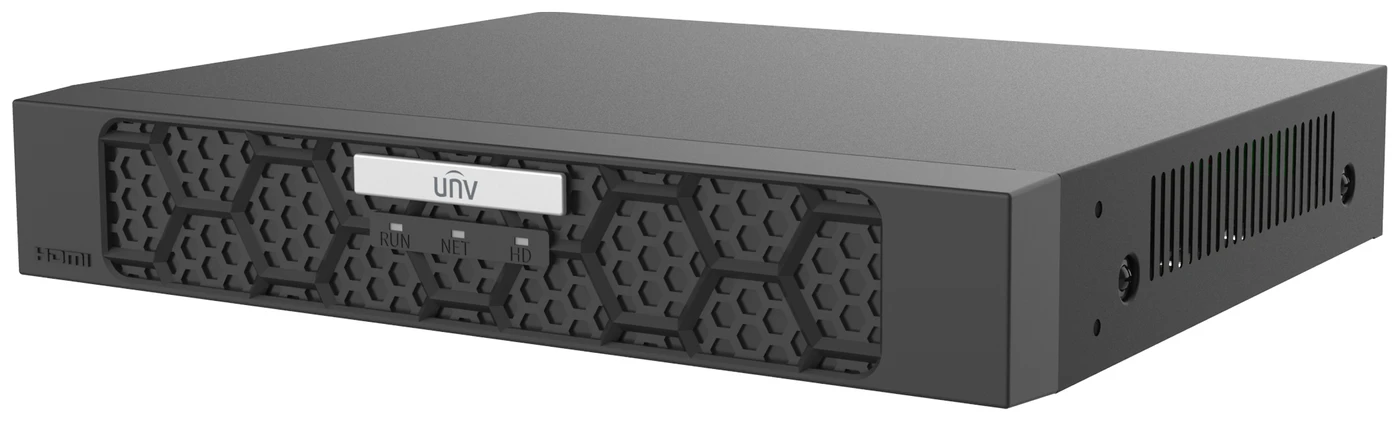

4/8/16-Channel 1-HDD Network Video Recorder NVR501-04B / NVR501-08B / NVR501-16B — view 3
4/8/16-Channel 1-HDD Network Video Recorder NVR501-04B / NVR501-08B / NVR501-16B — view 4
UniviewB Series · 1× SATA HDD
1-HDD Network Video Recorder · B Series

NVR501-04 / 08 / 16B

4 / 8 / 16-channel network video recorder — Ultra 265 compression, 4K HDMI output, records cameras up to 16MP, with built-in face detection.

16MP · max recordingUltra 265 · low storage4K HDMI · + VGA simultaneous1× SATA · up to 24 TBFace Detection · built in38 languages · local interface
CHOOSE YOUR SIZE — THREE MODELS ON THIS PAGE
Rule of thumb: count your cameras, then leave room to grow — a shop with 3 cameras runs happily on the 04B; pick the 08B or 16B if you may add cameras later. Highlighted rows in the spec table below show every difference between the three.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEONVIFNDAA
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
4/8/16Channel options
80 MbpsIncoming bandwidth
24 TBMax HDD capacity
4KHDMI output

The Uniview NVR501-B Series is a 1-HDD network video recorder offered in three sizes: NVR501-04B (4-ch), NVR501-08B (8-ch) and NVR501-16B (16-ch). All three record cameras up to 16MP with Ultra 265 / H.265 / H.264 compression, output simultaneously over 4K HDMI and VGA, and include built-in Face Detection, Intrusion Detection (SIP) and Ultra Motion Detection (UMD). One SATA bay takes a hard disk up to 24 TB; the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Small shops & homesThe 4-ch 04B plus four cameras is a complete kit — one disk, one screen, done.
Growing businessesBuy channels you don't use yet: the 08B/16B lets you add cameras later without replacing the recorder.
Remote viewing on phoneP2P protocol built in — the owner checks the shop from a phone app without a fixed IP or network skills.
AI-assisted monitoringBuilt-in Face Detection, Intrusion Detection (SIP) and Ultra Motion Detection (UMD) — 4 channels on the 04B, 8 on the 08B/16B — flag real events instead of hours of empty footage.
Fast backup via USB 3.0The rear panel pairs one USB 3.0 port with one USB 2.0 port — pulling recorded footage onto a drive is faster than on a USB 2.0-only recorder.
Keeps recording through network dropsANR technology lets the camera buffer footage locally and the NVR fills the gap once the network reconnects — fewer blind spots during outages.
Not the right pick if you need…
  • PoE ports — cameras need a separate PoE switch (we bundle one at combo price)
  • A second hard disk or RAID — this series has a single SATA bay
  • Gigabit uplink — the network port is 10/100M (fine for 16 cameras at 80 Mbps total)
  • RS485/RS232 serial control for PTZ or other external devices — neither port is present
  • Physical alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Support Ultra 265/H.265/H.264 video formats
4/8/16-channel input
HDMI and VGA simultaneous output
Up to 16 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Saves your disk. Spots the real events.

Two real capabilities from the datasheet that matter every day: storage efficiency and built-in smart detection.

ULTRA 265

Half the storage, same image

Ultra 265 compression cuts recording size dramatically versus H.264 — on the same 24 TB disk you keep footage for weeks longer, or record more cameras at higher resolution.

SMART BY IPC

Real alerts, not hours of nothing

Built-in Face Detection, Intrusion Detection (SIP) and Ultra Motion Detection (UMD) run on up to 8 channels (4 on the 04B), feeding Face Snapshot Search, Motor/Non-Motor Vehicle Search, Human Body Search and People Counting Report - search by event, not by scrubbing the timeline.

Which size fits your project?

Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.

NVR501-04Blive view split 1/4 · sync playback 4-ch
4cameras
NVR501-08Blive view split 1/4/6/8/9 · sync playback 8-ch
8cameras
NVR501-16Blive view split 1/4/6/8/9/16 · sync playback 16-ch
16cameras

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the three models:NVR501-04B · 4-chNVR501-08B · 8-chNVR501-16B · 16-ch

Decoding

Decoding FormatUltra 265, H.265, H.264
Decoding Capability04B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30 | H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@3008B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30 | H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@3016B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30 | H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 16×720P@30
Decoding Capability DescriptionThe resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio CompressionG.711A, G.711U

Network

Incoming Bandwidth80 Mbps
Outgoing Bandwidth64 Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser (Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input04B · 4-ch08B · 8-ch16B · 16-ch
RCA Audio Input1-ch

Video/Audio Output

HDMI Output4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output1-ch
Liveview Display04B · 1/408B · 1/4/6/8/916B · 1/4/6/8/9/16
Corridor Mode Screen04B · 3/408B · 3/4/5/7/916B · 3/4/5/7/9/10/12/16
Two-way Audio1-ch, RCA (using the audio input and output)
SnapshotFTP/Schedule/Event Snapshot; 4-ch snapshot (max. D1 (720×576) video resolution, with D1 snapshot resolution)

Recording

Recording Resolution16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local04B · 4-ch08B · 8-ch16B · 16-ch

Smart

Smart by IPC04B · Total 4-ch (Face Detection, SIP, UMD)08B · Total 8-ch (Face Detection, SIP, UMD)16B · Total 8-ch (Face Detection, SIP, UMD)
VCA SearchFace Snapshot Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report

Alarm

General AlarmDefocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA1 SATA Interface
CapacityUp to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size, the environment temperature for use should not exceed 40°C)

External Interface

Network Interface1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USBRear panel: 1 × USB 2.0, 1 × USB 3.0
RS485N/A
RS232N/A
Alarm InN/A
Alarm OutN/A
Power SupplyDC 12 V / 2 A

Working Environment

Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity≤ 90% RH (non-condensing)
Power Consumption (without HDD)≤ 6 W

Dimensions

Weight (without HDD)≤ 0.98 kg (2.16 lb)
Dimensions260 mm × 222 mm × 47 mm (10.2" × 8.7" × 1.8")

Certification

CertificationCE; FCC; UL; RoHS; WEEE
CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B

Dimensions

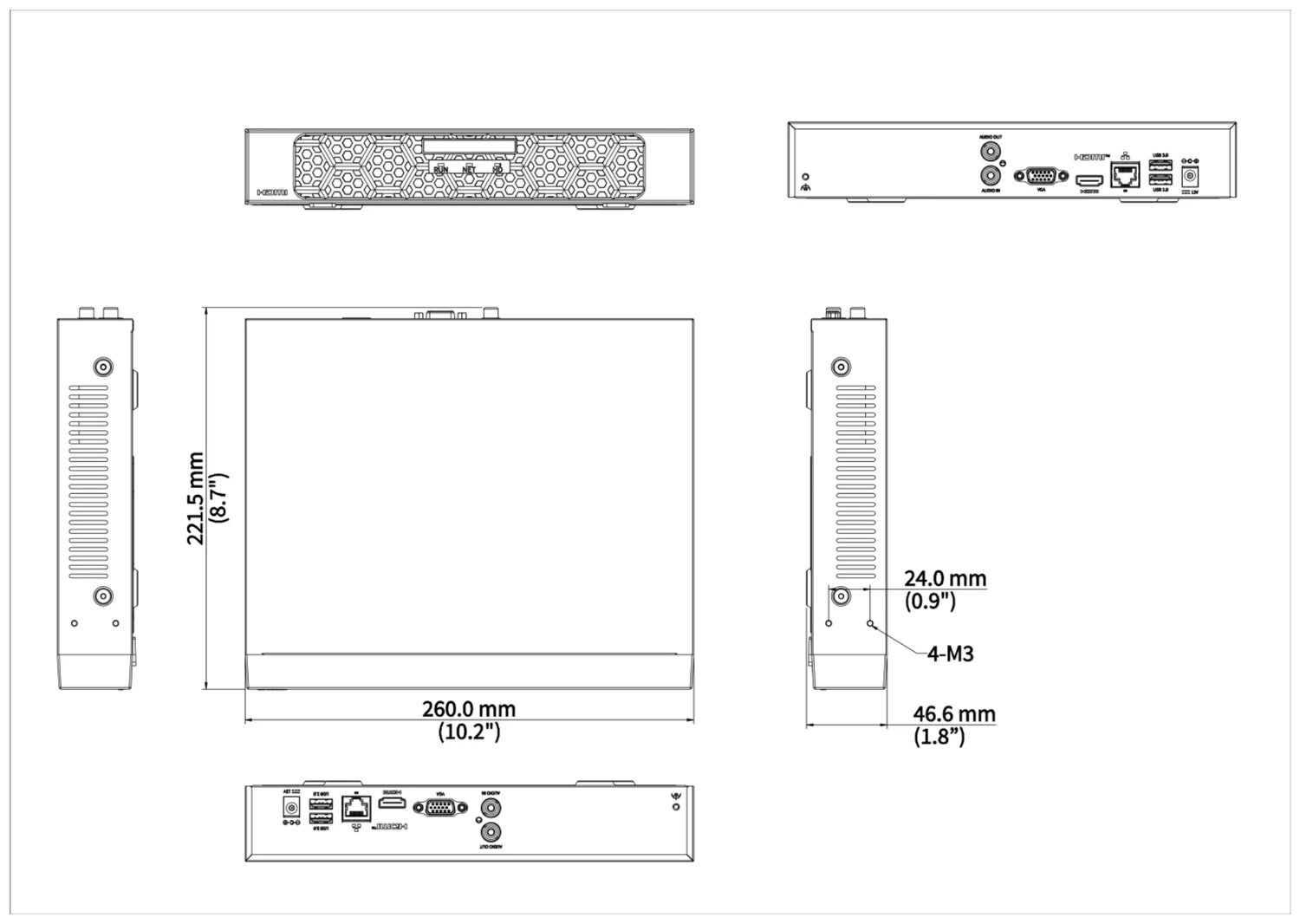

Engineering drawing reproduced 1:1 from the official datasheet.

NVR501-04B / NVR501-08B / NVR501-16B dimensions drawing in mm
unit: mm (in.)
Dimensions260 × 222 × 47 mm (10.2" × 8.7" × 1.8")
Weight (without HDD)≤ 0.98 kg (2.16 lb)
Power supplyDC 12 V / 2 A
Consumption (without HDD)≤ 6 W

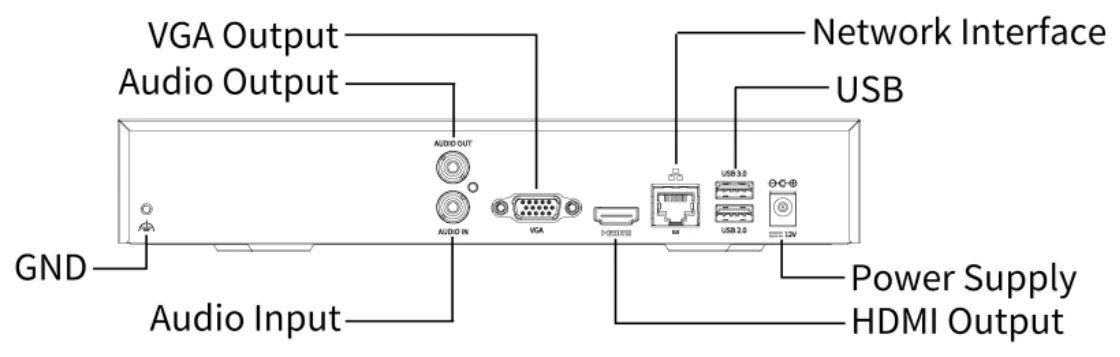

NVR501-B series rear panel
Rear panel — all interfaces

Optional Mounting Accessories

Order together with the camera to save shipping.

RM-1U-2601-HDD 1U NVR rack mount tray

4/8/16-Channel NVR FAQ — NVR501-B Series

How many IP cameras can I connect?
The NVR501-04B takes 4 IP cameras, the 08B 8 and the 16B 16, recording up to 16 MP per channel. Incoming bandwidth is 80 Mbps, so size camera bitrates to stay inside that figure, and pick the channel count that leaves room to add cameras as the site grows.
How many hard drives fit and what is the maximum capacity?
One SATA bay, taking a surveillance hard drive up to 24 TB. Use surveillance-rated hard drives; real retention depends on camera count, resolution and bitrate, and Ultra 265 keeps files smaller than H.264 at the same image quality, stretching every terabyte further.
How much storage does Ultra 265 save compared with H.264?
Roughly half the storage for the same image: Ultra 265 cuts recording size dramatically versus H.264, so the same 24 TB disk keeps footage for weeks longer — or records more cameras at higher resolution. H.265 and H.264 are also supported for mixed camera fleets.
Does it support face detection and smart search?
Yes, via UNV smart cameras: Face Detection, SIP rules and Ultra Motion Detection on up to 4 channels on the 04B, or 8 channels on the 08B and 16B. The NVR indexes these events for VCA Search — face, vehicle, human-body and people-counting search — so you jump straight to the right clip instead of scrubbing hours of video.
Does it have built-in PoE ports?
No — this series has no PoE ports. It connects through one 10/100 Mbps RJ45 interface, and cameras are powered by an external PoE switch on the LAN. That layout suits projects where cameras are spread across floors or buildings rather than home-run to the recorder.
Can I view live video remotely?
Yes — up to 128 remote users can connect. The recorder supports P2P, DDNS, HTTP/HTTPS and RTSP and works in a browser (IE10/11, Chrome 45+, Edge 79+, Firefox 52+), so an integrator can check several client sites from one office. Outgoing bandwidth for remote streams is 64 Mbps.
