Uniview NVR501-B-LP Series
4/8-Channel PoE Network Video Recorder NVR501-04B-LP4 / NVR501-08B-LP8 — view 1
4/8-Channel PoE Network Video Recorder NVR501-04B-LP4 / NVR501-08B-LP8 — view 2
4/8-Channel PoE Network Video Recorder NVR501-04B-LP4 / NVR501-08B-LP8 — view 3
4/8-Channel PoE Network Video Recorder NVR501-04B-LP4 / NVR501-08B-LP8 — view 4
Uniview (UNV)NVR501-B-LP Series · 1× SATA HDD
1-HDD PoE Network Video Recorder · B-LP Series

NVR501-04B-LP4 / 08B-LP8

4 / 8-channel PoE network video recorder — built-in 4/8-port PoE switch, Ultra 265 compression, 4K HDMI output, records cameras up to 16MP, with onboard Face Detection and VCA search.

16MP · max recordingUltra 265 · low storage4/8× PoE · built-in ports1× SATA · up to 24 TB4K HDMI · + VGA simultaneous38 languages · local interface
CHOOSE YOUR SIZE — TWO MODELS ON THIS PAGE
Rule of thumb: count your PoE cameras, then leave room to grow — a shop with 3 cameras plugs straight into the 04B-LP4; pick the 08B-LP8 if you may add cameras later. Highlighted rows in the spec table below show every difference between the two.
Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

How many terabytes for your channels and days? Use the storage calculator →

Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEONVIFNDAA
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
4/8Channel options
80 MbpsIncoming bandwidth
24 TBMax HDD capacity
4KHDMI output

The Uniview NVR501-B-LP Series is a 1-HDD PoE network video recorder offered in two sizes: NVR501-04B-LP4 (4-ch, 4-port PoE) and NVR501-08B-LP8 (8-ch, 8-port PoE). Both record cameras up to 16MP with Ultra 265 / H.265 / H.264 compression, output simultaneously over 4K HDMI and VGA, and include built-in Face Detection, Intrusion Detection (SIP) and Ultra Motion Detection (UMD) feeding VCA search. One SATA bay takes a hard disk up to 24 TB; the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Small shops with PoE camerasBuilt-in 4/8-port PoE switch — plug cameras straight into the recorder, no separate PoE switch or extra cabling to buy.
Growing businessesBuy channels you don't use yet: the 08B-LP8 lets you add PoE cameras later without replacing the recorder.
Remote viewing on phoneP2P protocol built in — the owner checks the shop from a phone app without a fixed IP or network skills.
Local-language interface38 GUI languages including Spanish (Latin America), Portuguese (Brazil) and French — your customer operates it in their own language.
Longer video retentionUltra 265 roughly halves file size versus H.264 — the same 24 TB disk keeps weeks more footage.
AI-assisted monitoringBuilt-in Face Detection, Intrusion Detection (SIP) and Ultra Motion Detection (UMD) — 4 channels on the 04B-LP4, 8 on the 08B-LP8 — flag real events instead of hours of empty footage.
Not the right pick if you need…
  • Gigabit network uplink — the built-in network port is 10/100M (matched to this series' 80 Mbps bandwidth)
  • A second hard disk or RAID — this series has a single SATA bay
  • Serial PTZ control from the NVR itself — RS485 and RS232 are both listed N/A on this series
  • Physical alarm input/output terminals — Alarm In and Alarm Out are both N/A on the rear panel
  • Extra PoE budget for high-draw cameras — each port is capped at 30 W (standard PoE/PoE+, not PoE++ 60W+ devices)

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Support Ultra265/H.265/H.264 video formats
4/8-channel input
Plug & Play with 4/8 independent PoE network interfaces
Support HDMI and VGA simultaneous output
Up to 16 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Cameras plug in. The recorder watches for you.

Two real capabilities that define this series: built-in PoE and onboard Smart by IPC detection.

PLUG & PLAY POE

No separate PoE switch to buy

Each RJ45 port is independent PoE — up to 30 W per port, 50 W total on the 04B-LP4 or 75 W total on the 08B-LP8 (IEEE 802.3at/af) — plug cameras straight into the recorder.

SMART BY IPC

Real alerts, not hours of nothing

Built-in Face Detection, Intrusion Detection (SIP) and Ultra Motion Detection (UMD) run on up to 8 channels (4 on the 04B-LP4), feeding Face Snapshot Search, Motor/Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report and Heat Map — search by event, not by scrubbing the timeline.

Which size fits your project?

Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.

NVR501-04B-LP44-ch input · 4-port PoE, 50 W total · live view split 1/4
4cameras
NVR501-08B-LP88-ch input · 8-port PoE, 75 W total · live view split 1/4/6/8/9
8cameras

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:NVR501-04B-LP4 · 4-chNVR501-08B-LP8 · 8-ch

Decoding

Decoding FormatUltra 265, H.265, H.264
Decoding Capability04B-LP4 · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30 | H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@3008B-LP8 · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30 | H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30
Decoding Capability DescriptionThe resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio CompressionG.711A, G.711U

Network

Incoming Bandwidth80 Mbps
Outgoing Bandwidth64 Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser (Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input04B-LP4 · 4-ch08B-LP8 · 8-ch
RCA Audio Input1-ch

Video/Audio Output

HDMI Output4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output1-ch
Liveview Display04B-LP4 · 1/408B-LP8 · 1/4/6/8/9
Corridor Mode Screen04B-LP4 · 3/408B-LP8 · 3/4/5/7/9
Two-way Audio1-ch, RCA (Using the audio input and output)
SnapshotFTP/Schedule/Event Snapshot; 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)

Recording

Recording Resolution16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local04B-LP4 · 4-ch08B-LP8 · 8-ch

Smart

Smart by IPC04B-LP4 · Total 4-ch (Face Detection, SIP, UMD)08B-LP8 · Total 8-ch (Face Detection, SIP, UMD)
VCA SearchFace Snapshot Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map

Alarm

General AlarmDefocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA1 SATA Interface
CapacityUp to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size, the environment temperature for use should not exceed 35°C)

External Interface

Network Interface1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USBRear panel: 1 × USB2.0, 1 × USB3.0
RS485N/A
RS232N/A
Alarm InN/A
Alarm OutN/A
Power Supply04B-LP4 · DC 48 V / 1.35 A08B-LP8 · DC 52 V / 1.8 A

PoE

PoE Interface04B-LP4 · 4 RJ45 10 M/100 M self-adaptive Ethernet Interface08B-LP8 · 8 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power04B-LP4 · Max 30 W for single port, Max 50 W in total08B-LP8 · Max 30 W for single port, Max 75 W in total
Supported StandardIEEE 802.3at, IEEE 802.3af

Working Environment

Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity≤ 90% RH (non-condensing)
Power Consumption (without HDD)≤ 10 W

Dimensions

Weight (without HDD)04B-LP4 · ≤ 0.8 Kg (1.76 lb)08B-LP8 · ≤ 0.9 Kg (1.98 lb)
Dimensions205 mm × 212 mm × 46 mm (8.1" × 8.3" × 1.8")

Certification

CertificationCE; FCC; UL; RoHS; WEEE
CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B

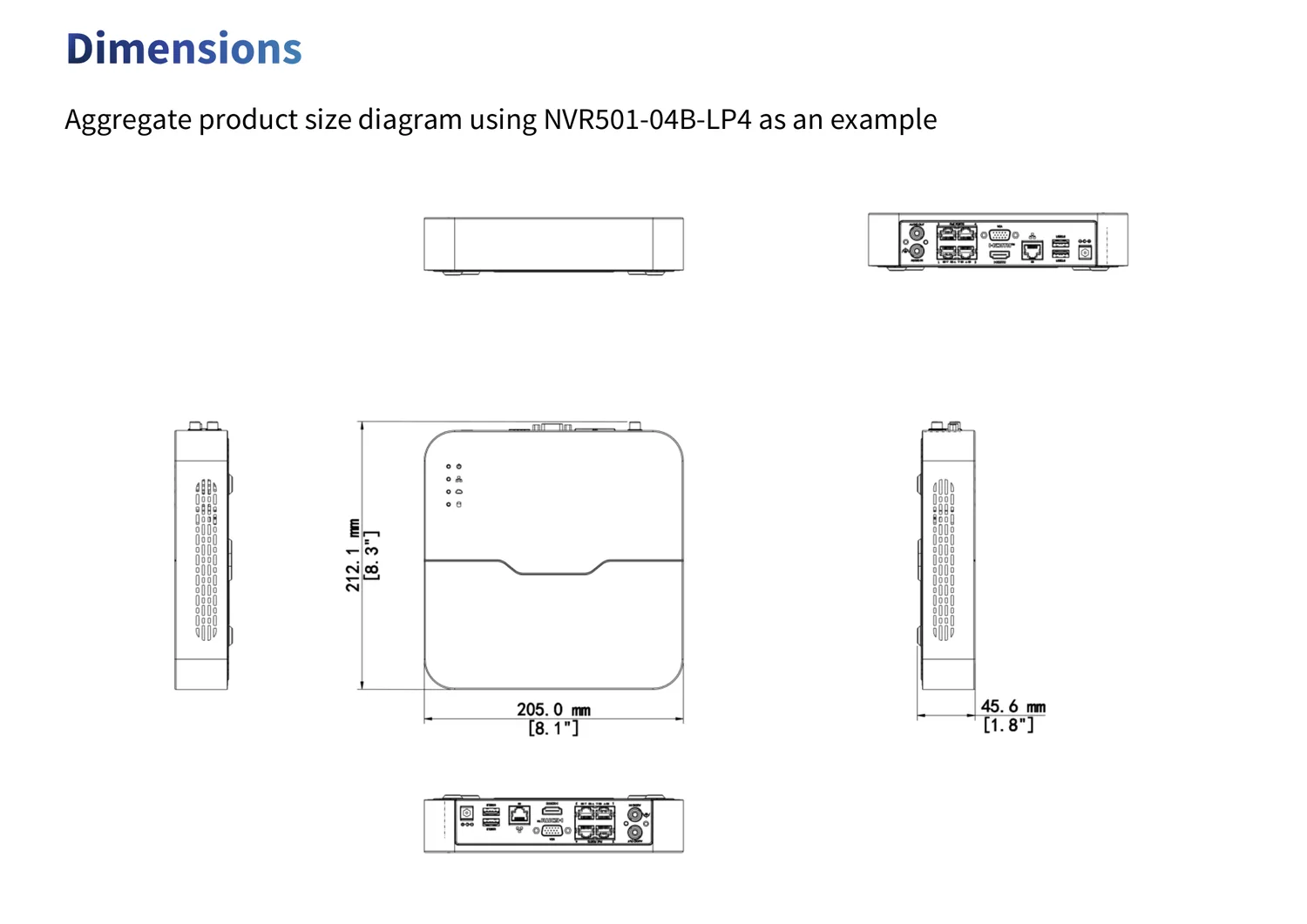

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

NVR501-04B-LP4 / NVR501-08B-LP8 dimensions drawing in mm
unit: mm (in.)
Dimensions205 mm × 212 mm × 46 mm (8.1" × 8.3" × 1.8")
Power Consumption (without HDD)≤ 10 W
PoE StandardIEEE 802.3at, IEEE 802.3af

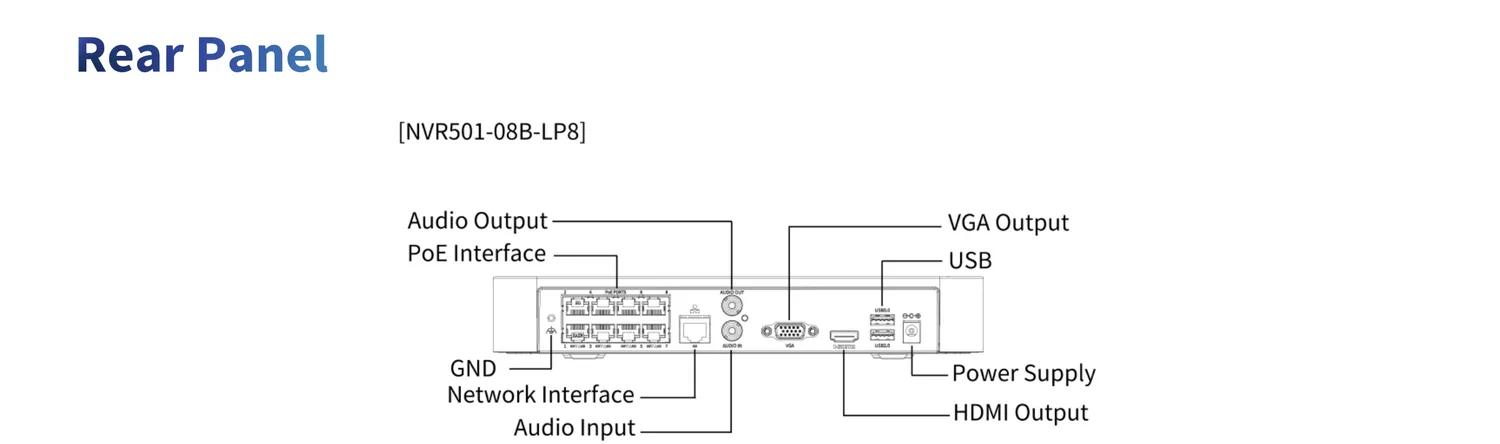

NVR501-B-LP series rear panel
Rear panel — all interfaces

Optional Mounting Accessories

Order together with the camera to save shipping.

4/8-Channel PoE NVR FAQ — NVR501-B-LP Series

How many cameras can the NVR501-08B-LP8 power directly?
The NVR501-08B-LP8 records 8 IP cameras through 8 built-in PoE ports (75 W total); the NVR501-04B-LP4 handles 4 cameras with 4 ports (50 W total). Each PoE port delivers up to 30 W (IEEE 802.3at/af), so typical 4–12 W IP cameras plug straight into the recorder — power and video over one cable, no separate PoE switch needed.
How many hard drives fit and what is the maximum capacity?
One SATA bay, taking a surveillance hard drive up to 24 TB. Use surveillance-rated hard drives; real retention depends on camera count, resolution and bitrate, and Ultra 265 keeps files smaller than H.264 at the same image quality, stretching every terabyte further.
What is the maximum camera resolution it records?
It records IP cameras up to 16 MP, decodes Ultra 265, H.265 and H.264, and drives a monitor at 4K (3840×2160) over HDMI with VGA up to 1080p. Incoming bandwidth is 80 Mbps across all channels.
Does it support face detection and smart search?
Yes, via UNV smart cameras: Face Detection, SIP rules and Ultra Motion Detection on up to 4 channels on the 04B-LP4, or 8 channels on the 08B-LP8. The NVR indexes these events for VCA Search — face, vehicle, human-body and people-counting search — so you jump straight to the right clip instead of scrubbing hours of video.
Can I view live video remotely?
Yes — up to 128 remote users can connect. The recorder supports P2P, DDNS, HTTP/HTTPS and RTSP and works in a browser (IE10/11, Chrome 45+, Edge 79+, Firefox 52+), so an integrator can check several client sites from one office. Outgoing bandwidth for remote streams is 64 Mbps.
Will it run reliably in hot climates?
The rated working range is -10 °C to 55 °C at up to 90% non-condensing humidity, and the unit draws ≤ 10 W without drives. Give it ventilation and keep it out of direct sun inside equipment cabinets — standard practice for tropical installs.
