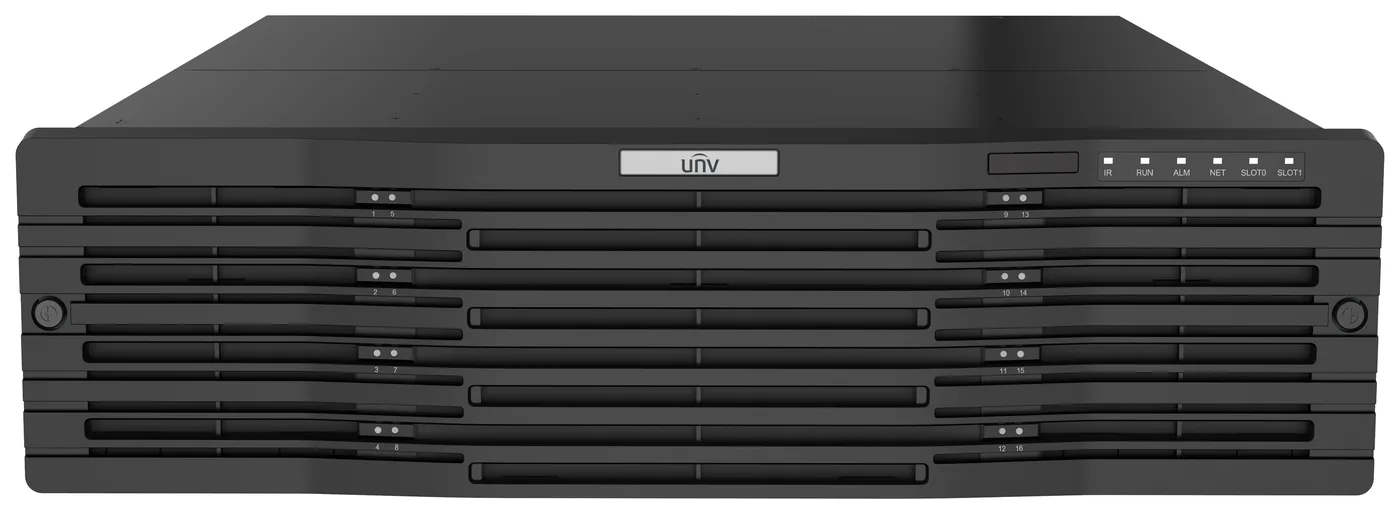

UniviewNVR516 Series · 16× SATA HDD

16-Bay RAID Network Video Recorder · NVR516 Series

NVR516-64 / 128

Name: Uniview NVR516-64 / 128
Brand: Uniview

64 / 128-channel network video recorder — 16 hot-swap SATA bays with RAID 0/1/5/6/10/50/60, independent dual-HDMI plus VGA output, records cameras up to 12MP, with optional redundant power supply.

12MP · max recordingUltra 265 · low storage2× HDMI · + VGA independent16× SATA · up to 16 TB eachRAID 0/1/5/6/10/50/60 · hot-swap38 languages · local interface

CHOOSE YOUR SIZE — TWO MODELS ON THIS PAGE

Rule of thumb: count your cameras across the whole deployment, then leave room to grow — 64 channels covers most single large facilities; step up to the 128-ch if you're combining several buildings or a city-scale project. Highlighted rows in the spec table below show every difference between the two.

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

64/128Channel options

384/512 MbpsIncoming bandwidth

16×16 TBSATA bays, max capacity each

2× 4KIndependent HDMI output

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Large campuses & city-scale projects64 or 128 channels in one 3U box covers a large campus, industrial park or city-surveillance hub without stacking multiple recorders.

Storage that can't afford to fail16 hot-swap SATA bays with RAID 0/1/5/6/10/50/60 protect the footage — swap a failed disk while the recorder keeps running.

Long-term evidence retention at scale16 SATA bays, up to 16 TB each (up to 256 TB total), keep months of high-resolution footage online across a large camera count.

High camera counts on one network link384/512 Mbps incoming bandwidth over four Gigabit ports plus two SFP uplinks handles 64 or 128 higher-resolution streams without choking the network.

Independent multi-screen monitoringHDMI1, HDMI2 and VGA independent outputs let a control room show three different views at once — not just a mirrored screen.

Power resilienceRedundant power supply is available as an option, and Support N+1 Hot spare keeps recording after a single disk fails without waiting for a technician.

Deep VCA analytics & fast searchFace detection/comparison, vehicle detection, intrusion detection, temperature/fire detection and people counting run on the cameras; the recorder's VCA Search narrows a 64- or 128-channel deployment down to the exact clip.

Not the right pick if you need…

PoE ports — cameras need a separate PoE switch (this recorder has no built-in PoE ports)
A second power supply included out of the box — the Power Supply 2 slot is present but the AC power module is an optional accessory (PWR-300A-IN), sold separately
Compact or desktop placement — this is a 3U rack chassis (482 × 477 × 131 mm, ≤10 kg without HDDs) that needs a server rack, not a desk or shelf
A small or single-site deployment — 16-bay, 64/128-channel scale is built for large multi-building or city-level projects, not a shop with a handful of cameras
Built-in decoding cards out of the box — Decoding Card 1/2 slots exist on the rear panel but the cards themselves are optional add-ins, not included

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

16-bay RAID storage. Deep VCA analytics.

Two real capabilities that define this series: hot-swap RAID across 16 bays, and extensive camera-side VCA analytics with recorder-side search.

RAID 0/1/5/6/10/50/60

16 bays, hot-swap, and a disk can fail safely

16 independent SATA bays each take a disk up to 16 TB (up to 256 TB total) and support hot swap plus RAID 0/1/5/6/10/50/60 — mirroring or parity protection, and Support N+1 Hot spare keeps recording after a single drive failure without waiting for a technician.

SMART VCA

Face, vehicle and intrusion detection, built in

Face Detection, Face Comparison, Vehicle Detection, intrusion/line-crossing detection (SIP), Ultra Motion Detection, temperature and fire detection, and people counting run on up to 32 images/s across all channels, feeding VCA Search — Face Snapshot, Face Comparison, Motor/Non-Motor Vehicle, Human Body and General Search — so operators jump straight to the clip instead of scrubbing 64 or 128 channels of footage.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:NVR516-64 · 64-chNVR516-128 · 128-ch

Decoding

Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	4 x 12MP@20, 4 x 4K@30, 16 x 1080P@30, 36 x 720P@30, 64 x D1
Decoding Capability Description	The resolution of each channel cannot exceed 4096 pixels in length or width
Audio Compression	G.711A, G.711U

Network

Incoming Bandwidth	64 · 384 Mbps128 · 512 Mbps
Outgoing Bandwidth	384 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input	64 · 64-ch128 · 128-ch
BNC Audio Input	1-ch

Video/Audio Output

HDMI Output	4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz (HDMI audio output is not supported)
VGA Output	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
BNC Audio Output	1-ch
Liveview Display	VGA: 1/4/6/8/9/16/25/36, HDMI1/HDMI2: 1/4/6/8/9/16/25/36/64
Corridor Mode Screen	3/4/5/7/9/10/12/16/32

Two-way Audio

1-ch, BNC (Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot

Full-ch snapshot (max. 4000 × 3000 video resolution, with snapshot resolution same as the video resolution)

Recording

Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local	16-ch

Smart

VCA Detection by IPC	Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring
VCA Search	Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
Smart by IPC	All channels (up to 32 images/s in total) Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring

Alarm

General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA	16 SATA Interfaces
Capacity	Up to 16 TB for each HDD (the maximum HDD capacity varies with environment temperature)
Disk Array Type	RAID 0, 1, 5, 6, 10, 50, 60
Hot Swap	Support

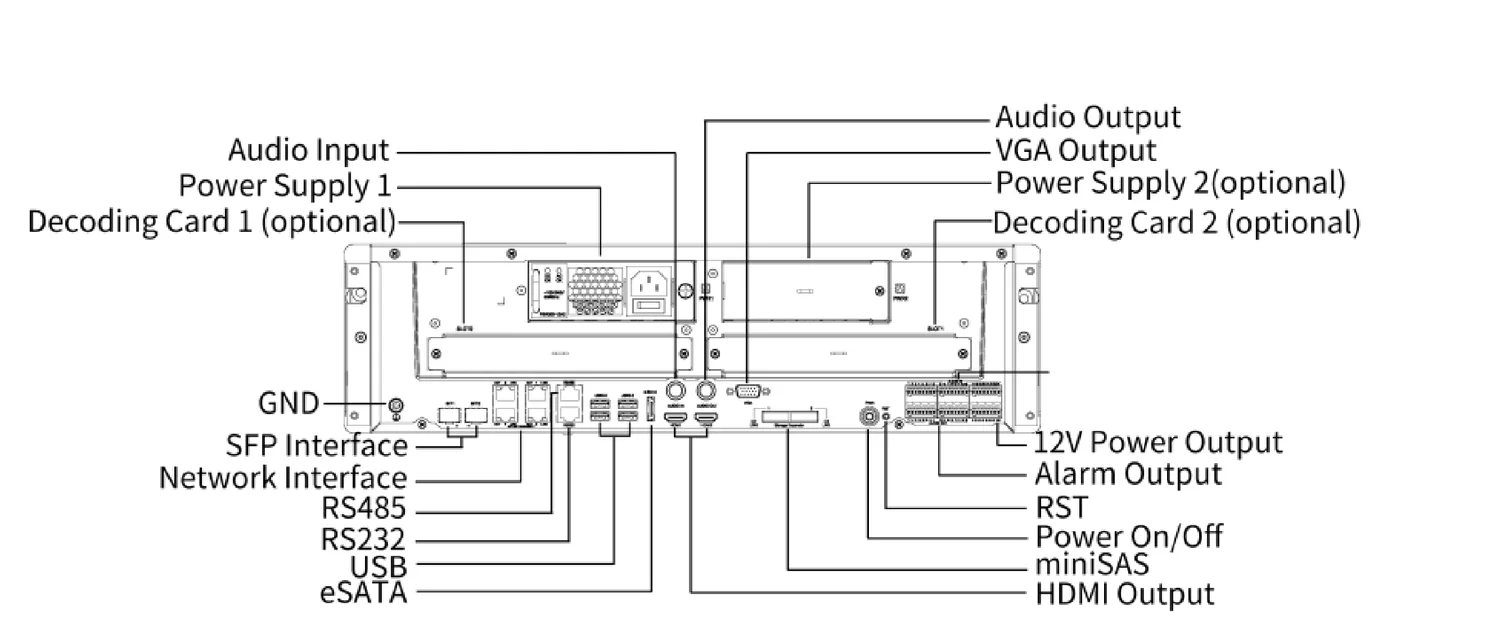

External Interface

Network Interface	4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface, 2 1000 M SFP Ethernet Interface
USB	Rear panel: 4 × USB3.0
RS485	1
RS232	1
Alarm In	24-ch
Alarm Out	8-ch
eSATA	1
miniSAS	2
Power Output	12 V
Power Supply	AC 100 to 240 V
Power Switch	Support
Redundant Power Supply	Support

Working Environment

Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 50 W

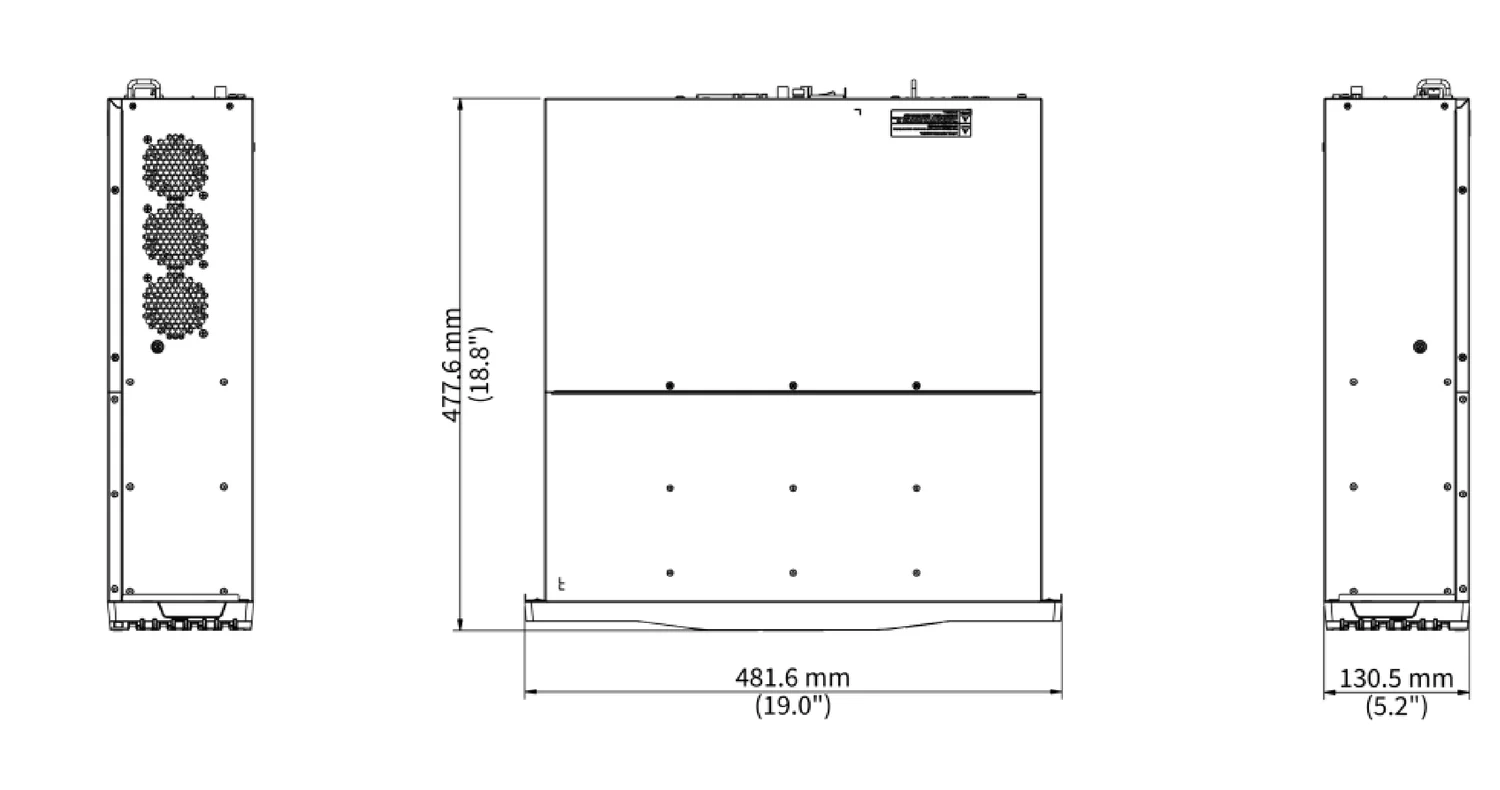

Dimensions

Weight (without HDD)	≤ 10 Kg (22.05 lb)
Dimensions	482 mm × 477 mm × 131 mm (19.0" × 18.8" × 5.2")

Certification

Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B
