NVR824-128-R-IM-8G / 256-R-IM-16G
128 / 256-channel network video recorder — 24 hot-swap SATA interfaces with RAID 0/1/5/6/10/50/60 and N+1 hot spare, two independent 4K HDMI outputs plus VGA, records cameras up to 12MP, with 768 Mbps incoming bandwidth and an optional redundant power supply.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
How many terabytes for your channels and days? Use the storage calculator →
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

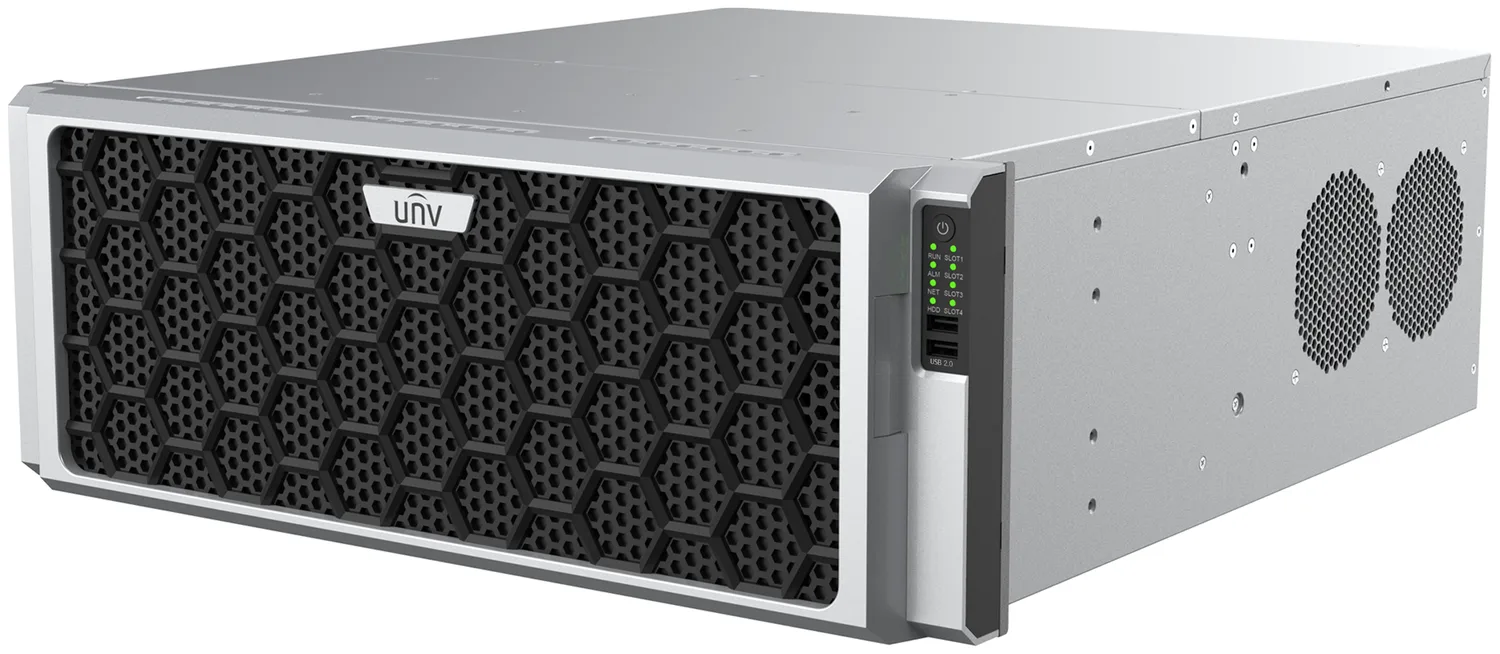

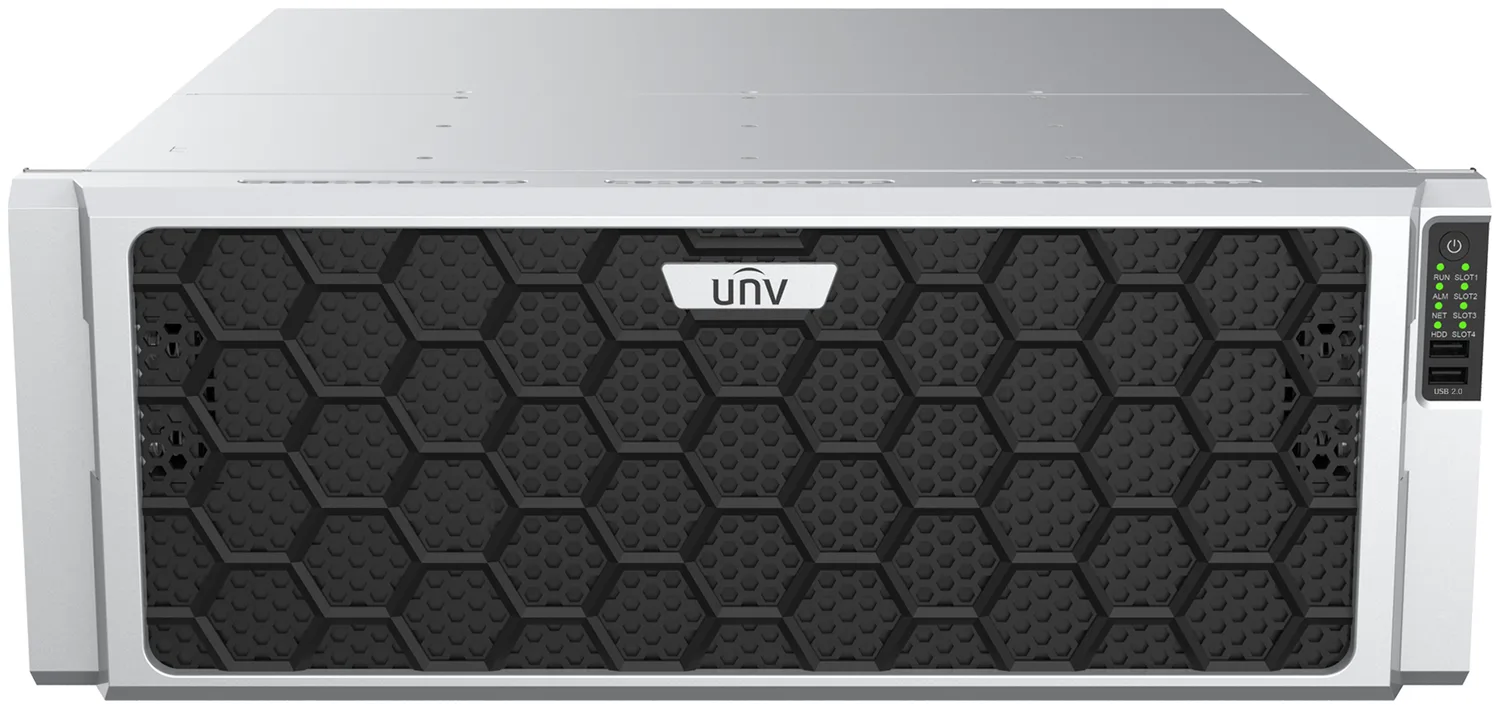

The Uniview NVR824-R-IM Series is a 24-SATA network video recorder offered in two channel counts: NVR824-128-R-IM-8G (128-ch, 3U chassis) and NVR824-256-R-IM-16G (256-ch, 4U chassis). Both record cameras up to 12MP with Ultra 265 / H.265 / H.264 compression, output independently over two HDMI ports (each up to 4K) plus one VGA port, and support RAID 0/1/5/6/10/50/60 with N+1 hot spare and an optional second power supply for redundancy across 24 SATA interfaces each up to 16 TB. Third-party IP cameras connect via ONVIF conformance (Profile S, G, C, Q, A, T), the chassis carries 768 Mbps incoming/outgoing bandwidth with 24 alarm inputs and 8 alarm outputs, and the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.
Is this the right recorder for you?
Plain-language guide for buyers and installers — based only on what this recorder actually does.
- A compact desktop unit — this is a rack-mount chassis (3U at 128-R-IM-8G, a taller 4U at 256-R-IM-16G), not a desktop recorder
- Built-in PoE ports — cameras need a separate PoE switch
- A second power supply included as standard — the redundant PSU (PWR-DC12-550A-IN) is an optional add-on, not included
- A small deployment — this series starts at 128 channels; a lower-channel Uniview NVR fits smaller sites better
- Full NVR-side smart analytics on any third-party camera — Smart-by-NVR functions on non-Uniview ("normal") cameras are capped to 64-ch on the 128-R-IM-8G / 128-ch on the 256-R-IM-16G, not all channels
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
24 SATA interfaces, self-healing RAID. Smart search built in.
Two real capabilities that define this series: N+1 hot-spare RAID across 24 SATA interfaces, and VCA search working with smart cameras.
Twenty-four SATA interfaces, and the array heals itself
Twenty-four hot-swap SATA interfaces, each up to 16 TB (up to 384 TB total), support Disk Group, Redundant Storage and RAID 0/1/5/6/10/50/60 — with N+1 Hot Spare, a standby disk in the array can take over automatically before you even swap the failed drive.
Find one face or one vehicle across 256 channels
VCA Search indexes face snapshots, face comparisons, motor and non-motor vehicles, and human bodies — combined with a vehicle picture library holding up to 25,000 images across 5 libraries, so investigators jump straight to the match instead of scrubbing footage channel by channel.
Which size fits your project?
Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Decoding
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 3 x 12MP@30, 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4096 pixels in length or width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. |
| Audio Compression | G.711A, G.711U |
Network
| Incoming Bandwidth | 768 Mbps |
| Outgoing Bandwidth | 768 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Video/Audio Input
| IP Video Input | 128-R-IM-8G · 128-ch256-R-IM-16G · 256-ch |
| RCA Audio Input | 1-ch |
Video/Audio Output
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | VGA: 1/4/6/8/9/16/25/36, HDMI1/HDMI2: 1/4/6/8/9/16/25/36/64 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
Two-way Audio
| Two-way Audio | 1-ch, RCA (using the audio input and output) |
Snapshot
| FTP/Schedule/Event Snapshot | Full-ch snapshot (max. 4000 × 3000 video resolution, with snapshot resolution same as the video resolution) |
Recording
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16-ch |
Smart
| VCA Detection by IPC | Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring |
| Smart by NVR | Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Video Metadata (at the same channel, only one smart function by NVR can be enabled simultaneously) |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| Smart by IPC | All channels (up to 64 images/s in total): Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| by NVR | 128-R-IM-8G · 64-ch256-R-IM-16G · 128-ch |
| Search by Image | Support |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP by NVR with normal cameras | 128-R-IM-8G · 64-ch256-R-IM-16G · 128-ch |
| Video Metadata by NVR with normal cameras | 128-R-IM-8G · 64-ch256-R-IM-16G · 128-ch |
| Video Metadata by NVR | Motor Vehicle: Vehicle Color, Vehicle Type, Vehicle Brand, Direction. Non-Motor Vehicle: Non-Motor Vehicle Type, Direction, Gender, Age, Upper Garment Length. Human Body: Gender, Age, Mask, Hairstyle, Bag Style, Direction, Upper Garment Length, Lower Garment Length. |
Alarm
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded |
GUI Language
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
Hard Disk
| SATA | 24 SATA interfaces |
| Capacity | Up to 16 TB for each HDD (the maximum HDD capacity varies with environment temperature) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 |
| Hot Swap | Support |

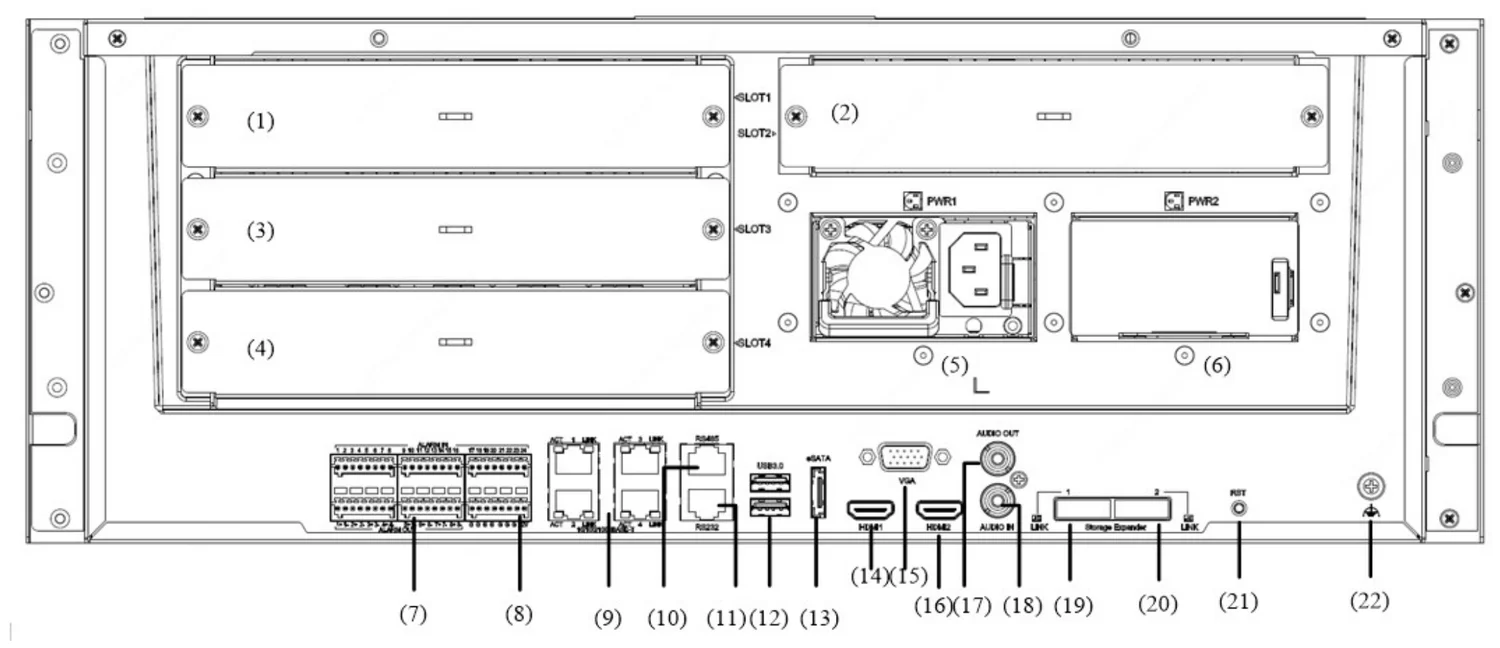

External Interface
| Network Interface | 4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 24-ch |
| Alarm Out | 8-ch |
| eSATA | 1 |
| miniSAS | 2 |
| Power Output | 12 V |
| Power Supply | AC 100 to 240 V |
| Power Switch | Support |
| Redundant Power Supply | Support |
Working Environment
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 300 W |
Dimensions
| Weight (without HDD) | ≤ 12.5 kg (27.56 lb) |
| Height | 128-R-IM-8G · 3U256-R-IM-16G · 4U |
| Dimensions | 128-R-IM-8G · 533 × 482 × 131.0 mm (21.0"×19.0"×5.1")256-R-IM-16G · 484.6 × 533 × 175.5 mm (19.1"×21.0"×6.9") |
Certification
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
Dimensions

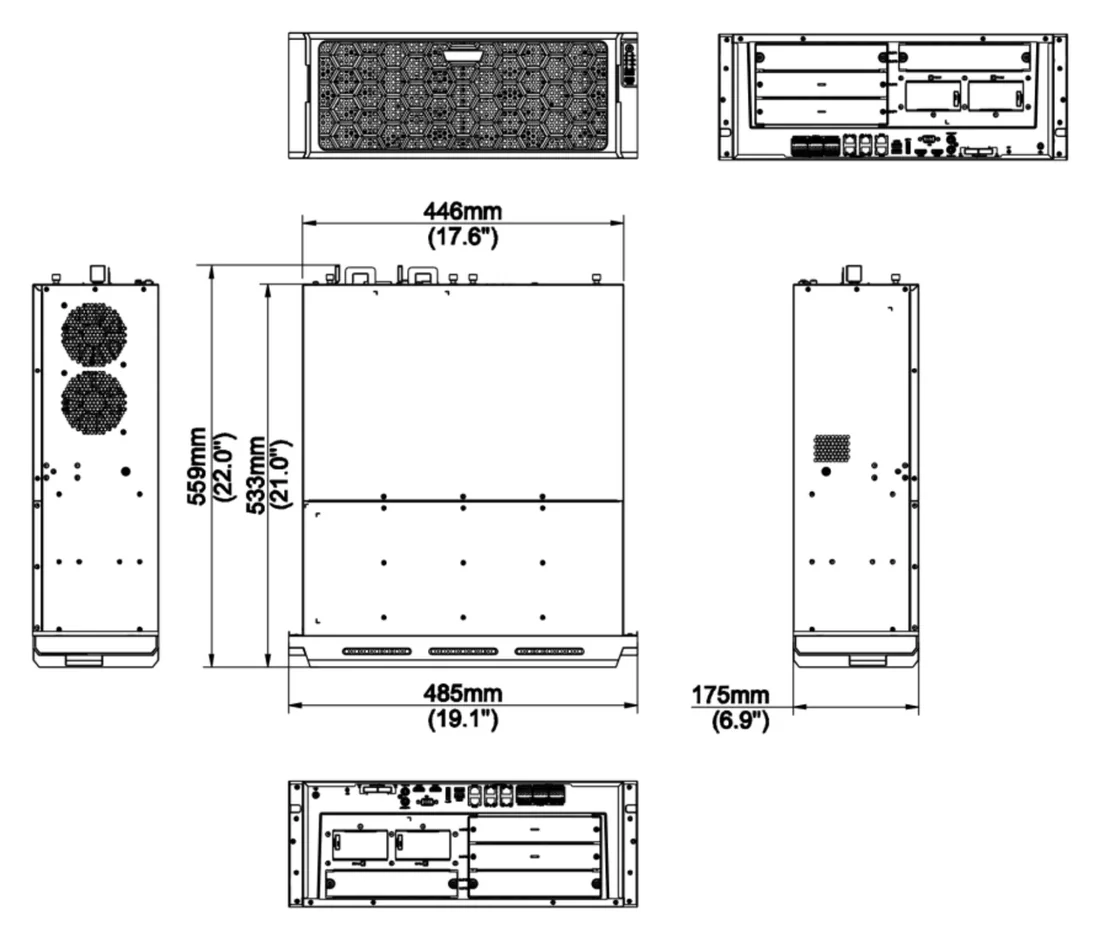

Engineering drawing reproduced 1:1 from the official datasheet — this drawing depicts the NVR824-256-R-IM-16G (4U chassis); the datasheet provides no separate drawing for the 128-R-IM-8G (3U), whose dimensions are listed as text below.
| Weight (without HDD) | ≤ 12.5 kg (27.56 lb) |
| Height | 3U — 128-R-IM-8G · 4U — 256-R-IM-16G |
| Dimensions | 533 × 482 × 131.0 mm (21.0"×19.0"×5.1") — 128-R-IM-8G 484.6 × 533 × 175.5 mm (19.1"×21.0"×6.9") — 256-R-IM-16G |
| Power supply | AC 100 to 240 V |
| Consumption (without HDD) | ≤ 300 W |
