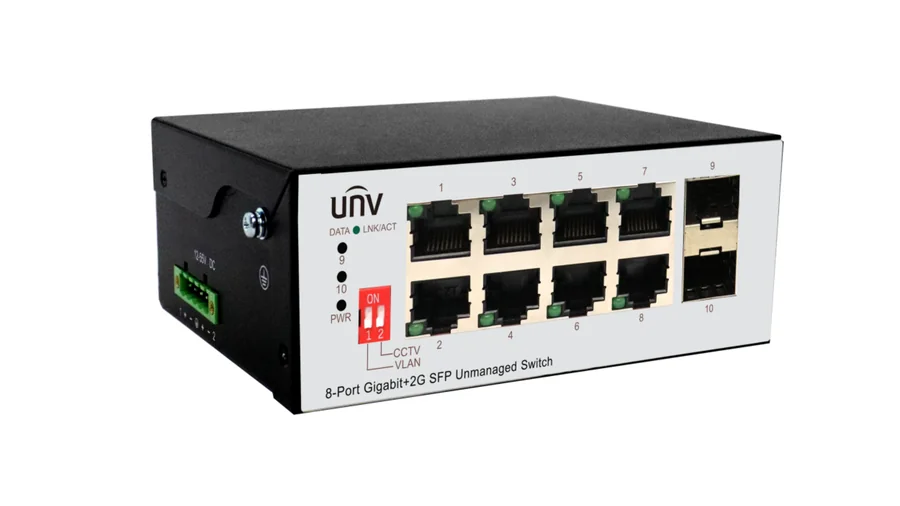

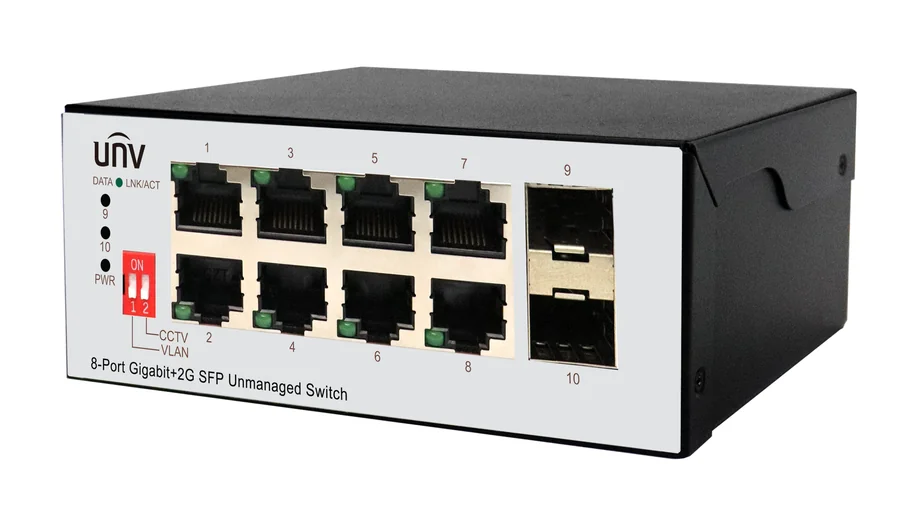

Uniview ISW2000-8GT2GP-IN unmanaged industrial Ethernet switch, 8 gigabit RJ45 ports and 2 SFP slots

Manufacturer product photo · 8×GE + 2×SFP

ISW2000-8GT2GP-IN

Name: ISW2000-8GT2GP-IN
Brand: Uniview

Uniview · Industrial Ethernet Switch

Unmanaged Gigabit Industrial Ethernet Switch · 8×GE + 2×SFP

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified End-User DiscountEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

Overview

The ISW2000-8GT2GP-IN is an unmanaged gigabit industrial Ethernet switch with 8 × 10/100/1000M RJ45 data ports and 2 × 1000M SFP fiber slots, delivering 20 Gbps switching capacity and 14.88 Mpps forwarding with a 4K MAC table and 9 KBytes jumbo frames. Auto-MDI/MDIX, IEEE 802.3x full-duplex flow control and half-duplex backpressure keep unmanaged links stable, while a front DIP switch selects VLAN mode (downlink-to-uplink only) or CCTV mode (forced 10 Mbps, up to 250 m reach). A -30 °C to 65 °C operating range with ±6/8 kV ESD and ±2/4 kV surge protection suits harsh field cabinets.

Is This the Right Fit?

Six real deployment scenarios matched to this model's actual datasheet specifications.

Factory Production-Line Data Aggregation8 × gigabit RJ45 ports plus 2 × SFP uplinks give a DIN-rail switch that aggregates PLCs, HMIs and sensors on a production line without any configuration — plug in and it forwards at wire speed.

Plug-and-Play Field InstallationNo CLI, no Web login — a front-panel DIP switch selects VLAN or CCTV mode on the spot, so field technicians commission the switch in seconds without a laptop.

CCTV Mode for Extended Cable RunsFlip the DIP switch to CCTV mode and the port forces down to 10 Mbps, extending the data transmission distance up to 250 meters — useful for cameras or sensors installed well beyond the standard 100 m copper limit.

Fiber Uplink Beyond 100 mTwo 1000M SFP slots move the backbone link past copper's 100 m ceiling — pick multimode or single-mode optics to match the run, quoted alongside the switch.

Extreme-Temperature Outdoor Cabinets-30 °C to 65 °C operating range with ±6/8 kV ESD and ±2/4 kV surge protection — built for roadside or rooftop cabinets that bake in summer and freeze in winter.

Wire-Speed Aggregation for Small Sites20 Gbps switching and 14.88 Mpps forwarding keep all 10 ports at wire speed simultaneously — no dropped frames when every port is busy on a small site backbone.

Not a good fit if:

Ports are data-only — this switch cannot deliver power to cameras or access points over the Ethernet cable; choose a power-sourcing switch if a connected device needs to be powered this way.
Unmanaged — no Web/SNMP interface; only VLAN or CCTV working mode via the front DIP switch, no per-port VLAN tagging or fine-grained traffic control.
CCTV mode forces every downlink port down to 10 Mbps — not suitable where full gigabit throughput per port is required on long cable runs.

Key Features

8 × 10/100/1000M RJ45 data ports + 2 × 1000M SFP slots
Auto-MDI/MDIX on every RJ45 port — no crossover cables needed
IEEE802.3x full-duplex flow control and half-duplex backpressure
Two working modes via front DIP switch: VLAN (downlink-to-uplink only) or CCTV (10 Mbps forced, up to 250 m)
Panel PWR / LNK-ACT indicators for at-a-glance status and fault analysis
Store-and-forward switching with 9 KBytes jumbo frame and 4K MAC table

Specifications

IEEE Standards

IEEE802.3 / 802.3u / 802.3ab / 802.3z	10/100/1000Base Ethernet
IEEE802.3x	Flow Control (full-duplex) & Backpressure (half-duplex)

Ports

Copper	8 × 10/100/1000Mbps RJ45
Fiber	2 × 1000Mbps SFP slots
Auto-negotiation	Auto-MDI/MDIX
Working mode	VLAN (downlink-to-uplink only) or CCTV (10 Mbps forced, up to 250 m), set by front DIP switch
Transfer mode	Store-and-forward

Performance

Switching capacity	20 Gbps
Forwarding rate	14.88 Mpps
MAC	4K
Jumbo Frame	9 KBytes

Power & Environment

Operating temp.	-30°C ~ 65°C
Humidity	Operating 5% ~ 95% · Storage 0% ~ 95%, non-condensing
ESD	Contact ±6 kV · Air ±8 kV
Surge	Differential ±2 kV · Common ±4 kV
Dimensions	110 × 90 × 46 mm
Indicators	PWR · LNK/ACT

Models & Ordering

Model	Product Description	Price
ISW2000-8GT2GP-IN	Unmanaged gigabit industrial Ethernet switch — 8 × 10/100/1000M RJ45 data ports, 2 × 1000M SFP slots, 20 Gbps switching, VLAN/CCTV working modes, -30 °C to 65 °C.	✆ WhatsApp

SFP optical modules are quoted separately — tell us your fiber distances and we include the right optics in the same quote.

Industrial Gigabit Switch FAQ — ISW2000-8GT2GP-IN

What role does the ISW2000-8GT2GP-IN play in a surveillance network?

It aggregates gigabit traffic in harsh locations: 8 × 10/100/1000M RJ45 ports plus 2 × 1000M SFP fiber slots, 20 Gbps switching capacity and 14.88 Mpps forwarding. Being unmanaged, installers drop it into field cabinets plug-and-play, between edge devices and the fiber backbone.

What do the VLAN and CCTV modes do?

A front-panel DIP switch selects them. VLAN mode restricts downlink ports to talk only to the uplink, which stops lateral traffic between connected devices. CCTV mode forces ports to 10 Mbps to stretch copper reach up to 250 m for distant devices — useful on long outdoor runs.

Is it suitable for outdoor or roadside cabinets?

Yes. It operates from -30 to 65 °C with 5–95% non-condensing humidity, backed by ±6 kV contact / ±8 kV air ESD protection and ±2 kV differential / ±4 kV common-mode surge protection. At 110 × 90 × 46 mm it fits tight pole and roadside enclosures easily.

Does it need software or any setup?

No. Ports auto-negotiate with auto-MDI/MDIX, IEEE 802.3x flow control runs in full duplex and backpressure in half duplex, and switching is store-and-forward with a 4K MAC table and 9 KB jumbo frames. Everything works out of the box; the only decision is the working-mode DIP switch.

What uplink options do I get?

Two 1000 Mbps SFP slots accept fiber modules for the uplink, keeping all 8 gigabit copper ports free for local devices. The 20 Gbps switching capacity covers all ten gigabit ports at full duplex, so camera streams aggregate to the backbone without the switch becoming the bottleneck.
