Uniview NSW2020-10T-POE-IN unmanaged PoE switch, 10 ports with 8 PoE

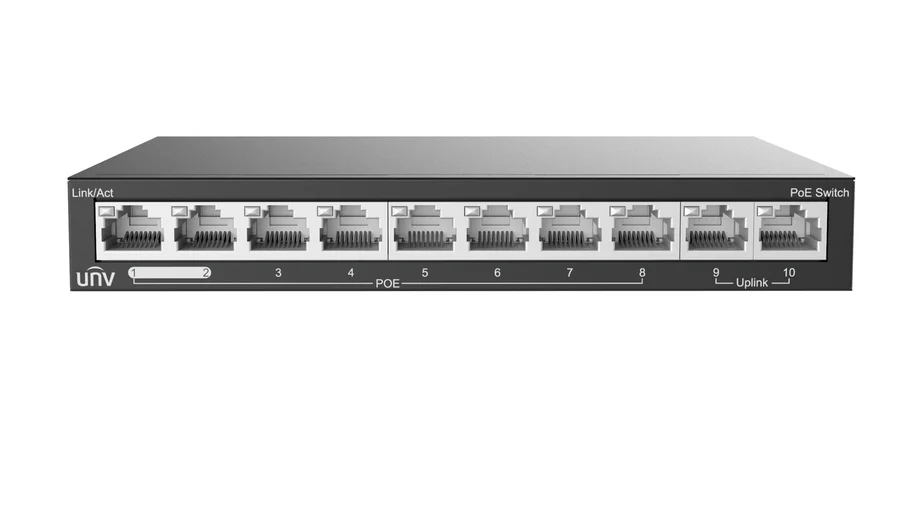

Manufacturer product photo · 10-port unmanaged PoE switch

NSW2020-10T-POE-IN

Name: NSW2020-10T-POE-IN
Brand: Uniview

Uniview · PoE Switch

Unmanaged Fast Ethernet PoE Switch · 10×10/100M (8 PoE) + 2 Uplink

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified End-User DiscountEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

Overview

The NSW2020-10T-POE-IN is an unmanaged Fast Ethernet PoE switch with 10 × 10/100Mbps RJ45 ports — 8 PoE-enabled downlink ports (ports 1-2 carry power priority) plus 2 uplink ports — built for plug-and-play CCTV deployments. It delivers an 88 W total PoE power budget (30 W max per port, IEEE 802.3af/at, Mode B pinout: 4/5+, 7/8-) over a 2 Gbps switching fabric with 1.49 Mpps forwarding, a 448K bit packet buffer and a 1K MAC address table. A fanless, all-metal 171×103×25 mm housing (0.29 kg) runs from 0°C to 45°C, is NDAA compliant, and switches between Default (Normal) and EXTEND (250 m surveillance reach) working modes via a rear-panel slide switch — no management software required.

Is This the Right Fit?

Six real deployment scenarios matched to this model's actual datasheet specifications.

8-Camera PoE Backbone For One Recorder8 PoE-enabled downlink ports (1-8) plus a dedicated uplink pair power and connect a full 8-channel camera kit through a single switch — plug straight into an 8-channel NVR without splitting cabling across two devices.

Priority Ports Protect Your Two Most Critical CamerasPorts 1-2 carry PoE power priority, so an entrance camera or a critical asset feed on those ports keeps drawing power first if total demand approaches the 88 W budget — put your must-not-lose camera there.

250 m EXTEND Reach For the Farthest Camera on SiteFlip the rear-panel switch to EXTEND (surveillance mode) and push power plus data up to 250 m — well past the standard 100 m Ethernet limit — for a gate, driveway or perimeter camera set apart from the rest.

25 mm Slim Metal Body Tucks Into Tight SpacesAt 171×103×25 mm and 0.29 kg, the all-metal fanless housing is thin enough to mount behind a monitor, inside a shallow cabinet or on a wall bracket where a taller 10-port switch won't fit.

NDAA-Compliant Pick for Government & Public-Sector BidsNDAA compliance lets integrators quote this switch into US federal, municipal and other public-sector tenders that require Section 889-compliant network hardware.

Silent 94 W Draw Beside a Desk or Reception Counter0 cooling fans and a 94 W max power draw keep the unit silent enough for a front-desk cabinet, reception counter or open-plan office where camera and PoE gear normally hide in a rack.

Not a good fit if:

Unmanaged — no Web/CLI/SNMP access or VLAN tagging; the rear-panel switch offers only Default/EXTEND positions, with no separate VLAN-isolation mode; choose a managed switch if you need remote configuration or port isolation.
Fast Ethernet only (10/100Mbps, no Gigabit) — for 4K or multi-stream camera backbones and NVR uplinks, choose a Gigabit PoE switch instead.
30 W max per port but only 88 W total budget — the 8 PoE ports can't all run at full 30 W simultaneously (8×30 W = 240 W ≫ 88 W budget), and 802.3bt heated PTZ domes (60–90 W) need a bt-capable switch or midspan injector since this model is 802.3af/at only.

Key Features

10 × 10/100Mbps RJ45 ports, including 8 PoE-enabled downlink ports (1-8) plus 2 uplink ports (9-10)
88 W total PoE budget, up to 30 W per port, IEEE 802.3af/at, Mode B pinout (4/5+, 7/8-)
Ports 1-2 hold PoE power priority under budget contention
IEEE 802.3x flow control and port traffic control for congestion management
Packet buffer optimization for smoother multi-camera streaming
EXTEND (surveillance) mode reaches up to 250 m via a rear-panel Default/Extend slide switch
Fanless, all-metal 171×103×25 mm housing, NDAA compliant

Specifications

IEEE Standards

IEEE802.3 / 802.3u	10/100Base Ethernet
IEEE802.3az	Energy Efficient Ethernet (EEE)
IEEE802.3x	Flow control
IEEE802.3af / 802.3at	PoE / PoE+ power sourcing

Ports

Total ports	10 × 10/100Mbps RJ45
PoE ports	8 (ports 1–8)
Uplink ports	2 × 10/100Mbps RJ45 (ports 9–10)
Priority ports	1–2 (PoE power priority)

Performance

Switching capacity	2 Gbps
Forwarding rate	1.49 Mpps
Packet buffer	448K bit
MAC address table	1K

PoE

Total budget	88 W
Per port	30 W max
PoE standard	IEEE 802.3af / 802.3at
Pin mode	Mode B: 4/5(+), 7/8(-)

Power & Environment

Power input	DC 48/51V (external adapter, AC 100–240V, 50/60Hz)
Max. power consumption	94 W
Cooling	Fanless (0 fans)
Operating temp.	0°C ~ 45°C (32°F ~ 113°F)
Humidity	10% ~ 90% non-condensing

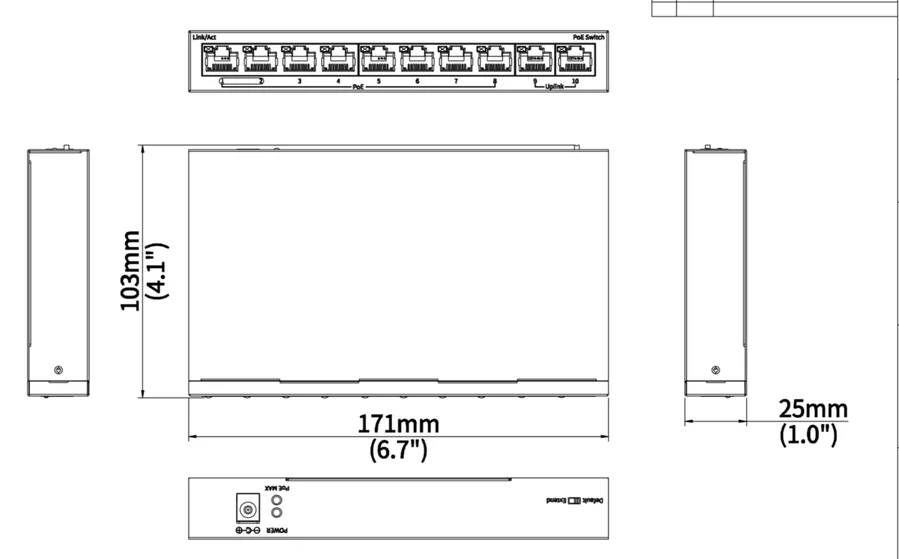

Dimensions (W×D×H)	171 × 103 × 25 mm
Weight	0.29 kg
Indicators	POWER · PoE-MAX · LINK/ACT
Working modes	Default (Normal) / EXTEND (250 m) — rear-panel slide switch
Compliance	NDAA compliant

Model	Product Description	Price
NSW2020-10T-POE-IN	Unmanaged Fast Ethernet PoE switch — 10 × 10/100Mbps RJ45 (8 PoE ports, 88 W total budget, 30 W/port max, Mode B), fanless all-metal housing, 0°C to 45°C, NDAA compliant.	✆ WhatsApp

8-Port PoE Switch FAQ — NSW2020-10T-POE-IN

How many cameras can the NSW2020-10T-POE-IN run?

Ports 1–8 are IEEE 802.3af/at PoE downlinks sharing an 88 W budget — an 11 W average per camera with all eight connected, against the 4–12 W a typical fixed IP camera draws. Any single port can deliver up to 30 W. Ports 9–10 are the 10/100 uplinks.

How does EXTEND mode work for long cable runs?

A rear-panel slide switch toggles between Default (Normal) and EXTEND. In EXTEND mode the PoE ports push data and power up to 250 m of cable for surveillance runs, so remote cameras connect without extenders. Switching back to Default restores normal operation — no software involved.

What do the PoE priority ports do?

Ports 1 and 2 carry PoE power priority. Wire your most critical cameras — an entrance or a cash desk — to those two ports so they are the ones that keep power when the 88 W budget is stretched by heavy loads elsewhere. The PoE-MAX indicator warns when the budget is near its limit.

Is it suitable for projects that require NDAA compliance?

Yes, the NSW2020-10T-POE-IN is NDAA compliant, which matters for government and enterprise tenders that reference it. Physically it is a fanless all-metal unit of just 171 × 103 × 25 mm and 0.29 kg, operating 0 to 45 °C — easy to place on a desk, shelf or inside a compact enclosure.

How is it powered and wired?

An external DC 48/51 V adapter (AC 100–240 V, 50/60 Hz input) powers the switch; maximum consumption is 94 W at full PoE load. PoE uses Mode B pinout — pins 4/5 positive, 7/8 negative. IEEE 802.3az Energy Efficient Ethernet trims idle power on the data side.
