Uniview NSW2010-10T-POE-S-IN unmanaged PoE switch, 10 ports with 8 PoE

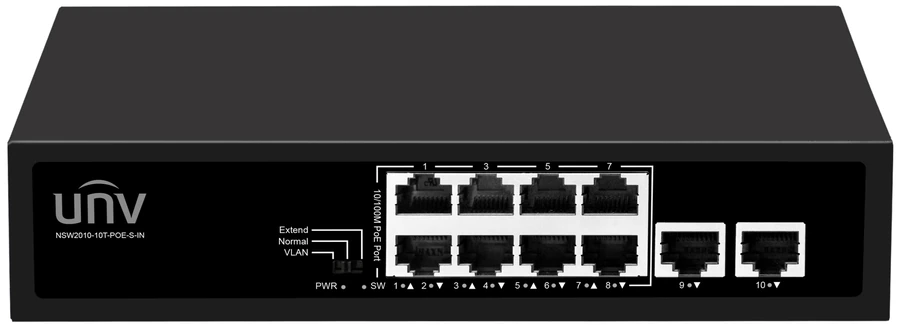

Manufacturer product photo · 10-port unmanaged PoE switch

NSW2010-10T-POE-S-IN

Name: NSW2010-10T-POE-S-IN
Brand: Uniview

Uniview · PoE Switch

Unmanaged Fast Ethernet PoE Switch · 10×10/100M (8 PoE) + 2 Uplink

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified End-User DiscountEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

Overview

The NSW2010-10T-POE-S-IN is an unmanaged Fast Ethernet PoE switch with 10 × 10/100Mbps RJ45 ports — 8 PoE-enabled downlink ports plus 2 uplink ports — built for plug-and-play CCTV deployments. It delivers a 96 W total PoE power budget (30 W max per port, Mode A pinout: 1/2+, 3/6-) over a 2 Gbps switching fabric with 1.49 Mpps forwarding, a 768K bit packet buffer and a 2K MAC address table. A fanless 200×118×44 mm metal housing (0.61 kg) runs from -10°C to 50°C and switches between Normal, EXTEND (250 m surveillance reach) and VLAN working modes via a front-panel DIP switch — no management software required.

Is This the Right Fit?

Six real deployment scenarios matched to this model's actual datasheet specifications.

Plug-and-Play Small-Site CCTVNo CLI or web login — flip the front-panel DIP switch to Normal, EXTEND or VLAN mode and start powering cameras in minutes; built for shops, offices and small guard posts.

Warehouse & Retail Camera AggregationThe 96 W PoE budget covers eight typical fixed cameras (10–13 W each) with headroom, and any single port can still feed a 30 W device — one box handles power and uplink for a small camera run.

250 m Reach Without New CablingEXTEND mode stretches PoE and data past the standard 100 m Ethernet limit to 250 m — reach a distant gate or lot camera on this switch instead of adding a repeater or media converter.

Fanless Desk & Rack-Shelf Install0 cooling fans keep the 200×118×44 mm metal case silent — sits on a desk, shelf or beside a DVR/NVR without fan noise or the need for forced-air clearance.

Isolated Guest/Kiosk DownlinksVLAN (secure) mode restricts downlink ports to talk only with the uplink port — a simple way to keep camera or kiosk ports from seeing each other's traffic without configuring real VLANs.

Fast Field Installs, Any Cable OrientationAuto MDI/MDIX means installers can use any patch or crossover cable on any port — no rewiring or cable swaps needed during a rushed on-site install.

Not a good fit if:

Unmanaged — no Web/CLI/SNMP access, VLAN tagging or per-port traffic statistics; choose a managed switch if you need remote configuration or monitoring.
Fast Ethernet only (10/100Mbps, no Gigabit) — for 4K or multi-stream camera backbones and NVR uplinks, choose a Gigabit PoE switch instead.
30 W max per port and 96 W total budget — not all 8 PoE ports can run at full 30 W simultaneously (8×30 W = 240 W > 96 W budget), and 802.3bt heated PTZ domes (60–90 W) need a bt-capable switch or midspan injector.

Key Features

10 × 10/100Mbps RJ45 ports, including 8 PoE-enabled downlink ports
96 W total PoE budget, up to 30 W per port, Mode A pinout (1/2+, 3/6-)
IEEE 802.3x full-duplex flow control and half-duplex back-pressure congestion control
Auto MDI/MDIX port flip — connects with any straight-through or crossover cable
Automatic power adaptation to connected PoE devices
Front-panel PWR/Link/DIP indicators for status monitoring and fault analysis
Three working modes via DIP switch: Normal, EXTEND (250 m) and VLAN (secure downlink)

Specifications

IEEE Standards

IEEE802.3 / 802.3u	10/100Base Ethernet
IEEE802.3x	Flow control (full-duplex) & back-pressure (half-duplex)

Ports

Total ports	10 × 10/100Mbps RJ45
PoE ports	8 (of 10)
Uplink ports	2 × 10/100Mbps RJ45
MDI/MDIX	Auto (auto flip)

Performance

Switching capacity	2 Gbps
Forwarding rate	1.49 Mpps
Packet buffer	768K bit
MAC address table	2K

PoE

Total budget	96 W
Per port	30 W
Pin mode	Mode A: 1/2(+), 3/6(-)

Power & Environment

Max. power consumption	101 W
Cooling	Fanless (0 fans)
Operating temp.	-10°C ~ 50°C (14°F ~ 122°F)
Humidity	10% ~ 90% non-condensing
Dimensions (W×D×H)	200 × 118 × 44 mm
Package dimensions	245 × 190 × 60 mm
Weight	0.61 kg
Indicators	PWR · SW (DIP) · 1-6 Green (Link&Data)
Working modes	Normal / EXTEND (250 m) / VLAN — via DIP switch

Model	Product Description	Price
NSW2010-10T-POE-S-IN	Unmanaged Fast Ethernet PoE switch — 10 × 10/100Mbps RJ45 (8 PoE ports, 96 W total budget, 30 W/port max, Mode A), fanless metal housing, -10°C to 50°C.	✆ WhatsApp

8-Port PoE Switch FAQ — NSW2010-10T-POE-S-IN

How many cameras can the NSW2010-10T-POE-S-IN power?

8 of its 10 ports are PoE downlinks sharing a 96 W budget — 12 W average per camera with all eight connected. Typical fixed IP cameras draw 4–12 W, so a full 8-camera system fits, and one port can push up to 30 W for a PTZ. The other 2 ports are uplinks.

How do I reach a camera 250 m away?

Flip the front-panel DIP switch to EXTEND mode: the PoE ports then carry data and power up to 250 m for surveillance runs, with no repeater in between. Normal and VLAN modes are on the same DIP switch, so one unmanaged switch covers three deployment cases without any software.

Is it silent enough for offices and small shops?

Yes — it is fanless (zero fans), so there is no moving part and no noise. The 200 × 118 × 44 mm metal housing weighs 0.61 kg, operates from -10 to 50 °C at 10–90% non-condensing humidity, and sits on a shelf or inside a small CCTV cabinet without ventilation planning.

Which PoE pinout does it use and how much power does it draw?

PoE is delivered in Mode A pinout — pins 1/2 positive, 3/6 negative — which suits standard IP cameras. The PoE budget is 96 W with 30 W maximum per port, and total switch consumption tops out at 101 W, so size the supply circuit for about 101 W at full camera load.

Is the bandwidth enough for 8 camera streams?

Yes. The 10 × 10/100 Mbps ports ride on a 2 Gbps switching fabric at 1.49 Mpps, with a 768K bit packet buffer and 2K MAC table. Eight camera streams typically run a few Mbps each, so the fabric and the two 10/100 uplink ports to the NVR have clear headroom.
