Official product image · 10-port desktop PoE switch

SW-2110-LP

Name: Uniarch SW-2110-LP
Brand: Uniarch

Uniarch · Desktop PoE Switch

Unmanaged Desktop PoE Switch · 8×PoE + 2×Uplink · 100M · 60W Budget

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified End-User DiscountEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

Overview

The Uniarch SW-2110-LP is an unmanaged desktop PoE switch with 10 × 100Mbps ports — 8 PoE ports (IEEE 802.3af/at, up to 30 W each, 60 W total) plus 2 uplink ports. Three switchable working modes cover real sites: Normal, Secure (downlink ports isolated, talking only to uplinks) and Surveillance, which extends PoE transmission up to 250 m for far cameras. A fanless all-metal housing and NDAA compliance make it a simple, quiet power-and-data hub for small camera systems.

Specifications

Ports & Switching

Ports Type	10 × 100Mbps network ports (RJ45), including 8 PoE ports
Uplink	2 × 100Mbps (ports 9–10)
Switching Capacity	2 Gbps
Forwarding Performance	1.49 Mpps
MAC	1K
Packet Buffer	448 Kbit

PoE

PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Mode	Mode B (pins 4/5/7/8)
Max PoE Power (total)	60 W
Max PoE Power (single port)	30 W
Prior Ports	Ports 1–2

Working Modes

Normal (default)	All ports can communicate with each other
Secure	All downlink ports communicate only with uplink ports
Surveillance (EXTEND)	Transmission distance up to 250 m

LED Indicators

POWER	Steady on: AC input normal · Off: no AC input
PoE Indicator	No PoE Indicator
PoE-MAX	Off: total PoE load < 80% of budget · Steady on: > 85% of budget
LINK/ACT	Off: no link · Steady on: linked · Flashing: transmitting data

Power & Environment

Power Supply	DC 48/51V, powered by adapter (AC 100 to 240 V)
Max Power	65 W
Cooling Fans	0 (fanless)
Operating Temperature	0 °C to 45 °C (32 °F to 113 °F)
Operating Humidity	10% to 90% (non-condensing)

Physical

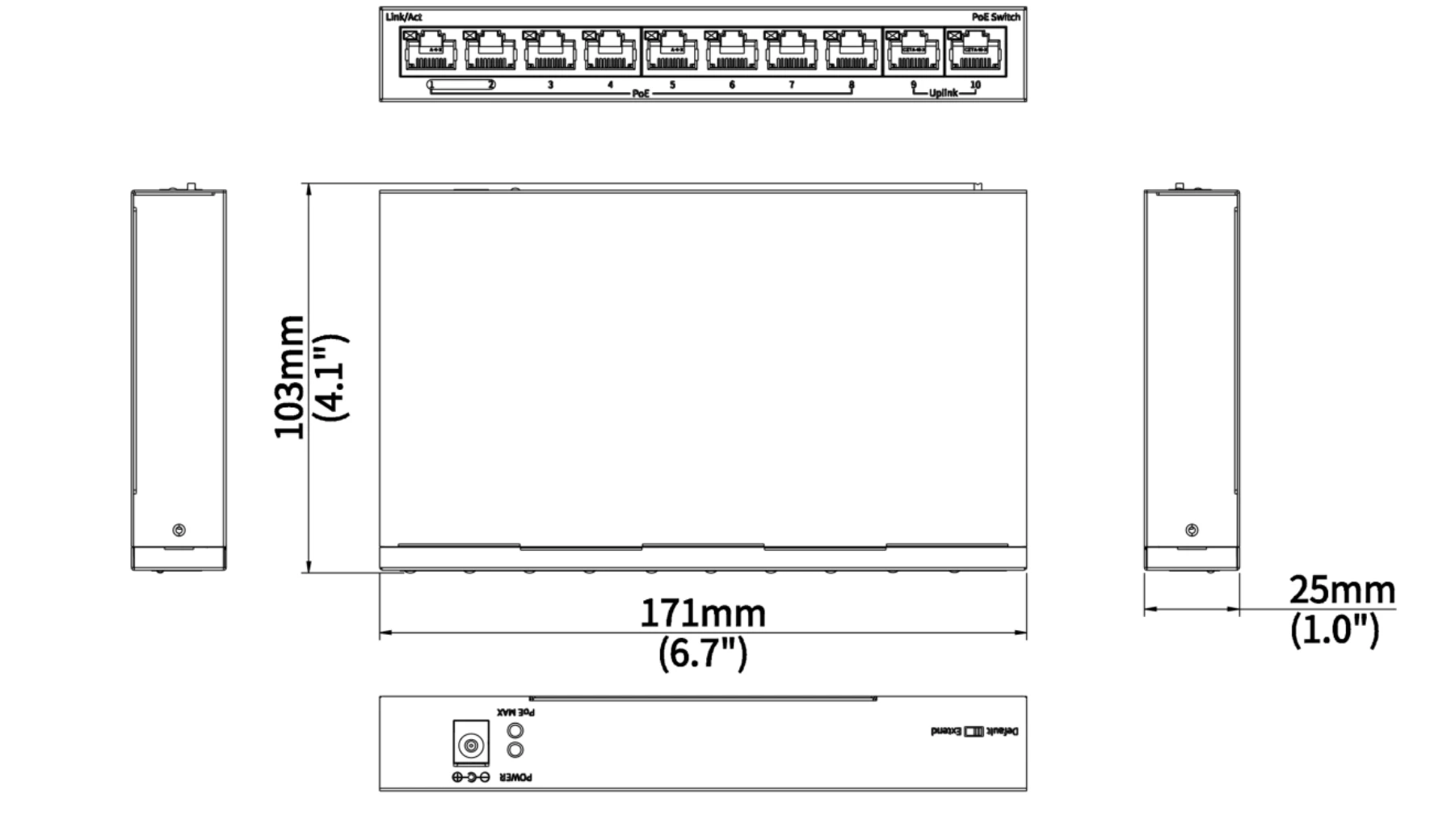

Dimensions (W×D×H)	171 × 101 × 25.5 mm
Weight	0.29 kg
Housing	All-metal

Standards & Compliance

IEEE Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
NDAA Compliant	Support

Models & Ordering

Model	Product Description	Price
SW-2110-LP	Unmanaged desktop PoE switch — 10 × 100Mbps RJ45 (8 × PoE 802.3af/at, max 30 W each, 60 W total; 2 × uplink), DC 48/51V adapter, fanless metal, NDAA compliant.	✆ WhatsApp

One standard model. Power adapter included (100–240 V input).

8-Port PoE Switch FAQ — SW-2110-LP

How many cameras can the SW-2110-LP run at once?

All 8 PoE ports can power cameras simultaneously from the shared 60W budget — about 7.5W average per port. Typical fixed IP cameras draw 4–12W, so add up your camera loads before filling all 8 ports; any single port can still deliver up to 30W. Ports 9–10 are non-PoE uplinks.

What is the maximum PoE distance to a camera?

Switch the unit to Surveillance (EXTEND) mode and PoE transmission extends up to 250 m per run, covering far gates and perimeter poles without extra midspans. All 10 ports are 100 Mbps, enough bandwidth for the compressed video streams of an 8-camera system.

What are the three working modes for?

Normal (default) lets every port talk to every other port. Secure restricts downlink ports to communicate only with the uplinks, isolating cameras from each other on shared sites. Surveillance extends PoE transmission to 250 m for long runs. You switch modes directly on the unit.

How is it powered and how big is it?

Power comes from an external DC 48/51V adapter with AC 100–240V input; total draw is 65W maximum. The fanless all-metal desktop case measures 171 x 101 x 25.5 mm, weighs 0.29 kg and operates from 0 to 45 degC at 10–90% non-condensing humidity.

Is the SW-2110-LP managed, and is it NDAA compliant?

It is an unmanaged plug-and-play switch — no setup needed. PoE follows IEEE 802.3af/at in Mode B (pins 4/5/7/8), with ports 1–2 holding PoE priority when the 60W budget is tight; the PoE-MAX LED lights above 85% load. NDAA compliance is supported.
