Official product image · 18-port rack PoE switch

SW-2218-LP

Name: Uniarch SW-2218-LP
Brand: Uniarch

Uniarch · Rack PoE Switch

Unmanaged Rack PoE Switch · 16×PoE + 2×Uplink (RJ45+Combo) · Gigabit · 150W Budget

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified End-User DiscountEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

Overview

The Uniarch SW-2218-LP is a 19-inch rack-mount unmanaged PoE switch with 18 ports — 16 × 100Mbps PoE ports (IEEE 802.3af/at, up to 30 W each, 150 W total) plus 1 × 1000Mbps Gigabit uplink and 1 × 1000Mbps Combo uplink port. Three switchable working modes cover real sites: Normal, Secure (downlink ports isolated, talking only to uplinks) and Surveillance, which extends PoE transmission up to 250 m for far cameras. A fanless all-metal 1U housing and NDAA compliance make it a quiet, dependable power-and-data hub for larger camera systems.

Key Features

Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Secure mode: all downlink ports communicate only with uplink ports
Up to 250 m transmission distance on Surveillance mode
Support buffer optimization
All metal housing, safe and reliable

Specifications

Ports & Switching

Ports Type	16 × 100Mbps PoE ports (RJ45) + 1 × 1000Mbps GigaEthernet port + 1 × 1000Mbps Combo port
Uplink	1 × 1000Mbps RJ45 + 1 × 1000Mbps Combo
Switching Capacity	7.2 Gbps
Forwarding Performance	5.36 Mpps
MAC	16K
Packet Buffer	4 Mbit

PoE

PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Mode	Mode A (pins 1/2/3/6), Mode B (pins 4/5/7/8)
Max PoE Power (total)	150 W
Max PoE Power (single port)	30 W
Prior Ports	Ports 1–8

Working Modes

Normal (default)	All ports can communicate with each other
Secure	All downlink ports communicate only with uplink ports
Surveillance (EXTEND)	Transmission distance up to 250 m

LED Indicators

POWER	Steady on: AC input normal · Off: no AC input
PoE	Off: no PoE power supply · Steady on: PoE power supply normal
PoE-MAX	Off: total PoE load < 80% of budget · Steady on: > 85% of budget
LINK/ACT	Off: no link · Steady on: linked · Flashing: transmitting data

Power & Environment

Power Supply	Built-in, AC 100–240 V, 50/60 Hz
Max Power	165 W
Cooling Fans	0 (fanless)
Operating Temperature	0 °C to 45 °C (32 °F to 113 °F)
Operating Humidity	10% to 90% (non-condensing)

Physical

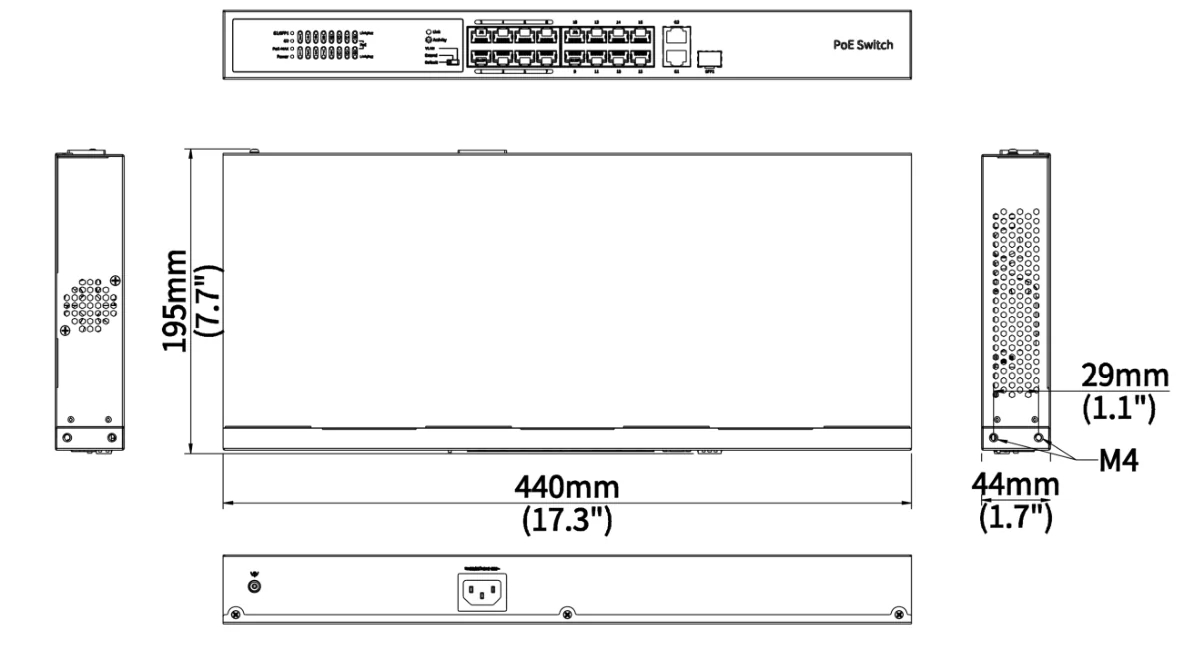

Dimensions (W×D×H)	440 × 189.8 × 44 mm
Weight	1.99 kg
Housing	All-metal, 19-inch rack-mount 1U

Standards & Compliance

IEEE Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
NDAA Compliant	Support

Models & Ordering

Model	Product Description	Price
SW-2218-LP	Unmanaged rack-mount PoE switch — 18 network ports (16 × 100Mbps PoE 802.3af/at, max 30 W each, 150 W total; 1 × 1000Mbps uplink + 1 × 1000Mbps Combo), built-in AC 100–240V power, fanless metal 1U, NDAA compliant.	✆ WhatsApp

One standard model. Built-in AC power supply (100–240 V input, no external adapter).

16-Port PoE Switch FAQ — SW-2218-LP

How many cameras can the SW-2218-LP support?

It has 16 PoE ports with a 150W total budget — roughly 9W average per port, comfortable for typical 4–12W fixed IP cameras as long as the total stays under 150W. Any port can deliver up to 30W for PTZ or IR-heavy models, and ports 1–8 hold PoE priority.

What uplinks does it offer toward the NVR?

Two gigabit uplinks: one 1000 Mbps RJ45 port plus one 1000 Mbps Combo port. With 7.2 Gbps switching capacity, 5.36 Mpps forwarding, a 16K MAC table and 4 Mbit buffer, the 16 fast-Ethernet camera ports aggregate cleanly into a gigabit backbone to the NVR or core switch.

Can it feed cameras beyond the usual cable distance?

Yes — in Surveillance (EXTEND) mode, PoE transmission extends up to 250 m per run for distant gate and perimeter cameras. Two other modes are available: Normal, where all ports intercommunicate, and Secure, where downlink ports talk only to the uplinks for camera isolation.

Can it be rack-mounted and how is it powered?

Yes — it is a 19-inch 1U unit (440 x 189.8 x 44 mm, 1.99 kg) with a built-in AC 100–240V, 50/60 Hz power supply, so no external adapter is needed. Maximum draw is 165W. The fanless all-metal chassis runs silently from 0 to 45 degC.

Which PoE standards and wiring modes does it support?

It is an unmanaged switch following IEEE 802.3af/at, delivering PoE in both Mode A (pins 1/2/3/6) and Mode B (pins 4/5/7/8) at up to 30W per port. It is NDAA compliant, and the PoE-MAX LED warns when load passes 85% of the 150W budget.
