Official product image · 6-port desktop PoE switch
SW-2106-LP
Uniarch · Desktop PoE Switch
Unmanaged Desktop PoE Switch · 4×PoE + 2×Uplink · 100M · 60W Budget
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Get Best Price on WhatsAppTerms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Not sure about the PoE budget? Size it with the calculator →
Need the PDF datasheet? Get it on WhatsApp →HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆PoE 802.3af/at
◆4×PoE · 30W/port
◆60W Total Budget
◆250m Extend Mode
◆Fanless Metal
◆NDAA
Overview
The Uniarch SW-2106-LP is an unmanaged desktop PoE switch with 6 × 100Mbps ports — 4 PoE ports (IEEE 802.3af/at, up to 30 W each, 60 W total) plus 2 uplink ports. Three switchable working modes cover real sites: Normal, Secure (downlink ports isolated, talking only to uplinks) and Surveillance, which extends PoE transmission up to 250 m for far cameras. A fanless all-metal housing and NDAA compliance make it a simple, quiet power-and-data hub for small camera systems.
Key Features
- Multiple working modes to address your business needs: Normal, Secure and Surveillance
- Support port traffic control
- Secure mode: all downlink ports communicate only with uplink ports
- Up to 250 m transmission distance in Surveillance mode
- Support buffer optimization
- All-metal housing, safe and reliable
Specifications
Ports & Switching
| Ports Type | 6 × 100Mbps network ports (RJ45), including 4 PoE ports |
| Uplink | 2 × 100Mbps (ports 5–6) |
| Switching Capacity | 1.2 Gbps |
| Forwarding Performance | 0.90 Mpps |
| MAC | 1K |
| Packet Buffer | 448 Kbit |
PoE
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Mode | Mode B (pins 4/5/7/8) |
| Max PoE Power (total) | 60 W |
| Max PoE Power (single port) | 30 W |
| Prior Ports | Ports 1–2 |
Working Modes
| Normal (default) | All ports can communicate with each other |
| Secure | All downlink ports communicate only with uplink ports |
| Surveillance (EXTEND) | Transmission distance up to 250 m |
LED Indicators
| POWER | Steady on: AC input normal · Off: no AC input |
| PoE-MAX | Off: total PoE load < 80% of budget · Steady on: > 85% of budget |
| LINK/ACT | Off: no link · Steady on: linked · Flashing: transmitting data |
Power & Environment
| Power Supply | DC 48/51V, powered by adapter (100–240 V, 50/60 Hz) |
| Max Power | 65 W |
| Cooling Fans | 0 (fanless) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating Humidity | 10% to 90% (non-condensing) |
Physical
| Dimensions (W×D×H) | 108 × 100 × 25.5 mm |
| Weight | 0.19 kg |
| Housing | All-metal |
Standards & Compliance
| IEEE Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| NDAA Compliant | Support |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| SW-2106-LP | Unmanaged desktop PoE switch — 6 × 100Mbps RJ45 (4 × PoE 802.3af/at, max 30 W each, 60 W total; 2 × uplink), DC 48/51V adapter, fanless metal, NDAA compliant. |
One standard model. Power adapter included (100–240 V input).

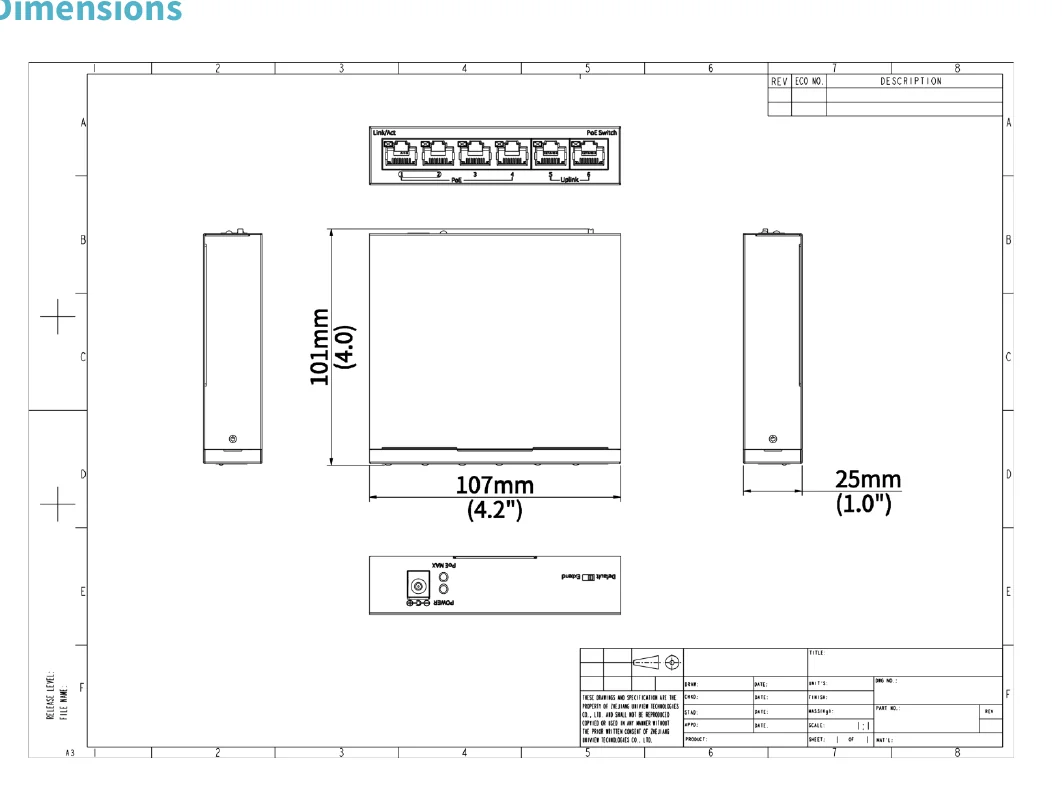

Dimensions
unit: mm
Project Bundles WelcomeCameras + NVR + switches + cabling quoted as one bundle · Free full-project BOM review.
Talk to an engineer →4-Port PoE Switch FAQ — SW-2106-LP
How many cameras can the SW-2106-LP power?
It has 4 PoE ports sharing a 60W budget — an average of 15W per camera, while typical fixed IP cameras draw 4–12W. Any single port can supply up to 30W under IEEE 802.3af/at for heavier devices, and ports 5–6 are non-PoE uplinks for the NVR or router.
How far can it reach a camera on one cable run?
In Surveillance (EXTEND) mode, PoE transmission reaches up to 250 m on a single run — useful for gate or perimeter cameras far from the equipment room. All 6 ports are 100 Mbps, which is ample bandwidth for the compressed streams of a small CCTV system.
What do the Normal, Secure and Surveillance modes do?
Normal, the default, lets all ports communicate freely. Secure isolates the downlink ports so they only talk to the uplinks — cameras cannot see each other, which limits the spread of network issues. Surveillance extends PoE transmission distance up to 250 m. The modes are switchable on the unit.
How is the SW-2106-LP powered and where can it be installed?
It runs from an external DC 48/51V adapter (AC 100–240V, 50/60 Hz input) with a maximum draw of 65W. The fanless all-metal case measures just 108 x 100 x 25.5 mm and weighs 0.19 kg, sits on a desktop and operates from 0 to 45 degC in silence.
Does it need configuration, and is it NDAA compliant?
No configuration — it is an unmanaged plug-and-play switch supporting IEEE 802.3af/at with PoE delivered in Mode B (pins 4/5/7/8). It is NDAA compliant. Ports 1–2 have PoE priority, and the PoE-MAX LED lights when total load passes 85% of the 60W budget.
