ZJTS804
Industrial Serial Device Server · 4×RS-232/485
Industrial 4-Port RS-232/485 Serial Device Server · Modbus TCP/IP · DC5V/AC220V
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Get Best Price on WhatsAppTerms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆Serial Device Server
◆4 × RS-232/485 Ports
◆Desktop / Wall-Mount
◆DC5V / AC220V
◆-40~75°C Option
◆5-Year Warranty
Overview
The ZJTS804 is an industrial serial device server that supports up to 4 RS-232/485 serial ports in flexible combinations, bridging legacy serial equipment to 10/100M Ethernet networks with remote WEB-browser configuration. It is powered by DC5V (5–24V wide range, via optional 220V-to-5V adapter) or AC220V (85–264VAC/77–300VDC), drawing a maximum of 4 W with reverse-polarity and overload protection, and is available in a standard -10~60°C or wide-temperature -40~75°C version. Housed in a compact IP40 metal enclosure for desktop or wall-mount installation, it carries a 5-year warranty.
Is This the Right Fit?
Six real deployment scenarios matched to this model's actual datasheet specifications.
Legacy Serial Equipment onto the NetworkUp to 4 RS-232/485 serial ports in flexible combination bridge legacy instruments, PLCs, and meters onto a 10/100M Ethernet network for remote access.
PLC & Automation Cell IntegrationBuilt-in Modbus TCP/IP support alongside DHCP/Telnet/TCP/UDP/ICMP/ARP lets PLCs and SCADA systems poll serial field devices directly over standard Ethernet.
Desktop Plug-and-Play DeploymentCompact 30×106×160 mm metal desktop/wall-mount enclosure needs no rack or cabinet — connect power and Ethernet and the unit is online.
Wide-Temperature Outdoor / Unheated CabinetThe optional wide-temperature version operates from -40 to 75°C (storage to -40~85°C), suited to unheated outdoor cabinets facing cold winters and hot summers.
Mid-Scale Multi-Device Serial Consolidation4 independent RS-232/485 ports — double the port count of the 2-port ZJTS802 — let one unit consolidate several serial instruments, PLCs, or meters at a single network drop, right-sized between single-device and 8/16-port rack units.
Long-Run RS-485 Field Wiring Surge ImmunityBuilt-in 15KV ESD protection on all 4 serial ports, plus EN61000-4 series Level 3 EMC immunity, guards against lightning-induced surges and EMI picked up along long RS-485 field cable runs to remote instruments.
Not a good fit if:
- Single 10/100M Ethernet uplink port only — not a multi-port network switch; use a separate switch for LAN fan-out.
- Single, non-redundant DC5V or AC220V power input per SKU — no dual/redundant power option in this datasheet.
- IP40 enclosure only — needs a cabinet or additional protection for direct outdoor rain/dust exposure.
Key Features
- 10/100M auto-negotiating Ethernet port for fast networking of serial devices
- High-performance processor with large-capacity memory
- Remote parameter configuration over the network via WEB browser
- Built-in 15KV ESD surge protection on all serial ports
- Intuitive Chinese/English menu setup interface simplifies installation and configuration
- RS-232/485 serial ports can be flexibly combined
- Custom products available with terminal-block power connector for easy wiring
- Desktop or wall-mount installation
Specifications
Performance
| CPU | 32-bit 100MHz |
| Memory | 2MB |
| Ethernet Rate | 10/100Mbps auto-negotiation, manual setting supported |
| Communication Mode | 10M half/full duplex, 100M half/full duplex |
| Port Protection | 15KV electromagnetic isolation |
Serial Interface
| Serial Ports | 4 × RS-232/485 |
| Port Connector | RS-232/485 terminal block |
| RS-232 Signal | TxD, RxD, GND |
| RS-485 Signal (2-wire) | Data+, Data-, GND |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 2 |
| Flow Control | RTS/CTS, XON/XOFF |
| Baud Rate | 300bps to 230.4Kbps |
| Protocols | DHCP, Telnet, TCP, UDP, IP, ICMP, ARP, Modbus TCP/IP |
| Virtual COM Driver | Windows NT/2000/XP/Vista/7/10/11 |
Power
| 5V Input | Optional 220V-to-5V power adapter, support range 5–24VDC |
| 220V Input | 3-pin terminal; 220V support range 85–264VAC/77–300VDC |
| Power Consumption | Max 4 W |
| Power Protection | Reverse-polarity & overload |
Environment
| Standard Temp | -10 ~ 60°C |
| Wide Temp | -40 ~ 75°C |
| Storage Temp | -40 ~ 85°C |
| Humidity | 5–95% non-condensing |
Physical
| Housing | IP40 metal enclosure |
| Mounting | Wall-mount / desktop |
| Dimensions | 30 (H) × 106 (D) × 160 (W) mm |
Certification
| EMC | CE, FCC |
| EMI | FCC Part 15, CISPR (EN55022) Class A |
| EMS | EN61000-4-2 (ESD) Level 3, EN61000-4-3 (RS) Level 3, EN61000-4-4 (EFT) Level 3, EN61000-4-5 (Surge) Level 3, EN61000-4-6 (CS) Level 3, EN61000-4-8 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Green | RoHS, WEEE |
Reliability
| MTBF | 320,000 hours |
| Warranty | 5 years |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| ZJTS804-S-232 | Industrial 4-port RS232 serial device server, desktop/wall-mount installation, AC220V powered, optional 220V-to-5V (5–24V range) power adapter. | |
| ZJTS804-S-485 | Industrial 4-port RS485 serial device server, desktop/wall-mount installation, AC220V powered, optional 220V-to-5V (5–24V range) power adapter. | |
| ZJTS804-M | Industrial 4-port RS232/485 (2-in-1) serial device server, desktop/wall-mount installation, AC220V powered, optional 220V-to-5V (5–24V range) power adapter. |
This page covers the ZJTS804 series (4-port desktop/wall-mount serial device server): -S-232 = RS-232 only; -S-485 = RS-485 only; -M = RS-232/485 combo (2-in-1), port type selectable. All three SKUs are AC220V powered with an optional 220V-to-5V (5–24V range) DC power adapter. The requested model is ZJTS804.

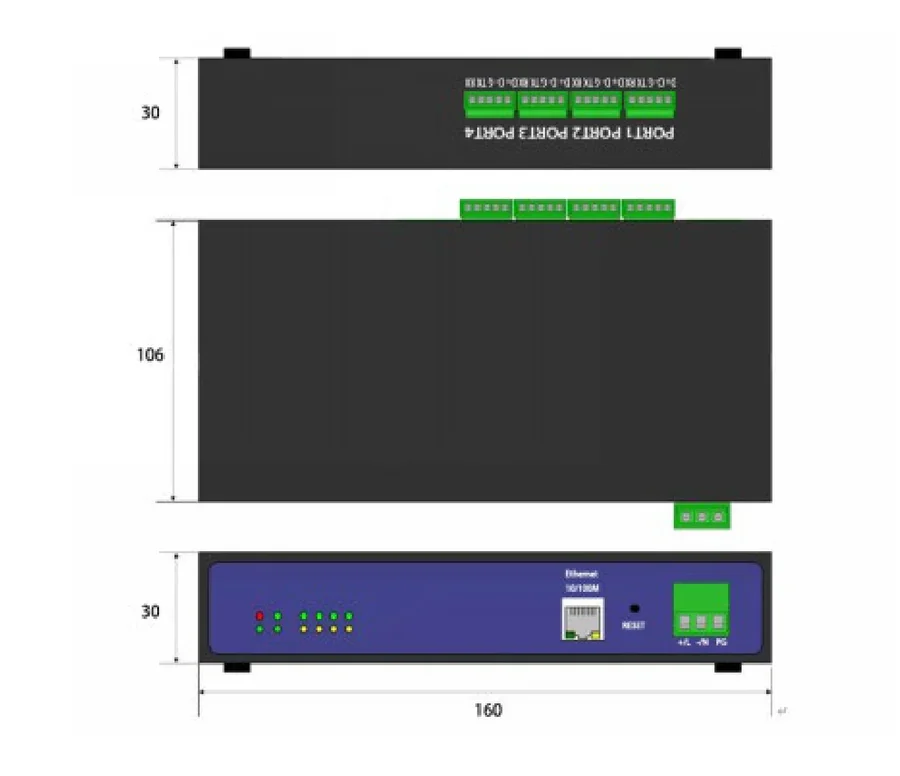

Dimensions
