ZJTS804D

Name: Uniview ZJTS804D
Brand: Uniview

Serial Device Server · 4×RS-232/485 · DIN-Rail

Industrial DIN-Rail Serial Device Server · 4×RS-232/485 · 1 or 2×10/100M Ethernet · DC5V (5–24V)

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified End-User DiscountEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

Overview

The ZJTS804D is an industrial DIN-rail serial device server that bridges 4 × RS-232/485 serial devices onto an Ethernet network. It offers 1 or 2 × 10/100M auto-adaptive Ethernet ports, WEB-browser remote configuration, and built-in 15KV ESD surge protection on every serial port. Powered by DC5V (5–24V wide-range DC input) with reverse-polarity and overload protection, in a compact 135×117×50mm metal enclosure for DIN-rail or wall mounting, it is built for cabinets that need to connect legacy serial equipment to an Ethernet network.

Is This the Right Fit?

Six real deployment scenarios matched to this model's actual datasheet specifications.

Legacy Serial Equipment to Ethernet4 independent RS-232/485 serial ports let PLCs, meters, and other legacy serial-only equipment reach a standard 10/100M Ethernet network — no rewiring of the serial side required.

Electrical Cabinet DIN-Rail MountDefault DIN-rail mounting plus DC5V wide-range 5–24VDC input with reverse-polarity/overload protection fits directly inside control cabinets and junction boxes — the only DIN-rail form factor in this serial-server family.

PLC Automation Cell IntegrationBuilt-in Modbus TCP/IP support lets RS-232/485 PLCs and automation controllers bridge directly onto an Ethernet-based SCADA/HMI network alongside DHCP, Telnet, TCP/UDP and ARP.

Outdoor / Unheated Cabinet DeploymentAn optional wide-temperature version rated -40 to 75°C (vs. -10 to 60°C standard) keeps the serial link running in unheated outdoor cabinets and cold climates.

Choose 1 or 2 Ethernet UplinksSold as -1T (a single 10/100M Ethernet port) or -2T (two 10/100M Ethernet ports) — pick the 2-port SKU when the cabinet needs a second Ethernet connection point without adding a separate switch.

Surge-Prone Field Wiring ProtectionAll 4 serial ports carry built-in 15KV ESD surge protection, guarding against lightning-induced or electrostatic transients common on long field serial cable runs.

Not a good fit if:

Not a network switch — 1 or 2 Ethernet ports only bridge serial traffic to IP; no VLAN/RSTP/ring-network switching between multiple LAN devices.
IP40 enclosure only — needs a cabinet or additional protection for direct outdoor rain/dust exposure.
DC5V (5–24VDC) power only — no AC220V option on this series; sites with only AC mains need a separate DC5V power adapter.

Key Features

1 or 2 × 10/100M auto-adaptive Ethernet port(s) for fast serial-to-network connectivity
High-performance 32-bit 100MHz processor with ample memory
Remote parameter configuration via WEB browser over the network
Built-in 15KV ESD surge protection on all serial ports
Intuitive bilingual Chinese/English configuration menu for easier setup
Flexible RS-232/485 serial port combination
Custom terminal-block power connector available for easy wiring
DIN-rail or wall-mount installation

Specifications

Performance

CPU	32-bit 100MHz
Memory	2MB
Ethernet Rate	10/100Mbps auto-adaptive, manual setting supported
Communication Mode	10M half/full duplex, 100M half/full duplex
Port Protection	15KV electromagnetic isolation

Serial & Ethernet Interface

RJ45 Ethernet	Up to 2×10/100Base-T(X) — 1 or 2 ports selectable (-1T/-2T)
Serial Ports	4 × RS-232/485
Connector Type	Terminal block / DB-9
RS-232 Signal	TxD, RxD, GND
RS-485 Signal (2-wire)	Data+, Data-, GND
Data Bits	5, 6, 7, 8
Parity	None, Even, Odd, Space, Mark
Stop Bits	1, 2
Flow Control	RTS/CTS, XON/XOFF
Baud Rate	300bps – 230.4Kbps
Protocols	DHCP, Telnet, TCP, UDP, IP, ICMP, ARP, Modbus TCP/IP
Virtual COM Driver	Windows NT/2000/XP/Vista/7/10/11

Power

DC Input	DC5V, supports 5–24VDC range
Power Consumption	Max 4 W
Power Protection	Reverse-polarity & overload protection
Other Power Options	None — DC5V (5–24V) only, no AC220V option on this series

Environment

Standard Temp	-10 ~ 60°C
Wide Temp (optional)	-40 ~ 75°C
Storage Temp	-40 ~ 85°C
Humidity	5–95% non-condensing

Physical

Housing	IP40 metal enclosure
Mounting	Wall-mount / DIN-rail

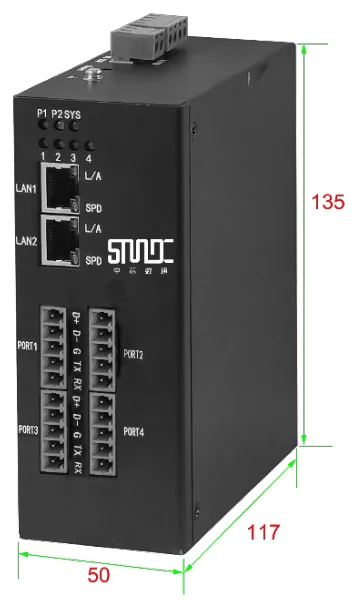

Dimensions	135 (H) × 117 (D) × 50 (W) mm

Certification

EMC	CE, FCC
EMI	FCC Part 15, CISPR (EN55022) Class A
EMS	EN61000-4-2/3/4/5/6/8 Level 3
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Green	RoHS, WEEE

Reliability

MTBF	320,000 hours
Warranty	5 years

Models & Ordering

Model	Product Description	Price
ZJTS804D-1T-S-232	4-port RS-232 serial device server, 1×10/100M auto-adaptive Ethernet port, DIN-rail mount, DC5V (5–24V) power.	✆ WhatsApp
ZJTS804D-1T-S-485	4-port RS-485 serial device server, 1×10/100M auto-adaptive Ethernet port, DIN-rail mount, DC5V (5–24V) power.	✆ WhatsApp
ZJTS804D-1T-M	4-port RS-232/485 combo serial device server, 1×10/100M auto-adaptive Ethernet port, DIN-rail mount, DC5V (5–24V) power.	✆ WhatsApp
ZJTS804D-2T-S-232	4-port RS-232 serial device server, 2×10/100M auto-adaptive Ethernet ports, DIN-rail mount, DC5V (5–24V) power.	✆ WhatsApp
ZJTS804D-2T-S-485	4-port RS-485 serial device server, 2×10/100M auto-adaptive Ethernet ports, DIN-rail mount, DC5V (5–24V) power.	✆ WhatsApp
ZJTS804D-2T-M	4-port RS-232/485 combo serial device server, 2×10/100M auto-adaptive Ethernet ports, DIN-rail mount, DC5V (5–24V) power.	✆ WhatsApp

Model code: -1T = 1×10/100M Ethernet port, -2T = 2×10/100M Ethernet ports; -S-232 = 4×RS-232 only, -S-485 = 4×RS-485 only, -M = RS-232/RS-485 combo (selectable per port). All 6 SKUs share the same DC5V (5–24V) power input and DIN-rail housing; a wide-temperature (-40~75°C) option is available on request.

DIN-Rail Serial Device Server FAQ — ZJTS804D

What is the difference between the -1T and -2T versions?

The Ethernet port count. The -1T build has 1 × 10/100Base-T(X) port; the -2T build has 2, both auto-adaptive 10/100Mbps with manual setting supported. Serial capacity is identical — 4 × RS-232/485 on terminal block or DB-9 connectors — so choose -2T when you want a second network connection.

How does the ZJTS804D mount inside a cabinet?

It clips onto a standard DIN rail or screws to a wall — the compact 135×117×50 mm IP40 metal enclosure fits alongside breakers and PLC modules in the same cabinet. That makes it the natural pick over desktop models when the serial equipment already lives in a control cabinet.

What power input does it need? Is there an AC version?

This series is DC-only: DC5V nominal with a wide 5–24VDC input range, drawing 4 W maximum, with reverse-polarity and overload protection. There is no AC220V option on the ZJTS804D — if you need mains AC input, look at the desktop ZJTS804 instead, which offers both.

How is each serial port protected against surges?

Every serial port carries built-in 15KV ESD surge protection with electromagnetic isolation, and the unit meets EN61000-4-2/3/4/5/6/8 at Level 3 plus IEC60068 shock, free-fall and vibration standards. That protects RS-485 field buses running near motors, contactors and long outdoor cable runs.

Which protocols and configuration methods does it support?

Configuration is remote via WEB browser; protocols include DHCP, Telnet, TCP, UDP, IP, ICMP, ARP and Modbus TCP/IP. The Windows virtual COM driver (NT through 11) maps the 4 remote serial ports to local COM numbers. Serial side: 300 bps–230.4 Kbps, data bits 5–8, five parity modes, RTS/CTS and XON/XOFF flow control.
