ZXWT S5860-E series 10G aggregation routing switch

ZXWT S5860-36QM-E modular 10G aggregation switch

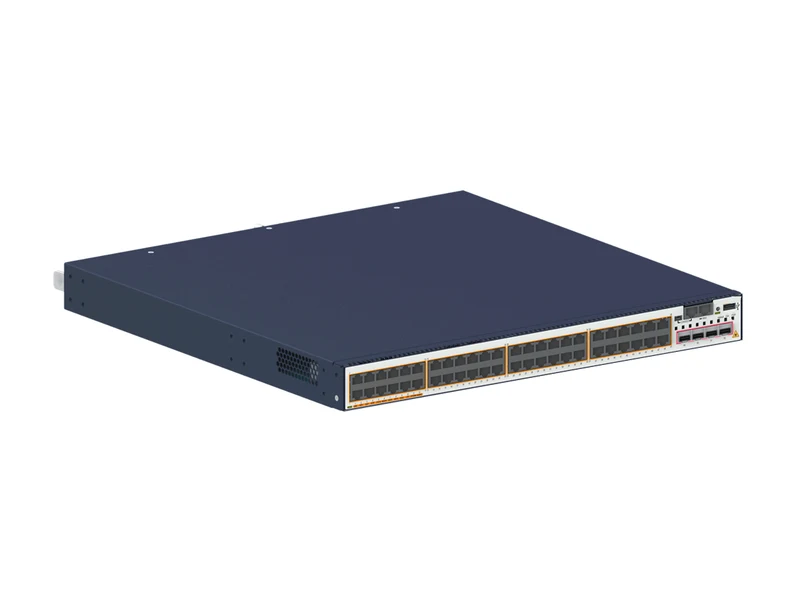

ZXWT S5860-60QM-E 48-port modular 10G aggregation switch

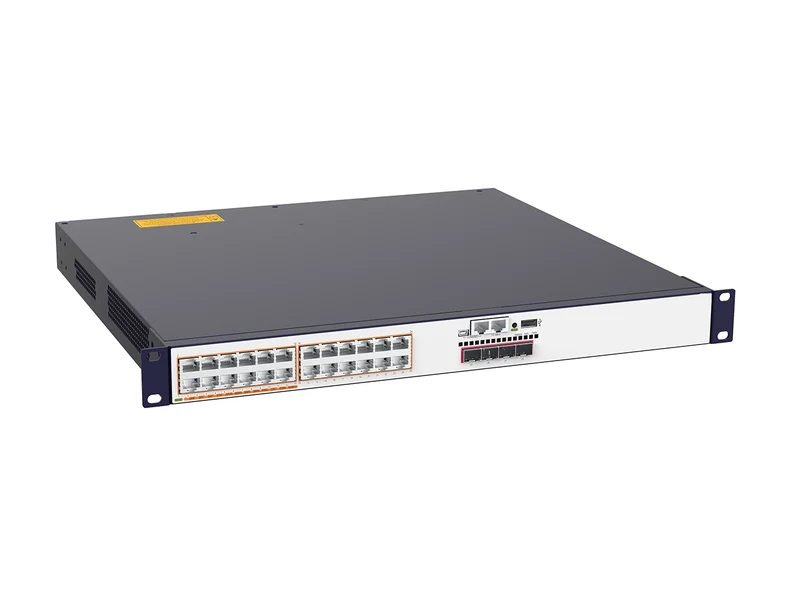

ZXWT S5860-28X-E fixed 10G aggregation switch

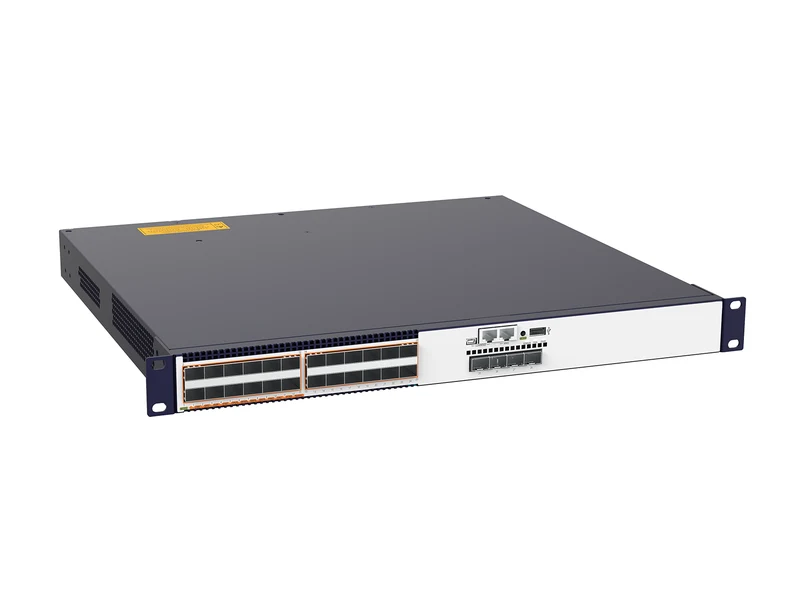

ZXWT S5860-28FX-E full-SFP 10G aggregation switch

ZXWTS5860-E Series · 10G Aggregation

10G Uplink Aggregation / Routing Switches · 8 Models

ZXWT S5860-E · 10G Aggregation

Name: ZXWT S5860-E Series 10G Aggregation Routing Switches (S5860-36QM-E / S5860-60QM-E / S5860-60FM-E / S5860-36PM-E / S5860-60PM-E / S5860-28X-E / S5860-52X-E / S5860-28FX-E)
Brand: ZXWT

Layer-3 full-gigabit routing switches with 4×10GE SFP+ uplinks on every model — five modular units with an expansion slot (8×10GE SFP+ or 2×40GE QSFP+ cards) and three fixed units with built-in 1+1 redundant power. SDN-ready with VxLAN and NETCONF/YANG. We size and configure them for your aggregation layer as part of our solution delivery.

4×10GE · SFP+ uplinks on every model2.56T · switching capacity, modular (Tbps)1+1 · redundant powerVxLAN · + NETCONF/YANG, SDN-ready960W · max PoE budget (60PM-E, dual PSU)

CHOOSE YOUR MODEL — 5 MODULAR + 3 FIXED

QM/PM/FM models carry one expansion slot for an 8×10GE SFP+ or 2×40GE QSFP+ card; X/FX models are fixed boxes with built-in 1+1 power redundancy. FM/FX models are full-SFP for fiber-to-building aggregation; PM models add PoE+.

Get Best Price on WhatsApp

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4×10GESFP+ uplinks, every model

2.56Tswitching capacity — modular models (Tbps)

822Mpacket forwarding, 48-port modular (pps)

400k hMTBF, entire series (>400000 h)

Is this the right aggregation series for you?

Plain-language guide — based only on what these switches actually do.

Campus aggregation & small coresCollect gigabit access switches over 10G fiber and route between VLANs with OSPF/IS-IS/BGP — for mid-size parks this family often doubles as the core itself.

Fiber-to-building backbonesThe full-SFP 60FM-E and 28FX-E terminate building fibers directly — 48 or 24 GE SFP ports plus 4×10GE SFP+ up to the core.

High-density PoE floors36PM-E and 60PM-E aggregate and power dense AP or camera floors: PoE+ budgets of 420 W on one PSU, 720/960 W on two, with time-based PoE scheduling to cut idle-hour consumption.

Not the right pick if you need…

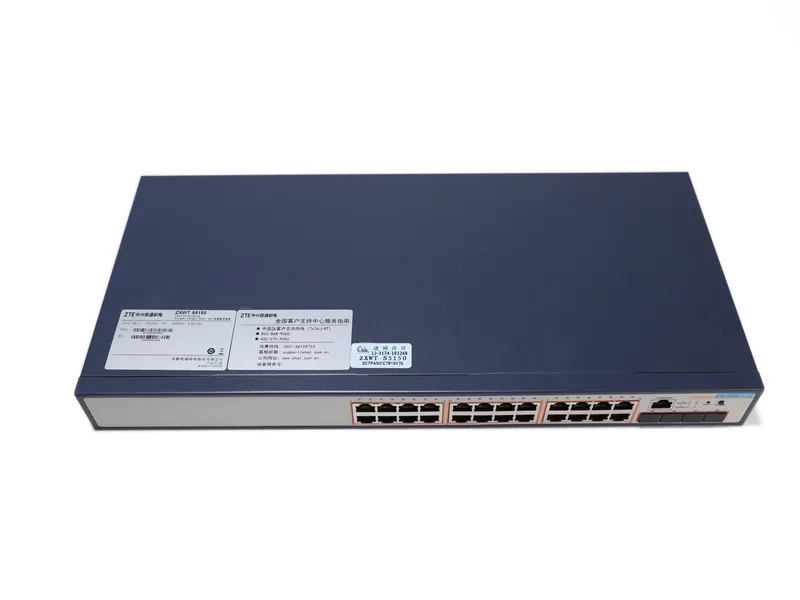

Plain gigabit access at the edge — the ZXWT S5150 series does that for less

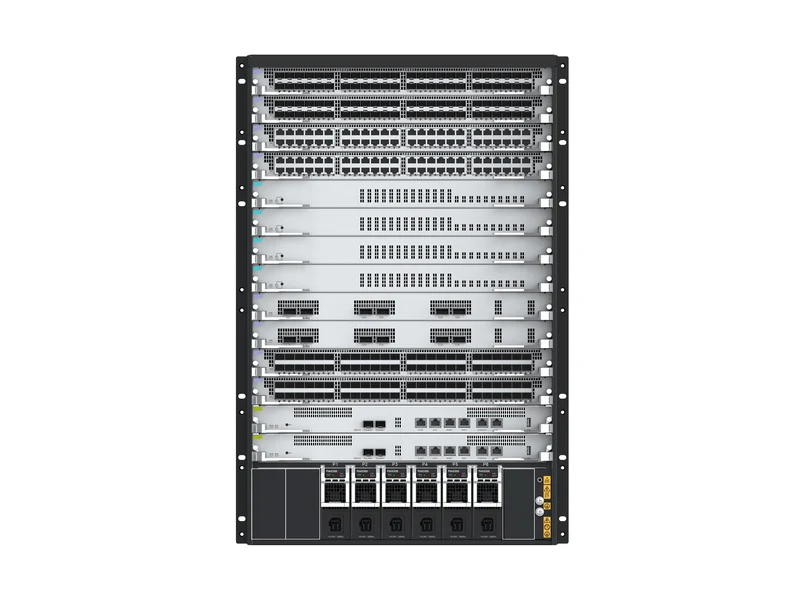

A large chassis core with 40G/100G boards — that's the ZXWT S7850 series
DIN-rail or harsh-environment mounting — pick from our industrial switch lines instead

Worried about the source? Order under your own company name.

For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the factory. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume DiscountBulk quantities of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional network design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The series capability list — from the manufacturer's datasheet.

4×10GE SFP+ uplinks on every model; expansion card options of 8×10GE SFP+ or 2×40GE QSFP+ (modular models)

Full L3: static, RIP, OSPF, IS-IS, BGP4 and IPv6 equivalents (RIPng, OSPFv3, IS-ISv6, BGP4+), plus MPLS VPN and MCE

VSE virtual switch clustering: up to 160G stacking bandwidth, N+1 backup, cross-device link aggregation

SDN-ready: VxLAN, EVPN (modular models), NETCONF/YANG, vertical virtualization

50ms-class protection: ZESS, ERPS, ZESR/ZESR+, plus VRRP/VRRPE, MC-LAG, BFD and IP FRR

Smart PoE on PM models: 802.3af/at up to 30 W per port, overload/short-circuit protection, time-based supply

Security: CPU overload & DDoS protection, hardware ACLs, uRPF, STP root/BPDU guard, ARP attack protection

Zero-touch provisioning, M-Button one-key maintenance, dual-core CPU with independent detection engine

Full Specifications — Model by Model

Series specifications with one column per model — technical values in English. The highlighted column follows your model selection above.

Modular Models — Expansion-Slot Units (5 models)

	36QM-E	60QM-E	60FM-E	36PM-E	60PM-E
Switching capacity	2.56 / 25.6 Tbps
Packet forwarding rate	756 Mpps	822 Mpps	822 Mpps	756 Mpps	822 Mpps
Fixed ports	24×GE RJ45 + 4×10GE SFP+	48×GE RJ45 + 4×10GE SFP+	48×GE SFP + 4×10GE SFP+	24×GE RJ45 (PoE/PoE+) + 4×10GE SFP+	48×GE RJ45 (PoE/PoE+) + 4×10GE SFP+
Expansion slots	1 — card options: 8×10GE SFP+ or 2×40GE QSFP+
Dimensions (H×W×D)	44×442×440 mm
Max weight	7.5 kg	7.6 kg	7.7 kg	7.8 kg	8.1 kg
Power input	AC 100–242 V, 50–60 Hz / DC −57 V to −38 V / HVDC 130–380 V
Power redundancy	Built-in modular pluggable dual PSUs; AC, DC or mixed AC/DC 1+1 redundancy
PoE	—	—	—	420 W (single PSU) / 720 W (dual); 30 W max per port	420 W (single PSU) / 960 W (dual); 30 W max per port
Max power consumption	59.8 W	69 W	90.4 W	83 W	96 W
Airflow	Side intake (left/right), rear exhaust
Max heat dissipation	204.0376 BTU/h	235.428 BTU/h	308.4448 BTU/h	283.196 BTU/h	327.552 BTU/h
Operating environment	-10°C to +50°C, humidity 5%–95%
MTBF / MTTR	> 400000 h / < 30 min
MAC / ARP tables	64K MAC / 17K ARP
Routing tables	48K IPv4 / 16K IPv6
L2 features	802.1q VLAN, 802.1p, 802.3ad / STP, RSTP, MSTP / flexible QinQ, VLAN translation, PVLAN / DHCP Snooping-Proxy-Server-Client-Relay, DHCPv6 / GVRP / VxLAN, EVPN

Fixed Models — Built-in 1+1 Redundancy (3 models)

	28X-E	52X-E	28FX-E
Switching capacity	1.36 T / 13.6 Tbps
Packet forwarding rate	462 Mpps
Fixed ports	24×GE RJ45 + 4×10GE SFP+	48×GE RJ45 + 4×10GE SFP+	24×GE SFP + 4×10GE SFP+
Dimensions (H×W×D)	43.6×442×420 mm
Max weight	6.2 kg	7 kg	6.6 kg
Power input	AC 100–240 V, 50–60 Hz / DC −38 V to −57 V
Power redundancy	Built-in 1+1 redundant power
Cooling / airflow	Forced air; side intake (left/right), rear exhaust
Max power consumption	57.2 W	75 W	65.2 W
Max heat dissipation	195.1664 BTU/h	255.9 BTU/h	222.4624 BTU/h
Operating environment	-10°C to +50°C, humidity 10%–90%
MTBF / MTTR	> 400000 h / < 30 min
L2 features	802.1q VLAN, 802.1p, 802.3ad / STP, RSTP, MSTP / flexible QinQ, VLAN translation, PVLAN / DHCP Snooping-Proxy-Server-Client-Relay, DHCPv6 / GVRP / VxLAN
Access authentication	802.1X (EAP/PAP/CHAP), local authentication, MAC/port+MAC/VLAN+MAC access control, RADIUS, TACACS+, Portal v1/v2/v3
Reliability	LACP, MC-LAG, VSE stacking, ECMP / ZESS, ERPS, ZESR/ZESR+ / VRRP, VRRPE / hot swap, PW FRR / BFD / IP FRR, GR / Y.1731, CFM, EFM

Software Features — All Models

	36QM-E	60QM-E	60FM-E	36PM-E	60PM-E	28X-E	52X-E	28FX-E
L3 features	IPv4/IPv6 routing / static routing, RIP v1/v2, OSPF, IS-IS, BGP4, uRPF / RIPng, OSPFv3, IS-ISv6, BGP4+, IPv6 VRF / policy routing
MPLS	MCE / MPLS VPN
IPv6	IPv6 Ping/Telnet, ND, MLD Snooping, DHCPv6 Snooping / IPv6 ACL / IPv4-IPv6 dual stack / 6to4 & ISATAP tunnels
Multicast	IGMP v1/v2/v3 snooping, filtering, proxy, fast leave / controllable multicast, CAC / MVR / PIM-SM/DM / IPv6 L2 multicast / MSDP / IPv4-IPv6 L3 multicast
QoS / ACL	Port- and flow-based bandwidth management / 802.1p & DSCP marking-mapping / CoS-DSCP-MPLS EXP mapping / SP, WRR, SP+WRR scheduling / WRED, tail drop / L2, extended, hybrid, custom, VLAN and dual-direction ACLs / port redirection, flow mirroring
Security	Hierarchical user management & password protection / CPU anti-attack, overload & DoS protection, ICMP & ARP attack protection / port security (isolation, binding) / LAND-BLAT protection, TCP attack filtering / control-plane security / dynamic ARP inspection / STP root & BPDU guard / IP Source Guard / uRPF / RIP-OSPF-BGP MD5 authentication
Reliability (modular models)	LACP, MC-LAG, ECMP / ZESS, ERPS, ZESR/ZESR+ / VRRP, VRRPE / single-port 40GE bundling, hot swap, PW FRR / BFD for static-OSPF-RIP-IS-IS-BGP-LDP / IP FRR, GR / Y.1731, CFM, EFM
Ease of maintenance	GE, RS232, USB, miniUSB management interfaces; in-band & out-of-band / M-Button / zero-touch provisioning
Device management (fixed models)	Web, SNMP, ZGMP / CLI, Telnet, SSH / local & remote (RADIUS/TACACS+) AAA / NETCONF/YANG / sFlow

Engineer's note: The expansion card (8×10GE SFP+ or 2×40GE QSFP+) and all optical modules are separate line items, not included with the switch — send us your uplink and fiber plan and we will spec the card, optics and cabling list free of charge.
