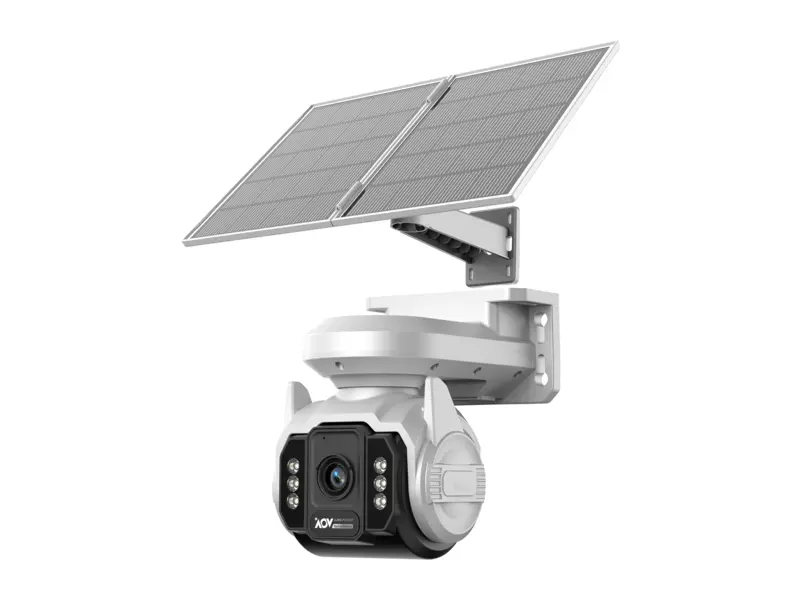

DDR 6601 · AOV Solar 4G PTZ
An auto-guarding PTZ ball for points with no power and no network: solar battery, 4G link and human tracking. It watches on its own, and when it detects a person it turns to follow, records at full frame rate and sounds a light-and-siren warning.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.
The DDR 6601 is a single-lens solar PTZ ball built on a 4G low-power AOV module with a 0.5T-compute dual-core AI controller running embedded Linux. The pan-tilt head covers a point of interest with 6 presets, a guard position, position calibration and human tracking, so one camera can watch a gate, yard or perimeter on its own. The 1/3.2″ sensor encodes 1920×1080 (2 MP) at H.265+ and 15 fps, keeping both TF-card storage and 4G data low. Human detection reaches 40 m at a stated 99.88% accuracy; the camera records in low-power AOV mode and switches to full-frame recording within 50 ms of a detection, with a sound-and-light alarm through the dual-light board and four night modes (B/W, full-color, smart, starlight) plus ICR day/night switching. Power is a 3.7 V lithium battery charged by a solar panel at about 320 mA working current; recordings go to a TF card up to 256 GB (FAT32), with cloud storage available as a paid option. All-network 4G (LTE-FDD and LTE-TDD) auto-connects to the server on power-up with QR-code device adding, and triple drop-line protection with fault self-diagnosis keeps the link up and helps installers locate problems. The HiEasy app offers 17 interface languages.
Is this the right camera for your site?
Plain-language guide — based only on what this product actually does.
- Continuous full-frame 24/7 recording at high frame rate — a mains-powered PoE camera (see the DDR H series) is the right tool
- A site that already has stable mains and Ethernet — wired PoE costs less and never depends on sunshine
- Wide multi-lens coverage of a whole yard from one head — the DDR 9560 quad-lens or 9562 dual-lens solar cameras cover more angles
Worried about the source? Order under your own company name.
For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
The complete series capability list.
Full Specifications
Series specifications — technical values in English.
System
| Model | 6601 — AOV single-lens solar 4G PTZ camera |
| Module | X25H (4G low-power AOV module) |
| Main processor | High-performance dual-core, 0.5T AI compute |
| Operating system | Embedded Linux |
Video
| Image sensor | 1/3.2″ CMOS |
| Video compression | H.265+ |
| System format | PAL 50 Hz / NTSC 60 Hz |
| Effective resolution | 1920×1080 (2 MP) |
| Frame rate | 15 fps |
| Video bitrate | 135–2048 kbps |
| Min. illumination | Day mode 1 Lux · Night mode 0.01 Lux |
| Day/Night | ICR auto switch |
| Night modes | B/W · Full-color · Smart · Starlight |
| Snapshot | Supported |
4G Network
| Network mode | All-network 4G |
| LTE-FDD | B1 / B3 / B5 / B8 |
| LTE-TDD | B34 / B38 / B39 / B40 / B41 |
| Server connection | Auto-connect on power-up · QR-code device adding |
| Data top-up & query | Supported |
Audio
| Audio codec | G.711U |
| Audio input | External MIC, −42 dB |
| Audio output | External 8 Ω / MAX 2 W speaker |
| Voice call | Full-duplex two-way talk (echo cancellation) |
Recording & Alarm
| Recording modes | AOV recording · Human-triggered full-frame recording |
| Recording storage | TF card · cloud storage (paid option) |
| TF card capacity | Up to 256 GB (FAT32) |
| AI detection | Human detection to 40 m, 99.88% accuracy |
| Detection response | 50 ms switch to full-frame recording |
| Sound-light alarm | Supported (dual-light board) on human detection |
| Reliability | Triple drop-line protection · fault self-diagnosis |
PTZ & App
| Presets | 6 positions |
| Guard position | Supported |
| Position calibration | Supported |
| Tracking | Human tracking |
| Mobile app | HiEasy — 17 interface languages |
Power & Physical
| Power supply | 3.7 V lithium battery · solar panel charging |
| Working current | 320 mA ±10 mA |
| Operating environment | −20 °C to 55 °C |
| Mainboard size | 59.5 × 38.4 mm |
| Sensor board | 38 × 38 mm |
| Power board | 53 × 10.5 mm |
| ICR / lens hole pitch | 20 mm |
Solar 4G PTZ Camera FAQ — DDR 6601
Does the DDR 6601 need a SIM card, and which 4G bands does it support?
Can it work on a site with no mains power and no internet line?
How far can it detect people at night, and what night modes does it have?
Will the battery hold up through cloudy days on solar charging?
Does it support PTZ tracking, presets and two-way talk?
