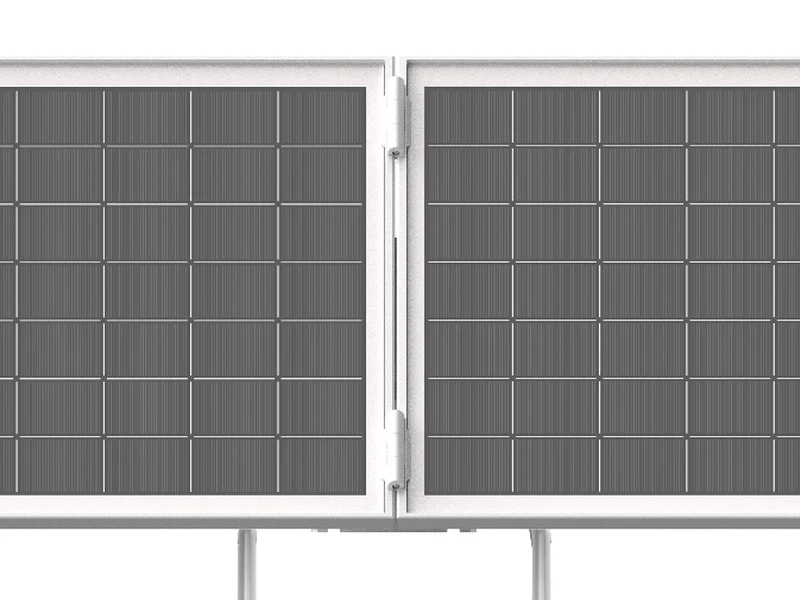

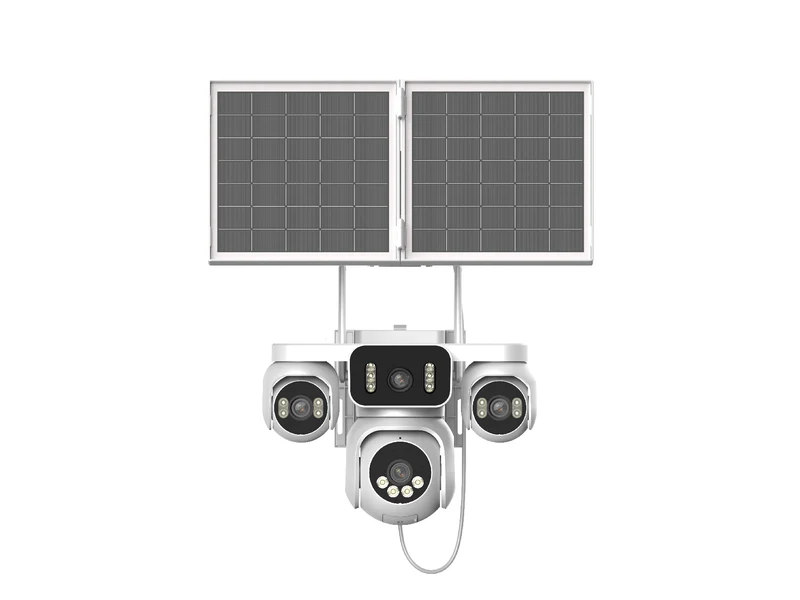

DDR 9560 quad-lens solar 4G camera with dual solar panels

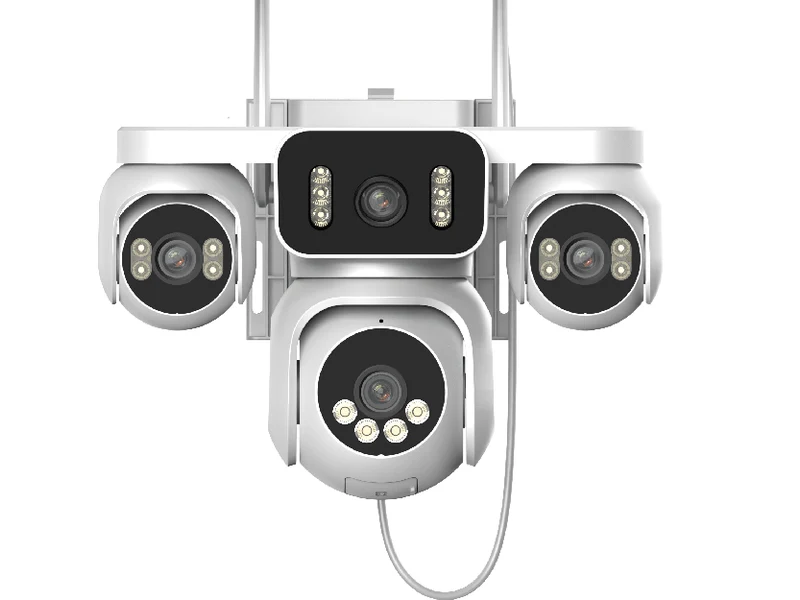

DDR 9560 quad camera head — three wide-view lenses and PTZ ball

DDRAOV Series · Solar + 4G

Quad-Lens AOV Camera · 4 × 1080P · Solar + Battery + 4G

DDR 9560 · AOV Quad-Lens Solar 4G

Name: DDR 9560 AOV Quad-Lens Solar 4G Camera (XF5H)
Brand: DDR

Four lenses on one solar head: three wide-view cameras watch the whole scene while the PTZ ball catches detail and tracks people. It runs on a 3.7 V battery with solar charging and sends video over 4G — no mains power, no network cable.

4×1080P · quad view40 m · human detection50 ms · full-frame wake-upH.265+ · saves 4G dataSolar · 3.7 V battery + panel256 GB · TF card recording

ONE MODEL ON THIS PAGE — QUAD-LENS 9560

AOV = always-on video at ultra-low power: the camera records around the clock at low frame rate, then switches to full-frame recording within 50 ms when a person is detected. That is what lets a battery + solar panel carry 24 h coverage.

✓ Project-level customization & OEM supported

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4×2MPchannels — 3 wide + 1 PTZ ball

40 mhuman detection, 99.88% accuracy

50 msswitch to full-frame recording

24 hAOV recording on battery + solar

The DDR 9560 puts four cameras on a single solar-powered head, driven by the XF5H quad AOV mainboard with a 1.0T-compute AI controller. Three fixed short-focal lenses cover a wide area with no blind angle between them, while the pan-tilt ball uses a longer focal length for detail capture and human tracking with guard position and auto-calibration. All four channels encode 1920×1080 at H.265+, which keeps both TF-card storage and 4G data consumption low. Human detection reaches 40 m at a stated 99.88% accuracy; the camera records 24 h in low-power AOV mode and switches to full-frame recording within 50 ms of a detection, with sound-and-light alarm through the dual-light board and four night modes (B/W, full-color, smart, starlight). Power is a 3.7 V lithium battery charged by the solar panel; recordings go to a TF card up to 256 GB or cloud storage, and the app offers 17 interface languages with QR-code device adding and triple drop-line protection on the 4G link.

Is this the right camera for your site?

Plain-language guide — based only on what this product actually does.

Farms & ranchesGates, feed stores and livestock areas far from any power line — the quad view covers a wide yard from one pole, and the 4G link reports to your phone.

Construction sites & remote assetsMachinery yards, material stockpiles, towers and pump stations: human detection with sound-light warning discourages intrusion before anything goes missing.

Off-grid rural propertiesOrchards, fish ponds, mountain cabins and forest edges across Africa and Latin America — where trenching power and fiber is simply not an option.

Not the right pick if you need…

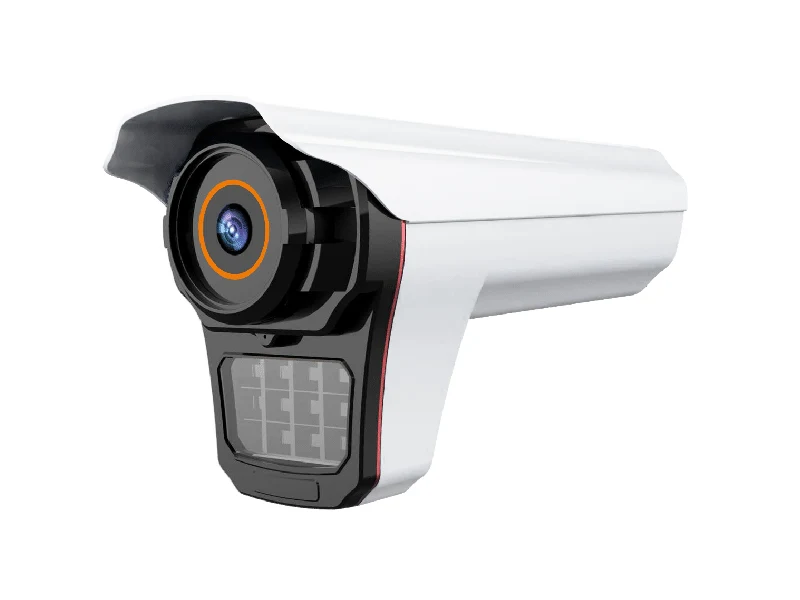

Continuous full-frame 24/7 recording at high frame rate — a mains-powered PoE camera (see the H series) is the right tool
A site that already has stable mains and Ethernet — wired PoE costs less and never depends on sunshine
4K forensic detail on a single lens — the 8 MP H8P option on the H series page delivers that

Worried about the source? Order under your own company name.

For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume DiscountBulk quantities of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The complete series capability list.

Gun-ball coordination: 3 wide-view fixed lenses + 1 long-focal PTZ ball for detail capture and human tracking

Human detection to 40 m at 99.88% stated accuracy — far fewer false and missed alarms

24 h AOV recording; switches to full-frame recording within 50 ms of a human detection

H.265+ low-bitrate encoding — saves TF storage, bandwidth and 4G data

All-network 4G with wide band coverage; auto-connects to the server on power-up, QR-code device adding

Triple drop-line protection plus fault self-diagnosis to help installers locate problems fast

Dual-light board with 4 night modes: B/W, full-color, smart and starlight; sound-light alarm on detection

Full-duplex two-way talk with optimized echo cancellation and noise floor processing

Full Specifications

Series specifications — technical values in English.

Values are series data from the manufacturer datasheet — confirm the final configuration with us before ordering.

System

Model	9560 — AOV quad-lens solar 4G camera
Mainboard	XF5H (4G low-power quad-lens AOV module)
Main processor	High-performance dual-core, 1.0T AI compute
Operating system	Embedded Linux

Video

Image sensor	4 × 1/3″ CMOS
Video compression	H.265+
System format	PAL 50 Hz / NTSC 60 Hz
Effective resolution	1920×1080 (2 MP) per channel
Frame rate	10 fps
Video bitrate	135–2048 kbps
Min. illumination	Day mode 1 Lux · Night mode 0.01 Lux
Day/Night modes	B/W · Full-color · Smart · Starlight
Snapshot	Supported

4G Network

LTE-FDD	B1 / B3 / B5 / B8
LTE-TDD	B34 / B38 / B39 / B40 / B41
Data top-up & query	Supported

Audio

Audio codec	G.711U
Audio input	External analog MIC, SNR −42 dB
Audio output	External 8 Ω / MAX 2 W speaker
Voice call	Full-duplex two-way talk

Recording & Alarm

Recording modes	AOV recording · Human-triggered recording
Recording storage	TF card / cloud storage
TF card capacity	Up to 256 GB (FAT32)
Alarm detection	Human detection
Sound-light alarm	Supported (with dual-light board)
Alarm voice	Built-in alarm voice prompts
Alarm linkage	Recording · Snapshot

PTZ & App

Presets	6 positions
Guard position	Supported
Position calibration	Supported
Tracking	Human tracking
Mobile app	HiEasy — 17 interface languages

Power & Physical

Power supply	3.7 V lithium battery · solar panel charging
Working current	430 mA ±10 mA
Operating environment	−20 °C to 70 °C
Mainboard size	62.93 × 43.94 mm
Sensor board	38×38 mm or 32×32 mm
Power board	55 × 12 mm
ICR / lens hole pitch	20 mm

Engineering note: Solar power lives and dies by real site conditions. Tell us the installation country/region (daily sun hours) and your SIM carrier — we will confirm the solar panel and battery configuration for your latitude, and check the 4G band list of this version against your carrier before anything ships.

Quad-Lens Solar 4G Camera FAQ — DDR 9560

Which SIM card and 4G bands does the DDR 9560 use?

It takes a local data SIM and supports LTE-FDD B1/B3/B5/B8 plus LTE-TDD B34/B38/B39/B40/B41 — confirm those bands with your carrier before ordering. Data top-up and balance query are handled inside the app, so a site keeper does not need to pull the SIM to recharge it.

Can it run fully off-grid on solar power?

Yes — a 3.7 V lithium battery charged by a solar panel powers it, with a working current around 430 mA. The 24 h AOV low-power recording model keeps drain down between events, waking to full-frame video when a person triggers it. Storage is a TF card up to 256 GB, with cloud as an option.

How are the four lenses arranged and at what resolution?

Three wide-view fixed lenses plus one PTZ ball share a single head, each channel at 1920x1080 (2 MP) and 10 fps with H.265+ compression. The fixed lenses hold the wide picture while the ball turns, tracks and calibrates position, backed by 6 presets, a guard position and 1.0T of AI compute.

How far does it detect people, and what about night?

Human detection reaches 40 m at a stated 99.88% accuracy, and the camera switches to full-frame recording within 50 ms of a hit. Night sensitivity is 0.01 Lux with four modes — black-and-white, full-color, smart, starlight — plus a sound-light alarm and built-in voice prompts to warn intruders off.

Will it survive high heat, and can I talk through it?

The operating range is −20 °C to 70 °C, which covers exposed poles on farms, ranches and construction sites in hot climates. Two-way talk is full-duplex through an external mic and an 8-ohm 2 W speaker, and the HiEasy app manages everything in 17 interface languages.
