DDR H Series · 9632 / 9836 / 9936
The wired members of the DDR family: one turret and two bullets on the H4P AI platform — 5 MP dual-light imaging, a 1T NPU running detection on the camera itself, and standard ONVIF/GB28181 access to any third-party NVR. An 8 MP H8P board is available for the 9836.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

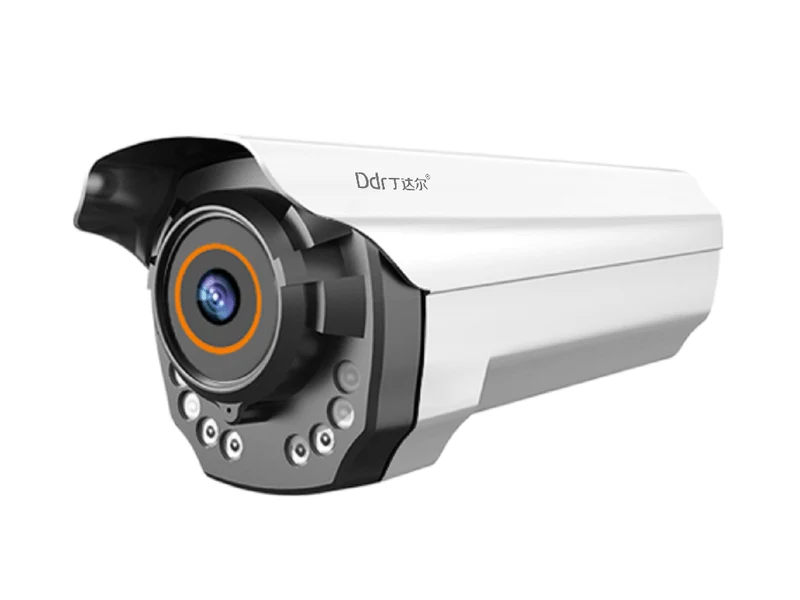

The H series covers three wired PoE cameras built on the same H4P mainboard: the 9632 turret and the 9836 and 9936 bullets. A 1/3″ CMOS delivers a 5 MP (2880×1620) main stream at 30 fps with dual-stream output and H.264/H.265/H.265+ encoding. Night imaging offers black-light full color, smart dual-light and IR modes, with smart light control that keeps faces from overexposing. The on-chip 1T NPU runs the AI models locally: human and vehicle detection extend into e-fence, tripwire (A→B, B→A, A↔B), absence detection and people counting with daily statistics on the OSD. Alarms can play custom-recorded or text-to-speech voice, drive an IO output such as a red-blue strobe, and link an NVR for full-screen pop-up, AI recording and push. Access is standard: ONVIF, private protocol and CGI, plus GB28181, with a built-in WEB 2.0 interface for Edge, Chrome, Safari and Firefox and EasyVMS as the PC client. Power is DC 12 V or PoE with 1236/4578 auto-sensing; the boards run from −30 °C to +60 °C, and the finished housings are IP67-rated for outdoor duty. For projects needing 4K detail, the 9836 can be built on the 8 MP H8P board (1/2.5″ CMOS, 3840×2160 @30 fps).
Is this the right camera for your site?
Plain-language guide — based only on what this product actually does.
- A site with no mains power and no network — the solar 4G models 9560 / 9562 are built exactly for that
- Motorized pan-tilt patrol over a large open area — pick a PTZ camera line instead
- Simple entry-level viewing with no analytics — a basic dual-light bullet costs less and does that job
Worried about the source? Order under your own company name.
For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
The complete series capability list.
Full Specifications
Series specifications — technical values in English.
Imaging & AI — H4P platform
| Item | 9632 | 9836 | 9936 |
|---|---|---|---|
| Housing type | Turret | Bullet | Bullet |
| AI platform | H4P mainboard — 1T NPU, on-device AI models | ||
| Image sensor | 1/3″ CMOS | ||
| Main stream | 5MP(2880×1620)@30FPS / 4MP(2560×1440) / 3MP(2304×1296) / 2MP(1920×1080) | ||
| Sub stream | 448P(800×448) / 360P(640×360) / CIF(352×288) | ||
| Compression | H.264 · H.265 · H.265+ | ||
| Day/Night modes | Black-light full color · Smart dual-light · IR — smart light control, faces not overexposed | ||
| Smart detection | Human detection · Vehicle detection | ||
| Smart applications | E-fence · Tripwire (A→B / B→A / A↔B) · Absence detection · People counting (daily stats, OSD overlay) | ||
| Alarm | Voice broadcast (custom recording) · IO output with red-blue light linkage · NVR linkage: full screen, local voice, AI recording, push | ||
| Image adjustment | Auto white balance · DWDR · BLC · brightness/contrast/hue adjustable | ||
| Privacy & OSD | Privacy mask · Mirror · OSD setting with drag positioning | ||
Network
| Item | 9632 | 9836 | 9936 |
|---|---|---|---|
| Ethernet | RJ-45 10M/100M adaptive | ||
| Protocols | ONVIF, P2P, CGI, HTTP, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, GB28181 | ||
| Access protocols | ONVIF / private protocol / CGI | ||
| Client | NVR central management · EasyVMS PC client | ||
| Web interface | Built-in WEB 2.0 — Edge, Chrome, Safari, Firefox (non-IE) | ||
Audio
| Item | 9632 | 9836 | 9936 |
|---|---|---|---|
| Audio codec | G.711U · G.711A | ||
| Audio input | Supported (−36 dB MIC recommended) | ||
| Audio output | Supported, built-in amplifier (8 Ω 2 W recommended) | ||
| Two-way talk | Supported — audio and video in sync | ||
General
| Item | 9632 | 9836 | 9936 |
|---|---|---|---|
| Board size | 38×53 mm, 38×38 mm hole pitch | ||
| Operating environment | −30 °C to +60 °C | ||
| Power | DC 12 V / PoE — 1236/4578 auto-sensing | ||
8 MP option — H8P board (9836)
| Item | 9836 |
|---|---|
| Image sensor | 1/2.5″ CMOS |
| Main stream | 4K(3840×2160)@30FPS / 6MP(3200×1800)@30FPS / 5MP(2880×1620) / 4MP(2560×1440) / 3MP(2304×1296) / 2MP(1920×1080) |
| Sub stream | 448P(800×448) / 360P(640×360) / CIF(352×288) |
| Platform | Same AI, network, audio and power specifications as the H4P platform |
PoE AI Camera FAQ — DDR H Series
What is the difference between the 9632, 9836 and 9936?
Do they work with third-party NVRs — ONVIF, GB28181?
How are they powered — PoE or 12 V?
What AI runs on the camera itself?
Can they show color at night without blinding people?
