IP Cameras › DDR 9562 · Solar 4G
DDR 9562 dual-lens solar 4G camera with solar panel
DDR 9562 dual-lens solar 4G camera with solar panel

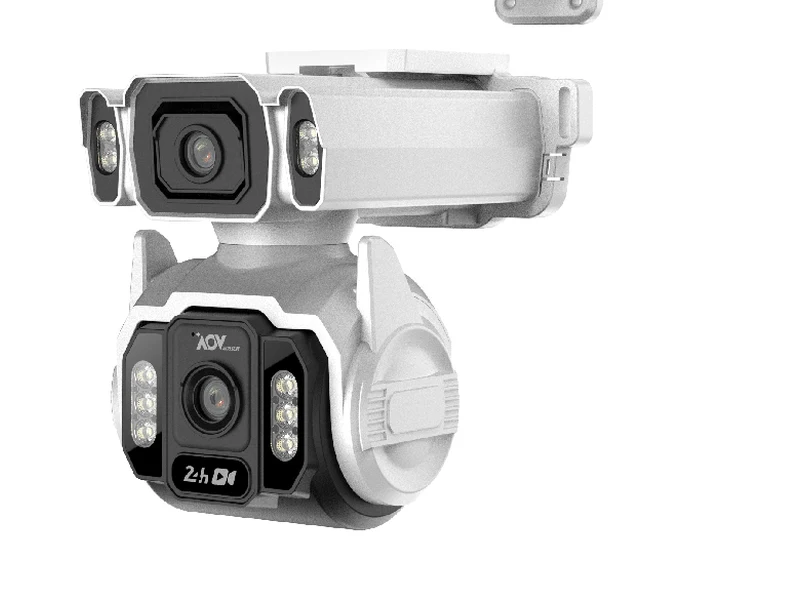

DDR 9562 dual camera head — wide-view lens and PTZ ball

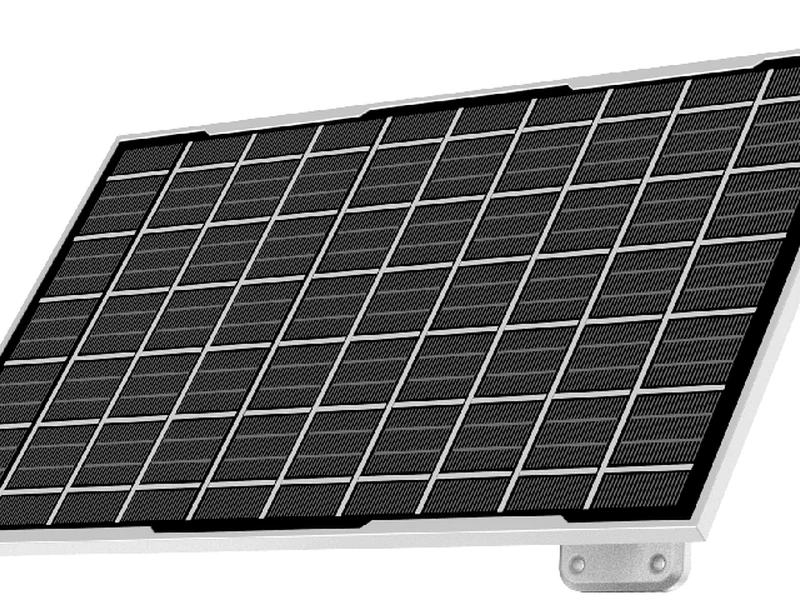

DDR 9562 solar panel detail
DDRAOV Series · Solar + 4G
Dual-Lens AOV Camera · 2 × 1080P · Solar + Battery + 4G

DDR 9562 · AOV Dual-Lens Solar 4G

A wide-view fixed lens watches the scene while the PTZ ball below it captures detail and tracks people — on a battery-and-solar head with a 4G uplink, and AOV recording that keeps audio. No mains, no cable.

2×1080P · dual view40 m · human detection50 ms · full-frame wake-upAudio · AOV recording with soundSolar · 3.7 V battery + panel256 GB · TF card recording
ONE MODEL ON THIS PAGE — DUAL-LENS 9562
AOV = always-on video at ultra-low power: around-the-clock low-frame-rate recording, switching to full frame rate within 50 ms of a human detection — and on this model the AOV stream keeps synchronized audio.
✓ Project-level customization & OEM supported
Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
2×2MPchannels — wide view + PTZ ball
40 mhuman detection, 99.88% accuracy
50 msswitch to full-frame recording
24 hAOV recording with audio

The DDR 9562 pairs two cameras on one solar head, driven by the XT5H dual-lens AOV mainboard with a 0.5T-compute AI controller. The short-focal fixed lens covers the wide scene; the long-focal pan-tilt ball below captures detail and tracks people, with guard position and auto-calibration. Both channels encode 1920×1080 at H.265+ to stretch TF storage and 4G data. Human detection reaches 40 m at a stated 99.88% accuracy, recording runs 24 h in low-power AOV mode with synchronized audio, and full-frame recording engages within 50 ms of a detection. The dual-light board provides four night modes (B/W, full-color, smart, starlight) plus sound-and-light alarm. Power is a 3.7 V lithium battery charged by the solar panel; recordings store on a TF card up to 256 GB (FAT32), and the app supports 17 interface languages, QR-code adding and triple drop-line protection on the 4G link.

Is this the right camera for your site?

Plain-language guide — based only on what this product actually does.

Smallholdings & farm gatesOne pole, one panel, two views: the wide lens watches the yard, the ball reads faces and plates at the gate — with voice talk-down to visitors.
Construction & material yardsHuman detection with sound-light warning covers the after-hours window when tools and diesel walk away.
Remote assets & forest edgesPump stations, towers, orchards and cabins across Africa and Latin America — where neither grid power nor wired internet will ever arrive.
Not the right pick if you need…
  • Wider one-pole coverage with no blind angle — the quad-lens 9560 adds two more wide-view channels
  • Continuous full-frame 24/7 recording at high frame rate — choose a mains-powered PoE camera (H series)
  • A site with stable mains and Ethernet already in place — wired PoE is cheaper and weather-proof by definition

Worried about the source? Order under your own company name.

For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume DiscountBulk quantities of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The complete series capability list.

Gun-ball coordination: wide-view fixed lens + long-focal PTZ ball for detail capture and human tracking
AOV recording with synchronized audio — events play back with sound, not silent clips
Human detection to 40 m at 99.88% stated accuracy — far fewer false and missed alarms
24 h AOV recording; switches to full-frame recording within 50 ms of a human detection
H.265+ low-bitrate encoding — saves TF storage, bandwidth and 4G data
All-network 4G, auto-connects to the server on power-up, QR-code device adding; triple drop-line protection
Dual-light board with 4 night modes: B/W, full-color, smart and starlight; sound-light alarm on detection
Full-duplex two-way talk with optimized echo cancellation and noise floor processing

Full Specifications

Series specifications — technical values in English.

Values are series data from the manufacturer datasheet — confirm the final configuration with us before ordering.

System

Model9562 — AOV dual-lens solar 4G camera
MainboardXT5H (4G low-power dual-lens AOV module)
Main processorHigh-performance dual-core, 0.5T AI compute
Operating systemEmbedded Linux

Video

Image sensor2 × 1/3.2″ CMOS
Video compressionH.265+
System formatPAL 50 Hz / NTSC 60 Hz
Effective resolution1920×1080 (2 MP) per channel
Frame rate10 fps
Video bitrate135–2048 kbps
Min. illuminationDay mode 1 Lux · Night mode 0.01 Lux
Day/Night modesB/W · Full-color · Smart · Starlight
SnapshotSupported

4G Network

LTE-FDDB1 / B3 / B5 / B8
LTE-TDDB34 / B38 / B39 / B40 / B41
Data top-up & querySupported

Audio

Audio codecG.711U
Audio inputExternal analog MIC
Audio outputExternal 8 Ω / MAX 2 W speaker
Voice callFull-duplex two-way talk

Recording & Alarm

Recording modesAOV recording (with audio) · Human-triggered recording
Recording storageTF card
TF card capacityUp to 256 GB (FAT32)
Alarm detectionHuman detection
Sound-light alarmSupported (with dual-light board)
Alarm voiceBuilt-in alarm voice prompts
Alarm linkageRecording · Snapshot

PTZ & App

Presets6 positions
Guard positionSupported
Position calibrationSupported
TrackingHuman tracking
Mobile appHiEasy — 17 interface languages

Power & Physical

Power supply3.7 V lithium battery · solar panel charging
Working current420 mA ±10 mA
Operating environment−20 °C to 55 °C
Mainboard size59.5 × 38.4 mm
Sub board38×38 mm
Power board53 × 10.5 mm
ICR / lens hole pitch20 mm
Engineering note: Battery cameras are a duty-cycle equation, not magic. Tell us your site's daily sun hours, expected trigger frequency and your SIM carrier — we will confirm the panel/battery configuration, estimate realistic autonomy for your latitude, and check this version's 4G bands against your local carrier before shipment.

Dual-Lens Solar 4G Camera FAQ — DDR 9562

Does the DDR 9562 need a SIM card, and which bands work in my country?
Yes, it runs on a local data SIM. Supported bands are LTE-FDD B1/B3/B5/B8 and LTE-TDD B34/B38/B39/B40/B41 — match them against your carrier's network before ordering. Data top-up and query work from the app, so recharging the plan never means climbing the pole.
How does it stay powered with no electricity on site?
A 3.7 V lithium battery with solar panel charging powers the camera, at a working current around 420 mA. The AOV low-power recording model keeps consumption down between events, and the operating range of −20 °C to 55 °C covers farms, construction sites and off-grid properties.
What do the two lenses do?
One wide-view fixed lens holds the overall scene while the PTZ ball turns and follows people, so you never lose the wide picture during tracking. Each channel records 1920x1080 (2 MP) at 10 fps in H.265+, with 6 presets, a guard position and position calibration on the ball.
Where are recordings stored, and do they include sound?
Recordings go to a TF card up to 256 GB (FAT32), fitted in the camera — plan the card size around your retention needs. The 24 h AOV recording includes audio via the external mic, and a human trigger switches to full-frame recording within 50 ms so the event itself is captured in detail.
How reliable is the detection, and can it scare intruders off?
Human detection reaches 40 m at a stated 99.88% accuracy, with human tracking on the ball. On alarm the dual-light board fires a sound-light warning and built-in voice prompts, while linkage records and snapshots automatically. Full-duplex two-way talk lets you challenge someone live through the 2 W speaker.

Related Products

DDR 9560 quad-lens solar 4G camera
DDR 9560 · AOV Quad-Lens Solar 4G
Quad-lens AOV solar sibling — three wide channels plus the tracking ball.
DDR H series PoE AI cameras
DDR H Series · 9632 / 9836 / 9936 PoE
DDR wired PoE line: 5 MP AI cameras with human/vehicle detection.

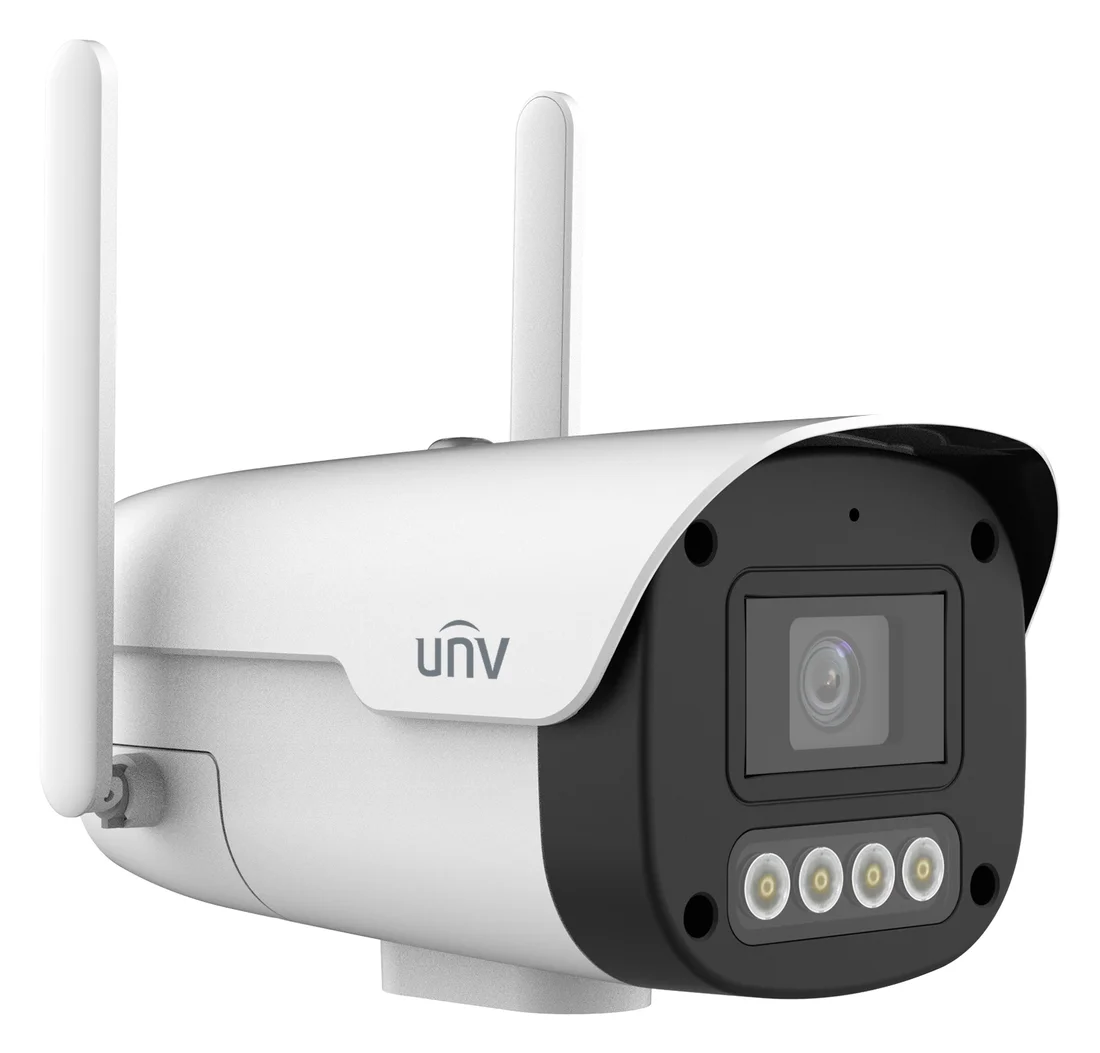

Uniview IPC2A14LP 4G solar bullet camera
