IP Cameras › IPC-B312-ADZK

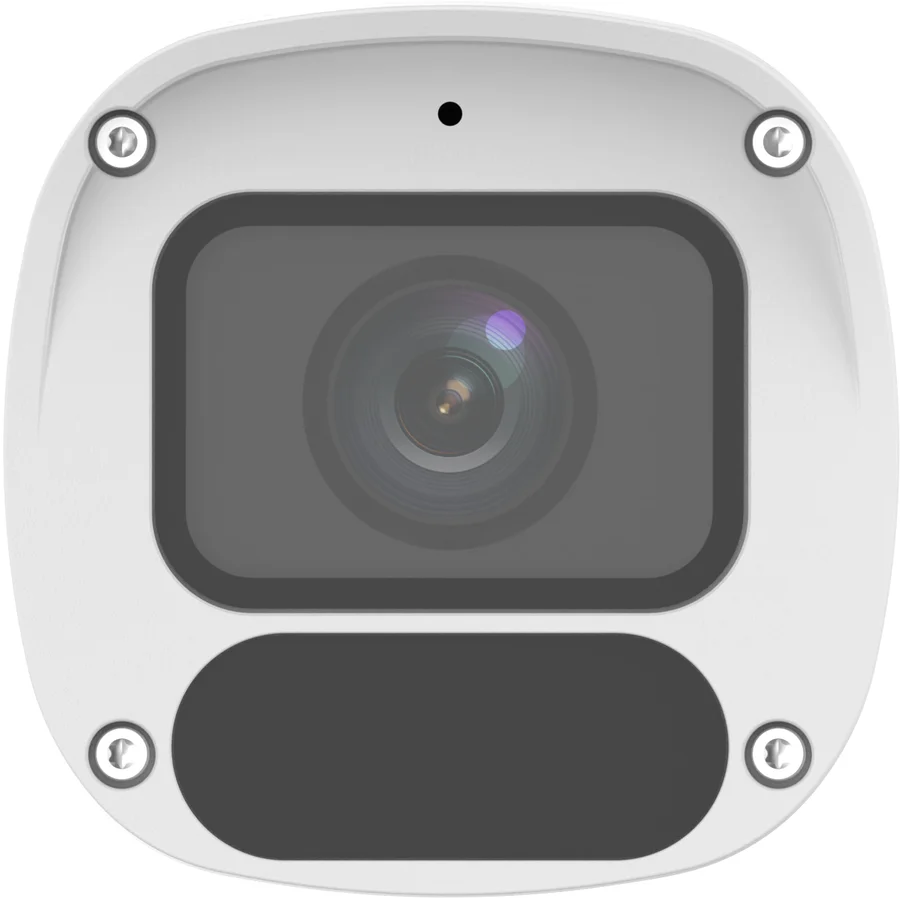

2MP WDR VF IR Bullet Network Camera IPC-B312-ADZK

2MP WDR VF IR Bullet Network Camera IPC-B312-ADZK — view 1

2MP WDR VF IR Bullet Network Camera IPC-B312-ADZK — view 2

UniarchWDR VF IR Bullet

2MP WDR VF IR Bullet

IPC-B312-ADZK

Name: Uniarch IPC-B312-ADZK
Brand: Uniarch
SKU: IPC-B312-ADZK

2MP motorized varifocal (2.8–12mm) IR bullet network camera — 120dB true WDR, ultra motion detection, Smart IR up to 50m, built-in mic, IP67 outdoor body.

2 MP · 1080P@30fps2.8–12mm · motorized varifocal, 4.3XUltra Motion · human/vehiclePoE / DC12V · dual powerIP67 · outdoorMic · built-in audio

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

50 mIR night vision

120 dBTrue WDR

9.6 WMax power

-30~60°CWorking temperature

The Uniarch IPC-B312-ADZK is a 2MP bullet network camera with a motorized varifocal lens (2.8–12 mm, 4.3X zoom) that lets the field of view be adjusted remotely after installation — no re-mounting needed to reframe the shot. It combines 120 dB true WDR for strong-light scenes, ultra motion detection (human/vehicle classification), a built-in mic, and Smart IR night vision up to 50 m. It is IP67 outdoor-rated and powers over a single PoE cable or DC 12V, with a −30 °C to 60 °C working range.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Long driveways & fence linesThe 2.8–12 mm motorized zoom can be tuned remotely after mounting — narrow the view to reach further down a driveway without re-aiming the bracket.

Parking lots & vehicle gatesUltra motion detection tells people from vehicles, cutting false alerts from a busy lot down to the movement that actually matters.

Storefronts facing strong sunlight120 dB true WDR keeps both the bright doorway and the shaded interior visible in the same frame, instead of one washing out the other.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat outdoors, day after day.

Shops & storefrontsThe built-in mic picks up what is said at the counter, and MicroSD edge storage keeps a local backup even where an NVR is also recording.

Quick retrofits & pole installsOne PoE cable does power + video — no electrician needed on site, quick to install and reframe later thanks to the motorized zoom.

Not the right pick if you need…

Full-color night vision — this is IR-only, night video is black & white, not color
Two-way talk — it has a built-in mic but no speaker
Wi-Fi — this is a wired RJ45 camera
A one-time fixed focal length choice at purchase — the zoom on this model is motorized and adjustable on site, not a pick-one-at-checkout fixed lens
Vandal-resistant IK rating — this model's datasheet lists no IK protection rating (IP67 dust/water rating only)
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.7" CMOS sensor

1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

2D/3D DNR (digital noise reduction)

Support ultra motion detection (human/vehicle detection)

ROI (region of interest) ensures image quality in areas of interest with low bandwidth

Smart IR, up to 50 m (164.0 ft.) IR distance

120 dB true WDR technology enables clear image in strong light scene

Built-in mic

Wide temperature range: −30 °C to 60 °C (−22 °F to 140 °F)

DC 12 V, PoE (IEEE 802.3af) power supply

IP67

Night Vision: Smart IR

Invisible infrared night vision — this model has no warm-light module.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 50 m (164.0 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Because this model has a motorized 2.8–12 mm varifocal lens, each capability spans a range — from the widest zoom setting to full telephoto, not a single fixed number.

Detectsomething is there

WIDE (2.8mm)42.0 m137.8 ft

TELE (12mm)180 m590.6 ft

Observewhat is happening

WIDE (2.8mm)16.8 m55.1 ft

TELE (12mm)72.0 m236.2 ft

Recognizesomeone you know

WIDE (2.8mm)8.4 m27.6 ft

TELE (12mm)36 m118.1 ft

Identifya stranger's face

WIDE (2.8mm)4.2 m13.8 ft

TELE (12mm)18 m59.1 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	111.0° wide	36.6° tele
5 m16 ft	14.6 m47.7 ft	3.3 m10.9 ft
10 m33 ft	29.1 m95.5 ft	6.6 m21.7 ft
15 m49 ft	43.7 m143 ft	9.9 m32.6 ft
20 m66 ft	58.2 m191 ft	13.2 m43.4 ft
30 m98 ft	87.3 m286 ft	19.8 m65.1 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	2 MP
Sensor	1/2.7" CMOS
Min. Illumination	Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	2.8 to 12 mm
Iris	F1.6
Field of View (H)	111.0° to 36.6°
Field of View (V)	59.4° to 20.6°
Field of View (D)	130.0° to 42.0°

DORI

DORI Distance (Lens)	2.8 to 12 mm
DORI Distance (Detect)	42.0 m to 180 m (137.8 ft. to 590.6 ft.)
DORI Distance (Observe)	16.8 m to 72.0 m (55.1 ft. to 236.2 ft.)
DORI Distance (Recognize)	8.4 m to 36 m (27.6 ft. to 118.1 ft.)
DORI Distance (Identify)	4.2 m to 18 m (13.8 ft. to 59.1 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	50 m (164.0 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	H.265, H.264, MJPEG, Ultra 265
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart IR	Support
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Tampering alarm, Audio detection, Cross line, Intrusion (based on human body detection), Ultra motion detection (human/vehicle detection)
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP, IPv6
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Client	Uniarch client, Uniarch Care
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

Protection	IP67 (IEC 60529)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 9.6 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	197.4 mm × 73.0 mm × 72.9 mm (7.8" × 2.9" × 2.9") (L × W × H)
Weight	0.51 kg (1.12 lb.)
Material	Metal + Plastic + Graphene
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support

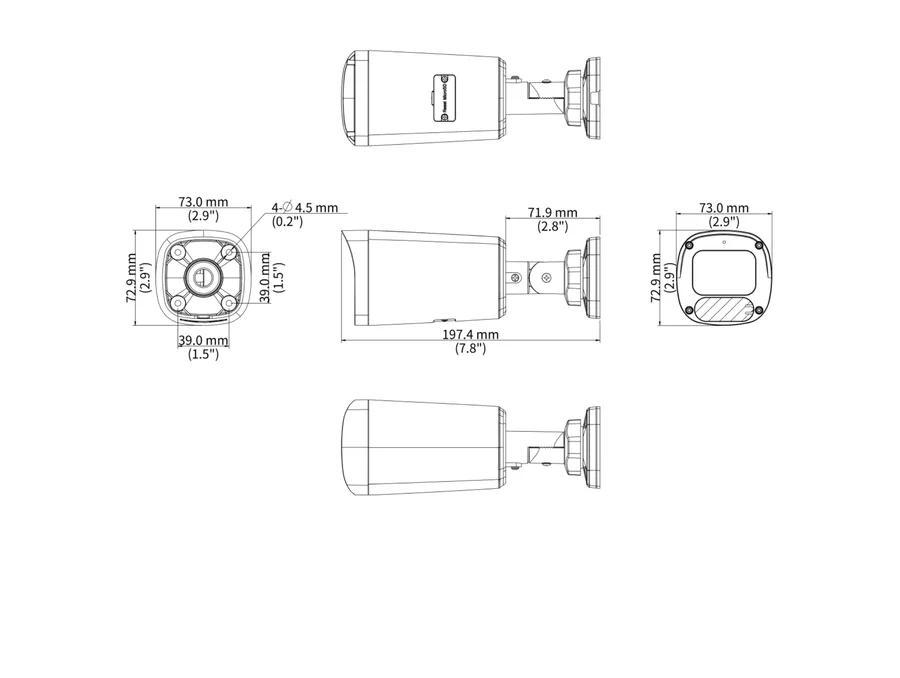

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	197.4 mm × 73.0 mm × 72.9 mm (7.8" × 2.9" × 2.9") (L × W × H)
Weight	0.51 kg (1.12 lb.)
Material	Metal + Plastic + Graphene
Mount adjustment	Pan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB05-A-INSmall bullet junction box (support wiring from behind, square)

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-A01-INNPT 3/4" waterproof cable gland

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-UP06-B-INBullet pole mounting bracket

2MP Varifocal Bullet Camera FAQ — IPC-B312-ADZK

How far can the IPC-B312-ADZK see at night?

Smart IR at 850 nm reaches up to 50 m in total darkness — noticeably further than typical 30 m entry-level bullets — with auto or manual control. The IR is invisible, so the camera monitors discreetly, and Smart IR adjusts intensity to avoid washing out close subjects.

Can I adjust the zoom after installation?

Yes — the 2.8–12 mm varifocal lens is adjusted remotely, no ladder needed. At 2.8 mm you get a 111° wide view with DORI detect at 42 m; at 12 mm the view narrows to 36.6° but detect stretches to 180 m and identify to 18 m. One SKU covers many scene types.

What smart detections does it support besides motion?

Cross line and intrusion detection are both based on human body detection, so a fence line or zone alarm fires on people rather than dogs or blowing debris. Ultra motion detection, tampering alarm and audio detection round it out, and ROI supports up to 8 areas.

Can it record locally if the network drops?

Yes — it has MicroSD edge storage, so footage keeps writing to the card when the link to the NVR fails, and a built-in microphone records audio alongside. With Ultra 265/H.265 at 128–6144 Kbps you control how many days a card holds.

How is it powered and does it survive rain and backlight?

PoE runs power and 1080p/30 fps video over one network cable — practical on perimeter poles. The IP67 housing handles dust and heavy rain, while true 120 dB WDR keeps faces readable against gates, headlights and bright doorways, backed by HLC, BLC and digital defog.
