IP Cameras › IPC-P224-AF40C

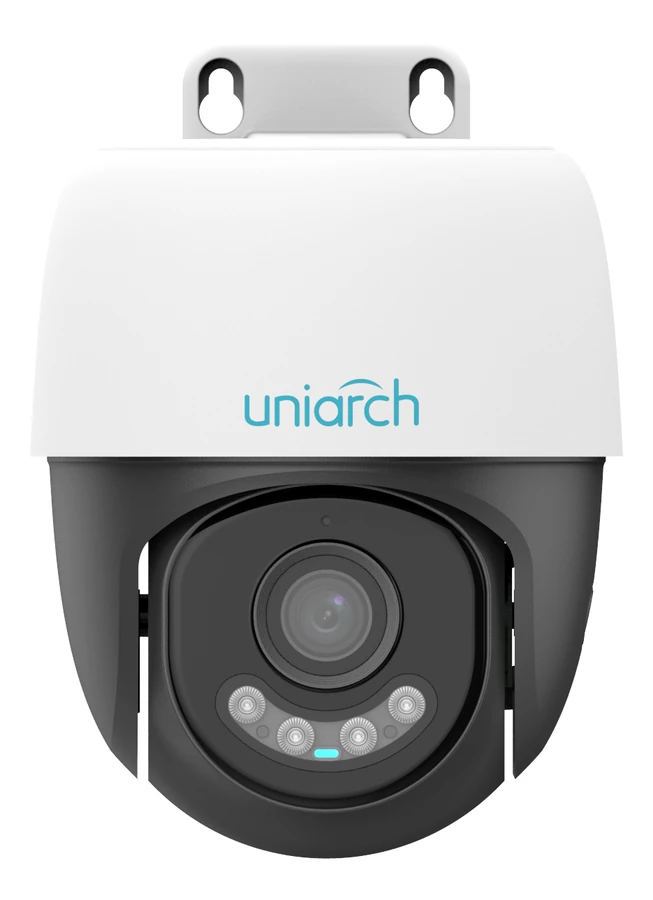

4MP ColorHunter Outdoor PT Network Camera IPC-P224-AF40C

4MP ColorHunter Outdoor PT Network Camera IPC-P224-AF40C — view 1

4MP ColorHunter Outdoor PT Network Camera IPC-P224-AF40C — view 2

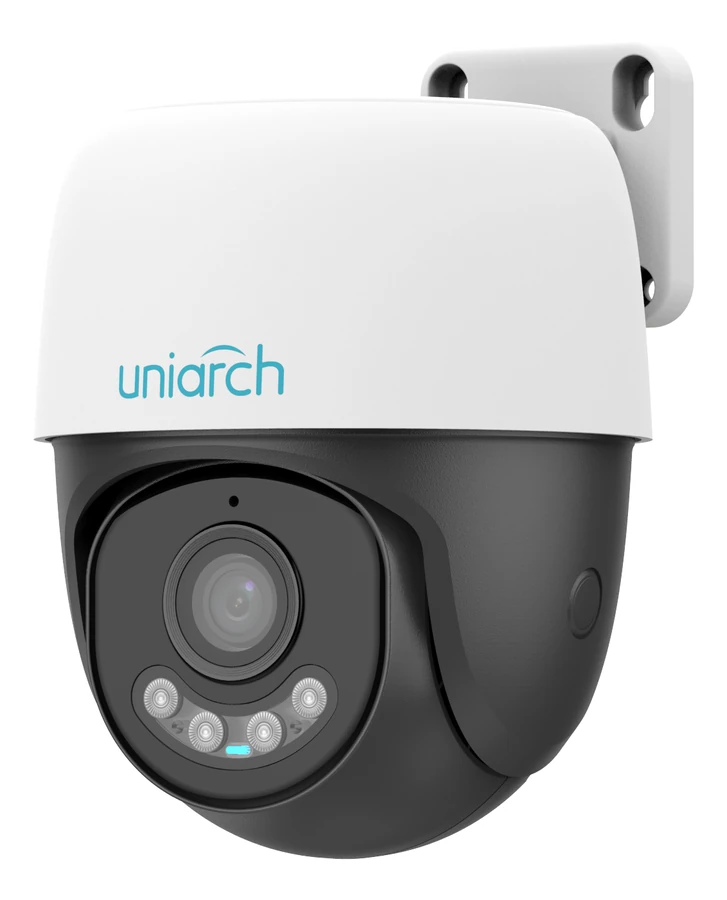

4MP ColorHunter Outdoor PT Network Camera IPC-P224-AF40C — view 3

UniarchColorHunter · PT Camera

4MP ColorHunter PT Camera

IPC-P224-AF40C

Name: Uniarch IPC-P224-AF40C
Brand: Uniarch
SKU: IPC-P224-AF40C

4MP ColorHunter pan-tilt network camera — auto tracking, two-way audio, IR 30m + warm light 30m, MicroSD up to 512GB, IP66 outdoor body.

4 MP · 1440P@25fpsUltra 265 · low bandwidthDual Light · IR 30m + warm 30mAuto Tracking · follows motionTwo-Way Audio · mic + speakerEdge Storage · MicroSD up to 512GBIP66 · outdoorPT · 345° pan / 90° tilt

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP66

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mIR night vision

30 mWarm light

IP66Outdoor rated

345°Pan range

The Uniarch IPC-P224-AF40C is a 4MP pan-tilt network camera from the ColorHunter line. It combines auto tracking, two-way audio with sound-and-light warning, and equal-reach 30 m infrared plus 30 m warm-light illumination, and records locally to a MicroSD card up to 512 GB. It carries a fixed 4.0 mm lens (75° view) and moves on a 345° pan / 90° tilt head with 20 presets.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Yards & drivewaysAuto tracking follows a moving person or vehicle across the pan/tilt range in sharp 4MP detail, instead of leaving them at the frame edge.

Gates & front doorsTwo-way audio lets you speak to a visitor or warn off an intruder directly through the camera, with a sound-and-light alarm to back it up.

Warehouse & site perimetersIR and warm light both reach 30 m, and 20 saved presets let one camera patrol several fixed points in sequence.

Remote sites without easy NVR accessMicroSD recording up to 512 GB keeps footage on the camera itself when running a full NVR to the site isn't practical.

Small offices & shopfrontsOne camera covers a wider area than a fixed lens by panning and tilting, useful where budget only allows a single camera.

Sites already wired for PoEPowers over PoE (802.3af) or a DC 12V adapter — pick whichever matches the wiring already on site.

Not the right pick if you need…

Optical zoom — the lens is fixed at 4.0 mm; only the pan/tilt head moves, the lens itself does not zoom
Wi-Fi — this is a wired RJ45 camera
Large multi-user deployments — only 6 user accounts (2 access levels), fewer than the 32-user fixed-camera models
Third-party VMS via ONVIF — this model connects through Uniarch's own SDK/API, no ONVIF profile is listed
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/3.0" CMOS sensor

4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 2 MP (1920 × 1080)@30/25 fps

Ultra 265, H.265, H.264

Support digital WDR (Wide Dynamic Range)

Built-in mic and speaker, support two-way audio, offer better interaction

Support sound and light warning, makes warning and alarming more noticeable

Smart IR, up to 30 m (98.4 ft.) IR and 30 m (98.4 ft.) warm light distance, suitable for more scenes

MicroSD, up to 512 GB

IP66 ingress protection

Dual Light: two ways to see the night

Switchable Auto/Manual — set it per site, per customer.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording.

WARM LIGHT MODE

Visible warm light — full-time color and active deterrence

Warm white light up to 30 m (98.4 ft.) — the same reach as IR mode — keeps faces and clothing colors visible at night, backed up by the sound-and-light alarm.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

90 m295.3 ft

Observewhat is happening

36 m118.1 ft

Recognizesomeone you know

18 m59.1 ft

Identifya stranger's face

9 m29.5 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	74.5°
5 m16 ft	7.6 m24.9 ft
10 m33 ft	15.2 m49.9 ft
15 m49 ft	22.8 m74.8 ft
20 m66 ft	30.4 m99.8 ft
30 m98 ft	45.6 m150 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	4 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.003 Lux (F1.6, AGC ON)
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	4.0 mm
Iris	F1.6
Field of View (H)	74.5°
Field of View (V)	39.7°
Field of View (D)	87.9°
Lens Type	Fixed

DORI

DORI Distance (Lens)	4 mm
DORI Distance (Detect)	90.0 m (295.3 ft.)
DORI Distance (Observe)	36.0 m (118.1 ft.)
DORI Distance (Recognize)	18.0 m (59.1 ft.)
DORI Distance (Identify)	9.0 m (29.5 ft.)

Illuminator

Supplemental Light	Dual light
Illumination Distance (IR)	30 m (98.4 ft.)
Illumination Distance (Warm Light)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
Frame Rate	Main Stream: 4 MP (2560×1440) max. 25 fps; 3 MP (2304×1296) max. 30 fps; 1080P (1920×1080) max. 30 fps; 720P (1280×720) max. 30 fps · Sub Stream: 640×360 max. 25 fps; 2CIF (704×288) max. 25 fps; CIF (352×288) max. 25 fps
Video Bit Rate	128 Kbps to 6144 Kbps
OSD	Up to 4 OSDs
Privacy Mask	Support (only NVR)
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	N/A
BLC	Support
Defog	Digital defog

Intelligent

Smart Intrusion Prevention	N/A
Auto Tracking	Support

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Events

Basic Detection	Ultra motion detection (based on human body and vehicle detection), Tampering alarm, High-Decibel detection
General Function	IP address filtering, Access policy, HTTP authentication, RTSP authentication, User authentication, ARP protection

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Protocols	IPv4, TCP, DHCP, RTSP, RTP, RTCP, NTP, HTTP, ICMP, DNS, DDNS
Compatible Integration	SDK, API
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Security	Password protection, Strong Password, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
User/Host	Up to 6 users. 2 user levels: administrator and common user

PTZ

Pan Range	0° ~ 345°
Pan Speed	1°/s ~ 40°/s; Preset speed: 40°/s
Tilt Range	0° ~ 90°
Tilt Speed	1°/s ~ 30°/s; Preset speed: 30°/s
Number of Presets	20

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

Protection	IP66 (IEC 60529)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN IEC 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)

General

Power	DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption	7.3 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø110 mm × 141 mm × 151 mm (Ø4.3" × 5.6" × 6.0")
LED Indicator	1, red/blue
Weight	0.38 kg (0.84 lb.)
Material	Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support

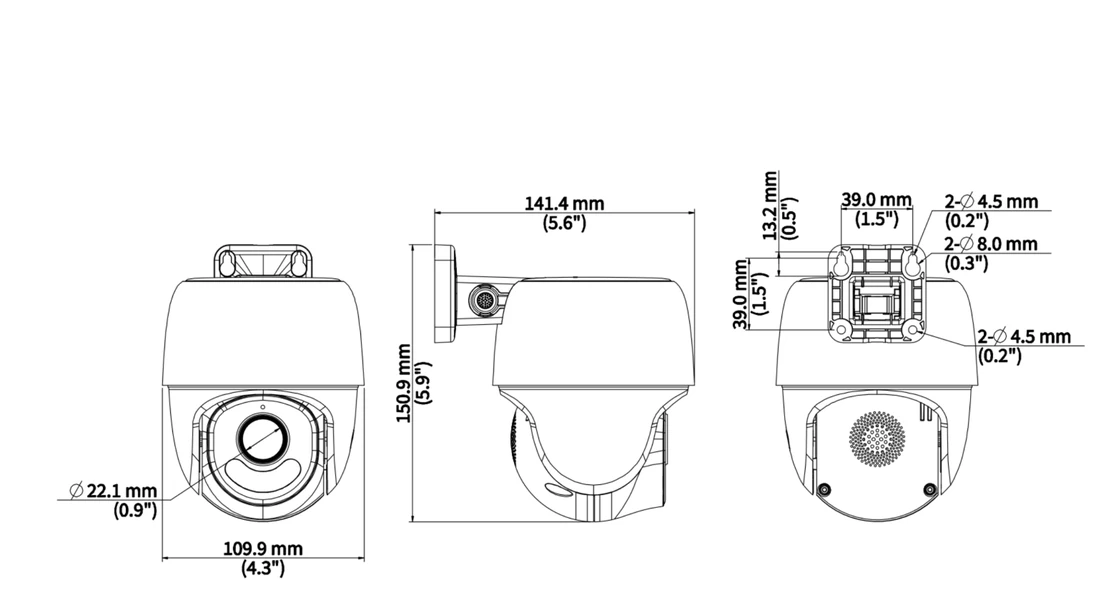

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø110 × 141 × 151 mm (Ø4.3" × 5.6" × 6.0")
Weight	0.38 kg (0.84 lb.)
Material	Plastic
Mount adjustment	Pan 0–345° · Tilt 0–90° · 20 presets

4MP Pan-Tilt Camera FAQ — IPC-P224-AF40C

Does the IPC-P224-AF40C track people and vehicles by itself?

Yes — ultra motion detection based on human body and vehicle detection hands targets to the auto tracking function, and the pan-tilt head turns to keep them in frame. The 4.0 mm lens is fixed with a 74.5° view, so tracking is mechanical rather than optical zoom.

How far does it see at night and in what color?

Both illuminators reach 30 m: invisible 850 nm IR for discreet black-and-white monitoring, or warm white light that keeps the 4MP image in color — faces, clothing and vehicle colors included. DORI figures run 90 m detect, 18 m recognize and 9 m identify.

Can I speak through it to warn someone off?

Yes — two-way audio runs G.711U/G.711A at 64 Kbps with echo suppression, so a guard can challenge an intruder or answer a driver remotely. High-decibel detection listens for abnormal loud sounds, and tampering alarm reports attempts to block the camera.

Does it actively deter, or only record evidence?

Both. The 30 m warm light makes the surveillance visible, and when a person or vehicle is detected the sound-and-light alarm fires while auto tracking keeps the target in frame. Two-way talk-down adds a live voice — often enough to stop an intrusion early.

What storage and resolution options do I get?

The main stream records 4MP (2560×1440) at up to 25 fps — or 3MP/1080p at 30 fps — in Ultra 265, H.265 or H.264, with bit rate from 128 to 6144 Kbps. A MicroSD card up to 512 GB records locally, so small sites can run without an NVR, and the IP66 shell handles outdoor weather.
