NVR / Recorders › NVR302-09B-IQ / 16B-IQ / 32B-IQ

9/16/32-Channel 2-HDD Smart NVR NVR302-09B-IQ / NVR302-16B-IQ / NVR302-32B-IQ — view 1

9/16/32-Channel 2-HDD Smart NVR NVR302-09B-IQ / NVR302-16B-IQ / NVR302-32B-IQ — view 2

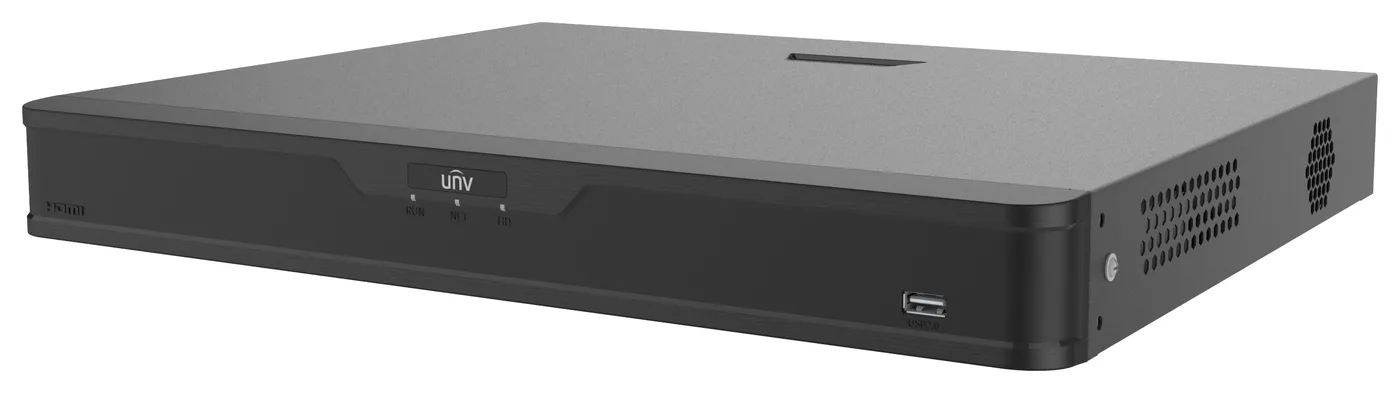

9/16/32-Channel 2-HDD Smart NVR NVR302-09B-IQ / NVR302-16B-IQ / NVR302-32B-IQ — view 3

9/16/32-Channel 2-HDD Smart NVR NVR302-09B-IQ / NVR302-16B-IQ / NVR302-32B-IQ — view 4

Uniview (UNV)B-IQ Series · 2× SATA HDD

2-HDD Network Video Recorder · B-IQ Series

NVR302-09 / 16 / 32B-IQ

9 / 16 / 32-channel network video recorder — built-in face detection, face comparison and vehicle detection (LPR), Ultra 265 compression, 4K HDMI output, records cameras up to 12MP.

12MP · max recordingUltra 265 · low storage4K HDMI · + VGA simultaneous2× SATA · up to 24 TB eachSmart Search · face / vehicle / behavior38 languages · local interface

CHOOSE YOUR SIZE — THREE MODELS ON THIS PAGE

Rule of thumb: count your cameras, then leave room to grow — a 9-camera site runs happily on the 09B-IQ; pick the 16B-IQ or 32B-IQ if you may add cameras later. One detail worth knowing: on the 32B-IQ, local synchronous playback is limited to 16 channels at a time even though it records all 32 — highlighted rows in the spec table below show every other difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

How many terabytes for your channels and days? Use the storage calculator →

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

9/16/32Channel options

160 MbpsIncoming bandwidth

2×24 TBMax HDD capacity

4KHDMI output

The Uniview NVR302-B-IQ Series is a 2-HDD network video recorder offered in three sizes: NVR302-09B-IQ (9-ch), NVR302-16B-IQ (16-ch) and NVR302-32B-IQ (32-ch). All three record cameras up to 12MP with Ultra 265 / H.265 / H.264 compression, run built-in face detection, face comparison and vehicle detection (LPR), and output simultaneously over 4K HDMI and VGA. Two SATA bays each take a hard disk up to 24 TB, and the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Small-to-mid installationsThe 9-ch 09B-IQ plus nine cameras is a complete kit — two disks, one screen, real face-detection search built in.

Growing or multi-building projectsBuy channels you don't use yet: the 16B-IQ or 32B-IQ lets you add cameras later without replacing the recorder.

Remote viewing on phoneP2P protocol built in — the owner checks the site from a phone app without a fixed IP or network skills.

Local-language interface38 GUI languages including Spanish (Latin America), Portuguese (Brazil) and French — your customer operates it in their own language.

Retail loss-prevention & analyticsFace Snapshot Search, People Counting Report and Heat Map turn hours of footage into a store-traffic report — plus POS overlay on every channel to match transactions to video.

Longer video retentionUltra 265 roughly halves file size versus H.264 — two 24 TB disks keep months more footage than a single-bay recorder.

Vehicles & gate / parking projectsVehicle Detection (LPR) plus Motor and Non-Motor Vehicle Search, with a library for up to 25,000 vehicle pictures — useful for gates, parking lots and logistics yards.

Not the right pick if you need…

PoE ports — cameras need a separate PoE switch (we bundle one at combo price)
RS-485 / RS-232 serial control ports — both are not present on this series
Alarm in/out wiring for sirens or sensors — the physical interface list shows none on this series
Full Smart-feature channel counts with third-party cameras — deepest face AI (up to 8-ch) requires Uniview cameras; normal/third-party cameras are limited to 1-ch face detection, 2-ch SIP or 4-ch UMD

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Support Ultra H.265/H.265/H.264 video formats

Support 9/16/32-channel input

Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840×2160) resolution

Support HDMI and VGA simultaneous output

Support up to 12 Megapixels resolution recording

Support ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

Finds faces and plates. Holds months of footage.

The two capabilities that make a big multi-channel deployment easy to run.

ULTRA 265

Half the storage, same image

Ultra 265 compression cuts recording size dramatically versus H.264 — on each 24 TB disk you keep footage for weeks longer, or record more cameras at higher resolution.

2× SATA

Two disks, twice the runway

Two independent SATA bays each take a disk up to 24 TB — up to 48 TB of local storage without RAID complexity, built for busy 16/32-channel sites recording up to 12MP.

Which size fits your project?

Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.

NVR302-09B-IQlive view split 1/4/6/8/9 · sync playback 9-ch

9cameras

NVR302-16B-IQlive view split up to 1/4/6/8/9/16 · sync playback 16-ch

16cameras

NVR302-32B-IQlive view split up to 1/4/6/8/9/16/25/32 · sync playback capped at 16-ch

32cameras

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the three models:NVR302-09B-IQ · 9-chNVR302-16B-IQ · 16-chNVR302-32B-IQ · 32-ch

Decoding

Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	09B-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 9×1080P@30 \| Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30, 9×720P@3016B-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 16×720P@30 \| Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@3032B-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 20×720P@30, 32×D1 \| Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@30, 32×D1
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio Compression	G.711A, G.711U

Network

Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	128 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input	09B-IQ · 9-ch16B-IQ · 16-ch32B-IQ · 32-ch
RCA Audio Input	1-ch
IP Speaker (Peripheral Input)	16-ch
POS (Peripheral Input)	All channels

Video/Audio Output

HDMI Output	4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
VGA Output	1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
RCA Audio Output	1-ch
Liveview Display	09B-IQ · 1/4/6/8/916B-IQ · 1/4/6/8/9/1632B-IQ · 1/4/6/8/9/16/25/32
Corridor Mode Screen	09B-IQ · 3/4/5/7/916B-IQ · 3/4/5/7/9/10/12/1632B-IQ · 3/4/5/7/9/10/12/16/32
Two-way Audio	1-ch, RCA (using the audio input and output)
Snapshot	FTP/Schedule/Event Snapshot; 4-ch snapshot (max. D1 (720×576) video resolution, with D1 snapshot resolution)

Recording

Recording Resolution	12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Synchronous Playback in Local	09B-IQ · 9-ch16B-IQ · 16-ch32B-IQ · 16-ch

Smart

Smart by IPC	All channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring
Smart by NVR	Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
VCA Search	AcuSearch, AcuTrack, Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
AcuSearch	All channels with UNV SIP/UMD Camera
AcuTrack	All channels with UNV SIP/UMD Camera
by NVR	Up to 8-ch with UNV Face Detection Camera, Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP)
Vehicle Picture Library	Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR with normal cameras	Up to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP)
UMD by NVR with normal cameras	Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K)

Alarm

General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA	2 SATA Interfaces
Capacity	Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; the environment temperature for use should not exceed 40°C)

External Interface

Network Interface	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 1 × USB2.0, Rear panel: 1 × USB2.0, 1 × USB3.0
RS485	N/A
RS232	N/A
Alarm In	N/A
Alarm Out	N/A
Power Supply	DC 12 V / 3 A

Working Environment

Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 12 W

Dimensions

Weight (without HDD)	≤ 2 kg (4.4 lb)
Dimensions	380 mm × 315 mm × 53 mm (15.0" × 12.4" × 2.1")

Certification

Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	380 × 315 × 53 mm (15.0" × 12.4" × 2.1")
Weight (without HDD)	≤ 2 kg (4.4 lb)
Power supply	DC 12 V / 3 A
Consumption (without HDD)	≤ 12 W

Rear panel — all interfaces

Optional Mounting Accessories

Order together with the camera to save shipping.

RM-1U-3802-HDD 1U NVR rack mount tray

9/16/32-Channel AI NVR FAQ — NVR302-B-IQ Series

How many IP cameras can I connect?

The NVR302-09B-IQ takes 9 IP cameras, the 16B-IQ 16 and the 32B-IQ 32, recording up to 12 MP per channel. Incoming bandwidth is 160 Mbps, so size camera bitrates to stay inside that figure, and pick the channel count that leaves room to add cameras as the site grows.

How many hard drives fit and what is the maximum capacity?

Two independent SATA bays, each taking a cctv hdd up to 24 TB — up to 48 TB of local storage without RAID complexity. Use surveillance-rated hard drives; real retention depends on camera count, resolution and bitrate, and Ultra 265 keeps files smaller than H.264 at the same image quality, stretching every terabyte further.

What AI functions are built into the recorder itself?

The NVR runs Face Detection, Face Comparison, Smart Intrusion Prevention (SIP) and Ultra Motion Detection on board: up to 8 face channels with UNV face-detection cameras or 1 with standard cameras, plus SIP on 2 and UMD on 4 standard channels. AcuSearch, AcuTrack and face/vehicle/human-body search make playback filterable.

Does it have built-in PoE ports?

No — this series has no PoE ports. It connects through two gigabit RJ45 interfaces, and cameras are powered by an external PoE switch on the LAN. That layout suits projects where cameras are spread across floors or buildings rather than home-run to the recorder.

How much storage does Ultra 265 save compared with H.264?

Roughly half the storage for the same image: Ultra 265 cuts recording size dramatically versus H.264, so the same 24 TB disk keeps footage for weeks longer — or records more cameras at higher resolution. H.265 and H.264 are also supported for mixed camera fleets.

Can I view live video remotely?

Yes — up to 128 remote users can connect. The recorder supports P2P, DDNS, HTTP/HTTPS and RTSP and works in a browser (IE10/11, Chrome 45+, Edge 79+, Firefox 52+), so an integrator can check several client sites from one office. Outgoing bandwidth for remote streams is 128 Mbps.
