IP Cameras › IPC-T242-ADF28(40)K-WP

2MP ColorHunter Wise-ISP Warm Light Turret Camera IPC-T242-ADF28(40)K-WP

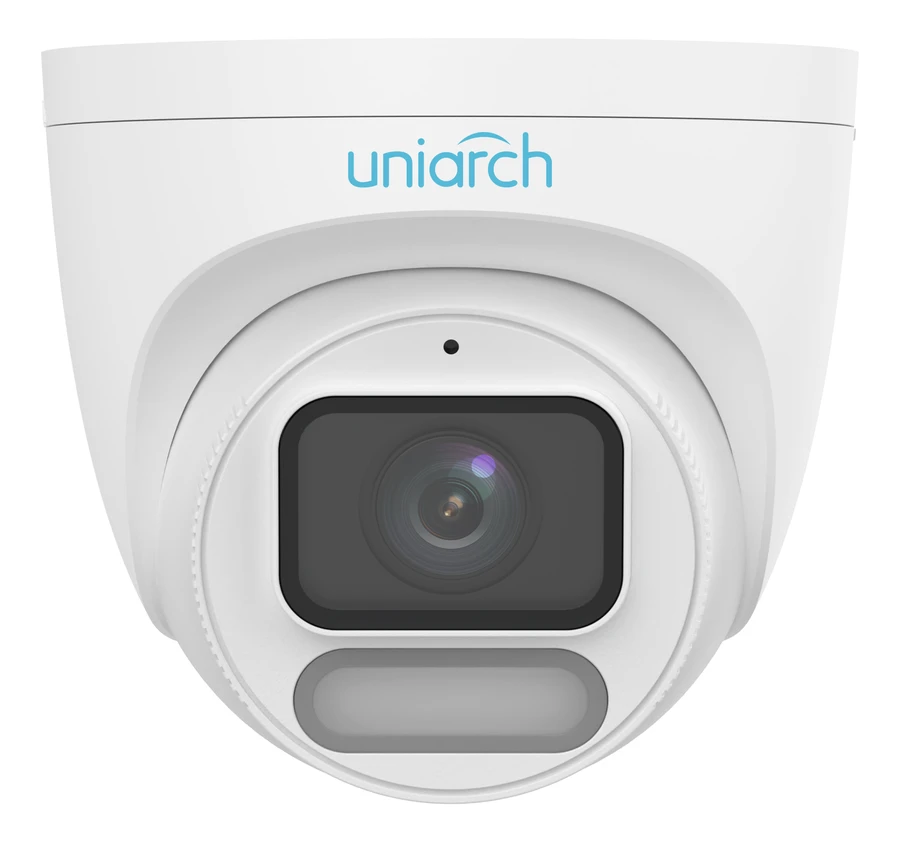

2MP ColorHunter Wise-ISP Warm Light Turret Camera IPC-T242-ADF28(40)K-WP — view 1

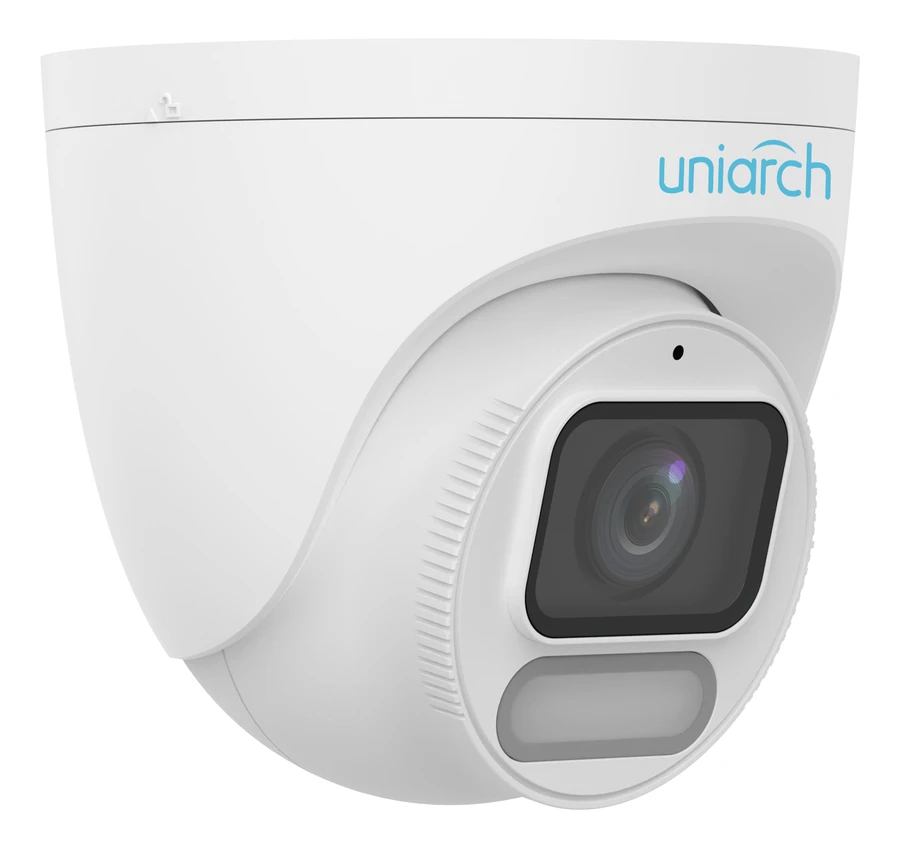

2MP ColorHunter Wise-ISP Warm Light Turret Camera IPC-T242-ADF28(40)K-WP — view 2

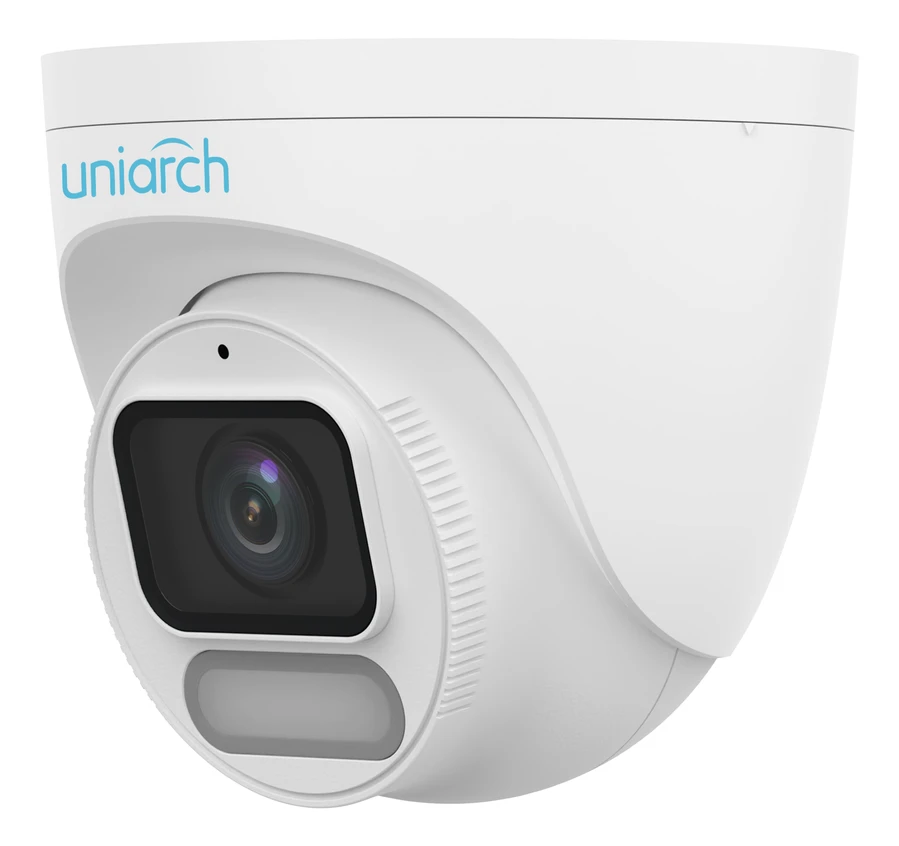

2MP ColorHunter Wise-ISP Warm Light Turret Camera IPC-T242-ADF28(40)K-WP — view 3

UniarchHalo Series · ColorHunter Wise-ISP

2MP ColorHunter Warm-Light Turret · Halo Series

IPC-T242-ADF28(40)K-WP

Name: Uniarch IPC-T242-ADF28(40)K-WP
Brand: Uniarch
SKU: IPC-T242-ADF28(40)K-WP

2MP ColorHunter Wise-ISP fixed turret network camera — full-color warm-light night vision, F1.0 large aperture, 120dB WDR, MicroSD up to 512GB, NDAA-compliant, IP67 body.

2 MP · 1080P@30fpsUltra 265 · low bandwidthColorHunter · warm light, up to 30mPoE / DC12V · dual powerIP67 · outdoorMic · built-in audioNDAA · compliant construction

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

AF28 (2.8 mm, 99° view) covers a wide area near the camera — doorways, small rooms, shop counters. AF40 (4.0 mm, 85° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mWarm-light color night vision

F1.0Large aperture

512 GBMicroSD edge storage

120 dBTrue WDR

The Uniarch IPC-T242-ADF28(40)K-WP is a 2MP fixed turret network camera from the Halo Series ColorHunter Wise-ISP line. Its F1.0 large-aperture lens and warm-light illuminator (up to 30 m) keep video in full color at night instead of switching to black-and-white IR, and Wise-ISP processing optimizes color, detail and smear in very low light. It supports MicroSD edge storage up to 512 GB, 120 dB true WDR, an NDAA-compliant build, and dual power (PoE or DC 12V). It is offered with two fixed lenses: 2.8 mm (AF28, wider view) or 4.0 mm (AF40, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsSee who enters in full color, day or night, and the built-in mic records what is said at the counter. The compact ceiling or wall-mounted turret body blends into the shop interior. AF28 covers the whole shop floor from a corner.

Home gates & yardsThe warm light turns on at night — visitors are visible in full color and intruders know they are seen, no black-and-white IR switch needed.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. 120dB true WDR keeps license plates and faces readable against bright headlights or sky glare.

Residential compoundsUltra motion detection tells vehicles apart from people, cutting false alerts from passing cars or blowing leaves.

Sites needing local backupA MicroSD card up to 512 GB keeps footage on the camera itself — useful as a backup even where an NVR is also recording.

Kiosks & fuel stationsWorks on PoE or a local DC 12V adapter — pick whichever power source is already run to the site.

Not the right pick if you need…

Invisible/covert night vision — the warm light is clearly visible, unlike IR
Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.7" CMOS sensor and F1.0 large aperture lens

1080P (1920 × 1080)@30 fps; 720P (1280 × 720)@30 fps

Ultra 265, H.265, H.264, MJPEG

Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes

120 dB true WDR technology enables clear image in strong light scene

Supports 9:16 corridor mode

Built-in mic

White light, up to 30 m (98.4 ft.) warm light distance

MicroSD, up to 512 GB

IP67 protection

Supports PoE power supply

3-axis

Night Vision: Smart IR

Invisible infrared night vision — this model has no warm-light module.

WARM LIGHT MODE

Visible warm light — full-color video around the clock

Warm white light up to 30 m (98.4 ft.), paired with an F1.0 large-aperture lens and Wise-ISP processing, keeps faces, clothing and vehicle colors visible at night. This model has a single warm-light illuminator only, no infrared module — it does not offer a discreet/invisible IR night-vision mode.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

45 m147.6 ft

Observewhat is happening

18 m59.1 ft

Recognizesomeone you know

9 m29.5 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	AF28 · 99.0°	AF40 · 85.4°
5 m16 ft	11.7 m38.4 ft	9.2 m30.3 ft
10 m33 ft	23.4 m76.8 ft	18.5 m60.5 ft
15 m49 ft	35.1 m115 ft	27.7 m90.8 ft
20 m66 ft	46.8 m154 ft	36.9 m121 ft
30 m98 ft	70.3 m230 ft	55.4 m182 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:AF28 = 2.8 mmAF40 = 4.0 mm

Camera

Max Resolution	2 MP
Sensor	1/2.7" CMOS
Min. Illumination	Color: 0.0003 Lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	AF28 · 2.8 mmAF40 · 4.0 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	AF28 · 99.0°AF40 · 85.4°
Field of View (V)	AF28 · 53.0°AF40 · 47.5°
Field of View (D)	AF28 · 118.0°AF40 · 98.5°
Lens Type	Fixed

DORI

DORI Distance (Lens)	AF28 · 2.8 mmAF40 · 4 mm
DORI Distance (Detect)	AF28 · 45.0 m (147.6 ft.)AF40 · 64.3 m (211.0 ft.)
DORI Distance (Observe)	AF28 · 18.0 m (59.1 ft.)AF40 · 25.7 m (84.3 ft.)
DORI Distance (Recognize)	AF28 · 9.0 m (29.5 ft.)AF40 · 12.9 m (42.3 ft.)

Illuminator

Supplemental Light	Warm light
Light On/Off Control	Auto/Manual
Illumination Distance (Warm Light)	30 m (98.4 ft.)

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

Protection	IP67 (IEC 60529)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 2.6 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)
Weight	0.40 kg (0.88 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

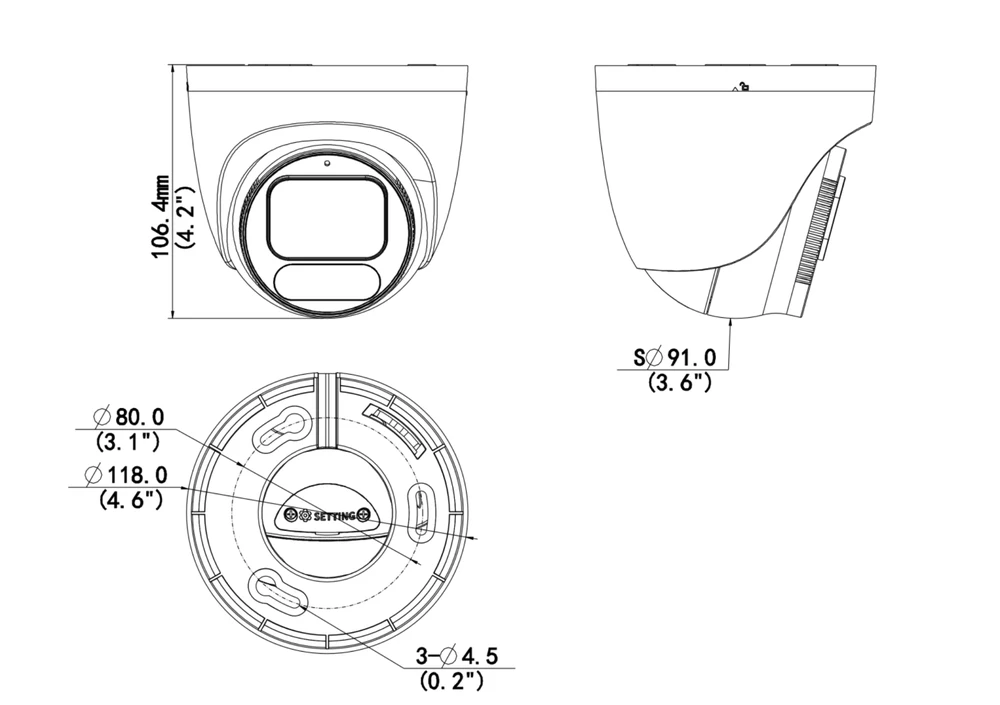

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø118 × 106 mm (Ø4.6" × 4.2")
Weight	0.40 kg (0.88 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 0–360° · Tilt 0–75° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for plastic turret camera (rear wiring)

TR-A01-INNPT 3/4" waterproof cable gland

TR-SE24-INDome pendant mounting pole, 200 mm

TR-SE24-A-INDome pendant mounting pole, 500 mm

TR-CM24-INDome pendant mounting bracket (indoor)

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for fix-dome & plastic turret

TR-WM03-D-IN-V2Wall mounting bracket for fix-dome & plastic turret

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-UP06-C-IN-V2Pole bracket for bullet junction box

2MP Color Night Vision Turret FAQ — IPC-T242-ADF28(40)K-WP

Does the IPC-T242-ADF28(40)K-WP really stay in color all night?

Yes — it is a ColorHunter design with no IR illuminator. The F1.0 aperture and Wise-ISP processing work down to 0.0003 lux in color, and a warm white light reaching 30 m fills in truly dark scenes, so faces, clothing and vehicle colors stay usable at night.

Should I order the 2.8 mm or the 4.0 mm lens version?

The 2.8 mm (ADF28) sees 99° horizontally and detects a person at 45 m — pick it for wide areas close to the camera. The 4.0 mm (ADF40) narrows to 85.4° but detects at 64.3 m and recognizes at 12.9 m versus 9 m, better for driveways and fence lines.

How does it handle strong backlight, like a gate facing the sun?

It has true 120 dB WDR, which balances a bright background against a darker subject so faces at a sunlit gate are not silhouettes. HLC suppresses headlight glare at night, BLC lifts backlit subjects, and digital defog helps in haze or dust.

Can it record locally to an SD card?

Yes, edge storage takes a MicroSD card up to 512 GB. Recording at the camera protects footage from network cuts and gives small sites a recorder-free option; with Ultra 265 compression a large card holds days of 1080P video depending on bit rate settings.

Is it suitable for outdoor and NDAA-restricted projects?

Yes on both counts: the housing is IP67 rated against dust and rain, and the model is NDAA compliant, so it can be offered in tenders that exclude non-compliant equipment. The bracket adjusts 0–360° pan, 0–75° tilt and 0–360° rotation for flexible aiming.

What bandwidth and audio should I plan for?

Main stream is 1080P at up to 30 fps in Ultra 265, H.265, H.264 or MJPEG, with bit rate adjustable from 128 to 6144 Kbps and U-code for extra savings. Audio is G.711U/G.711A at 64 Kbps with an 8 kHz sampling rate, and audio detection can trigger alarms.
