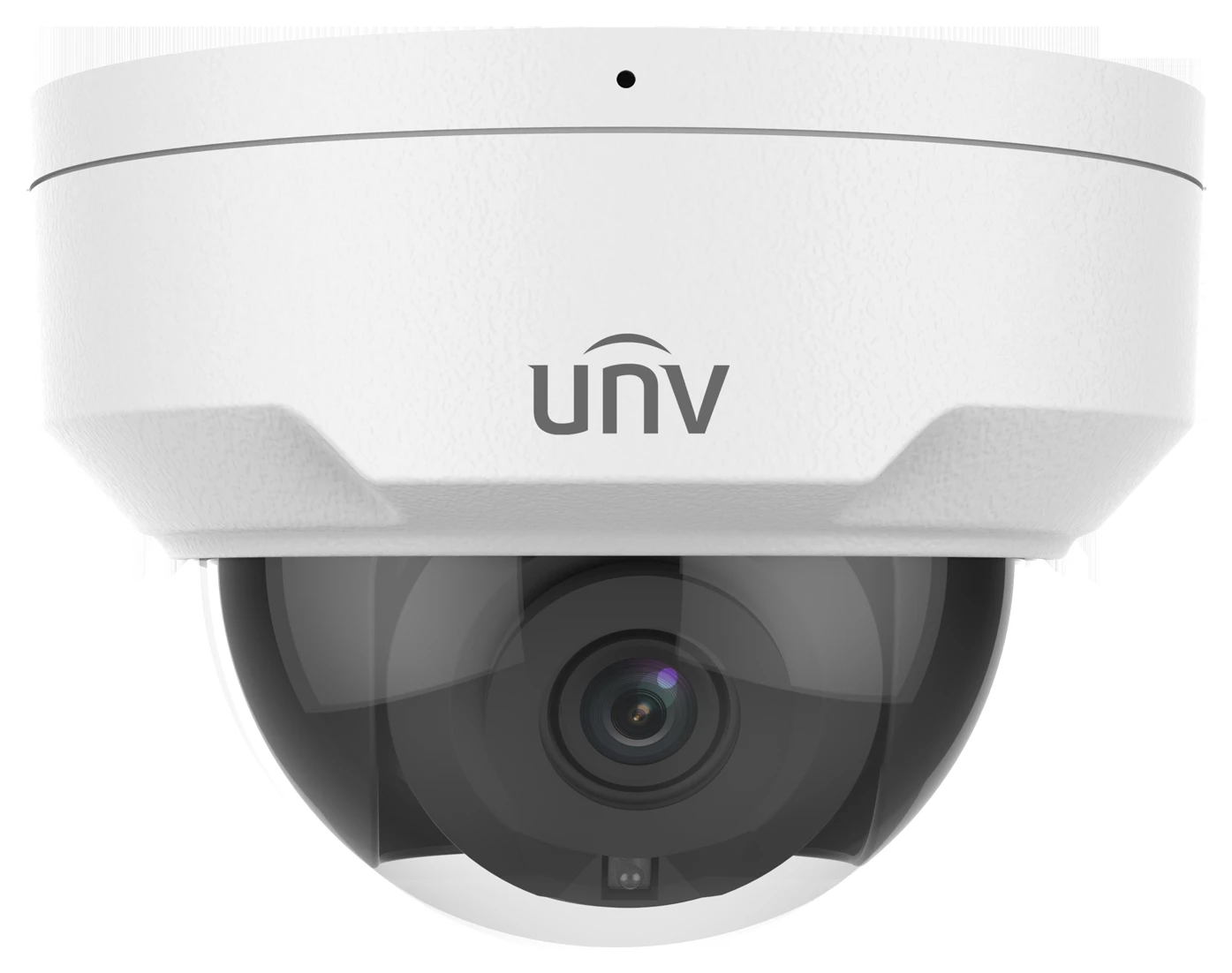

2MP HD IR Fixed Dome Network Camera IPC322LB-ASF28K-A

2MP HD IR Fixed Dome Network Camera IPC322LB-ASF28K-A — view 1

2MP HD IR Fixed Dome Network Camera IPC322LB-ASF28K-A — view 2

Uniview (UNV) · DomeHD IR Fixed Dome

2MP HD IR Fixed Dome

IPC322LB-ASF28K-A

Name: Uniview IPC322LB-ASF28K-A
Brand: Uniview
SKU: IPC322LB-ASF28K-A

2MP fixed IR dome network camera — up to 30m smart infrared night vision, IK10 vandal-resistant metal body, built-in mic, NDAA-compliant, PoE/DC12V dual power, IP67 outdoor rating.

2 MP · 1080P@30fpsUltra 265 · low bandwidthSmart IR · up to 30mPoE / DC12V · dual powerIP67 · outdoorIK10 · vandal-resistantMic · built-in audioNDAA · compliant construction

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67IK10ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mIR night vision

IK10Vandal resistant

5.0 WMax power

-30~60°CWorking temperature

The Uniview IPC322LB-ASF28K-A is a 2MP fixed dome network camera with a metal, IK10 vandal-resistant body and IP67 outdoor rating. It provides up to 30 m of smart infrared night vision, a built-in mic, MicroSD edge storage up to 512 GB, and powers over a single PoE cable or DC 12V, with a −30 °C to 60 °C working range. It carries a fixed 2.8 mm lens only — there is no alternate lens option for this model.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Hallways & corridorsThe low-profile dome shape sits flush on a ceiling and blends into the surroundings — less obtrusive than a bullet camera indoors.

Schools & transit stationsIK10 vandal-resistant housing withstands impact and tampering in high-traffic public areas.

Warehouse & site entrancesIP67 body and −30 to 60 °C rating survive rain, dust and heat outdoors, day after day.

Reception desks & small officesThe built-in mic picks up what is said at the desk, alongside the video — no separate audio device needed.

Sites needing local backupA built-in MicroSD slot keeps footage on the camera itself — useful as a backup even where an NVR is also recording.

Quick retrofits & pole/ceiling installsOne PoE cable does power + video — no electrician needed on site, quick to install.

Not the right pick if you need…

Full-color night vision — this is IR-only, night video is black & white, not color
Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom or an alternate lens option — this model has a fixed 2.8 mm lens only
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.9" CMOS sensor

1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps

Ultra 265, H.265, H.264

Built-in mic

Smart IR, up to 30 m (98.4 ft.) IR distance

Day/night functionality

2D/3D DNR (digital noise reduction)

MicroSD, up to 512 GB

DC 12 V, PoE (IEEE 802.3af) power supply

IP67 protection

IK10 protection

2-axis adjustment

Night Vision: Smart Infrared

Switchable Auto/Manual — set it per site, per customer.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

45 m147.6 ft

Observewhat is happening

18 m59.1 ft

Recognizesomeone you know

9 m29.5 ft

Identifya stranger's face

4.5 m14.8 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	101.1°
5 m16 ft	12.2 m39.9 ft
10 m33 ft	24.3 m79.7 ft
15 m49 ft	36.5 m120 ft
20 m66 ft	48.6 m159 ft
30 m98 ft	72.9 m239 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	2 MP
Sensor	1/2.9" CMOS
Min. Illumination	Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 355°, Tilt: 0° to 75°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	2.8 mm
Iris Type	Fixed
Iris	F2.0
Field of View (H)	101.1°
Field of View (V)	56.5°
Field of View (D)	117°

DORI

DORI Distance (Lens)	2.8 mm
DORI Distance (Detect)	45.0 m (147.6 ft.)
DORI Distance (Observe)	18.0 m (59.1 ft.)
DORI Distance (Recognize)	9.0 m (29.5 ft.)
DORI Distance (Identify)	4.5 m (14.8 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support (main stream)
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage

MicroSD, up to 512 GB

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529); IK10 (IEC 62262)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 5.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø109 mm × 83 mm (Ø4.3" × 3.3") (Ø × H)
Weight	0.39 kg (0.86 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	1 Language: English

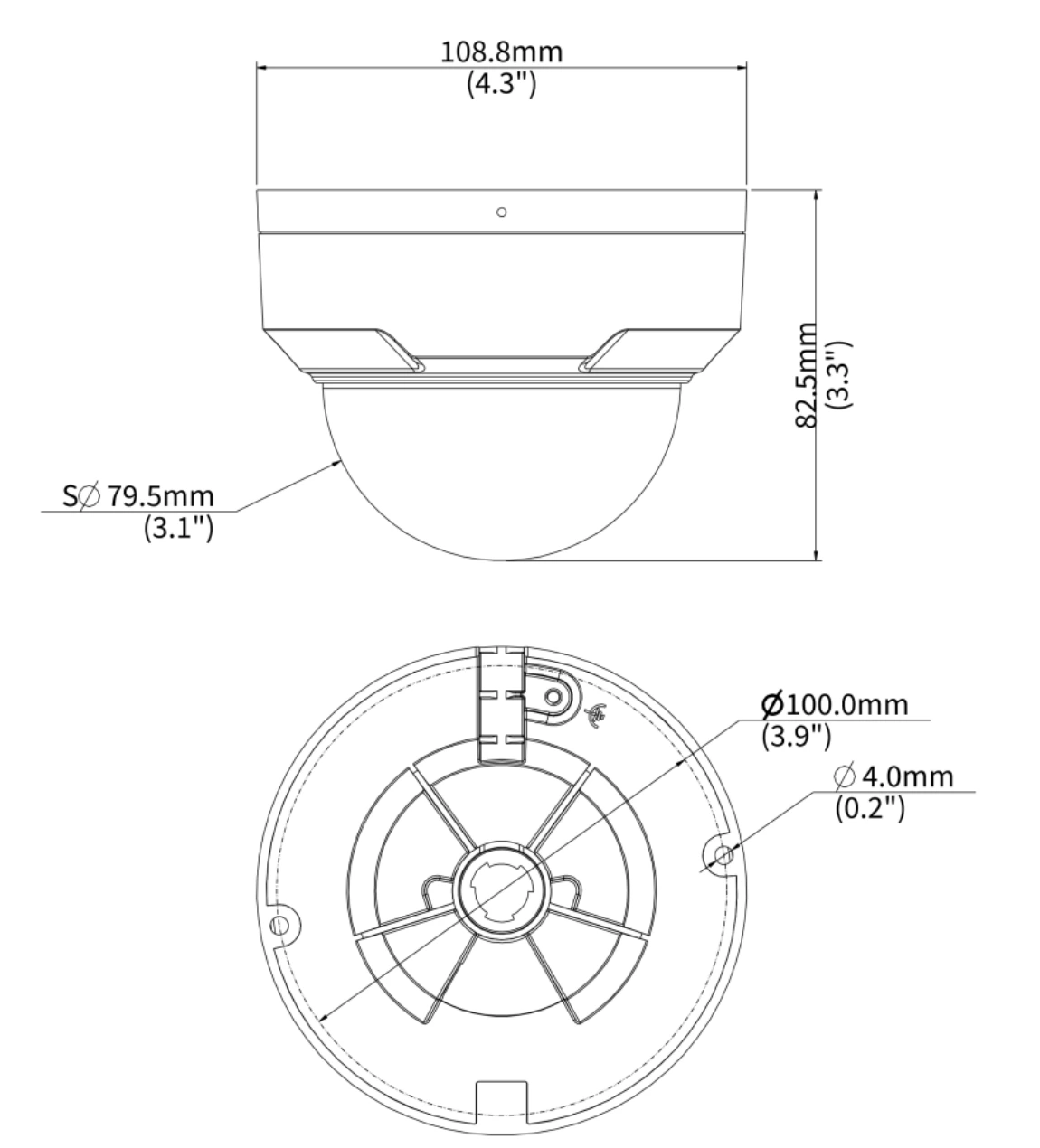

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø109 mm × 83 mm (Ø4.3" × 3.3") (Ø × H)
Weight	0.39 kg (0.86 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 0–355° · Tilt 0–75°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-G-INJunction box for mini fix-dome (support wiring from behind)

HS-205SSunshade shell for fixed focus dome

TR-UM06-E-INSlant mounting bracket for fixed dome

TR-A01-INNPT 3/4" waterproof cable gland

TR-SE24-INDome pendent mounting pole, 200 mm

TR-SE24-A-INDome pendent mounting pole, 500 mm

TR-CM24-INDome pendent mounting bracket (indoor)

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for fix-dome, mini fix-dome & plastic turret camera

TR-WM03-D-IN-V2Wall mounting bracket for fix-dome, mini fix-dome & plastic turret camera

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-FM116In-ceiling bracket for fix-dome

TR-WM07P-BDome wall mounting plastic bracket

2MP PoE Dome Camera FAQ — IPC322LB-ASF28K-A

How do I power the IPC322LB-ASF28K-A?

Two options: PoE, where one network cable from a PoE switch carries both power and video — the cleanest install — or a local DC 12V supply if your switch has no PoE. With PoE you avoid running separate power lines to every camera point.

Can it record without an NVR?

Yes. It has a microSD card slot for edge recording, so a small shop or single-gate site can run the camera standalone and review footage directly. For multi-camera projects you would still pair it with an NVR, with the SD card acting as local backup.

What area does the fixed 2.8 mm lens cover?

The 2.8 mm lens gives a 101.1° horizontal and 117° diagonal field of view — wide enough to cover a shop floor, reception or gate area from one corner. DORI figures: detect a person at 45 m, observe at 18 m, recognize at 9 m, identify at 4.5 m.

How does it perform at night?

Smart IR at 850 nm illuminates up to 30 m and auto-adjusts intensity so close objects are not overexposed. The IR-cut filter switches automatically between color day mode and black-and-white night mode; minimum color illumination is 0.01 Lux (F2.0, AGC on), 0 Lux with IR.

Is it suitable for outdoor mounting in rough areas?

Yes. The dome is IK10 vandal-resistant against knocks and tampering and IP67 sealed against dust and heavy rain, so it handles gates, street-facing walls and open yards. Ultra 265 compression keeps the 1080p/30fps stream between 128 Kbps and 6144 Kbps to save bandwidth and storage.
