IP Cameras › IPC3234EA-AHDZK(X4K)-I1
Uniview (UNV) · Dome4MP LightHunter WDR
4MP LightHunter WDR Dome · Motorized Zoom

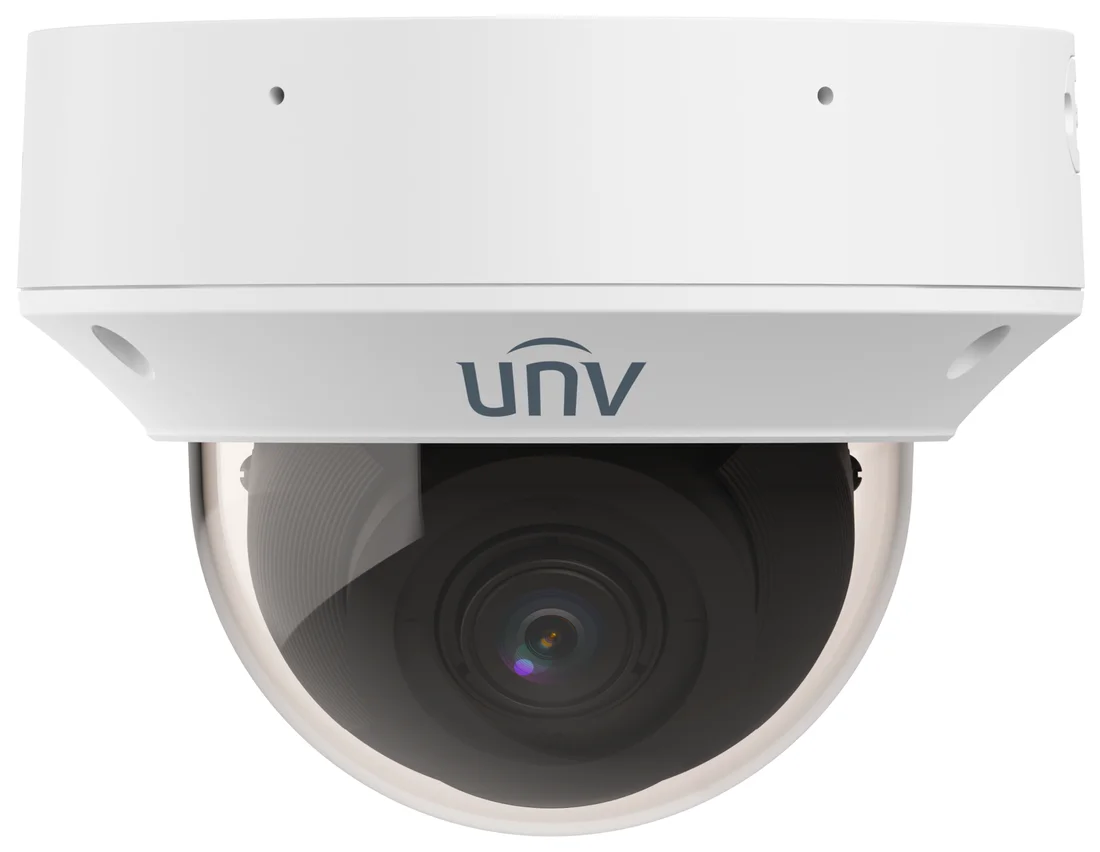

IPC3234EA-AHDZK(X4K)-I1
4MP LightHunter WDR network dome camera with 140 dB wide dynamic range, Smart IR night vision, and a motorized zoom lens — choose 2.8-12 mm wide coverage (AHDZK) or 8-32 mm long-range reach (AHDX4K).
4 MP · 2688×1520@60fpsUltra 265 · H.265/H.264/MJPEG140 dB · optical WDRPoE+ · 802.3af / DC 12V ±25%IP67 · IK10 · outdoor + vandal-resistantmicroSD · up to 512 GB edge storageMic & Speaker · built-in two-way audio
CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE
AHDZK (2.8-12 mm, up to 106.6° view) is a motorized 4X zoom lens that covers a wide area up close and can tighten in for moderate reach — lobbies, retail floors, driveways. AHDX4K (8-32 mm, up to 42.6° view) is a motorized 4X telephoto zoom built for long-range identification — parking lot entrances, perimeters, distant gates. Highlighted rows in the spec table below show every difference.
Get Best Price on WhatsApp
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Sample quantities are welcome — testing one or two units first is the normal way to start.
Certified:CEFCCULRoHSWEEEIP67IK10ONVIF
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
The Uniview IPC3234EA is a 4MP LightHunter WDR network dome camera built around a 1/1.8" CMOS sensor and a motorized 4X zoom lens. It combines up to 140 dB optical WDR, Smart IR night vision to 40 m, and metadata analysis (human/vehicle attributes, face recognition, intrusion prevention, people counting) in an IP67/IK10 body powered over PoE+. It is offered with two lens options: AHDZK (2.8-12 mm, wide coverage) or AHDX4K (8-32 mm, long-range reach).
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
Parking lots & vehicle gatesAHDX4K's 8-32 mm zoom reaches license plates and faces at distance; metadata analysis tags vehicle attributes automatically.
Retail & access verificationFace recognition can match against up to 100,000 faces across 16 libraries — flag known staff or blocklisted visitors on arrival.
Perimeters & warehouse yardsSmart intrusion prevention (cross line, intrusion, enter/leave area) filters false alarms by classifying human, vehicle and non-motor vehicle.
Malls & transit hubsPeople counting tracks flow and crowd density for different statistical scenarios — occupancy trends without a separate sensor.
Dusk corridors & mixed lightingLightHunter sensor plus 140 dB WDR keep color detail readable in near-dark and harsh backlight scenes.
Harsh or vandal-prone sitesIP67 + IK10 body shrugs off rain, dust and impact; PoE+ does power and video over one cable.
Not the right pick if you need…
- A simple fixed-focus lens — this is a motorized 4X zoom lens (2.8-12 mm or 8-32 mm), not a fixed 2.8/4 mm lens
- Wi-Fi — this is a wired RJ45 camera
- A visible warm-light deterrent — this model uses invisible 850 nm Smart IR only, no white-light illuminator
- Battery or solar power — PoE+ / DC 12V wired power only
- 8MP/4K resolution — this camera is 4MP (2688 × 1520)
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT USMix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTERVerified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BESTAll discounts are quoted personally — message me on WhatsApp ↑
Key Features
Complete list from the official datasheet.
High quality image with 4 MP, 1/1.8" CMOS sensor
2688 × 1520@60 fps in the main stream, offering smoother live video and more details
Ultra 265, H.265, H.264, MJPEG
Wise-ISP technology, comprehensive improvement in image quality
Metadata analysis: supports human body, motor vehicle and non-motor vehicle image capture and attribute collection, realizes data visualization management, allows users to get target information for further data analysis
Supports front-end comparison, supports blocklist and allowlist comparison, increases the concurrent detection number up to 120
Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
LightHunter technology ensures ultra high image quality in low illumination environment
Up to 140 dB optical WDR (wide dynamic range)
DC 12 V, PoE (IEEE 802.3af) power supply
Wide voltage range of ±25% in DC
Built for the dark: LightHunter WDR + Smart IR
Two complementary low-light technologies — this model has no visible warm-light illuminator.
SMART IR MODE
Invisible infrared — night vision without lighting up the scene
Smart IR reaches up to 40 m (131.2 ft.) at 850 nm, with Auto/Manual control — steady coverage after dark with no visible light source.
LIGHTHUNTER MODE
Ultra-low-light color imaging with wide dynamic range
The LightHunter sensor holds color detail down to 0.0003 Lux (AHDZK, F1.2) / 0.0005 Lux (AHDX4K, F1.6) with AGC on, and up to 140 dB optical WDR balances bright and dark areas in the same frame.
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Because each lens is a motorized 4X zoom, every value spans a range from wide to full telephoto. Switch the lens buttons above to compare.
Detectsomething is there
68.0-166.2 m223.0-545.2 ft
Observewhat is happening
27.2-66.5 m89.2-218.1 ft
Recognizesomeone you know
13.6-33.2 m44.6-109.0 ft
Identifya stranger's face
6.8-16.6 m22.3-54.5 ft
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | ZK · 106.6° | 15.2° tele |
|---|---|---|
| 5 m16 ft | 13.4 m44.0 ft | 1.3 m4.4 ft |
| 10 m33 ft | 26.8 m88.0 ft | 2.7 m8.8 ft |
| 15 m49 ft | 40.2 m132 ft | 4.0 m13.1 ft |
| 20 m66 ft | 53.7 m176 ft | 5.3 m17.5 ft |
| 30 m98 ft | 80.5 m264 ft | 8.0 m26.3 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Highlighted rows differ between the two models:ZK = 2.8-12 mmX4K = 8-32 mm
Camera
| Sensor | 1/1.8" CMOS |
| Min. Illumination | ZK · Color: 0.0003 Lux (F1.2, AGC ON), BW: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IRX4K · Color: 0.0005 Lux (F1.6, AGC ON), BW: 0.0003 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 140 dB |
| S/N | > 56 dB |
Lens
| Focal Length | ZK · 2.8 to 12 mmX4K · 8 to 32 mm |
| Optical Zoom | 4X |
| Iris | ZK · F1.2X4K · F1.6 |
| Field of View (H) | ZK · 106.6° to 51.3°X4K · 42.6° to 15.2° |
| Field of View (V) | ZK · 56.9° to 28.6°X4K · 23.5° to 8.9° |
| Field of View (D) | ZK · 131.1° to 63.1°X4K · 52.4° to 17.9° |
| Iris Type | P-iris |
DORI
| DORI Distance (Detect) | ZK · 68.0 m to 166.2 m (223.0 ft. to 545.2 ft.)X4K · 124.1 m to 496.6 m (407.3 ft. to 1629.1 ft.) |
| DORI Distance (Observe) | ZK · 27.2 m to 66.5 m (89.2 ft. to 218.1 ft.)X4K · 49.7 m to 198.6 m (163.1 ft. to 651.6 ft.) |
| DORI Distance (Recognize) | ZK · 13.6 m to 33.2 m (44.6 ft. to 109.0 ft.)X4K · 24.8 m to 99.3 m (81.4 ft. to 325.8 ft.) |
| DORI Distance (Identify) | ZK · 6.8 m to 16.6 m (22.3 ft. to 54.5 ft.)X4K · 12.4 m to 49.7 m (40.7 ft. to 162.9 ft.) |
Video
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| ROI | Support |
| Video Stream | Triple streams |
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) |
| OSD | Up to 10 OSDs |
| Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 60 fps |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 60 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 60 fps |
Intelligent
| Recognition | Face recognition: Max support 16 face libraries; Max supports 100000 faces in face library |
| Metadata Analyse | Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection |
| Exception Detection | ZK · Object removed, Object Left Behind, Scene change, Defocus detectionX4K · Object removed, Object Left Behind |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density monitoring |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
Events
| Basic Detection | ZK · Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detectionX4K · Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication, Alarm input, Alarm output |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
Network
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, TLS1.3 |
| Compatible Integration | API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
Illuminator
| Illumination Distance (IR) | 40 m (131.2 ft.) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
Interface
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 3/2 |
| Serial Port | 1 × RS485 |
| Built-in Mic | Support, built-in mic × 2 |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet |
Certification
| EMC | CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002) |
General
| Power | DC 12 V (±25%), PoE+ (IEEE 802.3af) |
| Power Consumption | ZK · 17 WX4K · 18 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Built-in DC12V Output | Support |
| Dimensions | Ø148 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H) |
| Weight | ZK · 1.01 kg (2.23 lb.)X4K · 1.06 kg (2.34 lb.) |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Heater | Support |
Configurable
| P/N | Support |

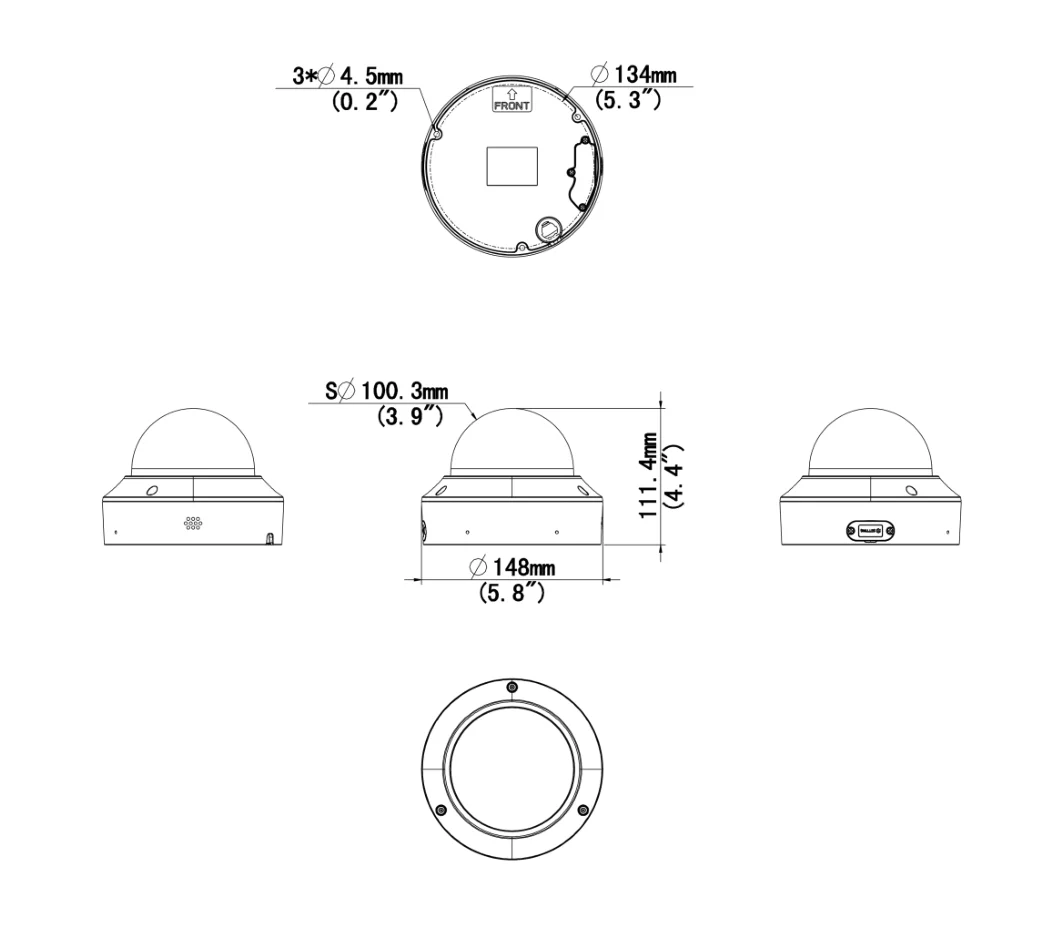

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
unit: mm (in.)
| Dimensions | Ø148 mm × 111.4 mm (Ø5.8" × 4.4") (Ø × H) |
| Weight | 1.01 kg (2.23 lb.) AHDZK / 1.06 kg (2.34 lb.) AHDX4K |
Optional Mounting Accessories
Order together with the camera to save shipping.
TR-JB04-C-INJunction box for 323 Series Fix-dome (support wiring from behind)
TR-JB07/WM04-B-IN4 inch back hole hemisphere wall mounting assembling bracket
TR-WM04-IN4 inch hemisphere wall mounting bracket
TR-FM152-A-INIn-ceiling bracket for 323 Series Fix-dome
TR-SM04-INSwitch box adapter for 323 Series Fix-dome
TR-A01-INNPT 3/4" waterproof cable gland
TR-UP06-INUniversal pole mounting bracket
TR-UC08-CBullet & dome corner mounting bracket
4MP LightHunter Zoom Dome FAQ — IPC3234EA-AHDZK(X4K)-I1
What is the difference between the AHDZK and AHDX4K lens versions?
Both are 4X motorized zooms. The ZK covers 2.8–12 mm with a 106.6°–51.3° view for close and mid-range scenes; the X4K covers 8–32 mm with 42.6°–15.2°, detecting people from 124 m up to 496.6 m at full zoom — pick it for long perimeters and wide yards.
How good is the IPC3234EA in low light?
The 1/1.8-inch LightHunter sensor holds color down to 0.0003 Lux on the F1.2 ZK lens (0.0005 Lux on the F1.6 X4K), and 140 dB optical WDR balances headlights against dark backgrounds. When there is no light at all, Smart IR takes over out to 40 m.
Does it do face recognition on the camera itself?
Yes. Edge face recognition supports up to 16 face libraries with up to 100,000 faces total, so allow/alert lists run without a server. Metadata analysis also captures human body, face, motor vehicle and non-motor vehicle attributes for faster searches, plus people counting and crowd density monitoring.
Can I record on the camera and talk to people on site?
Yes to both. The microSD slot takes cards up to 512 GB for edge recording or NVR backup, and two-way audio is supported with G.711U/G.711A at 128 Kbps and a 16 kHz sampling rate, with noise suppression — connect audio in/out to challenge intruders or assist visitors.
What power and frame rate does the IPC3234EA deliver?
It is powered over PoE+, so one cable handles power and data from a PoE+ switch port. The main stream delivers 4 MP (2688×1520) at up to 60 fps — double the usual 30 fps, useful for fast-moving vehicles — with triple streams and a bit rate of 128 Kbps to 16 Mbps.
Is it protected for outdoor and high-risk locations?
Yes — the body is rated IP67 against dust and water and IK10 against impact, suited to gates, fuel stations and street poles. Smart Intrusion Prevention adds cross-line, intrusion, and enter/leave-area detection with false alarm filtering, plus object removed, object left behind and scene change alerts.
