4MP Vandal-resistant Network IR Fixed Dome Camera IPC324LB-ADF28(40)K-H

4MP Vandal-resistant Network IR Fixed Dome Camera IPC324LB-ADF28(40)K-H — view 1

4MP Vandal-resistant Network IR Fixed Dome Camera IPC324LB-ADF28(40)K-H — view 2

4MP Vandal-resistant Network IR Fixed Dome Camera IPC324LB-ADF28(40)K-H — view 3

Uniview (UNV) · Dome4MP · Vandal-resistant

4MP Vandal-resistant Dome · IK10 + IP67

IPC324LB-ADF28(40)K-H

Name: Uniview IPC324LB-ADF28(40)K-H
Brand: Uniview
SKU: IPC324LB-ADF28(40)K-H

4MP fixed IR dome network camera — IK10 + IP67 vandal-resistant body, Smart IR night vision up to 30 m, built-in mic, PoE single-cable install.

4 MP · 2560×1440@25fpsUltra 265 · low bandwidthMic · built-in audioPoE · 802.3afIP67 · outdoorIK10 · vandal-resistant

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

ADF28K (2.8 mm, 101.5° view) covers a wide area near the camera — entrances, small rooms, corridors. ADF40K (4.0 mm, 84.1° view) trades width for reach — parking areas, longer corridors, perimeter walkways. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCCBUL/CULRoHSWEEEIP67IK10ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mSmart IR distance

IK10Vandal resistant

IP67Outdoor rated

3.9 WPoE max power

The Uniview IPC324LB-ADF28(40)K-H is a 4MP fixed IR dome network camera built for vandal-prone sites, combining an IK10 impact-resistant body with IP67 outdoor sealing. Smart IR reaches up to 30 m, and the camera ships with two fixed lens options: 2.8 mm (ADF28K, 101.5° wide view) or 4.0 mm (ADF40K, 84.1° longer-reach view). It adds a built-in mic, single-cable PoE power and microSD edge storage up to 512 GB, and is rated for −30 °C to 60 °C operation.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Retail shops & storefrontsCeiling or corner mount, vandal-resistant IK10 dome deters tampering, built-in mic captures counter audio. ADF28K covers the whole shop floor from one corner.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat; the IK10 shell survives impact too. ADF40K watches longer fence lines.

Corridors & narrow passages90° image rotation (corridor mode) matches tall narrow hallways without wasted frame; ADF28K's 101.5° view suits lobbies and stairwells.

Residential compounds & entrancesHuman body detection cuts false alerts from stray animals or moving branches on cross-line and intrusion events.

Public access points & stairwellsThe IK10 impact-resistant dome shell holds up in high-traffic public areas where cameras get bumped, kicked or attacked.

Standalone sites without an NVRMicroSD edge storage up to 512 GB plus ANR keeps recordings even without a network video recorder; single PoE cable does power + video.

Not the right pick if you need…

Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Alarm in/out wiring for sirens or sensors — no alarm interface on this model

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/3.0" CMOS sensor

4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps

Ultra 265, H.265, H.264, MJPEG compression

Smart IR, up to 30 m (98.4 ft.) IR distance

MicroSD, up to 512 GB

Supports PoE power supply

3-axis adjustment

Night Vision: Smart IR

Invisible infrared night vision — this model has no warm-light module.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm, Auto/Manual control. This model has Smart IR only; there is no warm-light illuminator.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

63 m206.7 ft

Observewhat is happening

25.2 m82.7 ft

Recognizesomeone you know

12.6 m41.3 ft

Identifya stranger's face

6.3 m20.7 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	K · 101.5°	K · 84.1°
5 m16 ft	12.2 m40.2 ft	9.0 m29.6 ft
10 m33 ft	24.5 m80.3 ft	18.0 m59.2 ft
15 m49 ft	36.7 m120 ft	27.1 m88.8 ft
20 m66 ft	49.0 m161 ft	36.1 m118 ft
30 m98 ft	73.4 m241 ft	54.1 m178 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28K = 2.8 mmADF40K = 4.0 mm

Camera

Max Resolution	4 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	ADF28K · 2.8 mmADF40K · 4.0 mm
Iris Type	Fixed
Iris	F2.0
Field of View (H)	ADF28K · 101.5°ADF40K · 84.1°
Field of View (V)	ADF28K · 55.6°ADF40K · 45.1°
Field of View (D)	ADF28K · 111.6°ADF40K · 89.5°

DORI

DORI Distance (Lens)	ADF28K · 2.8 mmADF40K · 4 mm
DORI Distance (Detect)	ADF28K · 63.0 m (206.7 ft.)ADF40K · 90.0 m (295.3 ft.)
DORI Distance (Observe)	ADF28K · 25.2 m (82.7 ft.)ADF40K · 36.0 m (118.1 ft.)
DORI Distance (Recognize)	ADF28K · 12.6 m (41.3 ft.)ADF40K · 18.0 m (59.1 ft.)
DORI Distance (Identify)	ADF28K · 6.3 m (20.7 ft.)ADF40K · 9.0 m (29.5 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2560×1440), max. 25 fps; 3 MP (2304×1296), max. 30 fps; 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529); IK10 (IEC 62262)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 3.9 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø109 mm × 83 mm (Ø4.3" × 3.3") (Ø × H)
Weight	0.36 kg (0.79 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	4 Languages: English, Russian, Spanish, Vietnamese

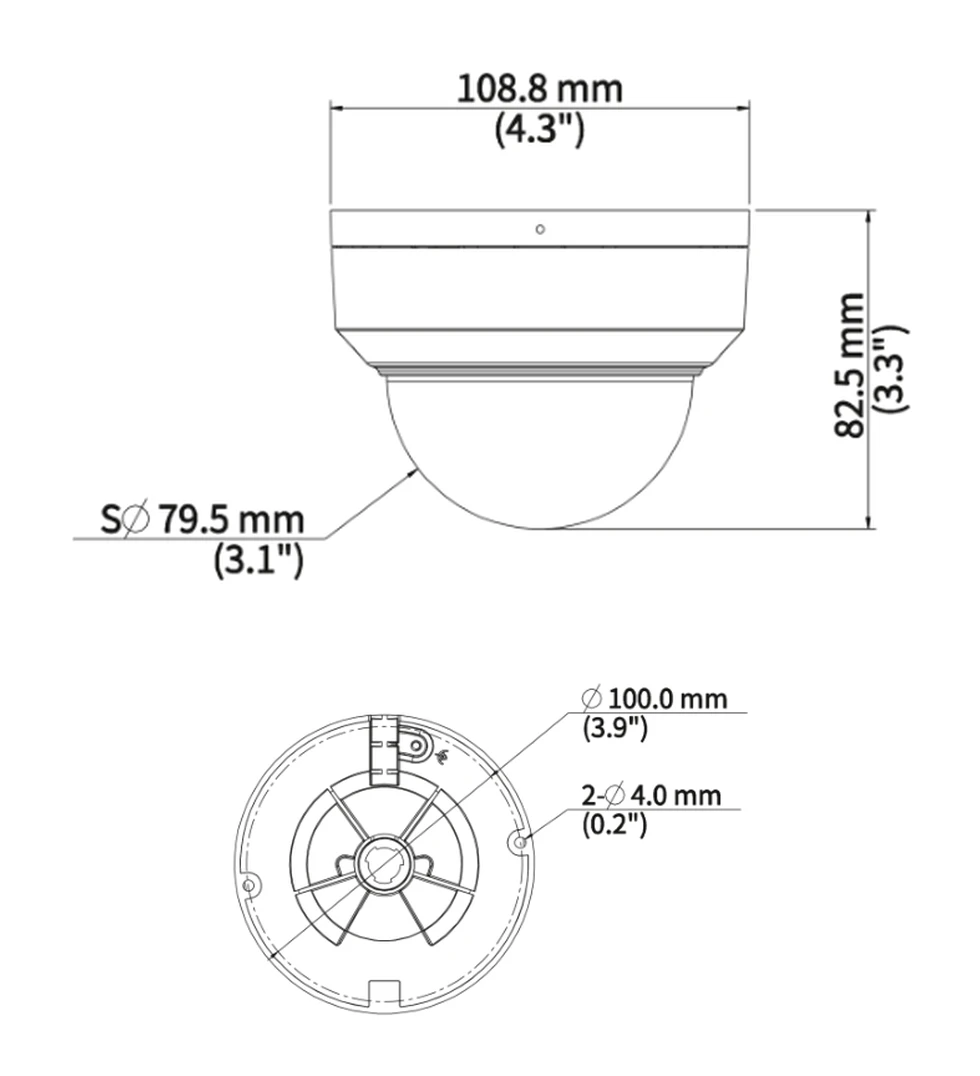

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø109 × 83 mm (Ø4.3" × 3.3") (Ø × H)
Weight	0.36 kg (0.79 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 8–360° · Tilt 0–68° · Rotate 10–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-G-INJunction box for mini fix-dome (rear wiring support)

HS-205SSunshade shell for fixed focus dome

TR-UM06-E-INSlant mounting bracket for fixed dome

TR-A01-INNPT 3/4" waterproof cable gland

TR-SE24-INDome pendant mounting pole, 200 mm

TR-SE24-A-INDome pendant mounting pole, 500 mm

TR-CM24-INDome pendant mounting bracket (indoor)

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for fix-dome, mini fix-dome & plastic turret

TR-WM03-D-IN-V2Wall mounting bracket for fix-dome, mini fix-dome & plastic turret

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-WM07P-BDome wall mounting plastic bracket

TR-FM116In-ceiling bracket for fix-dome

4MP PoE Dome Camera FAQ — IPC324LB-ADF28(40)K-H

What image quality does the IPC324LB-ADF28(40)K-H deliver?

The main stream records 4 MP (2560×1440) at up to 25 fps — roughly double the pixel count of 1080p, so faces and clothing details hold up better when you zoom into recordings. 120 dB WDR keeps backlit doorways readable, and bit rate is adjustable from 128 to 6144 Kbps.

Which lens should I pick for my site, 2.8 mm or 4.0 mm?

The 2.8 mm ADF28K sees 101.5° horizontally and detects people to 63 m — use it for rooms, shops and courtyards. The 4.0 mm ADF40K narrows to 84.1° but detects to 90 m and identifies at 9 m, which suits corridors, driveways and fence runs.

How does night vision work on this dome?

Invisible 850 nm Smart IR reaches up to 30 m with automatic intensity control, and the IR-cut filter switches between color day mode and black-and-white night mode on its own. Minimum color illumination is 0.01 Lux (F2.0, AGC on) and 0 Lux with IR active.

Does it record sound, and can I talk back?

The built-in microphone records audio with the video using G.711U/G.711A at 64 Kbps and supports audio detection alarms. There is no speaker and no two-way audio on this model, so it captures what happens but cannot broadcast your voice to the scene.

Is it safe to install where people can reach it?

Yes — that is what the IK10 vandal-resistant housing is for: it withstands deliberate knocks at low mounting heights, and IP67 sealing handles rain and dust outdoors. The 3-axis bracket (pan 8–360°, tilt 0–68°, rotate 10–360°) plus human-body-based cross-line detection and tampering alarm complete the package.
