Uniview NVR301-LS3-P Series
4/8/16-Channel PoE Network Video Recorder NVR301-04LS3-P4 / NVR301-08LS3-P8 / NVR301-16LS3-P8 — view 1
4/8/16-Channel PoE Network Video Recorder NVR301-04LS3-P4 / NVR301-08LS3-P8 / NVR301-16LS3-P8 — view 2
4/8/16-Channel PoE Network Video Recorder NVR301-04LS3-P4 / NVR301-08LS3-P8 / NVR301-16LS3-P8 — view 3
4/8/16-Channel PoE Network Video Recorder NVR301-04LS3-P4 / NVR301-08LS3-P8 / NVR301-16LS3-P8 — view 4
Uniview (UNV)LS3-P Series · 1× SATA HDD
1-HDD PoE Network Video Recorder · LS3-P Series

NVR301-04LS3-P4 / 08LS3-P8 / 16LS3-P8

4 / 8 / 16-channel PoE network video recorder — built-in PoE ports, Ultra 265 compression, 4K HDMI output, records cameras up to 8MP.

8MP · max recordingUltra 265 · low storage4K HDMI · + VGA simultaneous4 / 8 PoE · built-in ports1× SATA · up to 10 TB21 languages · local interface
CHOOSE YOUR SIZE — THREE MODELS ON THIS PAGE
Rule of thumb: count your cameras, then match the built-in PoE ports. The 04LS3-P4 has 4 PoE ports for 4 cameras and the 08LS3-P8 has 8 PoE ports for 8 cameras — both fully self-powered. The 16LS3-P8 records 16 channels, but its built-in PoE only covers the first 8; the other 8 cameras need independent power or an extra PoE switch. Highlighted rows in the spec table below show every difference between the three.
Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

How many terabytes for your channels and days? Use the storage calculator →

Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEE
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
4/8/16Channel options
64 MbpsIncoming bandwidth
10 TBMax HDD capacity
4/8Built-in PoE ports

The Uniview NVR301-LS3-P Series is a 1-HDD PoE network video recorder offered in three sizes: NVR301-04LS3-P4 (4-ch, 4 built-in PoE ports), NVR301-08LS3-P8 (8-ch, 8 built-in PoE ports) and NVR301-16LS3-P8 (16-ch, 8 built-in PoE ports). All three record cameras up to 8MP with Ultra 265 / H.265 / H.264 compression and output simultaneously over 4K HDMI and VGA. One SATA bay takes a hard disk up to 10 TB; the local interface is available in 21 languages including Spanish (Latin America), Portuguese (Brazil) and French.

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Small shops & homesThe 4-ch 04LS3-P4 ships with 4 built-in PoE ports — plug in 4 PoE cameras directly, no separate power supply or switch needed.
Growing businessesBuy channels you don't use yet: the 08LS3-P8 gives 8 built-in PoE ports for 8 cameras; the 16LS3-P8 records 16 channels while its 8 PoE ports cover the first 8, leaving room to add 8 more independently-powered cameras later.
Save on cablingBuilt-in PoE carries power and video over one Ethernet cable per camera — up to 30 W per port, with a shared budget of 54 W total on the 04LS3-P4 and 75 W total on the 08LS3-P8 / 16LS3-P8, so you skip the separate PoE switch within that budget.
Remote viewing on phoneP2P protocol built in — the owner checks the shop from a phone app without a fixed IP or network skills.
Local-language interface21 GUI languages including Spanish (Latin America), Portuguese (Brazil) and French — your customer operates it in their own language.
Quick incident lookupFace Detection on up to 4 channels feeds Face Snapshot Search and Behavior Search — narrow hours of footage down to the clip you need.
Not the right pick if you need…
  • Full PoE power for all 16 channels — the 16LS3-P8's 16 video channels share only 8 built-in PoE ports (max 75 W total); cameras on channels 9–16 need independent power or an extra PoE switch
  • A second hard disk or RAID — this series has a single SATA bay
  • Gigabit uplink — the network port is 10/100M (fine for 16 cameras at 64 Mbps total)
  • Alarm in/out wiring for sirens or sensors — the external interface list has no dedicated alarm terminals
  • Audio input — it has an RCA audio output only (camera-side mics still record)

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Support Ultra 265 / H.265 / H.264 video formats
4 / 8 / 16-channel input
Plug & Play with 4 or 8 independent PoE network interfaces (by model)
Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840×2160) resolution
HDMI and VGA simultaneous output
Up to 4K resolution recording
Support cloud upgrade

Saves your disk. Skips the switch.

Two real capabilities from the datasheet that matter every day: storage efficiency and built-in camera power.

ULTRA 265

Half the storage, same image

Ultra 265 compression cuts recording size dramatically versus H.264 — on the same 10 TB disk you keep footage for weeks longer, or record more cameras at higher resolution.

BUILT-IN POE

Skip the separate PoE switch

Every port supports IEEE 802.3at / 802.3af, up to 30 W per port — the 04LS3-P4 has a 54 W total power budget, the 08LS3-P8 / 16LS3-P8 have 75 W total, enough to run a full set of PoE cameras straight off the recorder.

Which size fits your project?

Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.

NVR301-04LS3-P4live view split 1/4 · sync playback 4-ch · 4 PoE ports
4cameras
NVR301-08LS3-P8live view split up to 9 · sync playback 8-ch · 8 PoE ports
8cameras
NVR301-16LS3-P8live view split up to 16 · sync playback 16-ch · 8 PoE ports (ch 9–16 need separate power)
16cameras

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the three models:NVR301-04LS3-P4 · 4-chNVR301-08LS3-P8 · 8-chNVR301-16LS3-P8 · 16-ch

Decoding

Decoding FormatUltra 265, H.265, H.264
Decoding Capability04LS3-P4 · 1×4K@30, 4×5MP@25, 4×4MP@25, 4×3MP@2508LS3-P8 · 1×4K@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 6×1080P@30, 8×720P@3016LS3-P8 · 1×4K@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 6×1080P@30, 8×720P@30, 16×D1@25
Decoding Capability DescriptionThe resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width
Audio CompressionG.711A, G.711U

Network

Incoming Bandwidth64 Mbps
Outgoing Bandwidth48 Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4
Browser (Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input04LS3-P4 · 4-ch08LS3-P8 · 8-ch16LS3-P8 · 16-ch

Video/Audio Output

HDMI Output4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
VGA Output1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
RCA Audio Output1-ch
Liveview Display04LS3-P4 · 1/408LS3-P8 · 1/4/6/8/916LS3-P8 · 1/4/6/8/9/16
Corridor Mode Screen04LS3-P4 · 3/408LS3-P8 · 3/4/5/7/916LS3-P8 · 3/4/5/7/9/10/12/16
SnapshotFTP/Schedule/Event Snapshot; 1-ch snapshot (max. D1 (720×576) video resolution, with D1 snapshot resolution)

Recording

Recording Resolution8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Synchronous Playback in Local04LS3-P4 · 4-ch08LS3-P8 · 8-ch16LS3-P8 · 16-ch

Smart

Smart by IPCTotal 4-ch (Face Detection, SIP, UMD)
VCA SearchFace Snapshot Search, Behavior Search

Alarm

General AlarmAuto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

GUI Language21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian

Hard Disk

SATA1 SATA Interface
CapacityUp to 10 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size)

External Interface

Network Interface1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USBRear panel: 2 × USB 2.0
RS485N/A
RS232N/A
Alarm InN/A
Alarm OutN/A
Power Supply04LS3-P4 · DC 48 V / 1.35 A08LS3-P8 · DC 52 V / 1.8 A16LS3-P8 · DC 52 V / 1.8 A

PoE

PoE Interface04LS3-P4 · 4 RJ45 10 M/100 M self-adaptive Ethernet Interface08LS3-P8 · 8 RJ45 10 M/100 M self-adaptive Ethernet Interface16LS3-P8 · 8 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power04LS3-P4 · Max 30 W for single port, Max 54 W in total08LS3-P8 · Max 30 W for single port, Max 75 W in total16LS3-P8 · Max 30 W for single port, Max 75 W in total
Supported StandardIEEE 802.3at, IEEE 802.3af

Working Environment

Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity≤ 90% RH (non-condensing)
Power Consumption (without HDD)≤ 9 W

Dimensions

Weight (without HDD)04LS3-P4 · ≤ 0.6 kg (1.32 lb)08LS3-P8 · ≤ 0.8 kg (1.76 lb)16LS3-P8 · ≤ 0.8 kg (1.76 lb)
Dimensions04LS3-P4 · 205 mm × 205 mm × 46 mm (8.1" × 8.1" × 1.8")08LS3-P8 · 270 mm × 205 mm × 46 mm (10.6" × 8.1" × 1.8")16LS3-P8 · 270 mm × 205 mm × 46 mm (10.6" × 8.1" × 1.8")

Certification

CertificationCE; FCC; UL; RoHS; WEEE
CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B

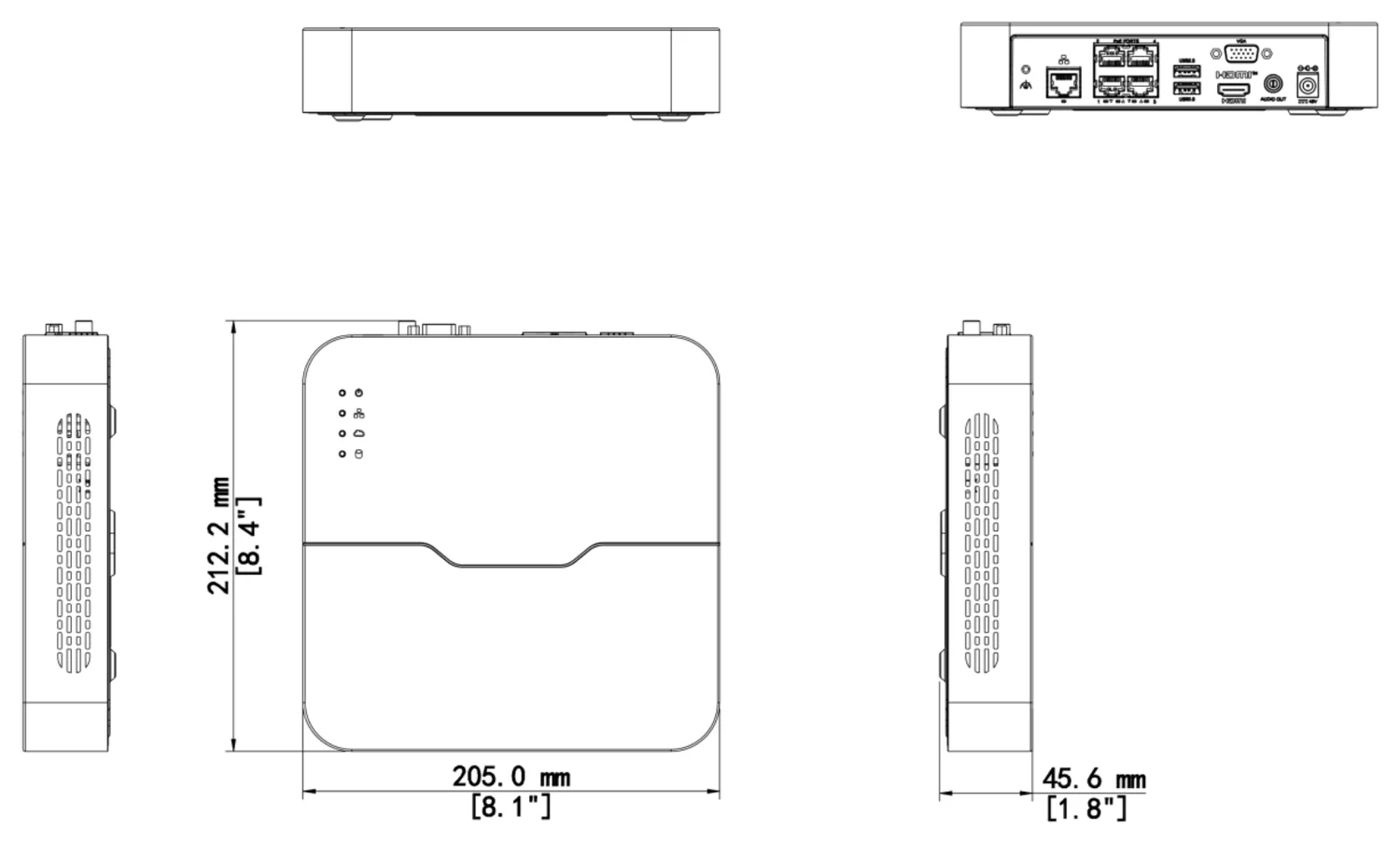

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet — shown for the compact-body NVR301-04LS3-P4 (the manufacturer's own labeled example). The larger-body 08LS3-P8 / 16LS3-P8 share a different chassis; see the Dimensions row in the spec table below for their exact figures.

NVR301-04LS3-P4 / NVR301-08LS3-P8 / NVR301-16LS3-P8 dimensions drawing in mm
unit: mm (in.) · NVR301-04LS3-P4 shown
Dimensions (04LS3-P4)205 × 205 × 46 mm (8.1" × 8.1" × 1.8")
Dimensions (08LS3-P8 / 16LS3-P8)270 × 205 × 46 mm (10.6" × 8.1" × 1.8")
Weight (without HDD)≤ 0.6 kg (04LS3-P4) / ≤ 0.8 kg (08LS3-P8, 16LS3-P8)
Power supplyDC 48 V / 1.35 A (04LS3-P4) / DC 52 V / 1.8 A (08LS3-P8, 16LS3-P8)
Consumption (without HDD)≤ 9 W

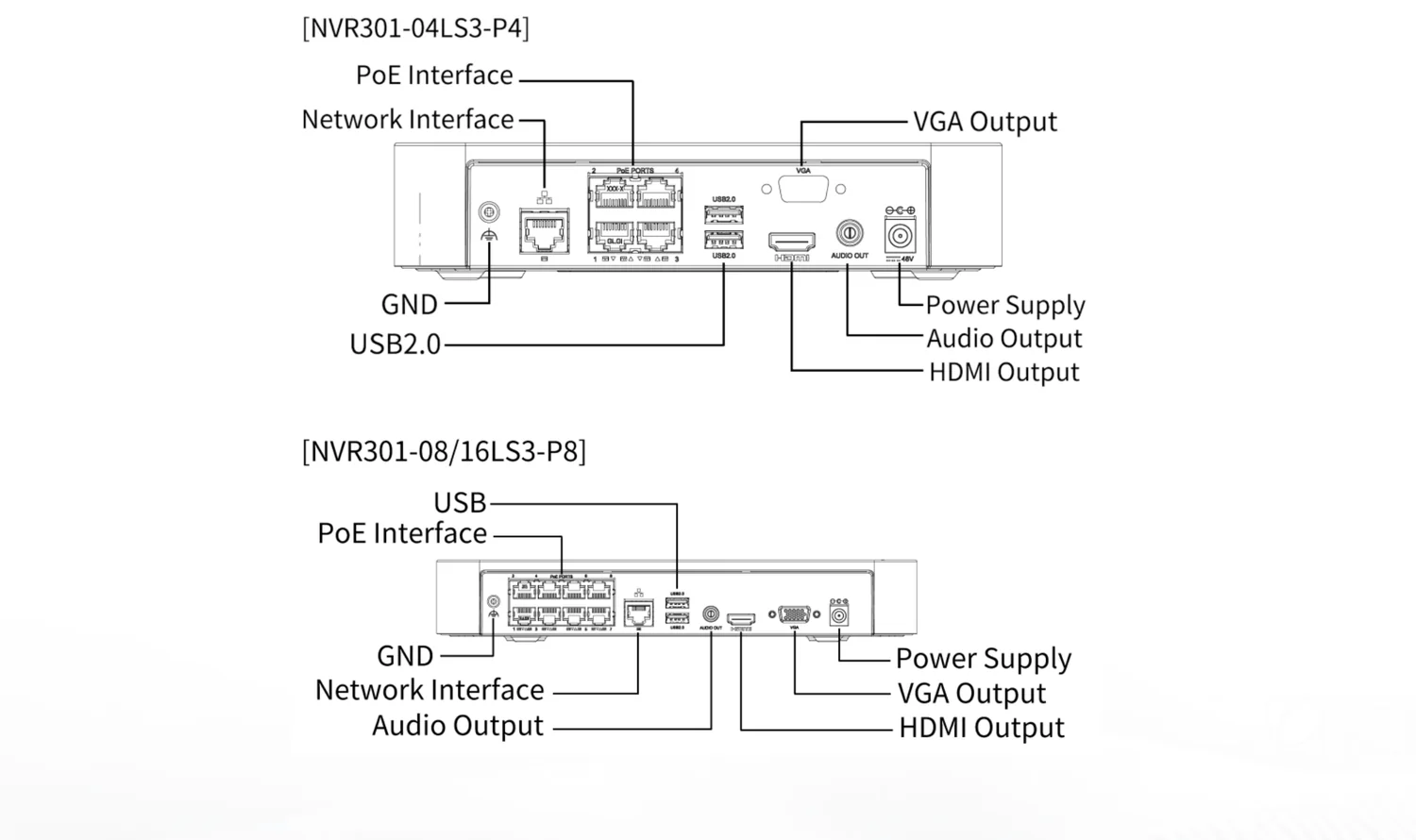

NVR301-LS3-P series rear panel
Rear panel — all interfaces

Optional Mounting Accessories

Order together with the camera to save shipping.

4/8/16 Channel PoE NVR FAQ — NVR301-LS3-P

How many cameras can I connect and power?
The 04LS3-P4 records 4 channels with 4 PoE ports; the 08LS3-P8 records 8 channels with 8 PoE ports; the 16LS3-P8 records 16 channels with 8 PoE ports, so on the 16-channel model the other 8 cameras connect through your network switch.
What is the PoE power budget?
Every port supports IEEE 802.3at/af at up to 30W. The 04LS3-P4 has a 54W total budget and the 08LS3-P8 and 16LS3-P8 have 75W total — with typical fixed IP cameras drawing a few watts each, a full set of PoE-connected cameras fits comfortably.
What resolution does it record and display?
Recording goes up to 8MP (4K) per channel. The decoder handles 1×4K@30 or 4×5MP@25 for local display, HDMI output reaches 4K (3840×2160) at 30 Hz and VGA reaches 1920×1080 at 60 Hz. All channels play back synchronously on every model.
What hard drive capacity does it take?
One SATA bay accepts a surveillance hard drive up to 10 TB (maximum varies with ambient temperature and disk model). Ultra 265 compression cuts recording size dramatically versus H.264, so the 10 TB disk keeps footage for weeks longer or covers more high-resolution cameras.
Does it support face detection?
Yes, through the cameras: up to 4 channels of camera-side face detection, SIP and UMD feed Face Snapshot Search and Behavior Search on the recorder. General alarms also cover motion detection, human body detection, tampering, audio detection and video loss.
Is it compact enough for a small shop counter?
Yes. The 04LS3-P4 measures 205×205×46 mm at under 0.6 kg; the 08LS3-P8 and 16LS3-P8 measure 270×205×46 mm at under 0.8 kg. Power draw is under 9W without HDD, and operating range is -10 to 55 °C — fine for counters and small equipment cabinets.
