IP Cameras › IPC3512LE-ADF28(40)K-WP

2MP ColorHunter Fixed Dome Network Camera IPC3512LE-ADF28(40)K-WP

2MP ColorHunter Fixed Dome Network Camera IPC3512LE-ADF28(40)K-WP — view 1

2MP ColorHunter Fixed Dome Network Camera IPC3512LE-ADF28(40)K-WP — view 2

Uniview (UNV) · Dome2MP · ColorHunter Dome

2MP ColorHunter Fixed Dome

IPC3512LE-ADF28(40)K-WP

Name: Uniview IPC3512LE-ADF28(40)K-WP
Brand: Uniview
SKU: IPC3512LE-ADF28(40)K-WP

2MP fixed dome network camera with ColorHunter full-color low-light imaging — F1.0 large-aperture lens with Wise-ISP, 120 dB true WDR, PoE single-cable install, built-in mic, IP67 + IK10 outdoor/vandal-resistant body.

2 MP · 1080P@30fpsUltra 265 · low bandwidthColorHunter · full-color low light120 dB · true WDRPoE · 802.3afIP67 · outdoorIK10 · vandal-resistantMic · built-in audio

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

ADF28K (2.8 mm, 99.0° view) covers a wide area near the camera — doorways, small rooms, shop counters. ADF40K (4.0 mm, 85.4° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCUL/CULRoHSWEEEIP67IK10ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

2 MPMax resolution

F1.0Large aperture

120 dBTrue WDR

IK10Vandal-resistant

The Uniview IPC3512LE-ADF28(40)K-WP is a 2MP fixed dome network camera built around ColorHunter with Wise-ISP: an F1.0 large-aperture lens and 1/2.7" CMOS sensor paired with Wise-ISP processing keep color visible and reduce smear down to 0.0003 Lux (AGC on), with no physical illuminator. It adds 120 dB true WDR for balancing bright and dark areas in the same frame, a built-in mic with MicroSD edge storage (up to 512 GB), and an IP67 + IK10 body rated for outdoor and vandal-resistant use across a −30 °C to 60 °C working range, powered by PoE. It is offered with two fixed lenses: 2.8 mm (ADF28K, wider view) or 4.0 mm (ADF40K, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Retail counters & reception desksColorHunter keeps faces and product colors visible in aisles lit only by ambient light, and the built-in mic captures counter conversations.

Parking areas & building entriesThe F1.0 aperture and Wise-ISP pull usable color out of streetlight-level light (down to 0.0003 Lux) without a physical illuminator giving away the camera's position.

Narrow stairwells & corridors9:16 corridor mode reframes the image to portrait, matching narrow spaces instead of wasting resolution on bare walls.

Rooftops & building perimetersIP67 sealing and a −30 to 60 °C working range shrug off rain, dust and temperature swings; ADF40K's longer reach suits fence lines and rooflines.

Vehicle gates & drivewaysSmart Intrusion Prevention (Lite) — crossline and intrusion detection — is based on both human body and vehicle detection, so it flags cars as well as people.

Ground-level & public-facing installsIK10 impact resistance and a metal + plastic dome body stand up to knocks and vandalism attempts at reachable mounting heights.

Not the right pick if you need…

Two-way talk — it has a mic but no speaker
A physical illuminator for total darkness — ColorHunter needs some ambient light; this model has no IR or warm-light module
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.7" CMOS sensor and F1.0 large aperture lens

1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes

120 dB true WDR technology enables clear image in strong light scene

Supports 9:16 corridor mode

Built-in mic

MicroSD, up to 512 GB

IP67 protection

IK10 protection

Supports PoE power supply

3-axis

Night Vision: ColorHunter with Wise-ISP

No physical illuminator — full color comes from optics and image processing alone.

COLORHUNTER + WISE-ISP

Full-color imaging without a physical illuminator

An F1.0 large-aperture lens and 1/2.7" CMOS sensor feed Wise-ISP processing, which deeply optimizes color, detail and smear effects down to 0.0003 Lux (AGC on). No IR or warm-light module is fitted — the camera relies on optics and image processing, not illumination.

120 dB TRUE WDR

Handles glare and shadow in the same frame

120 dB true WDR technology keeps a clear image in strong-light scenes — balancing a bright doorway or headlight glare against a dark interior in the same shot.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

45 m147.6 ft

Observewhat is happening

18 m59.1 ft

Recognizesomeone you know

9 m29.5 ft

Identifya stranger's face

4.5 m14.8 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	K · 99.0°	K · 85.4°
5 m16 ft	11.7 m38.4 ft	9.2 m30.3 ft
10 m33 ft	23.4 m76.8 ft	18.5 m60.5 ft
15 m49 ft	35.1 m115 ft	27.7 m90.8 ft
20 m66 ft	46.8 m154 ft	36.9 m121 ft
30 m98 ft	70.3 m230 ft	55.4 m182 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28K = 2.8 mmADF40K = 4.0 mm

Camera

Max Resolution	2 MP
Sensor	1/2.7" CMOS
Min. Illumination	Color: 0.0003 Lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	ADF28K · 2.8 mmADF40K · 4.0 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	ADF28K · 99.0°ADF40K · 85.4°
Field of View (V)	ADF28K · 53.0°ADF40K · 47.5°
Field of View (D)	ADF28K · 118.0°ADF40K · 98.5°
Lens Type	Fixed

DORI

DORI Distance (Detect)	ADF28K · 45.0 m (147.6 ft.)ADF40K · 64.3 m (211.0 ft.)
DORI Distance (Observe)	ADF28K · 18.0 m (59.1 ft.)ADF40K · 25.7 m (84.3 ft.)
DORI Distance (Recognize)	ADF28K · 9.0 m (29.5 ft.)ADF40K · 12.9 m (42.3 ft.)
DORI Distance (Identify)	ADF28K · 4.5 m (14.8 ft.)ADF40K · 6.4 m (21.0 ft.)

Illuminator

Supplemental Light

N/A

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart Illumination	N/A
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Intelligent

Smart Intrusion Prevention (Lite)

Intrusion, crossline detection (both detection are based on human body and vehicle detection)

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529); IK10 (IEC 62262)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 1.6 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø128 mm × 100 mm (Ø5.0" × 3.9") (Ø × H)
Weight	0.56 kg (1.23 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

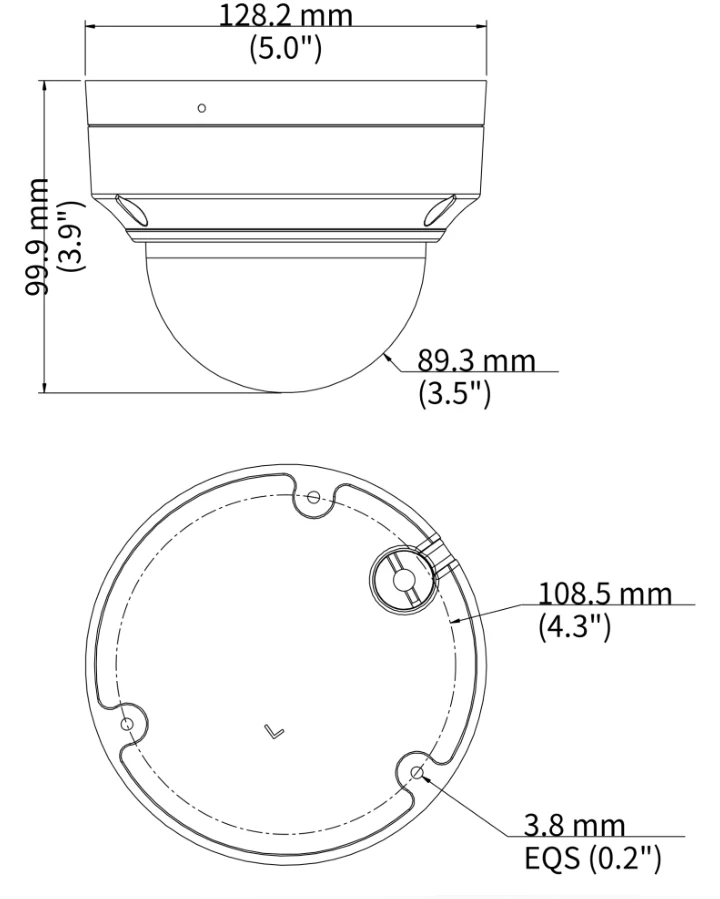

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø128 mm × 100 mm (Ø5.0" × 3.9") (Ø × H)
Weight	0.56 kg (1.23 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 8–360° · Tilt 0–68° · Rotate 10–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-H-IN-V2Junction box for metal turret camera (wiring from behind)

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-INUniversal pole mounting bracket

TR-SE24-INDome pendant mounting pole, 200 mm

TR-SE24-A-INDome pendant mounting pole, 500 mm

TR-CM24-INDome pendant mounting bracket (indoor)

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-JB07/WM03-F-IN-V2Wall mounting assembling bracket with back hole for 3-inch hemisphere

TR-WM03-B-IN-V2Wall mounting assembling bracket for 3-inch hemisphere

2MP Color Night Vision Dome FAQ — IPC3512LE-ADF28(40)K-WP

How does it stay in color at night without any IR or white light?

Through optics and processing rather than illuminators: an F1.0 large-aperture lens on a 1/2.7-inch sensor feeds Wise-ISP processing, holding full color down to 0.0003 Lux with AGC on. It has no supplemental light at all, so it depends on some ambient light — street lamps or shop signage are enough.

Why choose color night vision instead of normal IR?

Because color is evidence. Clothing color, vehicle color and skin tone survive in the recording instead of shades of grey, which makes identification and police reports far more useful. For shopfronts, fuel stations and residential streets with ambient light, that trade-off usually wins.

Does it also handle harsh daytime light?

Yes. 120 dB true WDR balances a bright doorway or headlight glare against dark interiors in one frame, with HLC, BLC and digital defog on top. So the same dome that keeps color at night also keeps faces readable against a blazing entrance at noon.

What smart detection does the IPC3512LE-ADF28(40)K-WP include?

Smart Intrusion Prevention Lite provides intrusion and cross-line detection based on human body and vehicle detection, cutting false alarms from animals and moving branches. Basic detection adds motion, ultra motion, tampering alarm and audio detection via the built-in microphone.

How do I power it and store footage on site?

Power is PoE — one network cable for power and video. A microSD slot takes cards up to 512 GB for standalone recording or NVR backup, and the IP67 plus IK10 housing lets it work outdoors at reachable heights. Choose the 2.8 mm (99.0°) or 4.0 mm (85.4°) lens at order time.
