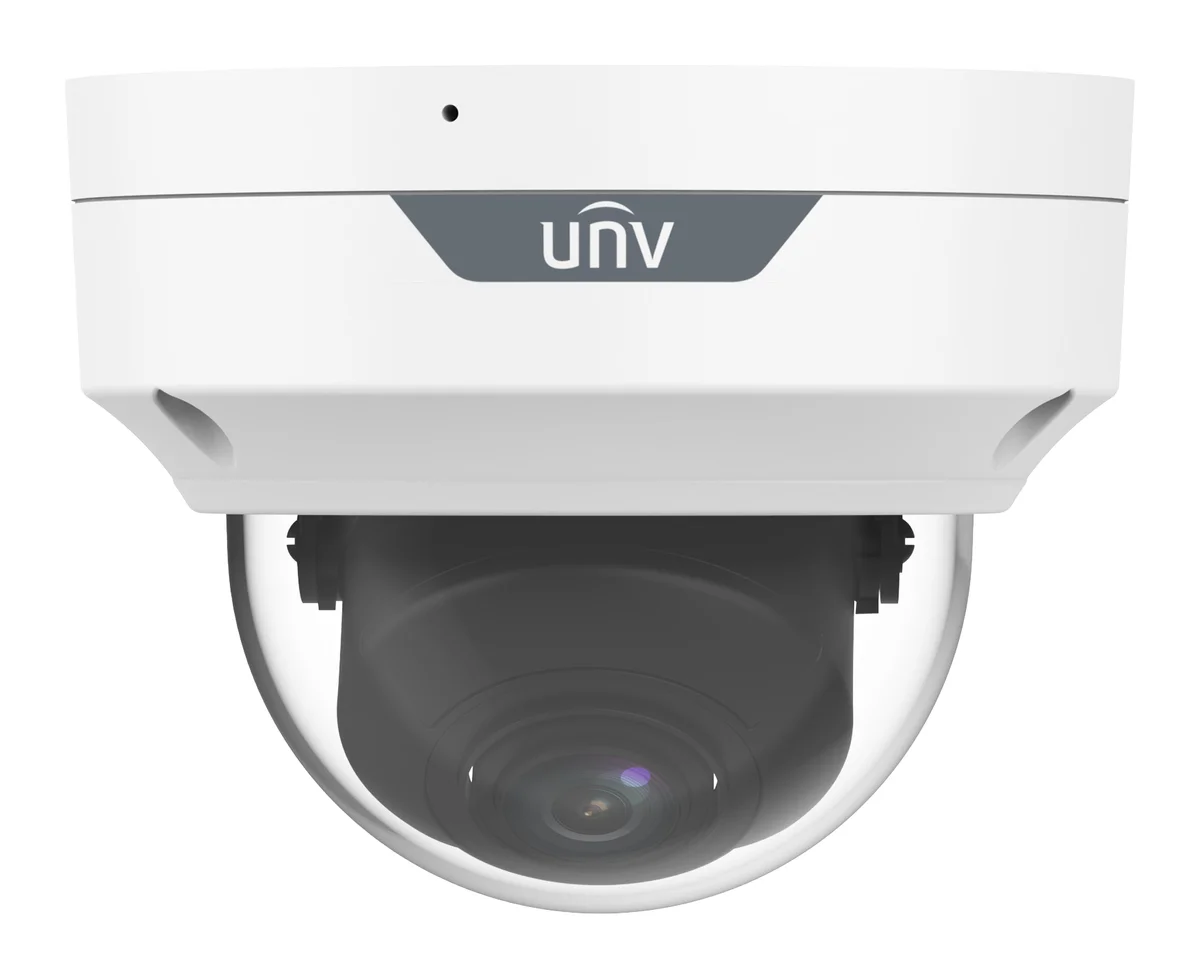

4MP HD IR VF Dome Network Camera IPC3534LB-ADZK-H

4MP HD IR VF Dome Network Camera IPC3534LB-ADZK-H — view 1

4MP HD IR VF Dome Network Camera IPC3534LB-ADZK-H — view 2

4MP HD IR VF Dome Network Camera IPC3534LB-ADZK-H — view 3

Uniview (UNV)4MP WDR VF IR Dome

4MP WDR VF IR Dome

IPC3534LB-ADZK-H

Name: Uniview IPC3534LB-ADZK-H
Brand: Uniview
SKU: IPC3534LB-ADZK-H

4MP motorized varifocal (2.8–12mm) IR dome network camera — 120dB true WDR, Smart IR up to 40m, IK10 vandal-resistant, built-in mic, IP67 outdoor body.

4 MP · 2688×1520@25fps2.8–12mm · motorized varifocal, 4.3X120 dB · true WDRIK10 · vandal-resistantIP67 · outdoorMic · built-in audio

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67IK10ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

40 mIR night vision

120 dBTrue WDR

IK10Vandal resistant

-30~60°CWorking temperature

The Uniview IPC3534LB-ADZK-H is a 4MP dome network camera with a motorized varifocal lens (2.8–12 mm, 4.3X zoom) that lets the field of view be adjusted remotely after installation — no re-mounting needed to reframe the shot. It combines 120 dB true WDR for strong-light scenes, a built-in mic, and Smart IR night vision up to 40 m, all inside an IK10 vandal-resistant, IP67 outdoor-rated metal body. It powers over a single PoE cable or DC 12V, with a −30 °C to 60 °C working range.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Long driveways & entry pointsThe 2.8–12 mm motorized zoom can be tuned remotely after mounting — narrow the view to reach further down a driveway without re-aiming the bracket.

Schools & transit stationsIK10 vandal-resistant housing withstands impact and tampering in high-traffic public areas, while the low-profile dome shape stays discreet.

Storefronts & lobbies facing strong light120 dB true WDR keeps both the bright doorway and the shaded interior visible in the same frame, instead of one washing out the other.

Narrow corridors & hallways9:16 corridor mode rotates the frame to match a tall, narrow hallway — no wasted image on wall to either side.

Sites needing an audio recordThe built-in mic captures nearby audio, and MicroSD edge storage keeps a local backup even where an NVR is also recording.

Outdoor perimeters in any climateIP67 body and −30 to 60 °C rating survive rain, dust and heat outdoors, day after day.

Not the right pick if you need…

Full-color night vision — this is IR-only, night video is black & white, not color
Two-way talk — it has a built-in mic but no speaker
Wi-Fi — this is a wired RJ45 camera
A one-time fixed focal length choice at purchase — the zoom on this model is motorized and adjustable on site, not a pick-one-at-checkout fixed lens
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/3.0" CMOS sensor

4 MP (2688 × 1520)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

120 dB true WDR technology enables clear image in strong light scene

Supports 9:16 corridor mode

Smart IR, up to 40 m (131.2 ft.) IR distance

MicroSD, up to 512 GB

IP67 protection

IK10 protection

Supports PoE power supply

3-axis adjustment

Night Vision: Smart IR up to 40 m

Auto/Manual control — set it per site, per customer.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 40 m (131.2 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Because this model has a motorized 2.8–12 mm varifocal lens, each capability spans a range — from the widest zoom setting to full telephoto, not a single fixed number.

Detectsomething is there

WIDE (2.8mm)63.0 m206.7 ft

TELE (12mm)270.0 m885.8 ft

Observewhat is happening

WIDE (2.8mm)25.2 m82.7 ft

TELE (12mm)108.0 m354.3 ft

Recognizesomeone you know

WIDE (2.8mm)12.6 m41.3 ft

TELE (12mm)54.0 m177.2 ft

Identifya stranger's face

WIDE (2.8mm)6.3 m20.7 ft

TELE (12mm)27.0 m88.6 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	91.5° wide	34.0° tele
5 m16 ft	10.3 m33.7 ft	3.1 m10.0 ft
10 m33 ft	20.5 m67.4 ft	6.1 m20.1 ft
15 m49 ft	30.8 m101 ft	9.2 m30.1 ft
20 m66 ft	41.1 m135 ft	12.2 m40.1 ft
30 m98 ft	61.6 m202 ft	18.3 m60.2 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	4 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 3° to 360°, Tilt: 0° to 70°, Rotate: 3° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	2.8 to 12 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	91.5° to 34°
Field of View (V)	51.0° to 18.9°
Field of View (D)	96.0° to 36.9°

DORI

DORI Distance (Lens)	2.8 to 12 mm
DORI Distance (Detect)	63.0 m to 270.0 m (206.7 ft. to 885.8 ft.)
DORI Distance (Observe)	25.2 m to 108.0 m (82.7 ft. to 354.3 ft.)
DORI Distance (Recognize)	12.6 m to 54.0 m (41.3 ft. to 177.2 ft.)
DORI Distance (Identify)	6.3 m to 27.0 m (20.7 ft. to 88.6 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	40 m (131.2 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2688×1520), max. 25 fps; 4 MP (2560×1440), max. 25 fps; 3 MP (2304×1296), max. 30 fps; 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529); IK10 (IEC 62262)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 8.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø128 mm × 100 mm (Ø5.0" × 3.9") (Ø × H)
Weight	0.66 kg (1.46 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Web Client Language	4 Languages: English, Russian, Spanish, Vietnamese

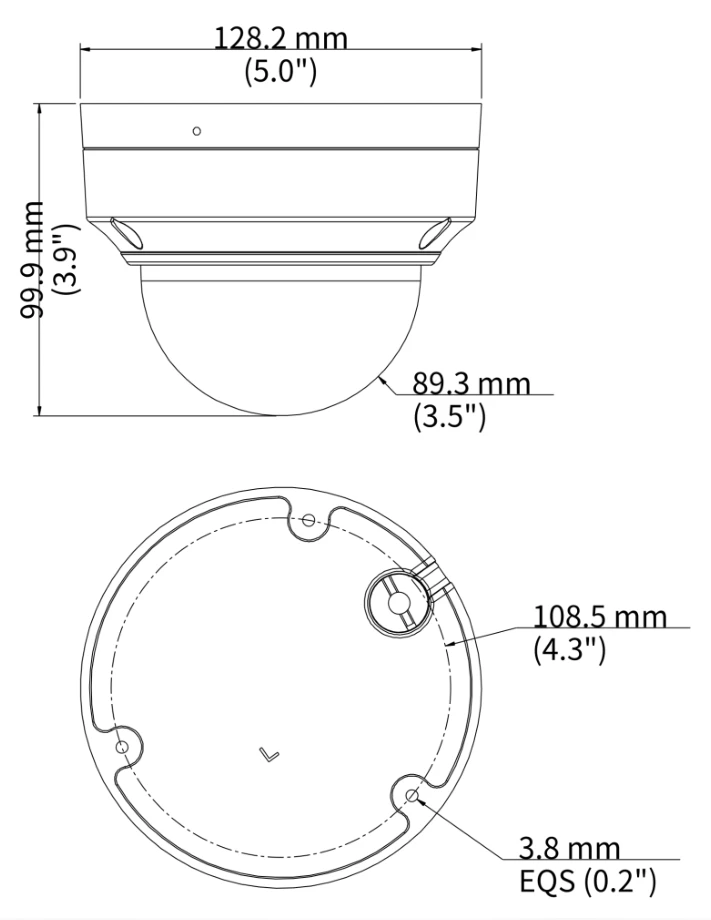

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø128 mm × 100 mm (Ø5.0" × 3.9") (Ø × H)
Weight	0.66 kg (1.46 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 3–360° · Tilt 0–70° · Rotate 3–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-H-IN-V2Junction box for metal turret camera (support wiring from behind)

TR-A01-INNPT 3/4" waterproof cable gland

TR-SE24-INDome pendent mounting pole, 200 mm

TR-SE24-A-INDome pendent mounting pole, 500 mm

TR-CM24-INDome pendent mounting bracket (indoor)

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-JB07/WM03-F-IN-V2Wall mounting assembling bracket with back hole for 3 inch hemisphere

TR-WM03-B-IN-V2Wall mounting assembling bracket for 3 inch hemisphere

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

HS-207SSunshade shell for zoom dome

4MP Varifocal Dome Camera FAQ — IPC3534LB-ADZK-H

How sharp is the image from the IPC3534LB-ADZK-H?

It records 4 MP at 2688x1520 or 2560x1440 up to 25 fps on the main stream, with 3 MP and 1080p modes at 30 fps. The 1/3.0-inch CMOS sensor with 2D/3D noise reduction keeps detail usable in low-light street scenes.

What coverage do I get from the 2.8-12 mm motorized lens?

At 2.8 mm the horizontal field of view is 91.5 degrees for wide areas; zoomed to 12 mm it narrows to 34 degrees for gates and corridors. DORI identify distance spans 6.3 m to 27 m, with detection out to 270 m — all adjustable remotely.

How is the camera powered on site?

It runs on PoE: the same network cable from your PoE switch carries power and video, so each dome needs no local adapter. One cable per camera keeps rooftop and gate installations clean and easier to maintain.

Does it handle backlight at entrances and headlights at night?

Yes. True 120 dB WDR exposes bright doorways and dark interiors in the same frame, while HLC suppresses headlight glare and BLC lifts shadowed subjects. Smart IR reaches 40 m at night and auto-adjusts so close faces are not overexposed.

Where can I safely install this vandal-resistant dome?

With an IK10 impact rating and IP67 dust and water sealing, it can go at reachable heights on shopfronts, school corridors, bus stops and perimeter gates. A built-in mic records audio, and tampering alarm warns you if someone covers the lens.
