IP Cameras › IPC3612LB-AF28K-WL

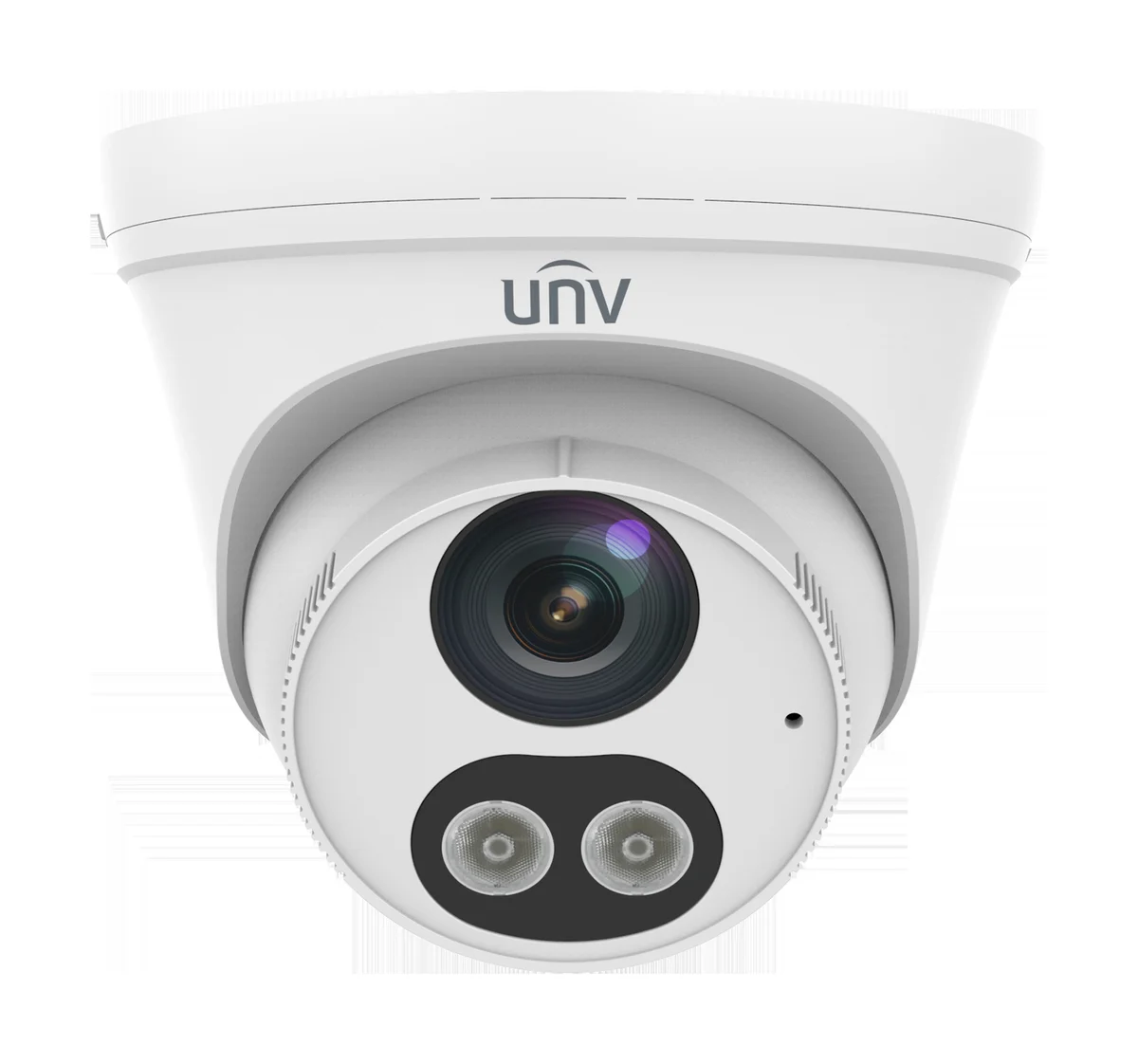

2MP HD ColorHunter Fixed Eyeball Network Camera IPC3612LB-AF28K-WL

2MP HD ColorHunter Fixed Eyeball Network Camera IPC3612LB-AF28K-WL — view 1

2MP HD ColorHunter Fixed Eyeball Network Camera IPC3612LB-AF28K-WL — view 2

2MP HD ColorHunter Fixed Eyeball Network Camera IPC3612LB-AF28K-WL — view 3

Uniview (UNV) · Eyeball2MP · ColorHunter Warm Light

2MP Fixed Eyeball · ColorHunter Warm Light

IPC3612LB-AF28K-WL

Name: Uniview IPC3612LB-AF28K-WL
Brand: Uniview
SKU: IPC3612LB-AF28K-WL

2MP fixed eyeball ColorHunter network camera — warm light full-color night vision up to 30m (no infrared), PoE single-cable install, built-in mic, IP67 outdoor body.

2 MP · 1080P@30fpsColorHunter · 24h full colorWarm Light · 30m, no IRPoE · 802.3afIP67 · outdoorMic · built-in audio

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mWarm light distance

IP67Outdoor rated

512 GBMicroSD storage

7.3 WPoE max power

The Uniview IPC3612LB-AF28K-WL is a 2MP fixed eyeball ColorHunter network camera with a single fixed 2.8 mm lens. Instead of infrared, it uses a warm white light up to 30 m to deliver full-color video around the clock — this model has no infrared illuminator and no black-and-white night vision mode. It powers over a single PoE cable, stores footage locally on a MicroSD card up to 512 GB, and carries an IP67 rating for outdoor use from −30 °C to 60 °C.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsSee customers and staff in full color day and night — warm light keeps faces and clothing colors visible at the counter even after dark. Built-in mic records what is said.

Home gates & entrancesThe warm light turns on automatically at night — visitors and intruders are seen in color, not grainy black-and-white IR footage, and everyone can tell the camera is active.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat; MicroSD edge storage up to 512 GB records locally without a separate NVR.

Residential compounds24-hour full-color video makes it easier to describe a person's clothing or a vehicle's color to security — something black-and-white IR footage cannot do.

Small offices & receptionUltra 265 compression keeps recordings small — more days of full-color footage on the same storage.

Kiosks & small retail pointsOne PoE cable does power + video — quick to install at a small point without extra wiring for lighting.

Not the right pick if you need…

Covert/invisible night vision — this camera has no infrared illuminator; its warm light is visible, so it cannot be used for discreet monitoring
Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom or an alternate lens option — this model has a fixed 2.8 mm lens only
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.9" CMOS sensor

1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps

Ultra 265, H.265, H.264

Built-in mic

Warm light, up to 30 m (98.4 ft.) warm light distance

2D/3D DNR (digital noise reduction)

MicroSD, up to 512 GB

IP67 protection

Supports PoE power supply

3-axis

Night Vision: Warm Light, Not Infrared

Switchable Auto/Manual — set it per site, per customer.

WARM LIGHT MODE

Visible warm light — full-color video, day and night, no black-and-white IR mode

Warm white light up to 30 m (98.4 ft.), switchable Auto/Manual. This camera has no infrared illuminator at all — there is no covert black-and-white IR mode, only full-color video lit by visible warm light.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

45 m147.6 ft

Observewhat is happening

18 m59.1 ft

Recognizesomeone you know

9 m29.5 ft

Identifya stranger's face

4.5 m14.8 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	101.1°
5 m16 ft	12.2 m39.9 ft
10 m33 ft	24.3 m79.7 ft
15 m49 ft	36.5 m120 ft
20 m66 ft	48.6 m159 ft
30 m98 ft	72.9 m239 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	2 MP
Sensor	1/2.9" CMOS
Min. Illumination	Color: 0.005 Lux (F1.6, AGC ON)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	2.8 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	101.1°
Field of View (V)	56.5°
Field of View (D)	117°

DORI

DORI Distance (Lens)	2.8 mm
DORI Distance (Detect)	45.0 m (147.6 ft.)
DORI Distance (Observe)	18.0 m (59.1 ft.)
DORI Distance (Recognize)	9.0 m (29.5 ft.)
DORI Distance (Identify)	4.5 m (14.8 ft.)

Illuminator

Supplemental Light	Warm light
Light On/Off Control	Auto/Manual
Illumination Distance (Warm Light)	30 m (98.4 ft.)

Video

Video Compression	Ultra 265, H.265, H.264
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps · Sub Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support (main stream)
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


Smart Illumination	Support
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage

MicroSD, up to 512 GB

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Client	UNV-Link, UNV-Link Pro, EZStation
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 7.3 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø118 mm × 98 mm (Ø4.6" × 3.9") (Ø × H)
Weight	0.29 kg (0.64 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	1 Language: English

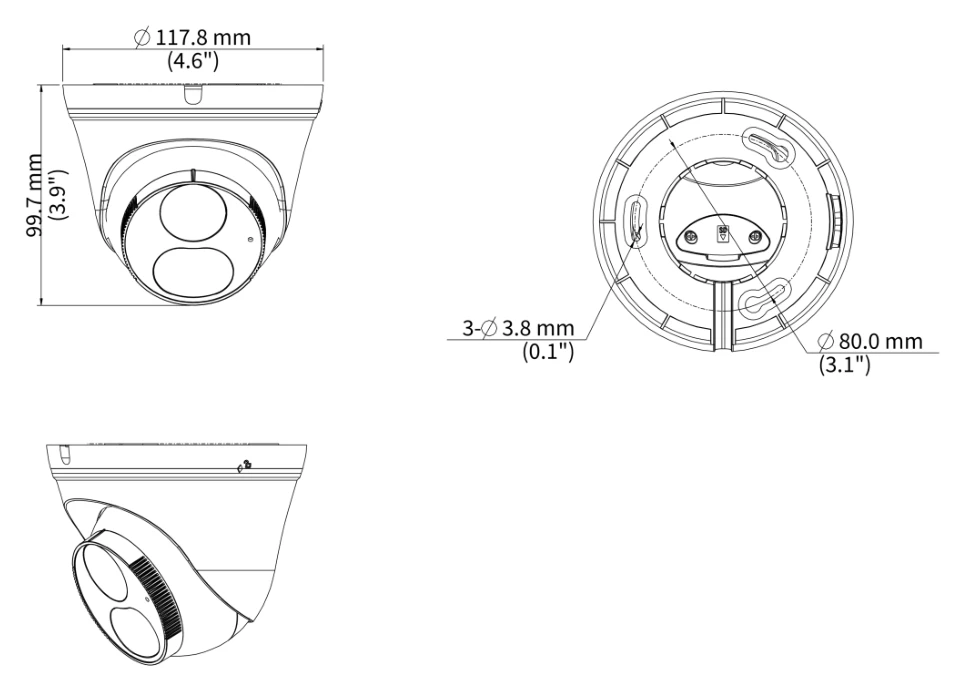

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø118 mm × 98 mm (Ø4.6" × 3.9") (Ø × H)
Weight	0.29 kg (0.64 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 0–360° · Tilt 0–80° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for plastic turret camera (support wiring from behind)

TR-JB07/WM03-G-INWall mounting assembling bracket for 32 fix-dome, mini fix-dome & plastic turret camera

TR-WM03-D-INWall mounting bracket for 32 fix-dome, mini fix-dome & plastic turret camera

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-INUniversal pole mounting bracket

TR-SE24-INDome pendent mounting pole, 200 mm

TR-SE24-A-INDome pendent mounting pole, 500 mm

TR-CM24-INDome pendent mounting bracket (indoor)

2MP Full-Color Warm Light Camera FAQ — IPC3612LB-AF28K-WL

Does the IPC3612LB-AF28K-WL have infrared night vision?

No — and that is by design. This ColorHunter model has no IR illuminator at all. Night vision comes from a warm white light reaching 30 m, so footage stays in full color 24 hours a day, with no black-and-white covert mode.

Why choose warm light instead of IR for a shop or gate?

Color at night records what IR cannot: skin tone, clothing color, vehicle color — details police and insurers ask for. The visible light also deters intruders and doubles as courtesy lighting. Control is Auto or Manual, with Smart Illumination support.

What image quality does it deliver in low light?

The 1/2.9-inch CMOS sensor with an F1.6 lens works down to 0.005 lux in color with AGC on. Main stream is 1080p at up to 30 fps with DWDR, 2D/3D noise reduction, HLC and BLC to steady the picture under mixed lighting.

How do I power and connect it?

PoE only needs one network cable from your PoE switch for both power and video, which keeps gate and storefront installs simple. Dual streams — 1080p main plus a lighter sub stream — let you record locally and still view smoothly on mobile data.

Does it record sound, and can it handle outdoor weather?

Yes on both. A built-in microphone records G.711 audio at an 8 kHz sampling rate with noise suppression, and audio detection can trigger alarms; note there is no two-way talk. The IP67 housing seals against dust and heavy rain for year-round outdoor duty.
