4MP 16X LightHunter Network PTZ Dome Camera IPC6434LR-X16-VG1

4MP 16X LightHunter Network PTZ Dome Camera IPC6434LR-X16-VG1 — view 1

4MP 16X LightHunter Network PTZ Dome Camera IPC6434LR-X16-VG1 — view 2

Uniview (UNV) · PTZ CameraLightHunter · 16X Speed Dome

4MP 16X LightHunter Network PTZ Dome Camera

IPC6434LR-X16-VG1

Name: IPC6434LR-X16-VG1
Brand: Uniview
SKU: IPC6434LR-X16-VG1

A 4MP PTZ dome camera built around a 16X optical zoom and a LightHunter low-light sensor: it tracks people and vehicles automatically, keeps color detail down to 0.005 lux, and reaches out to 100 m with Smart IR after dark.

2688×1520 · main stream @30fps16X · optical zoom, F1.78-F3.73Auto Tracking · human & vehicle filtering100 m · Smart IR, auto/manualIP66 · IK10 · outdoor / vandal-proof housing-40~65°C · working environment

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile T

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4 MP1/2.9" CMOS sensor

16XOptical zoom, 5.5–88 mm

100 mSmart IR distance

120 dBWide dynamic range (WDR)

The IPC6434LR-X16-VG1 is a 4MP PTZ dome camera (1/2.9" CMOS, 2688×1520 @30fps) with a 16X optical zoom lens (5.5-88 mm, F1.78-F3.73) and a LightHunter low-light sensor rated at 0.005 lux color (0 lux with IR). It supports auto tracking with human/vehicle target filtering, smart intrusion prevention with classification-based false-alarm filtering, 120 dB WDR, and Smart IR reaching up to 100 m. The unit runs on DC 12 V or PoE+ (IEEE 802.3at, max. 23 W), offers 1024 presets with 16 preset/route/recorded patrols, 360° endless pan and -5° to 90° auto-flip tilt, and is rated IP66 / IK10 for outdoor mounting.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Parking lots & yards360° endless pan and 1024 presets let one dome patrol an entire lot on a route; auto tracking with human/vehicle filtering locks onto a target the moment it moves into frame.

Warehouse & logistics yardsLightHunter's 0.005 lux color sensitivity keeps forklift lanes readable at dusk, and Smart IR extends coverage to 100 m once it's fully dark — with automatic intensity control so nearby objects don't overexpose.

School & campus perimetersSmart intrusion prevention (cross-line and area intrusion) with human/vehicle classification cuts false alarms from blowing leaves or small animals along fence lines and walkways.

Retail plazas & building entrances16X optical zoom (5.5-88 mm) reaches from a wide entrance view to a close-up on a doorway or license plate without losing resolution, and up to 8 privacy-mask areas can blank out neighboring windows.

Roadside & intersection monitoring120 dB WDR handles the swing between bright sky and dark roadway at dawn and dusk, and tilt runs from -5° to 90° with auto-flip so the dome can look almost straight down at a nearby lane.

Exposed outdoor polesIP66 sealing, IK10 impact resistance and a -40 to 65 °C working range (6 kV surge protection included) suit a dome that sits on an exposed pole through storms, dust and temperature swings.

Not the right pick if you need…

No face recognition or face database on this model — Auto Tracking and Smart Intrusion Prevention only classify human/vehicle, they do not identify individuals. Choose a face-recognition PTZ if that's required.
This is a single-lens 16X PTZ dome, not a panoramic-linkage unit — it has one zooming view, not a simultaneous 360° overview. If you need full-scene panorama plus a separate zoom channel in one housing, choose a panoramic-linkage PTZ instead.
Power is DC 12 V or PoE+ (IEEE 802.3at) only, max. 23 W — check that your PoE switch port actually delivers PoE+ budget before relying on Ethernet-only power at the pole.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High-quality 4 MP image, 1/2.9" CMOS sensor

2688×1520 @30 fps in the main stream

Ultra 265, H.265, H.264, MJPEG

Dual streams

16X optical zoom

LightHunter technology ensures ultra-high image quality in low illumination environment

Smart IR, up to 100 m (328 ft.) IR distance

DC 12 V±10%, PoE+ (IEEE 802.3at)

Alarm I/O: 2/1, audio I/O: 1/1

IP66 ingress protection

IK10 vandal resistant

Low-Light Performance: LightHunter Sensor + Smart IR

Color sensitivity and IR range, both from the official datasheet.

COLOR / LOW LIGHT

LightHunter 1/2.9" CMOS sensor holds color down to 0.005 Lux (F1.78, AGC ON) — 0 Lux once the IR takes over

undefined

IR CHANNEL

Smart IR reaches up to 100 m (850 nm) with automatic on/off and intensity control to avoid overexposing nearby objects

undefined

How far can it see? (DORI)

DORI values shown at full 16× telephoto zoom, from the official datasheet — the wide-angle end starts near 127.6 m for Detect and scales down proportionally for the other rows.

Detectsomething is there

2048.4 m6720.5 ft

Observewhat is happening

819.4 m2688.2 ft

Recognizesomeone you know

409.7 m1344.1 ft

Identifybeyond doubt

204.8 m672.0 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	50.9° wide	3.5° tele
5 m16 ft	4.8 m15.6 ft	0.3 m1.0 ft
10 m33 ft	9.5 m31.2 ft	0.6 m2.0 ft
15 m49 ft	14.3 m46.8 ft	0.9 m3.0 ft
20 m66 ft	19.0 m62.4 ft	1.2 m4.0 ft
30 m98 ft	28.5 m93.6 ft	1.8 m6.0 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	4 MP
Sensor	1/2.9" CMOS
Min. Illumination	Color: 0.005 Lux (F1.78, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
WDR	120 dB
S/N	> 56 dB

Lens & Field of View

Focal Length	5.5 to 88 mm
Optical Zoom	16X
Iris	F1.78-F3.73
Field of View (H)	50.85° to 3.47°
Field of View (V)	29.94° to 1.95°
Field of View (D)	62.55° to 4.09°

DORI

DORI Distance (Detect)	127.6 m to 2048.4 m (418.6 ft. to 6720.5 ft.)
DORI Distance (Observe)	51.0 m to 819.4 m (167.4 ft. to 2688.2 ft.)
DORI Distance (Recognize)	25.5 m to 409.7 m (83.7 ft. to 1344.1 ft.)
DORI Distance (Identify)	12.8 m to 204.8 m (41.9 ft. to 672.0 ft.)

Video

Privacy Mask	24 areas, up to 4 areas per scene
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 4 MP (2688×1520), max. 30 fps · Sub Stream: 720P (1280×720), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Dual streams
OSD	Up to 4 OSDs

Intelligent

Auto Tracking	Support, target filtering: human and vehicle
Smart Intrusion Prevention	Cross line detection, intrusion detection (support false alarm filtering and the classification of human and vehicle)


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Smart IR	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Illuminator

IR On/Off Control	Auto/Manual
Wavelength	850 nm
Illumination Distance (IR)	Up to 100 m (328 ft.) IR range

Network & Security

Protocols	IPv4, IPv6, IGMP, RTP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

PTZ

Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Patrol Stay Time	15 s to 1800 s
Home Position	Support
Pan Range	360° (endless)
Tilt Range	-5° to 90° (auto flip)
Pan Speed	0.1°/s to 240°/s
Tilt Speed	0.1°/s to 120°/s

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	2/1
Serial Port	1 × RS485
Network	1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

EMC	CE-EMC (EN 55032: 2015+A11:2020+A1:2020, EN IEC 61000-3-2: 2019+A1: 2021, EN 61000-3-3: 2013+A1: 2019+A2:2021, EN 50130-4: 2011+A1:2014); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-ROHS (2011/65/EU;(EU)2015/863)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002)

General

Power Consumption	Max. 23 W
Power Interface	Ø5.5 mm coaxial power plug
Storage Environment	-40°C~70°C (-40°F~158°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Configurable P/N	Support

Dimensions

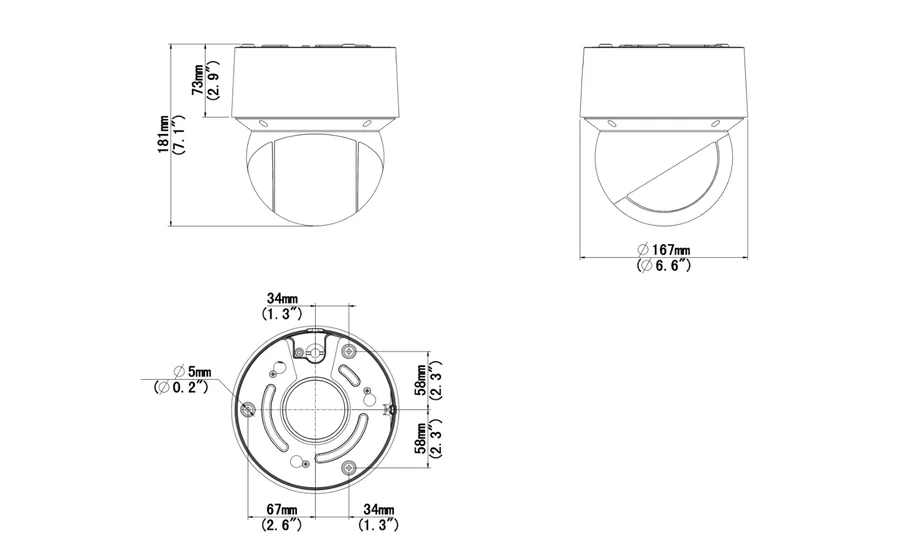

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø167 mm × 181 mm (Ø6.6" × 7.1")
Weight	2.3 kg (5.07 lb.)
Power	DC 12 V (±10%, 3A) / PoE+ (IEEE 802.3at) · max. 23 W
Working Environment	-40 °C to 65 °C (-40 °F to 149 °F), ≤95% RH non-condensing
Protection	IP66 · IK10 · 6 kV surge

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-FM180-INIn-ceiling bracket for cover dome

TR-CE45-INDome indoor ceiling mounting bracket

TR-SE45-INDome ceiling mounting pole 200

TR-SE45-A-INDome ceiling mounting pole 500

TR-UF45-L-INCover dome adapter

TR-WE45-INDome wall mounting bracket

TR-WE45-B-INDome gooseneck bracket

TR-JB12-INDome junction box

TR-UP08-B-INAluminium alloy pole mounting bracket

TR-UC08-B-INAluminium alloy corner mounting bracket

TR-JB04-E-INCover dome junction box

TR-UP04-INMounting bracket

4MP 16x PTZ Camera FAQ — IPC6434LR-X16-VG1

How far can the IPC6434LR-X16-VG1 see and identify?

The 4 MP sensor behind a 5.5–88 mm 16x lens (F1.78–F3.73) gives DORI values of detect up to 2048.4 m, observe up to 819.4 m, recognize up to 409.7 m and identify up to 204.8 m at the tele end — long-range perimeter coverage with more pixel detail than a 2 MP unit.

What happens at night?

The LightHunter sensor holds color to 0.005 lux (F1.78, AGC on). In full darkness the 850 nm Smart IR takes over — the listing rates it at 100 m — with automatic IR-cut switching and Smart IR exposure control so close subjects are not washed out.

Does it track people and vehicles?

Yes. Auto tracking filters for human and vehicle targets, so the PTZ follows either automatically. Smart intrusion prevention runs cross-line and intrusion detection with human/vehicle classification and false-alarm filtering, plus motion, tampering and audio detection, and an alarm input for external sensors.

How is it powered on a pole?

The listing specifies PoE+, so a single Cat5e/Cat6 cable from a PoE+ switch or NVR PoE port delivers power and video together — no separate mains run to the camera position. The IP66/IK10 housing per the listing suits exposed outdoor mounting.

What are the recording and storage options?

The main stream records 4 MP (2688×1520) at up to 30 fps with a 720p sub stream; bit rate spans 128 Kbps to 16 Mbps with Ultra 265. Locally it takes a MicroSD card up to 512 GB, ANR backfills the recorder after outages, and NAS (NFS) is supported.
