PTZ Cameras › IPC6612SR-X25-VG

2MP 25× LightHunter Network PTZ Camera IPC6612SR-X25-VG

2MP 25× LightHunter Network PTZ Camera IPC6612SR-X25-VG — view 1

2MP 25× LightHunter Network PTZ Camera IPC6612SR-X25-VG — view 2

Uniview (UNV) · PTZ CameraLightHunter · 25X PTZ Dome

2MP 25× LightHunter Network PTZ Camera

IPC6612SR-X25-VG

Name: IPC6612SR-X25-VG
Brand: Uniview
SKU: IPC6612SR-X25-VG

A 2MP network PTZ dome with a 5–125 mm 25× optical zoom lens: LightHunter low-light imaging keeps color detail after dusk, Smart IR extends visibility to 150 m in full darkness, and Smart Intrusion Prevention tracks the line so you don't have to.

1920×1080 · main stream @30fps5–125 mm · 25× optical zoomSmart Intrusion · person/vehicle classification1024 · presets · 16 patrolsIP66 · IK10 · weatherproof housingPoE+ · 802.3at / DC 12 V

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile T

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

2 MP1080P main stream @30fps

25×Optical zoom (5–125 mm)

150 mSmart IR distance

120 dBWide dynamic range

The IPC6612SR-X25-VG is a 2MP network PTZ dome camera with a 1/2.8" CMOS sensor and a 5–125 mm 25× optical zoom lens (1920×1080 @30fps main stream), delivering LightHunter low-light imaging (0.001 Lux color, 0 Lux with IR) and up to 120 dB WDR. Smart Intrusion Prevention covers cross line, intrusion, and enter/leave-area detection with person / non-motor-vehicle / vehicle classification and false-alarm filtering, alongside people-flow counting and crowd-density monitoring. Pan is 360° endless and tilt runs -15° to 90° at 2–75°/s, with 1024 presets and 16 preset / route / recorded patrols, Smart IR to 150 m, and an IP66 / IK10 housing powered by DC 12 V or PoE+ (802.3at).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Perimeter & road patrolSmart Intrusion Prevention (cross line, intrusion, enter/leave area) filters false alarms and classifies human / non-motor vehicle / vehicle — pair it with the 25× zoom to move from wide watch to close look on the same target.

Long-range identificationAt full 125 mm telephoto the datasheet's DORI figures reach 1706.9 m detect and 170.7 m identify — useful for perimeters, gates or open lots where the target first appears far away and needs a positive ID once zoomed in.

Low-light streets & entrancesLightHunter keeps color at 0.001 Lux (F1.5, AGC ON); once it's fully dark, Smart IR switches in and reaches 150 m so the scene stays visible without relying on street lighting.

High-contrast, backlit scenesUp to 120 dB WDR plus HLC and BLC keep faces and plates readable against bright entrances, headlights and glass facades instead of silhouetting the subject.

People counting for entrances & lobbiesBuilt-in people-flow counting and crowd-density monitoring give a basic occupancy read at doors, retail entrances or waiting areas without a separate counting sensor.

Harsh outdoor pole mountsIP66 sealing, IK10 impact resistance (except the front window), -40 °C to 65 °C operation, 6 kV surge protection and a heater cover a single pole camera that has to run unattended through a full year of weather.

Not the right pick if you need…

No standard PoE (802.3af) support listed — power is DC 12 V or PoE+ (IEEE 802.3at) with a max. draw of 25 W. Confirm your switch or injector supports 802.3at before ordering.
Built-in mic, built-in speaker and WIFI are all listed as N/A on the datasheet — two-way audio needs an external mic/speaker on the audio I/O, and networking is wired only (1× RJ45).
Network is 1× RJ45 10 M/100 M Base-TX — not Gigabit. Plan bitrate and stream count (128 Kbps–16 Mbps, triple streams) against this ceiling for multi-stream or high-bitrate deployments.
IK10 impact resistance explicitly excludes the front window on this model — sites with a real risk of direct strikes on the lens dome may need additional physical protection.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.8" CMOS sensor

1920 × 1080 @30 fps in the main stream

Ultra 265, H.265, H.264, MJPEG

25X optical zoom allows for closer viewing of subjects

Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection

Automatic selection of best snapshots

LightHunter technology ensures ultra-high image quality in low illumination environment

Up to 120 dB optical WDR (wide dynamic range)

DC 12 V, PoE+ (IEEE 802.3at) power supply

Alarm I/O: 2/1, audio I/O: 1/1

MicroSD, up to 512 GB

Smart IR, up to 150 m (492.1 ft) IR distance

IP66 ingress protection

Day and Night Imaging in One Camera

LightHunter low-light color imaging by day, Smart IR illumination once it's fully dark.

COLOR MODE

0.001 Lux (F1.5, AGC ON) LightHunter color imaging

Keeps usable color detail well after dusk before switching to IR.

IR MODE

0 Lux with Smart IR — 850 nm illuminator, up to 150 m

Auto/manual light control keeps the scene visible in full darkness.

How far can it see? (DORI, Full 25× Zoom Range)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Figures shown are at the lens's full 125 mm telephoto end (25× zoom); the same 5–125 mm lens gives shorter DORI distances at its 5 mm wide end.

Detectsomething is there

1706.9 m5600.1 ft

Observewhat is happening

682.8 m2240.0 ft

Recognizesomeone you know

341.4 m1120.1 ft

Identifybeyond doubt

170.7 m560.0 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	54.4° wide	2.7° tele
5 m16 ft	5.1 m16.9 ft	0.2 m0.8 ft
10 m33 ft	10.3 m33.7 ft	0.5 m1.5 ft
15 m49 ft	15.4 m50.6 ft	0.7 m2.3 ft
20 m66 ft	20.5 m67.4 ft	0.9 m3.1 ft
30 m98 ft	30.8 m101 ft	1.4 m4.6 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/2.8" CMOS
Min. Illumination	Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	> 52 dB

Lens & Field of View

Focal Length	5 to 125 mm
Optical Zoom	25×
Iris	F1.5 to F3.0
Field of View (H)	54.37° to 2.68°
Field of View (V)	32.23° to 1.51°
Field of View (D)	66.88° to 3.16°

DORI (5–125 mm)

DORI Distance (Detect)	85.3 m to 1706.9 m (280.0 ft. to 5600.1 ft.)
DORI Distance (Observe)	34.1 m to 682.8 m (112.0 ft. to 2240.0 ft.)
DORI Distance (Recognize)	17.1 m to 341.4 m (56.1 ft. to 1120.1 ft.)
DORI Distance (Identify)	8.5 m to 170.7 m (28.0 ft. to 560.0 ft.)

Illuminator

Light On/Off Control	Auto/Manual
Wavelength	850 nm
Illumination Distance (IR)	150 m (492.1 ft.)


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Smart IR	Support
Defog	Digital defog
Heatwave Reduction	Support

Video

Privacy Mask	24 areas, up to 4 areas per scene
Video Compression	Ultra 265, H.265, H.264, MJPEG
Main Stream	1080P (1920 × 1080), max. 30 fps
Sub Stream	720P (1280 × 720), max. 30 fps
Third Stream	D1 (720 × 576), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 8 OSDs

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 kHz

Intelligent

Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring
Exception Detection	Object removed, Object Left Behind

Events

Basic Detection	Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

PTZ

Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Patrol Stay Time	15 s to 1800 s
Preset Image Freeze	Support
Home Position	Support
Pan Range	360° (endless)
Tilt Range	-15° to 90° (auto reverse)
Pan Speed	2°/s to 75°/s
Tilt Speed	2°/s to 75°/s

Network & Security

Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	2/1
Serial Port	1 × RS485
Built-in Mic	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1-14, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-ROHS (2011/65/EU; (EU)2015/863)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262, Anti-Vandalism Except for the Front Window)

General

Power	DC 12 V±10%, PoE+ (IEEE 802.3at)
Power Consumption	Max. 25 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø220 mm × 370 mm (Ø8.7" × 14.6") (Ø × H)
Weight	3.3 kg (7.26 lb.)
Working Environment	-40℃~65℃ (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-40℃ to 70℃ (-40℉ to 158℉), Humidity: ≤95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Heater	Support
Configurable P/N	Support

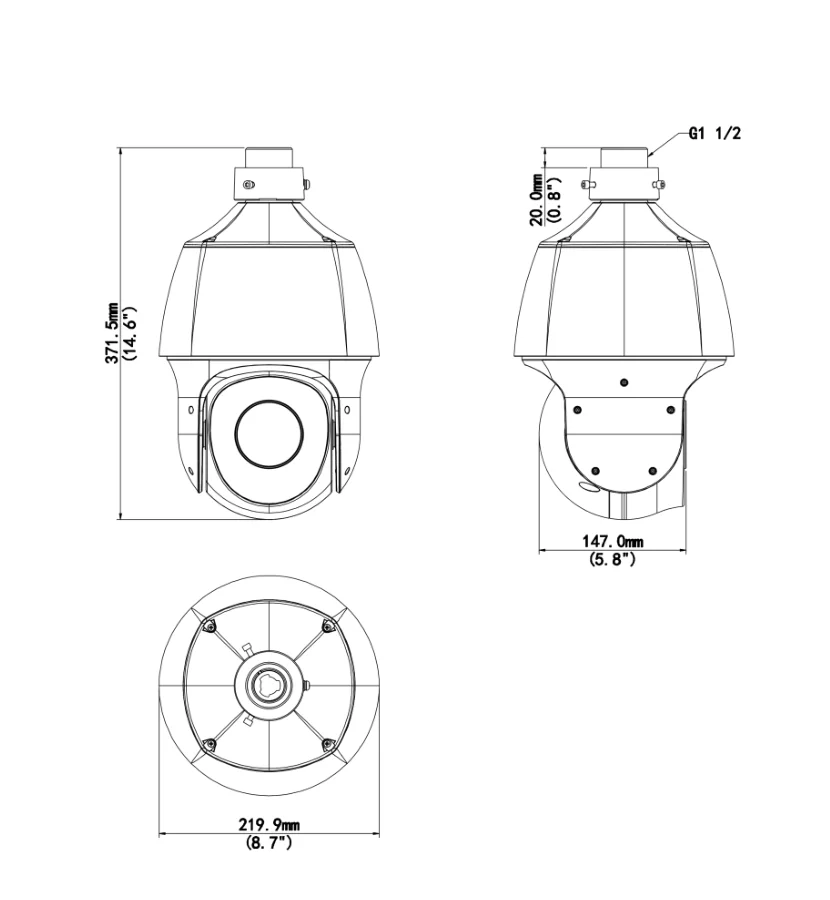

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Φ220 mm × 370 mm (Φ8.7" × 14.6") (Φ × H)
Weight	3.3 kg (7.26 lb.)
Power	DC 12 V±10%, PoE+ (IEEE 802.3at) · max. 25 W
Working Environment	-40 °C to 65 °C (-40 °F to 149 °F), ≤95% RH non-condensing
Protection	IP66 · IK10 (except front window) · 6 kV surge

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-UF45-A-INDome Indoor Ceiling Mounting Pedestal

TR-SE45-A-INDome Ceiling Mounting Pole 500

TR-SE45-INDome Ceiling Mounting Pole 200

TR-CE45-INDome Indoor Ceiling Mounting Bracket

TR-WE45-INDome Wall Mounting Bracket

TR-WE45-A-INLong Wall Mounting Bracket for Dome

TR-JB12-INDome Junction Box

TR-WE45-B-INDome Gooseneck Bracket

TR-UP08-A-INDome Pole Mounting Bracket

TR-UP08-B-INAluminium Alloy Pole Mounting Bracket

TR-UC08-A-INDome Corner Mounting Bracket

TR-UC08-B-INAluminium Alloy Corner Mounting Bracket

Long-Range PTZ Camera FAQ — IPC6612SR-X25-VG

How far does the IPC6612SR-X25-VG see at night?

Its 850 nm Smart IR reaches 150 m (492 ft) — among the longer IR ranges in this class — with auto/manual light control and Smart IR exposure compensation. Before IR is even needed, LightHunter color imaging holds to 0.001 lux (F1.5, AGC on), keeping color late into the evening.

What zoom and identification range does it offer?

The 5–125 mm 25x optical zoom lens (F1.5–F3.0) delivers DORI figures of detect up to 1706.9 m, observe up to 682.8 m, recognize up to 341.4 m and identify up to 170.7 m at the tele end — one camera can sweep a long fence line or open compound.

What detection rules can I set up?

Smart intrusion prevention covers cross-line, intrusion, enter-area and leave-area detection with false-alarm filtering. It also supports people flow counting and crowd density monitoring, and exception detection flags object removed and object left behind — useful for depots and public areas.

How much bandwidth does it need on my network?

Triple streams: 1080p at up to 30 fps main, 720p sub and D1 third. Bit rate is adjustable from 128 Kbps to 16 Mbps, and Ultra 265 / H.265 with U-code holds typical 1080p scenes to a few Mbps, so several units fit comfortably on a gigabit backbone.

How do I power it, and is it weatherproof?

The listing specifies PoE+ — one network cable from a PoE+ switch powers the camera and carries video — and an IP66/IK10 rated housing for dust, rain and impact. Heatwave reduction and digital defog help image quality in hot or humid climates, and two-way audio via G.711 is supported.
