PTZ Cameras › IPC6612SR-X33-VG

2MP 33× LightHunter Network PTZ Dome Camera IPC6612SR-X33-VG

2MP 33× LightHunter Network PTZ Dome Camera IPC6612SR-X33-VG — view 1

2MP 33× LightHunter Network PTZ Dome Camera IPC6612SR-X33-VG — view 2

Uniview (UNV) · PTZ CameraLightHunter · 33X PTZ Dome

2MP 33× LightHunter Network PTZ Dome

IPC6612SR-X33-VG

Name: IPC6612SR-X33-VG
Brand: Uniview
SKU: IPC6612SR-X33-VG

A classic single-lens PTZ dome camera that reaches far and still sees in the dark: 33× optical zoom (4.5-148.5 mm) paired with LightHunter low-light imaging and 120 dB WDR, plus smart intrusion detection with false-alarm filtering — all on a PoE+ single-cable install.

1920×1080 · main stream @30fps0.001 Lux · LightHunter color min. illuminationSmart Intrusion · cross line / area, false-alarm filteringPeople Counting · flow + crowd densityPoE+ · IEEE 802.3at or DC 12V512 GB · MicroSD edge storage

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile T

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

33×Optical zoom, 4.5-148.5 mm

120 dBOptical WDR

150 mSmart IR distance

IP66Ingress protection

The IPC6612SR-X33-VG is a 2MP network PTZ dome camera built around a 1/2.8" CMOS sensor and a 33× optical-zoom lens (4.5-148.5 mm, F1.5-F4.0), delivering 1920×1080 @30fps with Ultra 265/H.265/H.264/MJPEG compression. LightHunter low-light processing holds color down to 0.001 Lux, 120 dB WDR handles harsh backlight, and Smart IR reaches 150 m for full darkness. Smart intrusion prevention covers cross line, intrusion, enter-area and leave-area detection with false-alarm filtering and human / non-motor / motor-vehicle classification, plus people-flow counting and crowd-density monitoring. PoE+ (IEEE 802.3at) or DC 12 V power, MicroSD storage up to 512 GB, and an IP66-rated housing complete the package.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Perimeter with false-alarm filteringCross line, intrusion, enter-area and leave-area detection with false-alarm filtering plus human / non-motor / motor-vehicle classification — and automatic selection of the best snapshot for each event.

Parking lots & campuses33× optical zoom (4.5-148.5 mm) lets one pole cover a wide lot and still punch in on a distant plate or face; multi-zone people-flow counting and crowd-density monitoring track occupancy.

Warehouse yards & long approachesAt full 33× zoom the datasheet's DORI figures put Identify range at 218.8 m and Detect at 2187.9 m — enough to watch a gate or a fence line from a single mounting point.

Low-light and night sitesLightHunter processing holds color to 0.001 Lux and 120 dB WDR tames headlights and mixed backlight; once it's fully dark, Smart IR carries the image out to 150 m.

Outdoor poles with simple cablingPoE+ (IEEE 802.3at) delivers power and data over one Ethernet run, and the IP66 housing rated -40 °C to 65 °C is built for an outdoor pole — no separate power cabling to plan.

Large sites needing scheduled patrol1024 presets with 16 preset patrols (up to 64 presets each) and 16 route patrols let one PTZ cycle through many zones on a schedule instead of staffing a live operator.

Not the right pick if you need…

No built-in mic or speaker (both listed N/A) — two-way audio needs an external microphone and speaker wired to the audio I/O.
No WiFi (listed N/A) — this is a wired unit; plan a Cat5e/6 run to the pole rather than a wireless link.
Network interface is 10 M/100 M, not Gigabit — for very high multi-stream bandwidth deployments, check the switch port speed budget before ordering.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.8" CMOS sensor

1920 × 1080 @30 fps in the main stream

Ultra 265, H.265, H.264, MJPEG

33X optical zoom allows for closer viewing of subjects

Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection; automatic selection of best snapshots

LightHunter technology ensures ultra-high image quality in low illumination environment

Up to 120 dB optical WDR (wide dynamic range)

DC 12 V, PoE+ (IEEE 802.3at) power supply

Alarm I/O: 2/1, audio I/O: 1/1

MicroSD, up to 512 GB

Smart IR, up to 150 m (492.1 ft) IR distance

IP66 ingress protection

Zoom & Low-Light: Two Strengths, One Dome

The values below are drawn directly from the official datasheet.

OPTICAL ZOOM

33× optical zoom, 4.5-148.5 mm motorized lens, F1.5-F4.0 iris

undefined

LOW-LIGHT & IR

LightHunter low-light imaging to 0.001 Lux color, 0 Lux with IR, plus Smart IR up to 150 m

undefined

How far can it see? (DORI Standard)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. The datasheet gives DORI as a range across the 4.5-148.5 mm zoom; the bars below show the long-end (148.5 mm, full 33× telephoto) values — the wide-angle end starts at 72.9 m Detect / 29.2 m Observe / 14.6 m Recognize / 7.3 m Identify.

Detectsomething is there

2187.9 m7178.2 ft

Observewhat is happening

875.2 m2871.3 ft

Recognizesomeone you know

437.6 m1435.7 ft

Identifybeyond doubt

218.8 m717.8 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	56.2° wide	2.6° tele
5 m16 ft	5.3 m17.5 ft	0.2 m0.7 ft
10 m33 ft	10.7 m35.1 ft	0.4 m1.5 ft
15 m49 ft	16.0 m52.6 ft	0.7 m2.2 ft
20 m66 ft	21.4 m70.1 ft	0.9 m2.9 ft
30 m98 ft	32.1 m105 ft	1.3 m4.4 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/2.8" CMOS
Min. Illumination	Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000 s
WDR	120 dB
S/N	> 52 dB

Lens & Field of View

Focal Length	4.5 to 148.5 mm
Optical Zoom	33X
Iris	F1.5 to F4.0
Field of View (H)	56.23° to 2.57°
Field of View (V)	33.46° to 1.44°
Field of View (D)	69.16° to 3.03°

DORI

DORI Distance (Lens)	4.5 to 148.5 mm
DORI Distance (Detect)	72.9 m to 2187.9 m (239.2 ft. to 7178.2 ft.)
DORI Distance (Observe)	29.2 m to 875.2 m (95.7 ft. to 2871.3 ft.)
DORI Distance (Recognize)	14.6 m to 437.6 m (4739 ft. to 1435.7 ft.)
DORI Distance (Identify)	7.3 m to 218.8 m (24.0 ft. to 717.8 ft.)

Video

Privacy Mask	24 areas, up to 4 areas per scene
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 1080P (1920 × 1080), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 8 OSDs

Intelligent

Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring
Exception Detection	Object removed, Object Left Behind


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Smart IR	Support
Defog	Digital defog
Heatwave Reduction	Support

Illuminator

Light On/Off Control	Auto/Manual
Wavelength	850 nm
Illumination Distance (IR)	150 m (492.1 ft.)

Events

Basic Detection	Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16KHZ

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network & Security

Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

PTZ

Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Patrol Stay Time	15 s to 1800 s
Preset Image Freeze	Support
Home Position	Support
Pan Range	360° (endless)
Tilt Range	-15° to 90° (auto reverse)
Pan Speed	2°/s to 75°/s
Tilt Speed	2°/s to 75°/s

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	2/1
Serial Port	1 × RS485
Built-in Mic	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1-14, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-ROHS (2011/65/EU;(EU)2015/863)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262, Anti-Vandalism Except for the Front Window)

General

Power	DC 12 V±10%, PoE+ (IEEE 802.3at)
Power Consumption	Max. 25 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø220 mm × 370 mm (Ø8.7" × 14.6") (Ø × H)
Weight	3.4 kg (7.48 lb.)
Working Environment	-40℃~65℃ (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Heater	Support
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Configurable P/N	Support

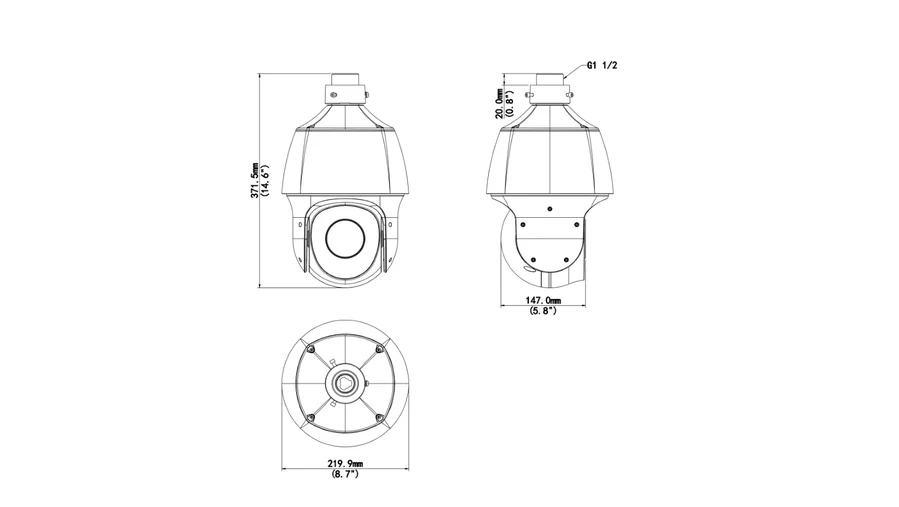

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø220 mm × 370 mm (Ø8.7" × 14.6") (Ø × H)
Weight	3.4 kg (7.48 lb.)
Power	DC 12 V ±10% · PoE+ (IEEE 802.3at) · max. 25 W
Working Environment	-40 °C to 65 °C (-40 °F to 149 °F), ≤95% RH non-condensing
Protection	IP66 · 6 kV surge

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-UF45-A-INDome indoor ceiling mounting pedestal

TR-SE45-A-INDome ceiling mounting pole 500

TR-SE45-INDome ceiling mounting pole 200

TR-CE45-INDome indoor ceiling mounting bracket

TR-WE45-INDome wall mounting bracket

TR-WE45-A-INLong wall mounting bracket for dome

TR-JB12-INDome junction box

TR-WE45-B-INDome gooseneck bracket

TR-UP08-A-INDome pole mounting bracket

TR-UP08-B-INAluminium alloy pole mounting bracket

TR-UC08-A-INDome corner mounting bracket

TR-UC08-B-INAluminium alloy corner mounting bracket

2MP 33x PTZ Camera FAQ — IPC6612SR-X33-VG

How far can the IPC6612SR-X33-VG see with its 33x zoom?

The 4.5–148.5 mm motorized lens gives DORI distances of 2187.9 m for detection, 875.2 m for observation, 437.6 m for recognition and 218.8 m for identification at full telephoto. In practice you can confirm a person at around 200 m and spot movement across a very large perimeter or open yard.

What is the night vision range of this PTZ camera?

Smart IR at 850 nm reaches 150 m, with auto or manual light control so close subjects are not overexposed as you zoom. With LightHunter low-light imaging the camera holds color down to 0.001 lux (F1.5, AGC on) and switches to 0 lux infrared black-and-white in total darkness.

How do I power the IPC6612SR-X33-VG on a pole installation?

The camera supports PoE+, so a single network cable from a PoE+ switch or injector carries both power and video up the pole — no separate mains circuit at the camera point. That simplifies installs where trenching AC power is costly; just reserve one PoE+ port per camera.

Which analytics does it include for perimeter protection?

Smart intrusion prevention covers cross-line, intrusion, enter-area and leave-area detection with false-alarm filtering, plus object-removed and object-left-behind exceptions. It also supports people flow counting and crowd density monitoring, motion detection, tampering alarm and audio detection — useful at gates, fence lines and public gathering areas.

How much bandwidth does the video stream need?

Bit rate is adjustable from 128 Kbps to 16 Mbps, so you set the cap your link can afford. Compression options are Ultra 265, H.265, H.264 and MJPEG with U-code support. Triple streams let you record 1080p at 30 fps locally while sending a lighter D1 stream to remote viewers.

Can it handle rain, dust and strong backlight outdoors?

The housing is rated IP66 against dust and heavy rain jets. For difficult light the camera has 120 dB WDR, HLC and BLC — for example a gate where vehicles approach with headlights on — plus digital defog and heatwave reduction for hazy or hot-air scenes. Two-way audio is also supported.
