PTZ Cameras › IPC6622SR-X33-VF
Uniview (UNV) · PTZ CameraLightHunter · 33× PTZ Dome

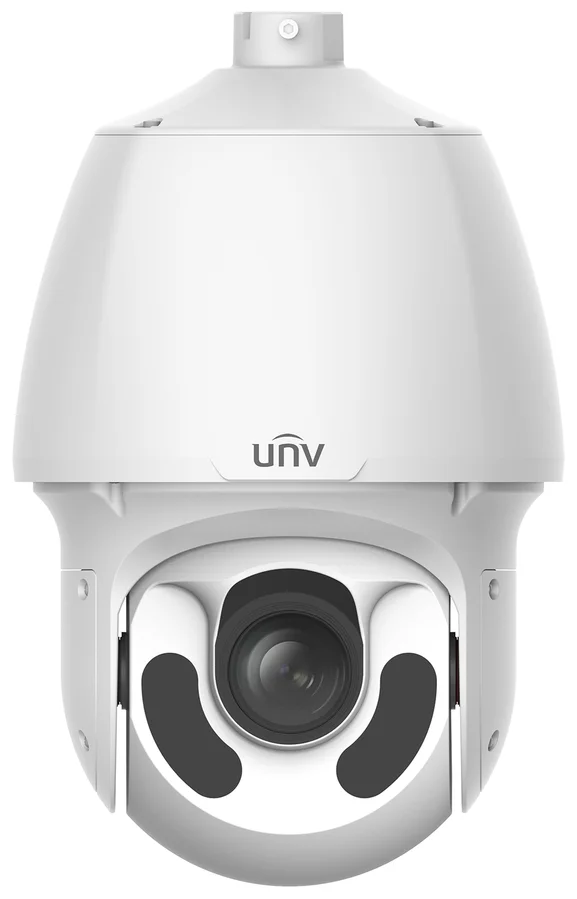

2MP 33× LightHunter Network PTZ Dome Camera
IPC6622SR-X33-VF
A 2MP PTZ dome with 33× optical zoom and LightHunter low-light imaging — Smart Intrusion Prevention classifies people, vehicles and non-motor traffic while Smart IR reaches 150 m after dark.
1920×1080 · main stream @60fps33×/16× · optical / digital zoomSmart Intrusion · human/vehicle/non-motor classes120 dB · WDRIP66 · weatherproof housing-40~70°C · wide operating range
Get Best Price on WhatsApp
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Sample quantities are welcome — testing one or two units first is the normal way to start.
Compliance:ONVIF Profile SONVIF Profile GONVIF Profile TONVIF Profile M
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
The IPC6622SR-X33-VF is a 2MP network PTZ dome camera built on a 1/2.8-inch CMOS sensor with a 33× optical zoom lens (4.5-148.5 mm, 16× digital zoom) and LightHunter low-light imaging (color 0.001 Lux at F1.5, 0 Lux with IR). Smart Intrusion Prevention covers cross line, intrusion, and enter/leave area detection with human / non-motor vehicle / vehicle classification and false-alarm filtering, alongside people counting with crowd density monitoring. Smart IR reaches 150 m, pan is 360° endless at 0.1-200°/s with 1024 presets, and the IP66-rated housing operates from -40 °C to 70 °C on AC/DC 24 V or PoE.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
Perimeter & fence linesSmart Intrusion Prevention covers cross line, intrusion, and enter/leave area detection with human / non-motor vehicle / vehicle classification and false-alarm filtering; 33× zoom lets one pole cover a long fence line.
Parking lots & logistics yardsPeople counting with crowd density monitoring tracks flow across the lot, while 33× zoom reads plates and details at distance; 360° endless pan covers a full yard from a single pole.
Road junctions & approach roads120 dB WDR handles headlight glare and strong backlight at junctions; at full 33× telephoto the DORI Identify range reaches 218.8 m, useful for reading vehicle detail from a distance.
Night & low-light approachesLightHunter keeps color detail down to 0.001 Lux (F1.5) before it gets fully dark, Smart IR then reaches 150 m, and heatwave reduction keeps hot pavement or rooftops from smearing the image.
Campus & estate patrol routesRoute Patrol (16 patrols × 32 actions) and Recorded Patrol (16 × 128 actions) automate coverage of multiple points, backed by 1024 presets and Preset Patrol (16 × 64 presets) for repeatable rounds.
Harsh outdoor mountsIP66 sealing, -40 °C to 70 °C operation, 6 kV surge protection and a built-in heater keep the unit running through cold winters and hot summers alike.
Not the right pick if you need…
- No built-in microphone or speaker — audio I/O (1 in / 1 out) is present, but two-way audio needs your own external mic and speaker wired to the terminals.
- No Wi-Fi (WIFI: N/A) — this is a wired PTZ; plan a Cat5e/6 run to the mounting point, there is no wireless option on this model.
- Max power draw is 53.72 W — standard 802.3af PoE (15.4 W) will not run it; use PoE+/PoE++, or the AC 24 V / DC 24 V power option instead.
- Single 2MP telephoto channel with no wide-angle overview lens on this unit — for full-scene coverage plus zoom detail, pair it with a fixed or panoramic camera.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT USMix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTERVerified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BESTAll discounts are quoted personally — message me on WhatsApp ↑
Key Features
Complete list from the official datasheet.
High quality image with 1080P, 1/2.8" CMOS sensor
1920×1080@60fps in the main stream
Ultra 265, H.265, H.264, MJPEG
33X optical zoom
Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
Automatic selection of best snapshots, supports face detection masked area
People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
LightHunter technology ensures ultra-high image quality in low illumination environment
Smart IR, up to 150 m (492.1 ft.) IR distance
AC 24 V±25%, DC 24 V±25%, PoE power supply
Alarm I/O: 2/1, audio I/O: 1/1
IP66 ingress protection
Low-Light Performance: Smart IR + LightHunter Imaging
Two low-light technologies working together, from the official datasheet.
SMART IR
Auto/manual smart infrared reaches 150 m, with 850 nm wavelength illuminators built into the housing.
undefined
LIGHTHUNTER LOW-LIGHT
LightHunter imaging keeps color detail down to 0.001 Lux (F1.5, AGC on) — full color at dusk before the IR even switches on.
undefined
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Values below are shown at full 33× telephoto zoom, from the official datasheet.
Detectsomething is there
2187.9 m7178.2 ft
Observewhat is happening
875.2 m2871.3 ft
Recognizesomeone you know
437.6 m1435.7 ft
Identifybeyond doubt
218.8 m717.8 ft
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 56.2° wide | 2.6° tele |
|---|---|---|
| 5 m16 ft | 5.3 m17.5 ft | 0.2 m0.7 ft |
| 10 m33 ft | 10.7 m35.0 ft | 0.5 m1.5 ft |
| 15 m49 ft | 16.0 m52.6 ft | 0.7 m2.2 ft |
| 20 m66 ft | 21.4 m70.1 ft | 0.9 m3.0 ft |
| 30 m98 ft | 32.0 m105 ft | 1.4 m4.5 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 52 dB |
Lens & Field of View
| Focal Length | 4.5 to 148.5 mm |
| Optical Zoom | 33X |
| Digital Zoom | 16X |
| Iris | F1.5 to F4.0 |
| Field of View (H) | 56.2° to 2.6° |
| Field of View (V) | 33.5° to 1.4° |
| Field of View (D) | 69.1° to 3.1° |
DORI
| DORI Distance (Lens) | 4.5 to 148.5 mm |
| DORI Distance (Detect) | 72.9 m to 2187.9 m (239.2 ft. to 7178.2 ft.) |
| DORI Distance (Observe) | 29.2 m to 875.2 m (95.7 ft. to 2871.3 ft.) |
| DORI Distance (Recognize) | 14.6 m to 437.6 m (47.9 ft. to 1435.7 ft.) |
| DORI Distance (Identify) | 7.3 m to 218.8 m (24.0 ft. to 717.8 ft.) |
Video
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 1080P (1920×1080), max. 60 fps · Sub Stream: 1080P (1920×1080), max. 60 fps · Third Stream: D1 (720×576), max. 60 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| OSD | Up to 10 OSDs |
Events
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16 KHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
Network & Security
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ · Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
Intelligent
| Exception Detection | Object removed, Object Left Behind |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density monitoring |
PTZ
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Number of Presets | 1024 |
| Preset Image Freeze | Support |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Home Position | Support |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s to 200°/s |
| Tilt Range | -15° to 90° (auto reverse) |
| Tilt Speed | 0.1°/s to 200°/s |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
| Heatwave Reduction | Support |
Interface
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p] · 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| WIFI | N/A |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | 1 BNC (for debugging) |
Illuminator
| Illumination Distance (IR) | 150 m (492.1 ft.) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
Certification
| EMC | CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020) · FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) · UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU; (EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
General
| Power | AC 24 V±25%, DC 24 V±25%, PoE (PSE Required) |
| Power Consumption | Max. 53.72 W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | Ø227 mm × 384.8 mm (Ø8.9" × 15.1") (Ø×H) |
| Weight | 5.39 kg (11.88 lb.) |
| Working Environment | -40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6 kV |
| Reset Button | Support |
| Web Client Language | 22 Languages |
| Heater | Support |

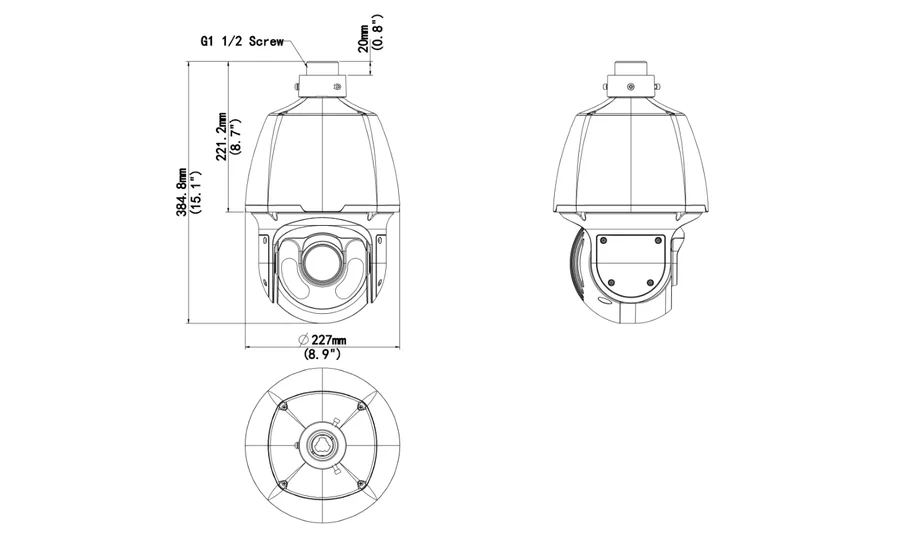

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
unit: mm (in.)
| Dimensions | Ø227 mm × 384.8 mm (Ø8.9" × 15.1") (Ø×H) |
| Weight | 5.39 kg (11.88 lb.) |
| Power | AC 24 V±25%, DC 24 V±25%, PoE (PSE Required) |
| Power Consumption | Max. 53.72 W |
| Working Environment | -40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing |
| Protection | IP66 (IEC 60529) |
| Surge Protection | 6 kV |
Optional Mounting Accessories
Order together with the camera to save shipping.
TR-CE45-IN-BLACKDome Indoor Ceiling Mounting Bracket
TR-WE45-INDome Wall Mounting Bracket
TR-UF45-A-INDome Indoor Ceiling Mounting Pedestal
TR-SE45-A-INDome Ceiling Mounting Pole 500
TR-SE45-INDome Ceiling Mounting Pole 200
TR-CE45-INDome Indoor Ceiling Mounting Bracket
TR-WE45-A-INLong Wall Mounting Bracket for Dome
TR-JB12-INDome Junction Box
TR-WE45-B-INDome Gooseneck Bracket
TR-UP08-A-INDome Pole Mounting Bracket
TR-UP08-B-INAluminium Alloy Pole Mounting Bracket
TR-UC08-A-INDome Corner Mounting Bracket
TR-UC08-B-INAluminium Alloy Corner Mounting Bracket
2MP 33x PTZ Dome FAQ — IPC6622SR-X33-VF
How far can the IPC6622SR-X33-VF see at full zoom?
The 4.5–148.5 mm lens delivers 33x optical zoom plus 16x digital. DORI distances at full telephoto are 2187.9 m for detection, 875.2 m for observation, 437.6 m for recognition and 218.8 m for identification — one camera can watch an entire depot fence line and still confirm a person around 200 m out.
Can I connect it to a third-party NVR or VMS?
Yes. It supports ONVIF Profile S, G, T and M plus RTSP streaming, so it drops into third-party NVRs and VMS platforms, and an API/SDK covers custom projects. On the Uniview side it works with EZStation, UNV-Link and UNV-Link Pro, with TLS 1.3 and HTTPS securing remote connections.
What night vision performance should I expect?
Smart IR reaches 150 m, and the LightHunter sensor keeps color images down to 0.001 lux (F1.5, AGC on), dropping to 0 lux with IR in complete darkness. Digital defog, heatwave reduction and 120 dB WDR keep the picture usable in haze, heat shimmer and strong backlight.
Can it patrol several positions automatically?
Yes. Route patrol supports 16 patrols with up to 32 actions each, so the dome can sweep gate, fence, parking and loading areas on a schedule without an operator. Smart intrusion prevention — cross-line, intrusion, enter/leave area with false-alarm filtering — plus people counting run alongside the patrols.
How is footage stored if my network is unstable?
Edge storage takes a microSD card up to 512 GB, and ANR bridges outages: the camera records locally while the network is down, then backfills the recorder when it recovers. NAS (NFS) is supported as network storage, so unstable rural or cross-site links do not cost you evidence.
Is it OK for coastal or high-temperature outdoor sites?
The IP66-rated housing keeps out dust and driven rain, and the camera operates from -40 to 70 °C, covering humid coastal towns and hot inland sites alike. Up to 32 users on three permission levels can access it, and bit rate control from 128 Kbps to 16 Mbps suits limited uplinks.
