PTZ Cameras › IPC6628SR-X25E-VH2
Uniview (UNV) · PTZ CameraIPC66 Series · Starlight IR Speed Dome
8MP X25 Starlight IR PTZ Camera · UNV Auto-Tracking
IPC6628SR-X25E-VH2
A 25× optical zoom speed dome that finds detail fast and holds it steady: UNV Large Model auto-tracking locks onto vehicles, cyclists and pedestrians through occlusion and high-speed motion, while 120 dB WDR and 200 m smart IR keep the image usable from bright daylight into total darkness.
3840×2160 · main stream @30fps25× · optical zoom (8× digital)UNV Large Model · auto trackingFace DB · 16 libs · 100k facesIP67 · IK10 · outdoor vandal-proofPoE · 802.3at · or DC24V / AC24V
Get Best Price on WhatsApp
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Sample quantities are welcome — testing one or two units first is the normal way to start.
Compliance:ONVIF Profile SONVIF Profile GONVIF Profile M
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
The IPC6628SR-X25E-VH2 is an 8MP starlight-class PTZ dome camera with a 6-150 mm, 25× optical zoom lens (8× digital) and 120 dB true WDR. UNV Large Model auto-tracking continuously follows motor vehicles, non-motor vehicles and pedestrians through occlusion, multi-target crossing or high-speed motion, backed by smart intrusion prevention (cross line, area entry/exit) with classification-based false-alarm filtering and on-device face recognition (up to 16 libraries, 100,000 faces). 200 m smart IR illumination, heatwave reduction and adaptive defog keep the image usable at night and in poor visibility, inside an IP67/IK10 housing rated -40 °C to 70 °C.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
City streets & main roadsMixed-traffic detection classifies cars, two-wheelers and pedestrians across the roadway; adaptive glare suppression tames headlights at night and heat-haze reduction keeps summer asphalt from smearing the telephoto image.
Perimeter & fence linesCross-line, area-entry and area-exit detection with classification-based false-alarm filtering (person / non-motor / motor) means fewer nuisance alerts from blowing leaves or animals — and UNV Large Model auto-tracking locks onto real intruders through occlusion or fast movement.
Parking lots & entrances25× optical zoom reads a plate or a face across a large lot from a single pole; the 6-150 mm lens frames a wide entrance view or zooms tight on one lane without moving the pole.
Warehouses & logistics yardsPeople counting and crowd-density monitoring track loading-bay activity, while object-removed / object-left-behind detection flags stock that vanishes from — or appears at — a monitored zone.
Night & low-light sites120 dB true WDR and a starlight-class sensor keep the image usable against bright headlights or dim ambient light; when it gets fully dark, 200 m smart IR takes over automatically.
Harsh outdoor mountsIP67 sealing, IK10 vandal resistance, -40 °C to 70 °C operation and 6 kV surge protection are built for the pole nobody wants to climb twice; PoE (802.3at), DC 24 V or AC 24 V power options simplify site planning.
Not the right pick if you need…
- No built-in speaker or microphone — Audio I/O is line-level only (1 in / 1 out), so a two-way audio setup needs an external microphone and amplified speaker, unlike models with built-in audio.
- The datasheet lists the color minimum illumination value as "TBD" (not yet published by the manufacturer) — confirm actual low-light performance with your Uniview contact before specifying for near-total-darkness scenes.
- 5.44 kg with a Ø226.7 mm base — this needs one of the dedicated Dome pole/wall/ceiling brackets listed below, not a generic light-duty camera arm.
- Single optical channel only — no secondary panoramic sensor for simultaneous whole-scene overview; sites needing both a wide static view and a 25× zoom-in should pair this camera with a fixed wide-angle unit or choose a panoramic-linkage model.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT USMix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTERVerified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BESTAll discounts are quoted personally — message me on WhatsApp ↑
Key Features
Complete list from the official datasheet.
Wise-ISP image processing engine with intelligent noise reduction for stunning visual effects in low-light conditions
Smart Intrusion Prevention (SIP): cross line, enter area, leave area and intrusion detection — detects and captures motor vehicles, non-motor vehicles and pedestrians, and raises alarms
UNV LM-Auto Tracking: accurately identifies and continuously tracks motor vehicles, non-motor vehicles and pedestrians — even through occlusion, multi-target crossing or high-speed motion — with real-time adaptive bounding boxes for stable, reliable tracking
People counting: supports people-flow counting and crowd-density monitoring, applicable to various scenarios
Automatic selection of best snapshots; supports face-detection masked area
Front-end face comparison with blocklist and allowlist matching
120 dB true WDR meets image requirements in high-contrast scenes
Heatwave reduction effectively mitigates the heatwave effect in high-temperature outdoor environments and ensures clear images
Adaptive defog automatically adjusts the defog level according to fog and haze intensity
200 m (656.2 ft.) illumination distance, smart IR illumination automatically adjusts image settings to the scene, offering natural and realistic night-time images
Adaptive Highlight Compensation (HLC) automatically adjusts image brightness at night when moving vehicles are detected on the road
Advanced H.265 and SVC video compression technologies for higher compression efficiency and flexible application
ROI (region of interest) ensures image quality in areas of interest at low bandwidth
Supports picture overlay and custom OSD with various custom effects (size, color, background, style)
Two Standout Intelligent Capabilities
The two features buyers ask about most, drawn from the official datasheet.
UNV LM-AUTO TRACKING
Continuously identifies and tracks motor vehicles, non-motor vehicles and pedestrians through occlusion, multi-target crossing or high-speed motion, with real-time adaptive bounding boxes
undefined
SMART INTRUSION PREVENTION
Cross line, enter area, leave area and intrusion detection with classification-based false-alarm filtering (person / non-motor vehicle / motor vehicle)
undefined
How far can it see? (DORI — EN 62676-4)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Values shown are at full 25× telephoto, from the official datasheet's Detect/Observe/Recognize/Identify range.
Detectsomething is there
3116.3 m10223.9 ft
Observewhat is happening
1246.5 m4089.6 ft
Recognizesomeone you know
623.3 m2044.8 ft
Identifybeyond doubt
311.6 m1022.4 ft
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 56.5° wide | 2.9° tele |
|---|---|---|
| 5 m16 ft | 5.4 m17.6 ft | 0.3 m0.8 ft |
| 10 m33 ft | 10.7 m35.3 ft | 0.5 m1.7 ft |
| 15 m49 ft | 16.1 m52.9 ft | 0.8 m2.5 ft |
| 20 m66 ft | 21.5 m70.5 ft | 1.0 m3.4 ft |
| 30 m98 ft | 32.2 m106 ft | 1.5 m5.0 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Max Resolution | 8 MP |
| Sensor | 1/1.8" CMOS |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 56 dB |
Lens & Field of View
| Focal Length | 6 to 150 mm |
| Optical Zoom | 25X |
| Digital Zoom | 8X |
| Iris | F1.5 to F3.4 |
| Field of View (H) | 56.51° to 2.93° |
| Field of View (V) | 33.64° to 1.65° |
| Field of View (D) | 69.50° to 3.45° |
Illuminator
| IR On/Off Control | Auto/Manual |
| Illumination Distance (IR) | 200 m (656.2 ft.) |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| BLC | Support |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| Defog | Digital defog |
| Low Illumination Characteristics | ColorHunter with Wise-ISP |
| Image Stabilization | EIS (Gyroscope) |
Video
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream Max: 8 MP (3840×2160), 30 fps · Main Stream Default: 8 MP (3840×2160), 25 fps · Sub Stream Max: 1080P (1920×1080), 30 fps · Third Stream Max: D1 (720×576), 30 fps · Fourth Stream Max: D1 (720×576), 30 fps · Fifth Stream Max: D1 (720×576), 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| Privacy Mask | 24 areas, up to 8 areas per scene |
| ROI | Up to 8 areas |
| Video Stream | Five streams |
| OSD | Up to 10 OSDs |
| Frame Rate Recommendation | 3840×2160@30fps + 1080P@30fps + D1@30fps + D1@30fps + D1@30fps · 3072×2048@30fps + 1080P@30fps + D1@30fps + D1@30fps + D1@30fps · 2688×1520@30fps + 1080P@30fps + D1@30fps + D1@30fps + D1@30fps · 2560×1440@30fps + 1080P@30fps + D1@30fps + D1@30fps + D1@30fps · 1080P@30fps + 1080P@30fps + D1@30fps + D1@30fps + D1@30fps |
Audio
| Two-way Audio | Support |
| Suppression | Support |
| Audio Compression | G.711U, G.711A |
| Sampling Rate | 8 kHz, 16 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | NAS (NFS) |
Intelligent
| People Counting | Support people flow counting and crowd density detection |
| Exception Detection | Object removed, Object left behind |
| Auto Tracking | UNV Large Model |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Recognition | Face Recognition: max support 16 face libraries, max supports 100,000 faces in face library |
PTZ
| Pan Range | 360° (endless) |
| Tilt Range | -15° to 90° (auto flip) |
| Pan Speed | 0.1°/s to 288°/s |
| Tilt Speed | 0.1°/s to 288°/s |
| Number of Presets | 1024 |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | Support |
| Home Position | Support |
Events
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input |
Network & Security
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols | IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP, HTTPS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile M), SDK, API |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ · Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
Interface
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
Certification
| Safety | UL (UL 62368-1); CUL (CAN/CSA C22.2 No. 62368-1); CE-LVD (EN IEC 62368-1) |
| EMC | CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130); FCC SDoC (47 CFR Part 15; Subpart B) |
| Environment | CE-ROHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529); IK10 (IEC 62262; Anti-Vandalism Except for the Front Window) |
General
| Power | DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at) |
| Power Consumption | Max. 20.9 W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | Ø226.7 mm × 390.2 mm (Ø8.9" × 15.4") (Ø × H) |
| Weight | 5.44 kg (11.99 lb.) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Configurable P/N | Support |
| Compliance | NDAA Compliant: Support |

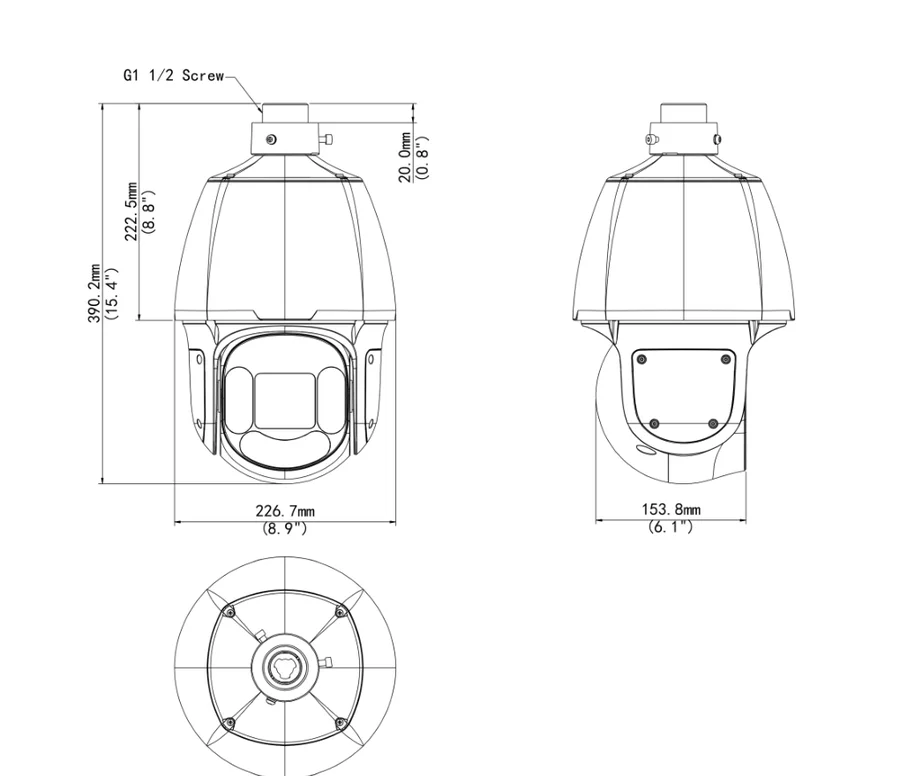

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
unit: mm (in.)
| Dimensions | Ø226.7 mm × 390.2 mm (Ø8.9" × 15.4") (Ø × H) |
| Weight | 5.44 kg (11.99 lb.) |
| Power | DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at) · Max. 20.9 W |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), ≤95% RH non-condensing |
| Protection | IP67 (IEC 60529) · IK10 (IEC 62262, except front window) · 6 kV surge |
| Reset Button | [object Object] |
Optional Mounting Accessories
Order together with the camera to save shipping.
TR-UF45-A-INDome indoor ceiling mounting pedestal
TR-SE45-A-INDome ceiling mounting pole 500
TR-SE45-INDome ceiling mounting pole 200
TR-CE45-INDome indoor ceiling mounting bracket
TR-WE45-INDome wall mounting bracket
TR-WE45-A-INLong wall mounting bracket for dome
TR-JB12-INDome junction box
TR-WE45-B-INDome gooseneck bracket
TR-UP08-A-INDome pole mounting bracket
TR-UP08-B-INAluminium alloy pole mounting bracket
TR-UC08-A-INDome corner mounting bracket
TR-UC08-B-INAluminium alloy corner mounting bracket
8MP 25x PTZ Camera FAQ — IPC6628SR-X25E-VH2
How far can the IPC6628SR-X25E-VH2 see at night?
Built-in IR reaches 200 m (656 ft) with auto or manual control. ColorHunter low-light processing with Wise-ISP keeps usable color under weak street lighting, and 120 dB WDR handles headlights and strong backlight, so gates and access roads stay readable after dark.
How much area can one camera cover with the 25x zoom?
The 6–150 mm lens gives 25x optical plus 8x digital zoom, with a horizontal field of view from 56.51° down to 2.93° at full telephoto. Pan is 360° endless and tilt runs -15° to 90° with auto flip, so one pole position can sweep an entire yard.
Does it track people and vehicles automatically?
Yes. Auto tracking runs on the UNV Large Model, and smart intrusion prevention adds cross-line, intrusion and enter/leave-area detection with false alarm filtering. People flow counting and crowd density detection are also supported, which suits markets, terminals and stadium approaches.
Can it record locally without an NVR?
Yes. Edge storage accepts a MicroSD card up to 512 GB, and NAS (NFS) network storage is supported. Ultra 265 compression keeps the bit rate between 128 Kbps and 16 Mbps, and the camera serves five streams with a 4K main stream at up to 30 fps.
Does the IPC6628SR support face recognition?
Yes. It manages up to 16 face libraries with a maximum of 100,000 faces per library. Exception detection also flags object removed and object left behind, and two-way audio (G.711U/G.711A) lets a control-room operator talk through the camera to challenge intruders.
Is it built for harsh outdoor installations?
The housing is rated IP67 against dust and water and IK10 against impact. Gyroscope-based EIS steadies the picture on wind-shaken poles, while digital defog, HLC and BLC keep footage usable in haze, glare and headlight flare — typical roadside and port conditions.
