IP Cameras › Uho-B2D-M3F3(4)D

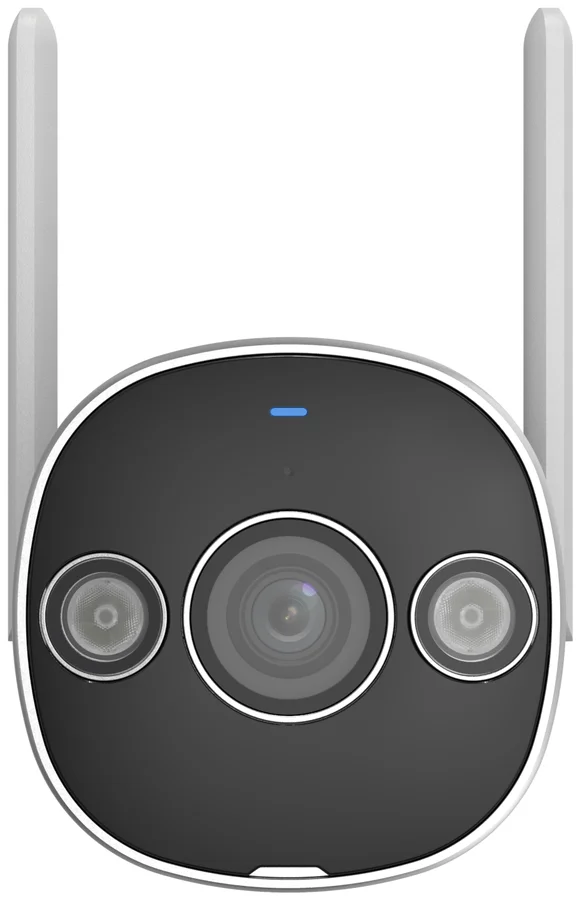

3MP Wi-Fi Dual-Light Bullet Camera Uho-B2D-M3F3(4)D — view 1

3MP Wi-Fi Dual-Light Bullet Camera Uho-B2D-M3F3(4)D — view 2

UniarchWi-Fi Dual-Light Bullet

3MP Wi-Fi Dual-Light Bullet

Uho-B2D-M3F3(4)D

Name: Uniarch Uho-B2D-M3F3(4)D
Brand: Uniarch
SKU: Uho-B2D-M3F3(4)D

3MP fixed-lens Wi-Fi bullet camera — no network cable to the camera, just power and connect over 2.4GHz Wi-Fi. IR night vision + warm light for full-color alerts, two-way audio, IP67 outdoor body.

3 MP · 1296P@25fpsWi-Fi · 2.4GHz built-in antennaDual Light · IR 20m + warm 10mDC12V · adapter powerIP67 · outdoorTwo-Way Audio · mic + speaker

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

M3F3D (2.8 mm, 108.5° view) covers a wide area near the camera — doorways, small yards, driveway entrances. M3F4D (4.0 mm, 87.3° view) trades width for reach — long driveways, fence lines, further gates. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

20 mIR night vision

10 mWarm light

IP67Outdoor rated

5.7 WMax power

The Uniarch Uho-B2D-M3F3(4)D is a 3MP Wi-Fi bullet camera built for sites where running a network cable isn't practical. It powers from a standard DC12V adapter and connects over built-in 2.4GHz Wi-Fi — no PoE switch or NVR cabling required, just a power outlet nearby. It combines dual-light illumination (20m IR + 10m warm light, switchable), ultra motion detection, two-way audio (mic and speaker), and an IP67 metal-and-plastic body rated for −30°C to 60°C. It is offered with two fixed lenses: 2.8mm (M3F3D, wider view) or 4.0mm (M3F4D, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Rentals & sites without spare network runsNo PoE switch or NVR cable run needed — plug into any nearby outlet and join the site Wi-Fi. Move it to a new spot without touching a cable.

Home gates & yardsThe warm light switches on at night for full-color footage of visitors, and two-way audio lets you speak to them directly from the app.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat outdoors, day after day. M3F4D watches long fence lines.

Checking in from your phonePair it with the Uniarch APP for live view, push alerts and playback from anywhere — no NVR required for basic remote viewing.

Local backup you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — no monthly cloud subscription required to have a recording.

Quick DIY installsNo electrician or cable-puller needed — mount, plug in, and connect to Wi-Fi from the app in a few minutes.

Not the right pick if you need…

PoE power — this camera has no PoE port, it needs its own outlet with the included DC12V adapter
Always-on color night vision — full color only shows when the warm light is on (manual or event-triggered); the discreet IR-only mode is black & white
Vandal resistance — the datasheet lists IP67 ingress protection only, no IK impact rating
A one-time fixed focal length choice at purchase — the lens is fixed (2.8 or 4.0 mm), chosen when you order, not zoomable on site
Rock-solid connectivity regardless of Wi-Fi signal — performance depends on the strength of the site's 2.4GHz Wi-Fi signal at the mounting spot

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 3MP, 1/3.0" CMOS sensor and F1.6 aperture lens

3MP (2304×1296)@25/20 fps; 2MP (1920×1080)@30/25 fps; 720P (1280×720)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

Built-in mic

Built-in speaker

Smart IR, up to 20m (66ft) IR distance

Warm Light, up to 10m (33ft) warm light distance

Support Dual Light mode, switch between IR and warm lights when the preset is triggered

Supports 512 GB Micro SD card

Wi-Fi connection and easy installation

IP67 protection

3-Axis adjustment

Dual Light: two ways to see the night

Switchable Auto/Manual, or auto-switch when a preset is triggered — set it per site.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 20 m (66 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording.

WARM LIGHT MODE

Visible warm light — full-color footage and active deterrence

Warm light up to 10 m (33 ft.) keeps faces and clothing colors visible at night — and tells visitors and intruders the area is watched.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

46.7 m153.1 ft

Observewhat is happening

18.7 m61.2 ft

Recognizesomeone you know

9.3 m30.6 ft

Identifya stranger's face

4.7 m15.3 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	F3 · 108.5°	F4 · 87.3°
5 m16 ft	13.9 m45.6 ft	9.5 m31.3 ft
10 m33 ft	27.8 m91.1 ft	19.1 m62.6 ft
15 m49 ft	41.7 m137 ft	28.6 m93.9 ft
20 m66 ft	55.6 m182 ft	38.2 m125 ft
30 m98 ft	83.3 m273 ft	57.2 m188 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:F3 = 2.8 mmF4 = 4.0 mm

Camera

Max Resolution	3 MP
Sensor	1/3.0" CMOS
Min. Illumination	Colour: 0.003 lux (F1.6, AGC ON), 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	F3 · 2.8 mmF4 · 4.0 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	F3 · 108.5°F4 · 87.3°
Field of View (V)	F3 · 62.9°F4 · 47.4°
Field of View (D)	F3 · 118.1°F4 · 101.0°

DORI

DORI Distance (Detect)	F3 · 46.7 m (153.1 ft.)F4 · 66.7 m (218.7 ft.)
DORI Distance (Observe)	F3 · 18.7 m (61.2 ft.)F4 · 26.7 m (87.5 ft.)
DORI Distance (Recognize)	F3 · 9.3 m (30.6 ft.)F4 · 13.3 m (43.7 ft.)
DORI Distance (Identify)	F3 · 4.7 m (15.3 ft.)F4 · 6.7 m (21.9 ft.)

Illuminator

Supplemental Light	Dual light
Illumination Distance (IR)	20 m (65.6 ft.)
Illumination Distance (Warm Light)	10 m (32.8 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 3MP (2304×1296), max. 25 fps; 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 2048 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Support (only NVR)
ROI	Up to 8 areas
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	N/A
BLC	N/A
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection, Audio detection, Tampering alarm
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration	API, SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless Standards	IEEE802.11b/g/n
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20 MHz Support
Modulation Mode	802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM/HT
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 14±1.5 dBm@54 Mbps; 802.11n: 12.5±1.5 dBm@150 Mbps
Receive Sensitivity	802.11b: -90 dBm@11 Mbps (Typical); 802.11g: -75 dBm@54 Mbps (Typical); 802.11n: -74 dBm@150 Mbps (Typical)
Transmission Rate	802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

Protection	IP67 (IEC 60529)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

Power	DC 12 V±25%
Power Consumption	Max. 5.7 W
Power Interface	Ø5.5 mm coaxial power plug
Material	Metal + Plastic
Dimensions	148 × 78 × 78 mm (5.8" × 3.1" × 3.1") (L × W × H)
Weight	0.31 kg (0.68 lb.)
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
LED Indicator	1, red/blue

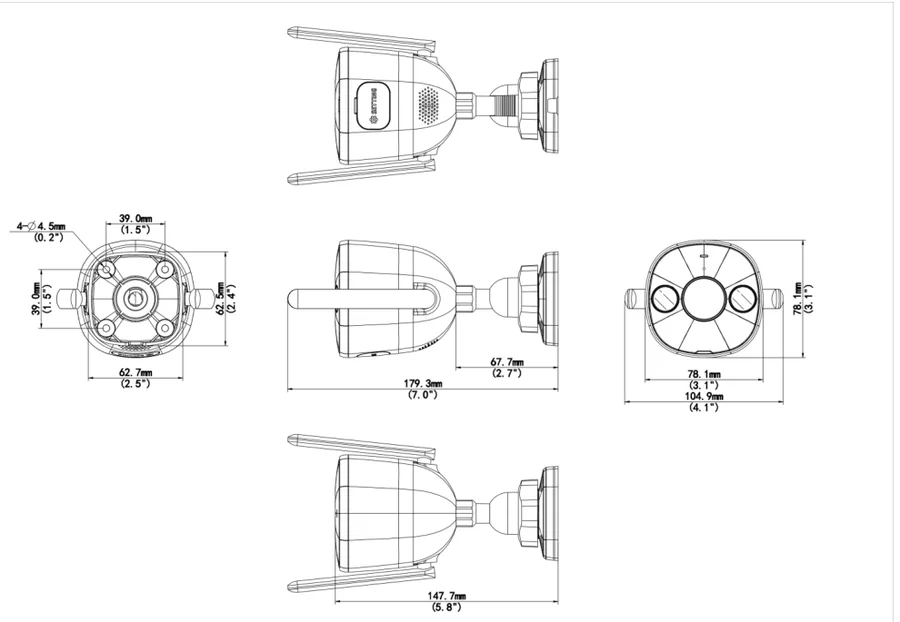

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	148 × 78 × 78 mm (5.8" × 3.1" × 3.1")
Weight	0.31 kg (0.68 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB05-A-INSmall bullet junction box (support wiring from behind, square)

TR-UP06-B-INBullet pole mounting bracket

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-SM05-INSwitch box adapter for fixed dome

3MP Dual-Light Wi-Fi Camera FAQ — Uho-B2D-M3F3(4)D

What does dual-light night vision actually give me?

You choose per scene: invisible 850 nm IR up to 20 m for discreet black-and-white footage, or warm white light up to 10 m that keeps faces and clothing colors visible — and openly tells people the area is watched. Color starts at just 0.003 lux thanks to the F1.6 lens.

Can I install it without a PoE switch or network cabling?

Yes. The camera joins your Wi-Fi network and powers from a nearby outlet, so there is no PoE switch and no LAN run. With its IP67-rated housing it mounts outdoors on walls or eaves — practical for shops, homes and small warehouses without structured cabling.

Does it support two-way audio?

Yes — two-way audio is supported with G.711U/A compression at 64 Kbps, so you can hear the scene and answer a visitor or warn off an intruder remotely. Audio detection and a tampering alarm can trigger events alongside standard and ultra motion detection.

Which lens option fits my site, 2.8 mm or 4.0 mm?

The 2.8 mm lens sees 108.5° horizontally with DORI detection to 46.7 m and identification to 4.7 m — right for compounds, rooms and yards. The 4.0 mm option tightens to 87.3° and pushes detection to 66.7 m, identification to 6.7 m — better for driveways, gates and passages.

What resolution does it record, and does it need an NVR?

The main stream is 3 MP (2304×1296) at up to 25 fps, with a lighter sub stream for remote viewing; compression is Ultra 265/H.265/H.264 at 128–2048 Kbps. Recordings can go to a MicroSD card inside the camera, so it runs standalone — an NVR is optional, not required.
