IP Cameras › Uho-B2R-M2F3(4)

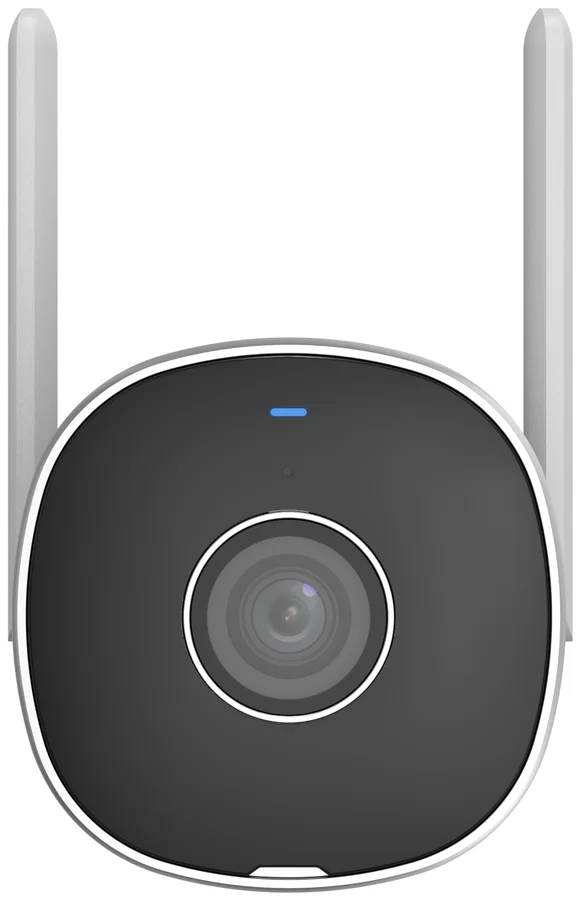

2MP Wi-Fi IR Bullet Camera Uho-B2R-M2F3(4) — view 1

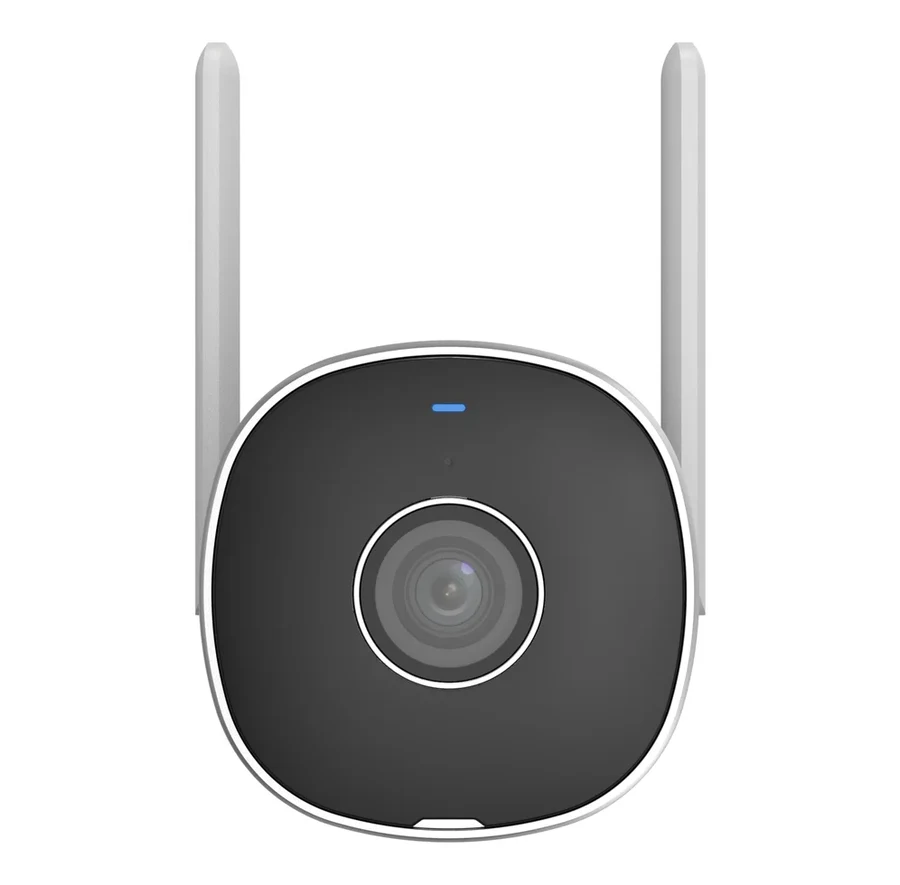

2MP Wi-Fi IR Bullet Camera Uho-B2R-M2F3(4) — view 2

UniarchWi-Fi IR Bullet

2MP Wi-Fi IR Bullet

Uho-B2R-M2F3(4)

Name: Uniarch Uho-B2R-M2F3(4)
Brand: Uniarch
SKU: Uho-B2R-M2F3(4)

2MP fixed-lens Wi-Fi bullet camera — no network cable to the camera, just power and connect over 2.4GHz Wi-Fi. Two-way audio, IR night vision to 20m, IP67 outdoor body.

2 MP · 1080P@30fpsWi-Fi · 2.4GHz built-in antennaHuman Detection · fewer false alertsDC12V · adapter powerIP67 · outdoorTwo-Way Audio · mic + speaker

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

M2F3 (2.8 mm, 95.5° view) covers a wide area near the camera — doorways, small yards, driveway entrances. M2F4 (4.0 mm, 81.1° view) trades width for reach — long driveways, fence lines, further gates. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

20 mIR night vision

Wi-Fi2.4GHz, no cable needed

IP67Outdoor rated

5.6 WMax power

The Uniarch Uho-B2R-M2F3(4) is a 2MP Wi-Fi bullet camera built for sites where running a network cable isn't practical. It powers from a standard DC12V adapter and connects over built-in 2.4GHz Wi-Fi — no PoE switch or NVR cabling required, just a power outlet nearby. It combines human body detection, two-way audio (mic and speaker), Smart IR night vision up to 20m, and an IP67 metal-and-plastic body rated for −30°C to 60°C. It is offered with two fixed lenses: 2.8mm (M2F3, wider view) or 4.0mm (M2F4, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Rentals & sites without spare network runsNo PoE switch or NVR cable run needed — plug into any nearby outlet and join the site Wi-Fi. Move it to a new spot without touching a cable.

Home gates & yardsHuman body detection focuses alerts on people approaching, and two-way audio lets you speak to a visitor directly from the app.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat outdoors, day after day. M2F4 watches long fence lines.

Checking in from your phonePair it with the Uniarch APP for live view, push alerts and playback from anywhere — no NVR required for basic remote viewing.

Local backup you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — no monthly cloud subscription required to have a recording.

Quick DIY installsNo electrician or cable-puller needed — mount, plug in, and connect to Wi-Fi from the app in a few minutes.

Not the right pick if you need…

PoE power — this camera has no PoE port, it needs its own outlet with the included DC12V adapter
Full-color night vision — this is IR-only, night video is black & white, not color
Vehicle classification — detection here is human-body only, it does not tell people apart from vehicles
A one-time fixed focal length choice at purchase — the lens is fixed (2.8 or 4.0 mm), chosen when you order, not zoomable on site
Rock-solid connectivity regardless of Wi-Fi signal — performance depends on the strength of the site's 2.4GHz Wi-Fi signal at the mounting spot

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 2MP, 1/3.0" CMOS sensor and F1.6 aperture lens

2MP (1920×1080)@30/25 fps; 720P (1280×720)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

Built-in mic

Built-in speaker

Smart IR, up to 20m (66ft) IR distance

Supports 512 GB Micro SD card

Wi-Fi connection and easy installation

IP67 protection

3-Axis adjustment

Night vision: infrared only

Switchable Auto/Manual IR — set it per site.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 20 m (66 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

46.7 m153.1 ft

Observewhat is happening

18.7 m61.2 ft

Recognizesomeone you know

9.3 m30.6 ft

Identifya stranger's face

4.7 m15.3 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	F3 · 95.5°	F4 · 81.1°
5 m16 ft	11.0 m36.1 ft	8.6 m28.1 ft
10 m33 ft	22.0 m72.2 ft	17.1 m56.1 ft
15 m49 ft	33.0 m108 ft	25.7 m84.2 ft
20 m66 ft	44.0 m144 ft	34.2 m112 ft
30 m98 ft	66.1 m217 ft	51.3 m168 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:F3 = 2.8 mmF4 = 4.0 mm

Camera

Max Resolution	2 MP
Sensor	1/3.0" CMOS
Min. Illumination	Colour: 0.003 lux (F1.6, AGC ON), 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	F3 · 2.8 mmF4 · 4.0 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	F3 · 95.5°F4 · 81.1°
Field of View (V)	F3 · 53.1°F4 · 44.2°
Field of View (D)	F3 · 110.4°F4 · 94.7°

DORI

DORI Distance (Detect)	F3 · 46.7 m (153.1 ft.)F4 · 66.7 m (218.7 ft.)
DORI Distance (Observe)	F3 · 18.7 m (61.2 ft.)F4 · 26.7 m (87.5 ft.)
DORI Distance (Recognize)	F3 · 9.3 m (30.6 ft.)F4 · 13.3 m (43.7 ft.)
DORI Distance (Identify)	F3 · 4.7 m (15.3 ft.)F4 · 6.7 m (21.9 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	Up to 20 m (66 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 2048 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Support (only NVR)
ROI	Up to 8 areas
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	N/A
BLC	N/A
Defog	Digital defog

Events

Basic Detection	Human body detection, Motion detection, Audio detection
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration	API, SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless Standards	IEEE802.11b/g/n
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20 MHz Support
Modulation Mode	802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM/HT
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 14±1.5 dBm@54 Mbps; 802.11n: 12.5±1.5 dBm@150 Mbps
Receive Sensitivity	802.11b: -90 dBm@11 Mbps (Typical); 802.11g: -75 dBm@54 Mbps (Typical); 802.11n: -74 dBm@150 Mbps (Typical)
Transmission Rate	802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

Protection	IP67 (IEC 60529)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

Power	DC 12 V±25%
Power Consumption	Max. 5.6 W
Power Interface	Ø5.5 mm coaxial power plug
Material	Metal + Plastic
Dimensions	148 × 78 × 78 mm (5.8" × 3.1" × 3.1") (L × W × H)
Weight	0.31 kg (0.68 lb.)
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
LED Indicator	1, red/blue

Dimensions

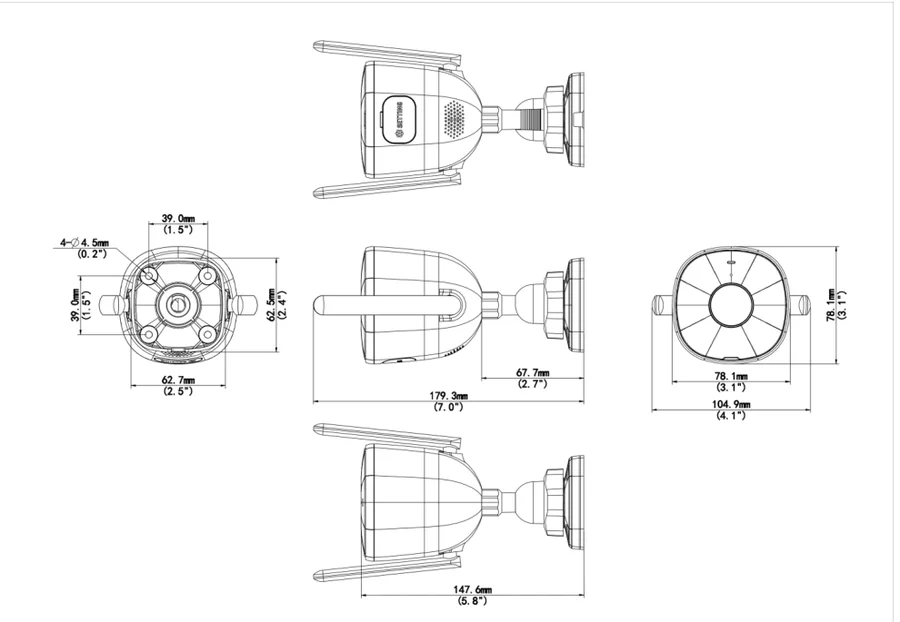

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	148 × 78 × 78 mm (5.8" × 3.1" × 3.1")
Weight	0.31 kg (0.68 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB05-A-INSmall bullet junction box (support wiring from behind, square)

TR-UP06-B-INBullet pole mounting bracket

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-SM05-INSwitch box adapter for fixed dome

2MP Two-Way Audio Wi-Fi Camera FAQ — Uho-B2R-M2F3(4)

How is it installed if there is no network cabling on site?

That is exactly what it is built for: it joins your Wi-Fi network and takes power from a nearby outlet, so no PoE switch and no LAN pull. Mount the IP67-rated bullet on a wall or eave, connect power, pair it with your network and it is running.

Can I talk to whoever is in front of the camera?

Yes. Two-way audio is supported with G.711U/A compression at 64 Kbps and echo suppression, so conversations stay intelligible. You can receive a delivery, answer a customer at the gate or verbally warn off an intruder without going outside.

What is the night vision range?

Smart IR reaches up to 20 m (66 ft) at 850 nm — invisible to the eye, so the camera watches without lighting up the scene. The F1.6 lens holds color down to 0.003 lux, and with IR on it records at 0 lux; ICR switching is automatic.

Should I take the 2.8 mm or the 4.0 mm lens version?

The 2.8 mm covers 95.5° horizontally with DORI detection at 46.7 m and identification at 4.7 m — pick it for rooms, small yards and wide entrances. The 4.0 mm narrows to 81.1° but reaches 66.7 m detection and 6.7 m identification — pick it for corridors and driveways.

What detections does it run, and where is video stored?

It runs human body detection, motion detection and audio detection, so alerts focus on people rather than every moving shadow. The main stream records 1080p at up to 30 fps in Ultra 265/H.265/H.264 (128–2048 Kbps), saved to a MicroSD card in the camera.
