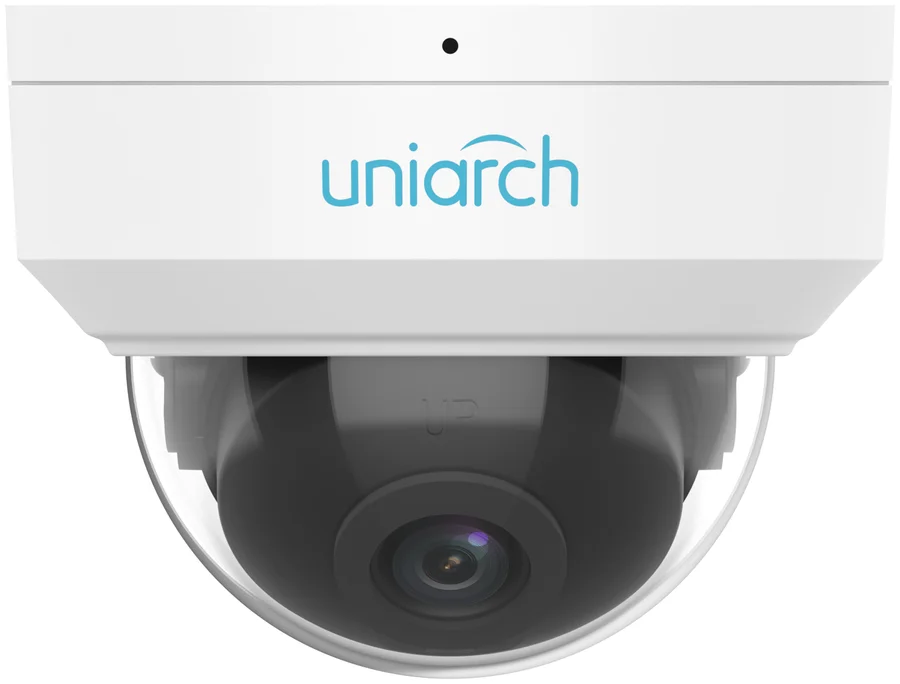

2MP Wi-Fi IR Dome Camera Uho-D1R-M2F3-A — view 1

2MP Wi-Fi IR Dome Camera Uho-D1R-M2F3-A — view 2

UniarchWi-Fi IR Dome

2MP Wi-Fi IR Dome

Uho-D1R-M2F3-A

Name: Uniarch Uho-D1R-M2F3-A
Brand: Uniarch
SKU: Uho-D1R-M2F3-A

2MP fixed-lens Wi-Fi dome camera — no network cable to the camera, just power and connect over 2.4GHz Wi-Fi. IR night vision to 30m, IK10 vandal-resistant, IP67 body, built-in mic.

2 MP · 1080P@25fpsWi-Fi · 2.4GHz built-in antennaUltra Motion · human/vehicleIK10 · vandal-resistantIP67 · outdoorMic · built-in audio

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67IK10

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mIR night vision

IK10Vandal resistant

IP67Outdoor rated

2.2 WMax power

The Uniarch Uho-D1R-M2F3-A is a 2MP Wi-Fi dome camera built for sites where running a network cable isn't practical. It powers from a standard DC12V adapter and connects over built-in 2.4GHz Wi-Fi — no PoE switch or NVR cabling required, just a power outlet nearby. It combines ultra motion detection (human/vehicle aware), Smart IR night vision up to 30m, a built-in mic, and an IK10 vandal-resistant, IP67 metal-and-plastic body rated for −30°C to 60°C. The fixed 2.8mm lens gives a wide 103° field of view.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Rentals & sites without spare network runsNo PoE switch or NVR cable run needed — plug into any nearby outlet and join the site Wi-Fi. Move it to a new spot without touching a cable.

Home gates & yardsUltra motion detection tells people from passing cars and stray animals, cutting false phone alerts to what actually matters.

Warehouse & site perimetersIK10 vandal-resistant body plus IP67 and −30 to 60 °C rating survive impact, rain, dust and heat outdoors, day after day.

Checking in from your phonePair it with the Uniarch APP for live view, push alerts and playback from anywhere — no NVR required for basic remote viewing.

Local backup you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — no monthly cloud subscription required to have a recording.

Quick DIY installsNo electrician or cable-puller needed — mount, plug in, and connect to Wi-Fi from the app in a few minutes.

Not the right pick if you need…

PoE power — this camera has no PoE port, it needs its own outlet with the included DC12V adapter
Full-color night vision — this is IR-only, night video is black & white, not color
Two-way talk — it has a built-in mic but no speaker
Zoom or a choice of focal lengths — the lens is fixed at 2.8 mm only, not adjustable and not offered in other focal lengths
Rock-solid connectivity regardless of Wi-Fi signal — performance depends on the strength of the site's 2.4GHz Wi-Fi signal at the mounting spot

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 2MP, 1/3.0" CMOS sensor

2MP (1920×1080)@25/20 fps; 720P (1280×720)@25/20 fps

Ultra motion detection (based on human body and vehicle detection)

Support digital WDR (Wide Dynamic Range)

Ultra 265, H.265, H.264

Built-in mic

Smart IR, up to 30m (98ft) IR distance

MicroSD, up to 512 GB

IK10 vandal resistant

IP67 protection

3-Axis adjustment

Night vision: infrared only

Switchable Auto/Manual IR — set it per site.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

46.7 m153.1 ft

Observewhat is happening

18.7 m61.2 ft

Recognizesomeone you know

9.3 m30.6 ft

Identifya stranger's face

4.7 m15.3 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	103.0°
5 m16 ft	12.6 m41.2 ft
10 m33 ft	25.1 m82.5 ft
15 m49 ft	37.7 m124 ft
20 m66 ft	50.3 m165 ft
30 m98 ft	75.4 m247 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	2 MP
Sensor	1/3.0" CMOS
Min. Illumination	Colour: 0.01 lux (F2.0, AGC ON), 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 352°, Tilt: 0° to 70°, Rotate: 0° to 350°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	2.8 mm
Iris Type	Fixed
Iris	F2.0
Field of View (H)	103.0°
Field of View (V)	60.7°
Field of View (D)	108.4°

DORI

DORI Distance (Detect)	46.7 m (153.1 ft.)
DORI Distance (Observe)	18.7 m (61.2 ft.)
DORI Distance (Recognize)	9.3 m (30.6 ft.)
DORI Distance (Identify)	4.7 m (15.3 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
Frame Rate	Main Stream: 1080P (1920×1080), max. 25 fps; 720P (1280×720), max. 25 fps · Sub Stream: 640×360, max. 25 fps; 2CIF (704×288), max. 25 fps; CIF (352×288), max. 25 fps
Video Bit Rate	128 Kbps to 2048 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Support (only NVR)
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	N/A
BLC	Support
Defog	Digital defog

Events

Basic Detection	Ultra motion detection (based on human body and vehicle detection), Tampering alarm, High-Decibel detection
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Security	Password protection, Strong Password, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP
Compatible Integration	API, SDK
User/Host	Up to 6 users. 2 user levels: administrator and common user
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless Standards	IEEE802.11b/g/n
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20 MHz Support
Modulation Mode	802.11b: DSSS(CCK, DQPSK, DBPSK); 802.11g/n: OFDM(BPSK, QPSK, QAM16, QAM64)
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 14±1.5 dBm@54 Mbps; 802.11n: 12.5±1.5 dBm@72.2 Mbps
Receive Sensitivity	802.11b: -90 dBm@11 Mbps (Typical); 802.11g: -75 dBm@54 Mbps (Typical); 802.11n: -74 dBm@72.2 Mbps (Typical)
Transmission Rate	802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 72.2 Mbps

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

Protection	IP67 (IEC 60529); IK10 (IEC 62262)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN IEC 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

Power	DC 12 V±25%
Power Consumption	Max. 2.2 W
Power Interface	Ø5.5 mm coaxial power plug
Material	Metal + Plastic
Dimensions	Ø109 mm × 83 mm (Ø4.3" × 3.3") (Ø × H)
Weight	0.33 kg (0.73 lb.)
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
RTC	Support
Web Client Language	1 Language: English

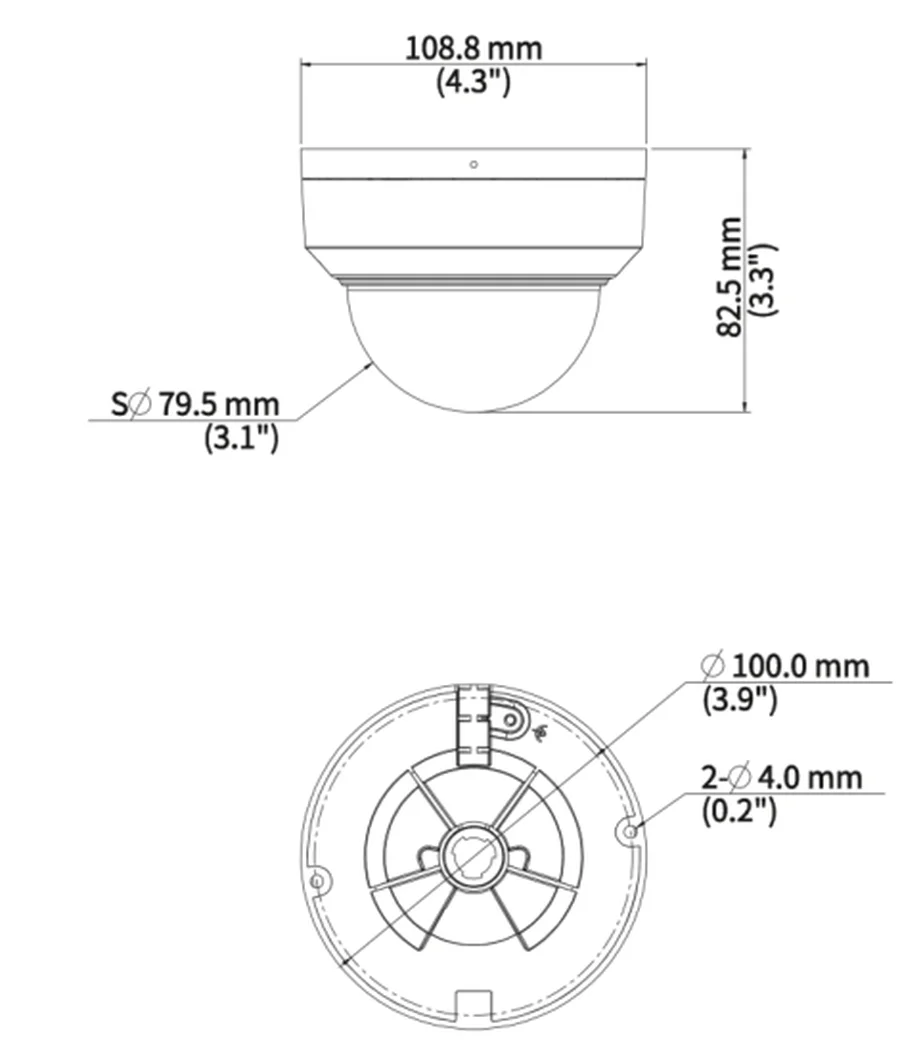

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø109 mm × 83 mm (Ø4.3" × 3.3")
Weight	0.33 kg (0.73 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 0–352° · Tilt 0–70° · Rotate 0–350°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-G-INJunction box for mini fix-dome (support wiring from behind)

HS-205SSunshade shell for fixed focus dome

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for 32 fix-dome & mini fix-dome & plastic turret camera

TR-WM03-D-IN-V2Wall mounting bracket for 32 fix-dome & mini fix-dome & plastic turret camera

TR-UM06-E-INSlant mounting bracket for fixed dome

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-SE24-INDome pendent mounting pole, 200 mm

TR-SE24-A-INDome pendent mounting pole, 500 mm

TR-CM24-INDome pendent mounting bracket (indoor)

TR-WM07P-BDome wall mounting plastic bracket

TR-FM116In-ceiling bracket for fix-dome

2MP Vandal Dome Wi-Fi Camera FAQ — Uho-D1R-M2F3-A

What does the IK10 rating mean in practice?

IK10 is the highest common impact-resistance rating for camera housings — the dome shrugs off knocks and deliberate tampering. Combine that with the tampering alarm, which fires when someone covers or blocks the lens, and it suits stairwells, kiosks, shop floors and public passages.

Do I need PoE or network cabling for this dome?

No. It connects over Wi-Fi and powers from a nearby outlet, so there is no PoE switch and no LAN run to plan. The housing is rated IP67 as well as IK10, so it works outdoors under rain and dust, not just in corridors.

How far does the night vision reach?

Smart IR covers up to 30 m (98 ft) at 850 nm — invisible light, so the dome watches without giving itself away. Minimum illumination is 0.01 lux in color and 0 lux with IR on, with automatic IR-cut switching between day and night.

Does it capture audio?

Yes, through a built-in microphone recording in G.711U/A at 64 Kbps with suppression — but note this model is listen-only, with no two-way talk. High-Decibel detection adds an alert channel for loud events such as shouting, alarms or breaking glass.

What coverage and recording specs does it have?

The fixed 2.8 mm lens sees 103° horizontally with DORI detection at 46.7 m and identification at 4.7 m. Ultra motion detection classifies people and vehicles to cut false alarms. The main stream is 1080p at up to 25 fps, Ultra 265/H.265/H.264 at 128–2048 Kbps, stored on MicroSD.
