IP Cameras › Uho-P2C-M4F4

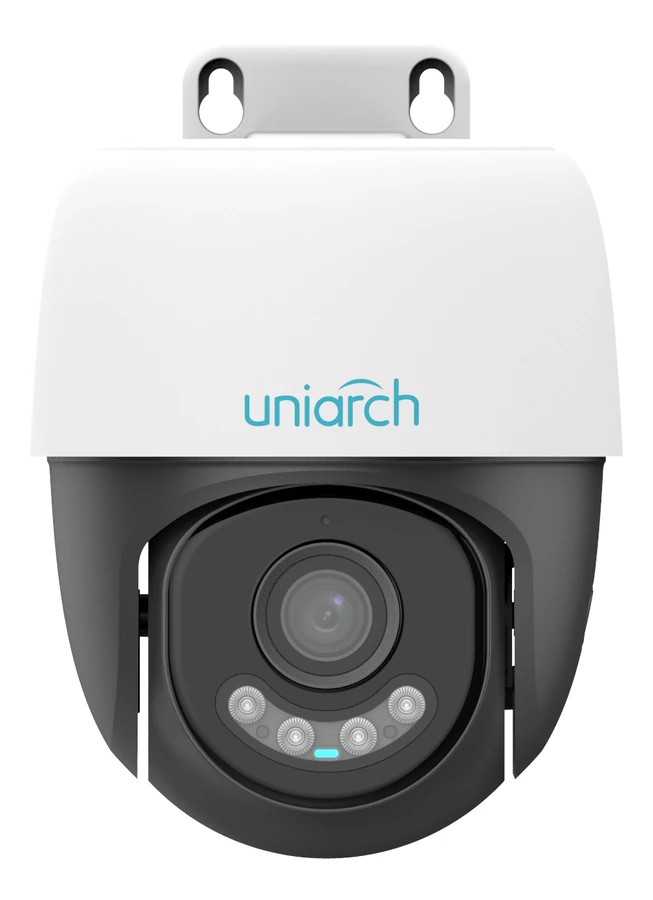

4MP Full-Color Wi-Fi PT Camera Uho-P2C-M4F4 — view 1

4MP Full-Color Wi-Fi PT Camera Uho-P2C-M4F4 — view 2

4MP Full-Color Wi-Fi PT Camera Uho-P2C-M4F4 — view 3

UniarchFull-Color Wi-Fi PT

4MP Full-Color Wi-Fi PT Camera

Uho-P2C-M4F4

Name: Uniarch Uho-P2C-M4F4
Brand: Uniarch
SKU: Uho-P2C-M4F4

4MP Wi-Fi pan-tilt camera — 24-hour full-color video via Colorhunter with Wise-ISP, warm-light illumination to 30m, and a built-in sound-and-light alarm. No PoE, no NVR — just power and 2.4GHz Wi-Fi.

4 MP · 2560×1440 @25fpsFull Color · 24-hour ColorhunterSound + Light · alarm deterrentPan-Tilt · 345° / 90°, 20 presetsTwo-way Audio · mic + speakerIP66 · outdoor

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP66

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4 MPFull-color resolution

345°Pan range

30 mWarm-light range

IP66Outdoor rated

The Uniarch Uho-P2C-M4F4 is a 4MP Wi-Fi pan-tilt camera that uses Colorhunter with Wise-ISP to keep video in full color 24 hours a day, powered by a warm-light illuminator rated to 30m instead of infrared. It connects over built-in 2.4GHz Wi-Fi — no PoE switch or NVR cabling needed — and combines a built-in mic and speaker for two-way audio with a sound-and-light alarm you can trigger to make an intruder's presence known. The IP66 metal-and-plastic body pans 345° and tilts 90° from a fixed 4.0mm, F1.0 lens, with edge storage up to 512GB via MicroSD.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Warning off intruders, not just recording themThe built-in sound-and-light alarm lets the camera flash and sound off on its own, making its presence known instead of only capturing footage after the fact.

Night footage that still shows colorColorhunter with Wise-ISP and a warm-light illuminator keep faces, vehicle colors and clothing visible in color at night, instead of the black-and-white image typical of IR cameras.

Covering a wide area from one mount345° pan and 90° tilt with 20 presets let one camera sweep a yard, driveway and gate instead of needing several fixed cameras.

Talking to whoever is at the doorThe built-in mic and speaker support two-way audio, so you can warn off a stranger or answer a visitor straight from the app.

Rentals & sites without spare network runsNo PoE switch or NVR cable run needed — plug into any nearby outlet and join the site Wi-Fi.

Local backup you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — no monthly cloud subscription required to have a recording.

Not the right pick if you need…

PoE power — this camera has no PoE port, it needs its own outlet with a DC12V adapter
Covert, invisible night lighting — the illuminator is warm (visible) light, not IR; anyone nearby can see it switch on
True optical zoom — the lens is fixed at 4.0 mm with only 4X digital zoom, not a motorized optical zoom lens
IK-rated impact resistance — this datasheet lists IP66 ingress protection only, no IK vandal-resistance rating
Confirmed ONVIF / third-party NVR integration — the datasheet lists API-level integration only, ONVIF is not mentioned

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4MP, 1/2.9" CMOS sensor and F1.0 large aperture lens

4MP (2560×1440)@25/20fps; 3MP (2304×1296)@30/25fps; 2MP (1920×1080)@30/25fps

Ultra 265, H.265, H.264

Colorhunter with Wise-ISP technology ensures 24-hour full-color images

Support digital WDR (Wide Dynamic Range)

Built-in Mic & Speaker, support two-way audio, offer better interaction

Support sound and light warning, makes warning and alarming more noticeable

Warm Light, up to 30m warm light distance

Supports 512 GB Micro SD card

Wi-Fi connection and easy installation

IP66 ingress protection

Night vision: full color, not infrared

Colorhunter + Wise-ISP + warm light keep every hour of footage in color.

WARM LIGHT MODE

Visible warm-light illumination — full-color video around the clock

Colorhunter with Wise-ISP processes the image while a warm-light illuminator lights the scene up to 30 m (98.4 ft.) — faces, clothing and vehicle colors stay visible at night. This model has a warm-light illuminator only, no infrared module, so the light is visible rather than covert.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

64.3 m210.9 ft

Observewhat is happening

25.7 m84.4 ft

Recognizesomeone you know

12.9 m42.2 ft

Identifya stranger's face

6.4 m21.1 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	85.4°
5 m16 ft	9.2 m30.3 ft
10 m33 ft	18.5 m60.5 ft
15 m49 ft	27.7 m90.8 ft
20 m66 ft	36.9 m121 ft
30 m98 ft	55.4 m182 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	4 MP
Sensor	1/2.9" CMOS
Min. Illumination	Colour: 0.0003 Lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 to 1/100000 s
S/N	> 52 dB
WDR	DWDR

Lens

Digital Zoom	4X
Focal Length	4.0 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	85.4°
Field of View (V)	47.5°
Field of View (D)	98.5°
Lens Type	Fixed

DORI

DORI Distance (Lens)	4.0mm
DORI Distance (Detect)	64.3 m (210.9 ft.)
DORI Distance (Observe)	25.7 m (84.4 ft.)
DORI Distance (Recognize)	12.9 m (42.2 ft.)
DORI Distance (Identify)	6.4 m (21.1 ft.)

Illuminator

Supplemental Light	Warm light
Illumination Distance (Warm Light)	30 m (98.4 ft.)

Video

Video Compression	Ultra 265, H.265, H.264
Frame Rate	Main Stream: 4MP (2560×1440), max. 25 fps; 3MP (2304×1296), max. 30 fps; 2MP (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Support (only NVR)
ROI	Support
Video Stream	Dual streams


Smart Illumination	Support
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	N/A
BLC	N/A
Defog	Digital defog

Events

Basic Detection	Human body detection, Motion detection, Audio detection
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Intelligent

Auto Tracking

Support

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration	API
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless Standards	IEEE802.11b/g/n/ax
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20/40 MHz Support
Modulation Mode	802.11b: DSSS(CCK); 802.11g/n: OFDM; 802.11ax: OFDMA
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 16±1.5 dBm@54 Mbps; 802.11n: 16±1.5 dBm@MCS7; 802.11ax: 16±1.5 dBm@MCS9
Receive Sensitivity	802.11b: -76 dBm@11 Mbps (Typical); 802.11g: -65 dBm@54 Mbps (Typical); 802.11n: -61 dBm@MCS7, HT40 (Typical); 802.11ax: -54 dBm@MCS9, HE40 (Typical)
Transmission Rate	802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps; 802.11ax: up to 270 Mbps

PTZ

Pan Range	0° ~ 345°
Pan Speed	1°/s ~ 40°/s Preset speed: 40°/s
Tilt Range	0° ~ 90°
Tilt Speed	1°/s ~ 30°/s Preset speed: 30°/s
Number of Presets	20

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection	IP66 (IEC 60529)

General

Power	DC 12 V±25%
Power Consumption	Max. 6.5 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Φ109 mm × 141 mm × 151 mm (Φ4.3" × 5.6" × 6.0")
Weight	0.39 kg (0.85 lb.)
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
LED Indicator	1, red/blue

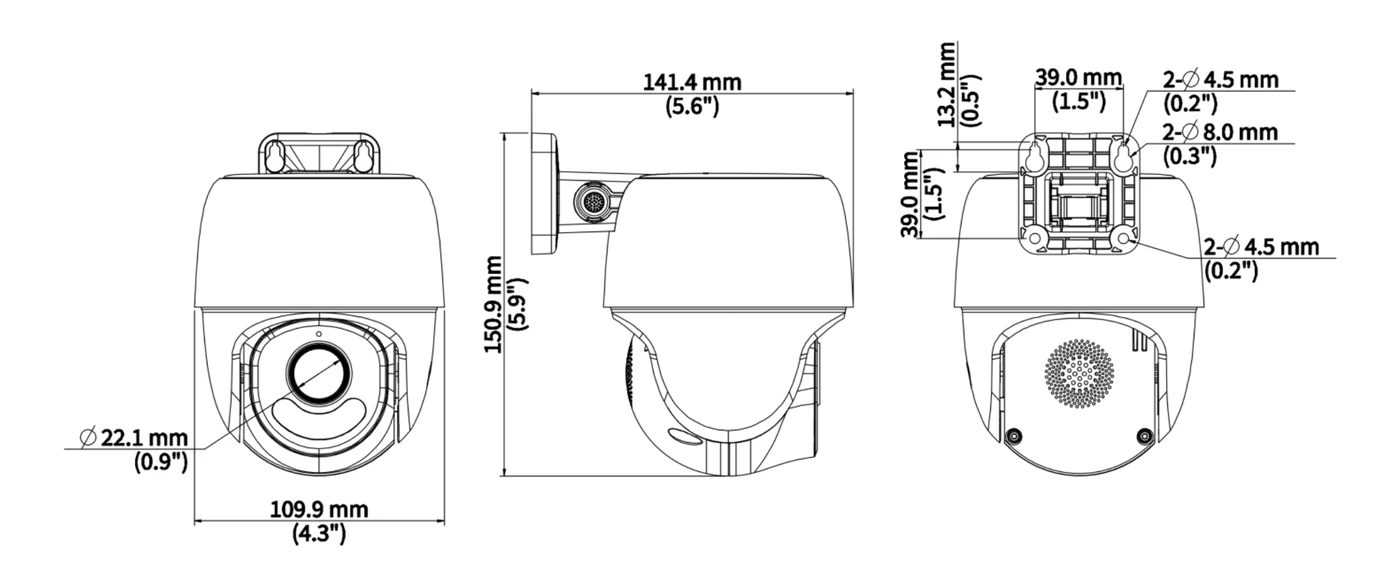

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Φ109 mm × 141 mm × 151 mm (Φ4.3" × 5.6" × 6.0")
Weight	0.39 kg (0.85 lb.)
Pan / Tilt Range	Pan 0°–345° · Tilt 0°–90°

4MP Wi-Fi Pan-Tilt Camera FAQ — Uho-P2C-M4F4

Does the Uho-P2C-M4F4 need a PoE switch or network cable?

No. It joins your network over Wi-Fi and takes power from a normal wall outlet, so no PoE switch or Ethernet run is needed. That makes installation simple in shops and homes where pulling cable is hard. Video is 4MP (2560×1440) at up to 25 fps.

How does it keep color video at night without infrared?

The 1/2.9-inch CMOS sensor and F1.0 lens work down to 0.0003 lux, and a built-in warm light illuminates up to 30 m (98.4 ft). Footage stays in full color 24 hours a day, so clothing and vehicle colors remain usable as evidence.

Can the camera deter intruders by itself?

Yes. It combines human body detection and motion detection with a built-in sound-and-light alarm, and auto tracking follows a moving person across the pan-tilt range. With two-way audio you can also speak in real time to whoever is on site through the camera.

Is the Uho-P2C-M4F4 suitable for outdoor installation?

Yes, the housing is IP66 rated against heavy rain and dust. With the 4.0 mm lens the DORI ranges are 64.3 m to detect a person, 25.7 m to observe, 12.9 m to recognize and 6.4 m to identify — plan mounting height and distance around those numbers.

How much internet bandwidth does it consume?

The bit rate is adjustable from 128 Kbps to 6144 Kbps and the camera supports Ultra 265, H.265 and H.264 with U-code. Dual streams let you record the full 4MP main stream while viewing a lighter sub stream remotely over mobile data.

What area does the lens cover?

The fixed 4.0 mm F1.0 lens gives an 85.4° horizontal and 98.5° diagonal field of view, with 4X digital zoom for a closer look. Combined with motorized pan-tilt and auto tracking, one unit can cover a yard, storefront or small warehouse aisle.
