Uho-P2S-M55F34
Outdoor Wi-Fi PTZ camera with two lenses sharing one IP address: a fixed 2.8mm 5MP Panorama lens (94.9° view, ±150° adjustable) covers the whole scene, while a motorized 4.0mm 5MP Detail lens pans 350°, tilts 0°~90° and digitally zooms 4X with Auto Tracking.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

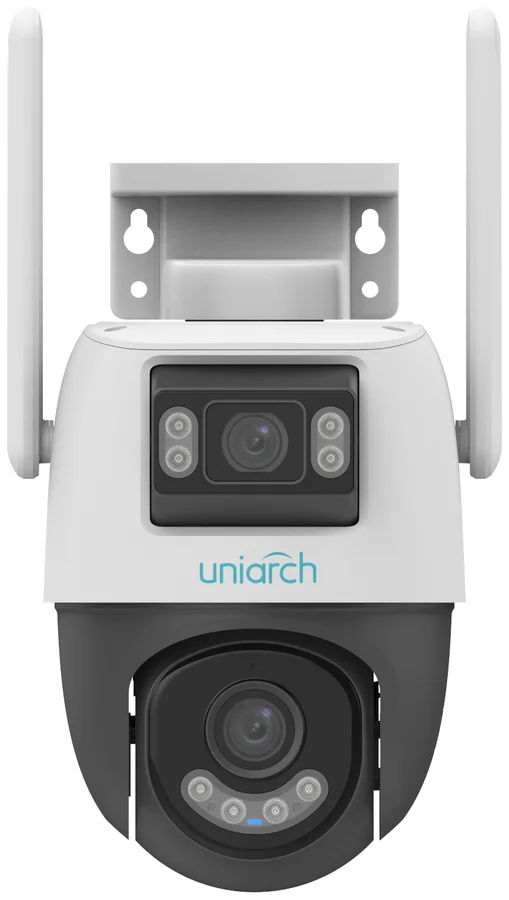

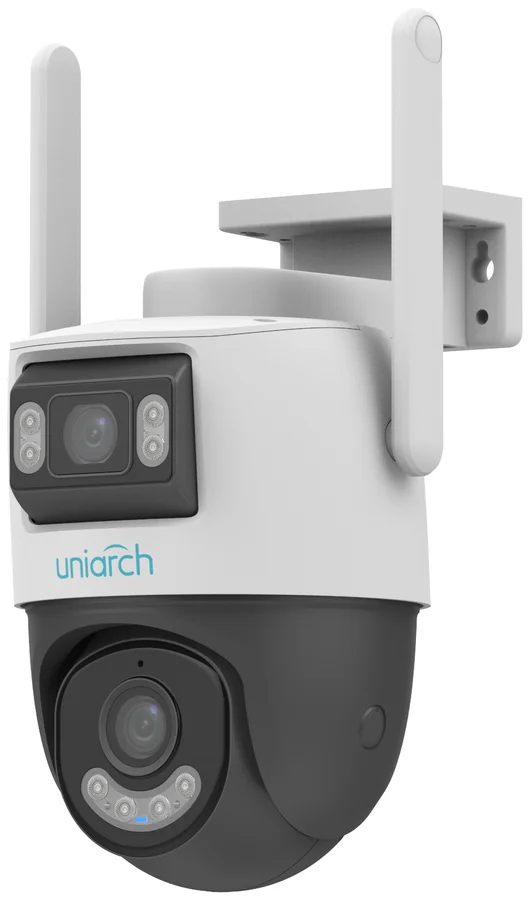

The Uniarch Uho-P2S-M55F34 puts two independent 5MP lenses on one outdoor Wi-Fi camera body, sharing a single IP address and a single DC12V power connection. The Panorama lens (2.8mm, 94.9° view) mounts on an adjustable bracket (pan -150°~150°, tilt -5°~30°) to frame the overall scene, while the motorized Detail lens (4.0mm, 350° pan, 0°~90° tilt, 4X digital zoom, Auto Tracking) follows moving subjects for a closer look without losing the wide view. It adds human/vehicle detection, audio detection, two-way audio, IR to 30m plus warm-light night vision, MicroSD storage up to 512GB and an IP66 body rated -30°C to 60°C.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
- Pet or crying-baby detection — this outdoor model's Basic Detection covers human/vehicle and audio only, not pet or crying detection
- Continuous 360° rotation — the Detail lens pans up to 350° (not a full circle); the Panorama lens is on a fixed bracket adjustable only within -150°~150°
- True optical zoom — Detail's 4X zoom is digital, not optical; Panorama has no zoom at all
- ONVIF or third-party NVR integration — this camera's integration path is its own API and the Uniarch app/client, not a listed ONVIF profile
- PoE power — there is no PoE port, power comes only from the included DC12V adapter via a 5.5mm coaxial plug
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Night vision: infrared + warm light, on both lenses
Unlike the indoor S3S models, both Panorama and Detail have their own illuminators here — Detail simply reaches further (30m vs 10m) because it is built for close inspection at distance.
Invisible infrared — discreet black & white night vision
IR illumination up to 10 m (32.8 ft.) on Panorama and 30 m (98.4 ft.) on Detail, both at 850nm. The camera watches without lighting up the scene — nothing shows it is recording.
Full-color night vision with warm light
Warm-light illumination up to 10 m (32.8 ft.) on Panorama and 30 m (98.4 ft.) on Detail keeps video in full color after dark. Switch back to IR-only whenever discretion matters more than color.
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance.
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 94.9° | 80.6° |
|---|---|---|
| 5 m16 ft | 10.9 m35.7 ft | 8.5 m27.8 ft |
| 10 m33 ft | 21.8 m71.5 ft | 17.0 m55.6 ft |
| 15 m49 ft | 32.7 m107 ft | 25.4 m83.5 ft |
| 20 m66 ft | 43.6 m143 ft | 33.9 m111 ft |
| 30 m98 ft | 65.4 m214 ft | 50.9 m167 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON); 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| S/N | > 52 dB |
| WDR | DWDR |
Lens
| Panorama | Detail | |
| Digital Zoom | N/A | 4X |
| Iris | F1.6 | |
| Field of View (H) | 94.9° | 80.6° |
| Field of View (V) | 53.7° | 44.8° |
| Field of View (D) | 100.5° | 86.7° |
| Lens Type | Fixed | |
DORI
| Panorama | Detail | |
| DORI Distance (Lens) | 2.8 mm | 4.0 mm |
| DORI Distance (Detect) | 63.0 m (206.7 ft.) | 90.0 m (295.3 ft.) |
| DORI Distance (Observe) | 25.2 m (82.7 ft.) | 36.0 m (118.1 ft.) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft.) | 18.0 m (59.1 ft.) |
| DORI Distance (Identify) | 6.3 m (20.7 ft.) | 9.0 m (29.5 ft.) |
Illuminator
| Panorama | Detail | |
| Light On/Off Control | Auto/Manual | |
| Illumination Distance (IR) | 10 m (32.8 ft.) | 30 m (98.4 ft.) |
| Illumination Distance (Warm Light) | 10 m (32.8 ft.) | 30 m (98.4 ft.) |
| Wavelength | 850 nm | |
Video
| Video Compression | Ultra 265, H.265, H.264 |
| Frame Rate (Main Stream) | 5MP (2880×1620), max. 15 fps; 4MP (2560×1440), max. 15 fps; 3MP (2304×1296), max. 15 fps; 2MP (1920×1080), max. 15 fps; 720P (1280×720), max. 15 fps |
| Frame Rate (Sub Stream) | 640×360, max. 15 fps; 2CIF (704×288), max. 15 fps; CIF (352×288), max. 15 fps |
| Video Bit Rate | 128 Kbps to 2048 Kbps |
| ROI | Up to 8 areas |
| OSD | Up to 8 OSDs |
| Privacy Mask | Support (only NVR) |
| Video Stream | Dual streams |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | N/A |
| BLC | N/A |
| Defog | Digital defog |
Events
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, High-Decibel detection |
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR |
Network
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna |
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP, ARP, UPnP |
| Compatible Integration | API |
| Client | APP, Uniarch client |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
Wi-Fi
| Wireless Standards | IEEE802.11b/g/n/ax |
| Frequency Range | 2.4 GHz to 2.4835 GHz |
| Channel Bandwidth | 20/40 MHz Support |
| Modulation Mode | 802.11b: CCK; 802.11g/n: OFDM; 802.11ax: OFDMA |
| Wi-Fi Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK |
| Transmit Power | 802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 16±1.5 dBm@54 Mbps; 802.11n: 16±1.5 dBm@MCS7; 802.11ax: 16±1.5 dBm@MCS9 |
| Receive Sensitivity | 802.11b: -76 dBm@11 Mbps (Typical); 802.11g: -65 dBm@54 Mbps (Typical); 802.11n: -61 dBm@MCS7, HT40 (Typical); 802.11ax: -54 dBm@MCS9, HE40 (Typical) |
| Transmission Rate | 802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps; 802.11ax: up to 270 Mbps |
PTZ
| Panorama | Detail | |
| Pan Range | -150° ~ 150° | 0° ~ 350° |
| Pan Speed | N/A | 1°/s ~ 40°/s (Preset speed: 40°/s) |
| Tilt Range | -5° ~ 30° | 0° ~ 90° |
| Tilt Speed | N/A | 1°/s ~ 30°/s (Preset speed: 30°/s) |
| Number of Presets | 20 | |
Interface
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
Certification
| EMC | CE EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B) |
| RF | FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) |
| Safety | CE LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
| Protection | IP66 (IEC 60529) |
General
| Power Consumption | Max. 11.5 W |
| Power | DC 12V ± 25% |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø117 × 157 × 202 mm (Ø4.6" × 6.2" × 7.9") |
| Weight | 0.62 kg (1.36 lb.) |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| LED Indicator | 1, red/blue |
Intelligent
| Auto Tracking | Support |
Dimensions

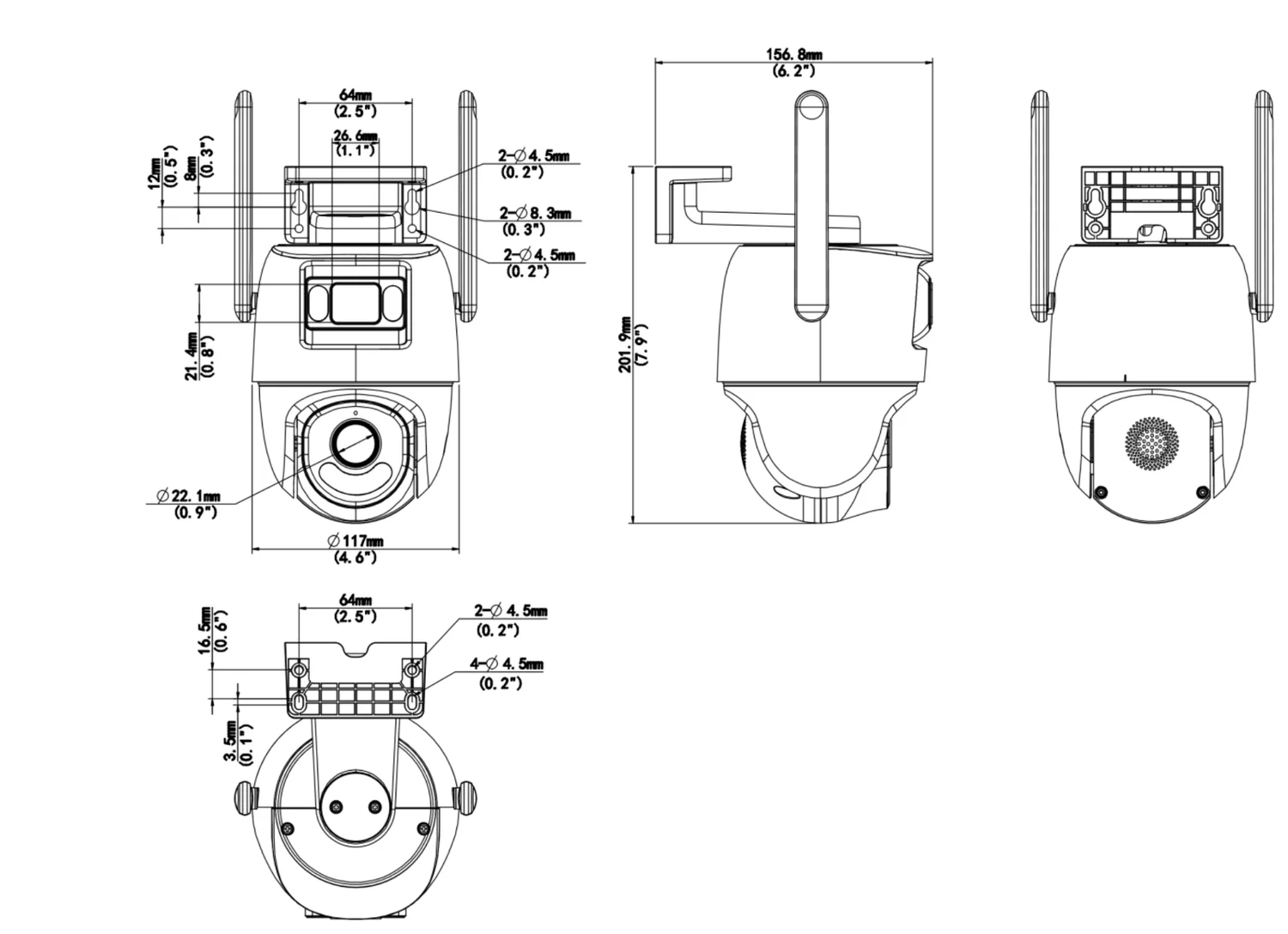

Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | Ø117 × 157 × 202 mm (Ø4.6" × 6.2" × 7.9") |
| Weight | 0.62 kg (1.36 lb.) |
Dual Lens Wi-Fi PTZ Camera FAQ — Uho-P2S-M55F34
How do the two lenses of the Uho-P2S-M55F34 work together?
What night vision range should I expect?
How is recording handled without an NVR?
Can it survive rain and rough weather outside?
Will it overload my Wi-Fi or mobile data?
What is the difference between the M55F34 and the M33F34?
