IP Cameras › Uho-P3C-M5F4

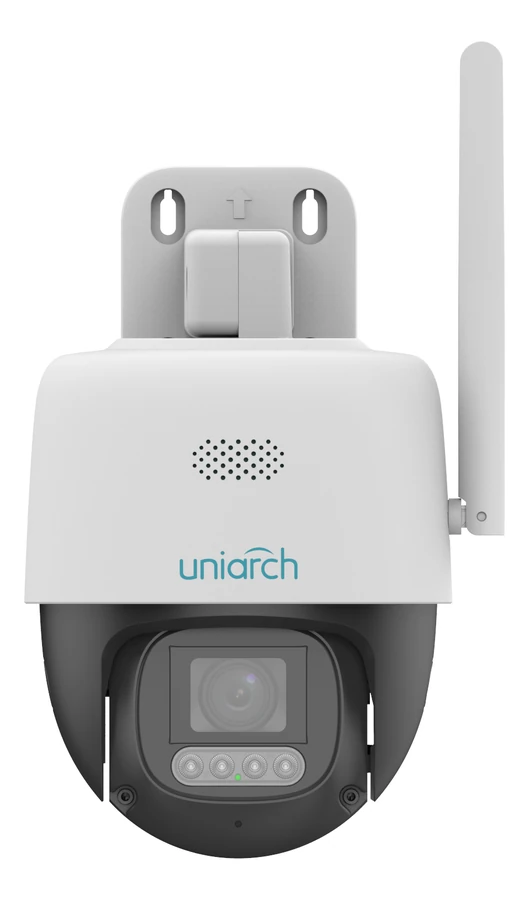

5MP ColorHunter Pan & Tilt Wi-Fi Camera Uho-P3C-M5F4 — view 1

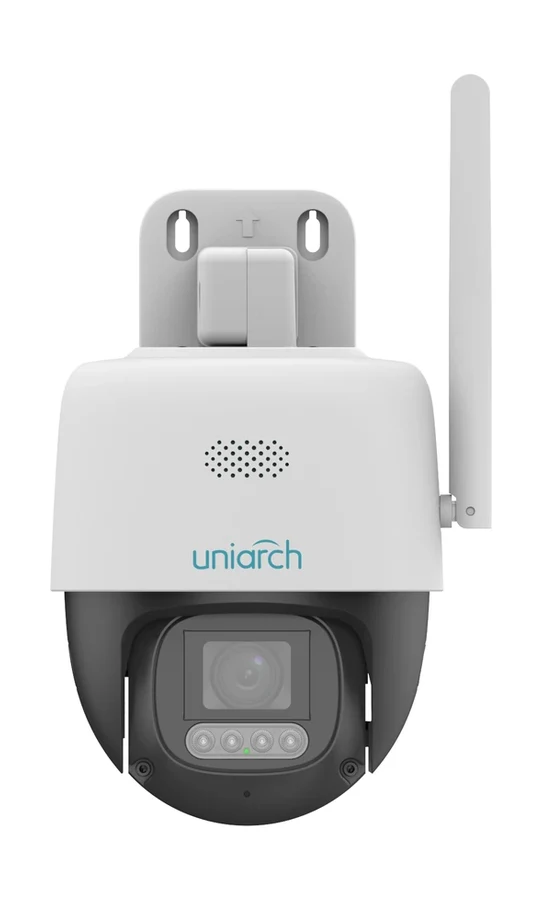

5MP ColorHunter Pan & Tilt Wi-Fi Camera Uho-P3C-M5F4 — view 2

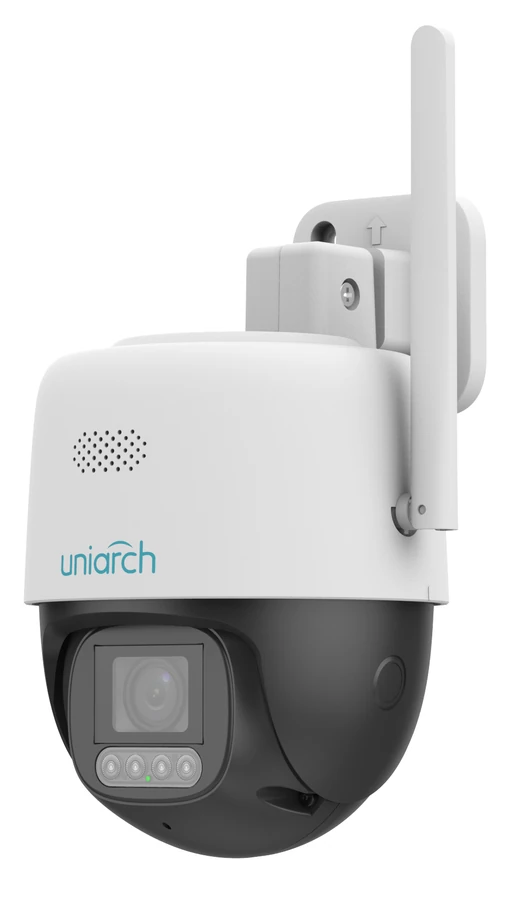

5MP ColorHunter Pan & Tilt Wi-Fi Camera Uho-P3C-M5F4 — view 3

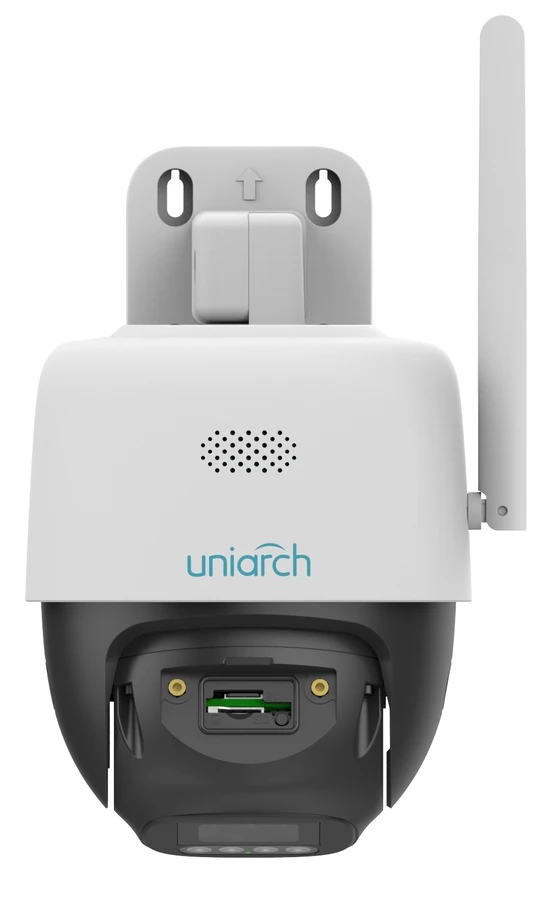

5MP ColorHunter Pan & Tilt Wi-Fi Camera Uho-P3C-M5F4 — view 4

UniarchOutdoor Pan & Tilt Wi-Fi

5MP ColorHunter Wi-Fi PT

Uho-P3C-M5F4

Name: Uniarch Uho-P3C-M5F4
Brand: Uniarch
SKU: Uho-P3C-M5F4

5MP Wi-Fi pan & tilt camera with ColorHunter full-color night vision — motorized 345° pan / 90° tilt with auto tracking, warm-light illuminator to 30m, and two-way audio with sound-and-light alarm.

5 MP · 2880×1620 ColorHunterWi-Fi · 2.4GHz built-in antennaAuto Tracking · PTZ follows motionSound & Light Alarm · on-site deterrentIP66 · outdoorMic & Speaker · two-way audio

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP66

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mWarm light distance

345°Pan range

IP66Outdoor rated

5 MPMax resolution

The Uniarch Uho-P3C-M5F4 is a 5MP Wi-Fi pan & tilt camera built around ColorHunter with Wise-ISP technology, keeping video in full color around the clock instead of switching to black-and-white at night. A motorized head covers 345° of pan and 90° of tilt with auto tracking and 20 presets, while a warm-light illuminator extends color visibility to 30m and a sound-and-light alarm reacts to detected events on-site. It connects over 2.4GHz Wi-Fi, supports two-way audio through a built-in mic and speaker, and stores footage locally on a MicroSD card up to 512GB.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Wide-area outdoor coverage that movesA motorized head covers 345° of pan and 90° of tilt from one mount point, and auto tracking follows a moving subject without anyone at the controls.

Full-color video, day and nightColorHunter with Wise-ISP keeps footage in color even in low light, and the warm-light illuminator extends that to 30m — faces, clothing and vehicle colors stay identifiable after dark.

Visible deterrence, not just recordingThe sound-and-light alarm reacts on-site to a detected event, warning someone off in real time instead of only capturing footage after the fact.

Two-way conversations from anywhereA built-in mic and speaker support two-way audio through the Uniarch app — tell a delivery courier where to leave a package or greet a visitor remotely.

Sites without a spare network runNo PoE switch or NVR cable run needed — plug into any nearby outlet and join the site Wi-Fi.

Local backup you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — no monthly cloud subscription required to have a recording.

Not the right pick if you need…

PoE power — this camera has no PoE port, it needs its own outlet with a DC12V adapter
A discreet/invisible night mode — the illuminator here is a visible warm light, not infrared, so the camera is noticeable when active at night
Optical zoom — the lens is fixed at 4.0 mm with 4X digital zoom only, there is no motorized optical zoom
Full ONVIF/third-party NVR interoperability — the datasheet lists API-only integration, not a full ONVIF profile; plan around the Uniarch app/client if that matters to you
Rock-solid connectivity regardless of Wi-Fi signal — performance depends on the strength of the site's 2.4GHz Wi-Fi signal at the mounting spot

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 5MP, 1/1.8" CMOS sensor and F1.0 large aperture lens

5MP (2880×1620)@25/20fps; 4MP (2560×1440)@25/20fps; 3MP (2304×1296)@30/25fps; 2MP (1920×1080)@30/25fps

Ultra 265, H.265, H.264

Colorhunter with Wise-ISP technology ensures 24-hour full-color images

Support digital WDR (Wide Dynamic Range)

Built-in Mic & Speaker, support two-way audio, offer better interaction

Support sound and light warning, makes warning and alarming more noticeable

Warm Light, up to 30m warm light distance

Supports 512 GB Micro SD card

Wi-Fi connection and easy installation

IP66 ingress protection

Night vision: warm light, full color

Switchable Auto/Manual — set it per site.

WARM LIGHT MODE

Visible warm light — full-color video around the clock

Warm light up to 30 m (98.4 ft.), paired with ColorHunter and Wise-ISP processing, keeps faces, clothing and vehicle colors visible at night. This model has a single warm-light illuminator only, no infrared module — it does not offer a discreet/invisible IR night-vision mode.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

62.1 m203.6 ft

Observewhat is happening

24.8 m81.5 ft

Recognizesomeone you know

12.4 m40.7 ft

Identifya stranger's face

6.2 m20.4 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	89.4°
5 m16 ft	9.9 m32.5 ft
10 m33 ft	19.8 m64.9 ft
15 m49 ft	29.7 m97.4 ft
20 m66 ft	39.6 m130 ft
30 m98 ft	59.4 m195 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	5 MP
Sensor	1/1.8" CMOS
Min. Illumination	Colour: 0.0003 Lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 to 1/100000 s
S/N	> 52 dB
WDR	DWDR

Lens

Digital Zoom	4X
Focal Length	4.0 mm
Iris	F1.0
Field of View (H)	89.4°
Field of View (V)	48.2°
Field of View (D)	94.7°
Lens Type	Fixed
Iris Type	Fixed

DORI

DORI Distance (Lens)	4.0 mm
DORI Distance (Detect)	62.1 m (203.6 ft.)
DORI Distance (Observe)	24.8 m (81.5 ft.)
DORI Distance (Recognize)	12.4 m (40.7 ft.)
DORI Distance (Identify)	6.2 m (20.4 ft.)

Illuminator

Illumination Distance (Warm Light)	30 m (98.4 ft.)
IR On/Off Control	Auto/Manual
Supplemental Light	Warm light

Video

Video Compression	Ultra 265, H.265, H.264
Frame Rate	Main Stream: 5MP (2880×1620), max. 25 fps; 4MP (2560×1440), max. 25 fps; 3MP (2304×1296), max. 30 fps; 2MP (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Support (only NVR)
ROI	Up to 8 areas
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	N/A
BLC	N/A
Defog	Digital defog

Events

Basic Detection	Human body detection, Motion detection, Audio detection
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Intelligent

Auto Tracking

Support

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration	API
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless Standards	IEEE802.11b/g/n/ax
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20/40 MHz Support
Modulation Mode	802.11b: CCK; 802.11g/n: OFDM; 802.11ax: OFDMA
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 16±1.5 dBm@54 Mbps; 802.11n: 16±1.5 dBm@MCS7; 802.11ax: 16±1.5 dBm@MCS9
Receive Sensitivity	802.11b: -76 dBm@11 Mbps (Typical); 802.11g: -65 dBm@54 Mbps (Typical); 802.11n: -61 dBm@MCS7, HT40 (Typical); 802.11ax: -54 dBm@MCS9, HE40 (Typical)
Transmission Rate	802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 150 Mbps; 802.11ax: up to 270 Mbps

PTZ

Pan Range	0° ~ 345°
Pan Speed	1°/s ~ 40°/s Preset speed: 40°/s
Tilt Range	0° ~ 90°
Tilt Speed	1°/s ~ 30°/s Preset speed: 30°/s
Number of Presets	20

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

Protection	IP66 (IEC 60529)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130); FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

Power	DC 12 V±25%
Power Interface	Ø5.5 mm coaxial power plug
Surge Protection	4 KV
LED Indicator	1, green
Dimensions	Φ118 mm × 118 mm × 199 mm (Φ4.6" × 4.6" × 7.8")
Weight	0.53 kg (1.17 lb.)
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Reset Button	Support

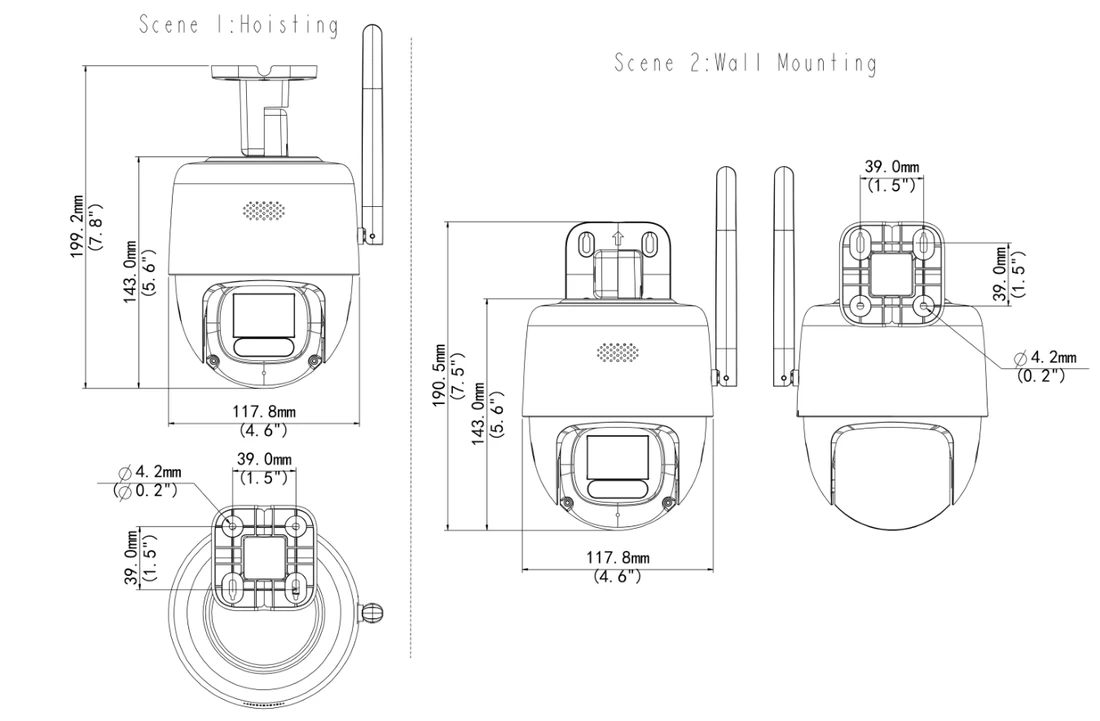

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Φ118 mm × 118 mm × 199 mm (Φ4.6" × 4.6" × 7.8")
Weight	0.53 kg (1.17 lb.)
LED Indicator	1, green
Power	DC 12 V±25%

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB05-A-INSmall Bullet Junction Box (supports wiring from behind, square)

TR-UP06-B-INBullet Pole Mounting Bracket

TR-A01-INNPT 3/4" Waterproof Cable Gland

TR-UP06-C-IN-V2Pole Mounting Bracket for Bullet Junction Box Only

5MP Color Night Vision Wi-Fi PTZ FAQ — Uho-P3C-M5F4

Why is the Uho-P3C-M5F4 called a ColorHunter camera?

It pairs a large 1/1.8-inch CMOS sensor with an F1.0 lens rated down to 0.0003 lux, plus a warm light reaching 30 m (98.4 ft). The result is full-color video around the clock — a true color night vision camera rather than black-and-white IR footage.

What resolution and frame rate does it record?

The main stream records 5MP (2880×1620) at up to 25 fps, with 4MP, 3MP, 2MP and 720P options — 3MP and below reach 30 fps. Compression is Ultra 265, H.265 or H.264 with U-code, and bit rate is adjustable from 128 Kbps to 6144 Kbps.

Can it follow and warn off an intruder automatically?

Yes. Human body detection and motion detection trigger the built-in sound and light alarm, auto tracking turns the motorized pan-tilt to follow the person, and the built-in mic and speaker give real two-way audio so you can speak to them directly.

How far can it usefully see with the 4.0 mm lens?

DORI figures for the 4.0 mm F1.0 lens: detect a person at 62.1 m, observe at 24.8 m, recognize at 12.4 m and identify at 6.2 m. The field of view is 89.4° horizontal and 94.7° diagonal, with 4X digital zoom for closer inspection.

Is it OK outdoors, and does strong backlight ruin the image?

The body is IP66 rated for rain and dust. Image tools include DWDR for contrasty scenes, 2D/3D noise reduction, digital defog and six white balance modes including sodium lamp — useful under street lighting common in African and Latin American cities.

Does it need special cabling to install?

No Ethernet run is required — it is a Wi-Fi PTZ camera, so you mount it, power it and join it to your wireless network. Dual streams and RTSP, plus HTTP and user authentication options, let installers integrate it into existing viewing setups securely.
