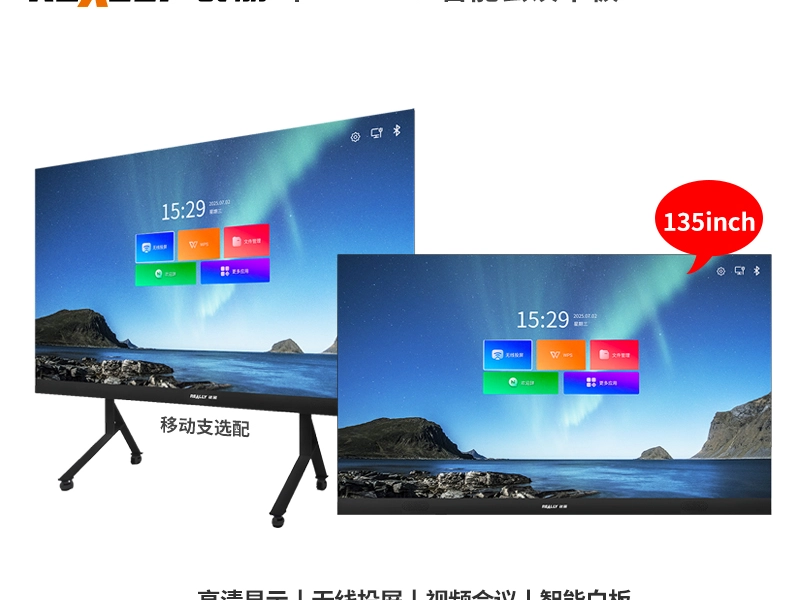

LED conference panel in a large meeting room

REALLYLED All-in-One · Seamless 108–216″

LED Smart Conference Panel · 4 Models · 108–216″

LED Conference Panel · RLED-P 108–216″

An all-in-one LED wall for the conference room: 108 to 216 inches with no panel seams and 0–1000 nit adjustable brightness. Where an LCD touch panel tops out at 110″, this series starts.

108–216″ · four seamless sizes0.9–2.5 mm · pixel pitch0–1000 nit · adjustable brightness3840 Hz · max refresh2×PSU · dual power redundancy

CHOOSE YOUR SIZE — FOUR MODELS ON THIS PAGE

Manufacturer sizing guide: 108″ for 20–60 people (30–100 m²), 135″ for 60–80 (100–150 m²), 163″ for 80–100 (150–180 m²), 216″ for 100–200 (180–300 m²). Selecting a model updates the spec table and the WhatsApp message.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

216″largest single picture

0.9 mmfinest pitch (108″ build)

1000nit max, 0–1000 adjustable

14–16bit grayscale

The RLED-P series packages a fine-pitch LED wall as a single conference device: four sizes from 108″ (0.9/1.2 mm pitch) to 216″ (1.25/2.5 mm), all 16:9, with 2000–9500 K adjustable color temperature, 3000:1–8000:1 contrast, 14–16 bit grayscale and 2880–3840 Hz refresh. Android 6.0+ is built in; HDMI, USB, Ethernet, Wi-Fi and Bluetooth are on board, and one key powers up screen and system together. The build is engineered for meeting-room service: modular front-maintenance assembly with vacuum-suction module removal, wall or floor-stand mounting, and dual power supply with dual-card redundancy for rooms where the screen simply must work. Interactive touch, wireless casting, 4K camera and omnidirectional microphone are ordered as options. Compared with the LCD smart conference panel (55–110″, standard multi-touch and 4K), this series trades built-in touch for seamless size — the manufacturer suggests 108″ for 20–60 people up to 216″ for 100–200.

Is this the right display for your project?

Plain-language guide — based only on what this product actually does.

Large meeting & board roomsOne seamless picture that every seat can read — no bezel grid, brightness tuned down to office-comfortable levels, one-key start before the meeting begins.

Lecture halls & trainingWith the optional infrared touch system the wall becomes a writing surface — 0.04 s response, ±0.5 mm accuracy — for teaching, data reviews and project discussions in rooms of 80 to 200 people.

Video conferencing suitesOptional 4K camera and 360° omnidirectional microphone put the far end on a wall-sized canvas; dual PSU and dual-card redundancy keep the room available for the calls that cannot drop.

Not the right pick if you need…

A standard room under about 30 m², or built-in multi-touch and 4K at lower cost — the LCD Smart Conference Panel (55–110″) is the better tool
An outdoor or sun-facing installation — this series is IP30 indoor equipment; see the Outdoor LED Display page
Custom wall shapes or control-room canvases — build them from the Fine-Pitch LED Video Wall series with a video wall processor

Worried about the source? Order under your own company name.

For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume DiscountBulk quantities of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The complete series capability list.

Four sizes — 108 / 135 / 163 / 216 inch; other pitches and resolutions can be customized

One-key wireless casting from phone, tablet or PC with multi-screen interaction (optional casting dongle)

Interactive writing — 0.04 s response, ±0.5 mm accuracy (optional infrared touch system)

Video conferencing — 4K low-distortion camera and 360° omnidirectional microphone (optional; third-party video software required)

Front maintenance — modular block assembly, vacuum-suction module removal, easier transport and install

Wall mount or floor stand with casters — quick, economical installation (optional)

Integrated functions — wireless casting, multi-system access, conference sound reinforcement, environment control; one-key power-on

16:9 cabinet geometry — clean HD, FHD, 2K and 4K playback with natural color

Dual power supply and dual card redundant backup for continuous, stable operation

Full Specifications

Series specifications — technical values in English.

Highlighted column = the model selected above. Values are series data — confirm the final configuration with us before ordering.

RLED-P series — all-in-one LED conference displays

Item	RLED-P108S01	RLED-P135S01	RLED-P163S01	RLED-P216S01
Size	108″	135″	163″	216″
Pixel pitch	0.9 / 1.2 mm	1.5 mm	1.8 mm	1.25 / 2.5 mm
Resolution (W×H)	2560×1440 / 1920×1080	1920×1080	1920×1080	3840×2160 / 1920×1080
Display size (W×H)	2400×1350 mm	3000×1687.5 mm	3600×2025 mm	4800×2700 mm
Net weight	120 kg	169 kg	240 kg	435 kg
Average power	520 / 620 W	650 W	1100 W	2320 / 1860 W
Max power	1350 / 1550 W	1850 W	2850 W	6020 / 5500 W
Aspect ratio	16:9
Color temperature	2000–9500 K adjustable
Brightness	0–1000 nit adjustable
Contrast	3000:1 – 8000:1
Viewing angle	160° / 120° (H/V)
Protection	IP30 (front/back)
Operating temperature	−20 °C to +50 °C
Operating humidity	10–95% RH
Operating system	Android 6.0 or above
Interfaces	HDMI / USB / Wi-Fi / RJ45 100M Ethernet / IR remote / Bluetooth / wireless casting
Input voltage	110–240 V
Grayscale	14–16 bit
Refresh rate	2880–3840 Hz
Suggested attendees	20–60	60–80	80–100	100–200
Suggested room area	30–100 m²	100–150 m²	150–180 m²	180–300 m²
Wireless casting (optional)	Wireless casting dongle
Video conferencing (optional)	USB HD camera + omnidirectional microphone (third-party video software purchased separately)
Touch (optional)	Infrared touch system
Mounting (optional)	Wall mount / floor stand
Note	Where two values are shown for the 108″ and 216″ models, they correspond to the two pitch builds. Other pitches and resolutions can be customized. Specifications subject to the actual product.

Engineering note: The 108″ model is built in a 0.9 or 1.2 mm pitch and the 216″ in 1.25 or 2.5 mm — resolution and power consumption differ between the two builds, so confirm the pitch variant together with the touch, casting and camera options when you enquire.

All-in-One LED Conference Panel FAQ — RLED-P 108–216″

What room size does each model fit?

The series covers 108″, 135″, 163″ and 216″ diagonals, with a suggested range of 20–60 attendees and room areas of 30–100 m². The 108″ panel has a 2400×1350 mm picture — already larger than any standard LCD panel — and the sizes scale up from there for auditorium-style rooms.

Which pixel pitch and resolution does the 108″ come in?

The 108″ ships in two builds: 0.9 mm pitch at 2560×1440, or 1.2 mm pitch at 1920×1080. Across the series pitches run 0.9–2.5 mm. All builds give a completely seamless picture with 14–16 bit grayscale, 2880–3840 Hz refresh and 3000:1–8000:1 contrast.

How much power does the 108″ panel consume?

The 108″ averages 520 W (0.9 mm build) or 620 W (1.2 mm build), with maximum draw of 1350 W or 1550 W at full white and full brightness. Input is 110–240 V, and a dual-PSU redundant design keeps the meeting running if one supply fails.

Does it support touch, wireless casting and video calls?

All three are options: an infrared touch system, a wireless casting dongle, and a video-conferencing kit with USB HD camera plus omnidirectional microphone (conferencing software is third-party, purchased separately). The base panel runs Android 6.0+ with HDMI, USB, Wi-Fi, 100M Ethernet, Bluetooth and IR remote.

How is it installed, and how heavy is it?

Choose wall mount or floor stand as mounting options. The 108″ panel weighs 120 kg net with a 2400×1350 mm display area, so plan the wall anchoring or stand footprint accordingly. Protection is IP30 front and back, with operation rated from −20 °C to +50 °C.

Can I dim it for video calls in a bright room?

Yes — brightness adjusts from 0 to 1000 nit, and color temperature from 2000 K to 9500 K, so the panel stays comfortable in both daylight-flooded rooms and dimmed presentation mode. Viewing angles are 160° horizontal and 120° vertical across the 16:9 picture.
