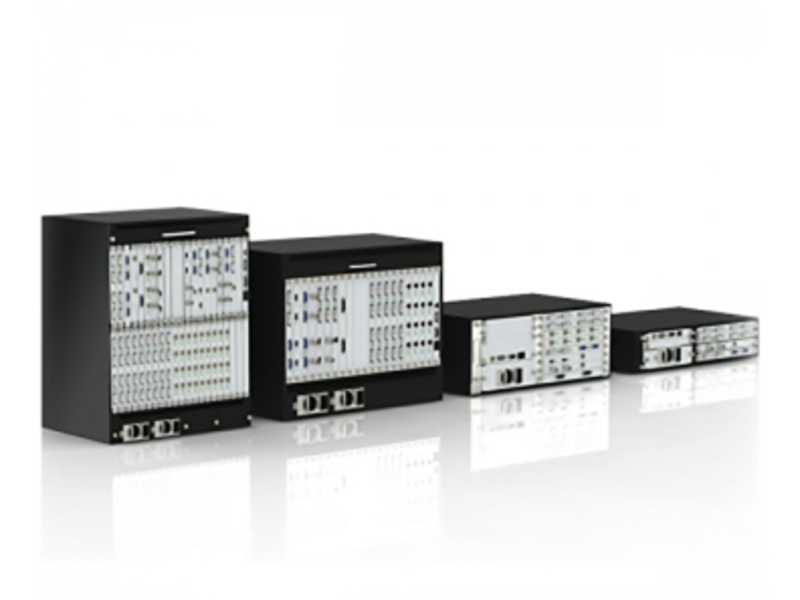

REALLY video wall processor chassis with modular cards

REALLYPure Hardware FPGA · Modular Cards

Video Wall Processor · 5 Series · 1.5U–26U

Video Wall Processor · RLmn 2000–12000

A pure-hardware FPGA processor that splits one signal across many screens and stitches many screens into one image — no operating system, no PC, nothing to crash. From a 1.5U box to a 26U frame.

FPGA · pure hardware, no OS4K60 · HDMI 2.0 output2/4 ch · per hot-swap card24 bit · color depth7×24 · continuous duty

CHOOSE YOUR CHASSIS CLASS — FIVE SERIES

Model codes use m = A–Z, n = 1–99 for project configurations, and each series exists in two chassis builds (the paired values in the table). Selecting a series updates the spec table and the WhatsApp message.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

26Ulargest chassis (RLmn-12000)

4K60HDMI 2.0 output supported

11input signal types incl. IP & fiber

0 sswitching gap — no black frame

The RLmn series is a professional video processing and control platform for LCD, LED and DLP walls, monitors and TVs. Five chassis classes scale from the 1.5U/2U RLmn-2000 to the 22U/26U RLmn-12000; every chassis takes modular, hot-swappable input and output cards (2 or 4 channels per card) plus switching, control, fan and PSU modules. Input cards cover HDMI, DVI, VGA, Dual-Link DVI, DisplayPort, SDI, CVBS, HDBaseT, YPbPr/YCbCr, IP streams and fiber; output cards offer DVI-I, HDMI, Dual-Link DVI and HDBaseT, with HDMI 2.0 4K60 supported. Processing is fully synchronous 24-bit digital: windowing, roaming, picture-in-picture, overlay, cross-screen, scaling, rotation, round-robin tours, character overlay and seamless zero-gap switching, with optional IP decoding (H.265, ONVIF/RTSP) and preview/echo. Being pure hardware it boots fast, tolerates frequent power cycles and runs 7×24.

Is this the right display for your project?

Plain-language guide — based only on what this product actually does.

Command & control centersNo operating system means no crashes, viruses or patches in the signal path — the wall keeps running 7×24, and optional IP decoding brings camera streams (H.265, ONVIF/RTSP) straight onto it.

Video wall splicingDrives LCD, LED and DLP walls alike: cross-screen windows, picture-in-picture, image rotation and creative any-spacing splicing — one image over many screens, or many sources over one wall.

Multi-signal dispatch roomsBuilt-in round-robin tours cycle channels on set intervals, character overlay labels every window, and source switching is instant — no black frame, no flicker — for rooms that watch dozens of feeds.

Not the right pick if you need…

A single screen showing a single source — the display's own inputs cover that without a processor
The LED wall's own pixel-level sending/receiving cards — those ship with the LED display's control system; this processor sits upstream of them
A distributed AV-over-IP node system spanning many rooms — this is a centralized chassis architecture; describe your node count and we will advise honestly

Worried about the source? Order under your own company name.

For corporate buyers: we support submitting the purchase order to the manufacturer under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer.

1 · Company name2 · Corporate bank payment3 · Order registered in your name

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume DiscountBulk quantities of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

The complete series capability list.

FPGA modular architecture — splicing, windowing, PIP, roaming, overlay, cross-screen, scaling, rotation, tours and seamless switching

Zero-gap source switching — instant, no black frame, no flicker, no delay; audio and video stay in sync

Network and RS232 control standard; central control, iPad and Android control optional

IP stream decoding (optional) — H.265, ONVIF/RTSP, compatible with mainstream network cameras

Preview and echo (optional) — see the wall's content in the control UI and drag windows directly

Character overlay and scrolling text on any input channel — size, color and position adjustable

Built-in round-robin tour — set intervals and channel lists, simple to operate

Hot-swappable modules throughout — input, output, switching, control cards, fans and PSUs; redundant PSU optional

Full Specifications

Series specifications — technical values in English.

Highlighted column = the model selected above. Values are series data — confirm the final configuration with us before ordering.

RLmn series — five chassis classes (paired values = the two builds of each series)

Item	RLmn-2000	RLmn-4000	RLmn-5000	RLmn-8000	RLmn-12000
Chassis height	1.5U / 2U	3U / 4U	8U / 9U	12U / 18U	22U / 26U
Input card slots	3 / 3	8 / 5	18 / 14	38 / 39	36 / 40
Output card slots	2 / 2	5 / 4	10 / 13	20 / 20	36 / 40
Channels per card	2 / 4
Input cards (optional mix)	HDMI, DVI, VGA, Dual-Link DVI, DisplayPort, SDI, CVBS, HDBaseT, YPbPr/YCbCr, IP, fiber
Output cards (optional mix)	DVI-I, HDMI, Dual-Link DVI, HDBaseT; HDMI 2.0 4K@60 Hz output supported
Operating system	None — pure hardware
Architecture	Pure-hardware FPGA, no internal OS: no crashes, viruses or compatibility issues; frequent power cycling allowed, fast boot. Fully modular: input, output, switching and control cards, fans and PSUs, hot-swappable.
Functions	Single-screen split, overlay and cross-screen display; window roaming, move, scale, crop; preview/echo (optional); character overlay; arbitrary rotation and creative any-spacing splicing (optional); mixed card insertion (optional); redundant PSU (optional)
Control	RS232 serial and network standard; LAN iPad control, Android control (optional)
Color depth	24 bit — 16,777,216 colors
Signal processing	Fully synchronous internal digital processing; outputs fully synchronized
Duty	7×24 continuous operation
Input voltage	100–240 V AC, 50/60 Hz
Operating temperature	−15 °C to +60 °C
Storage temperature	−30 °C to +75 °C
Operating humidity	10–90% non-condensing
Storage humidity	5–95% non-condensing
Model coding	m = A–Z, n = 1–99. Specifications, functions and appearance are subject to the actual product.

Engineering note: Every unit is configured to order — the m/n in the model code stand for the card configuration. Send your source list (types and resolutions) and the wall layout (rows × columns, panel type), and we will pin down the chassis size, card mix, and whether the redundant PSU is worth it for your duty cycle.

Video Wall Processor FAQ — RLmn 2000–12000 Series

What input signals can the RLmn video wall processor accept?

Input cards can be mixed to order: HDMI, DVI, VGA, Dual-Link DVI, DisplayPort, SDI, CVBS, HDBaseT, YPbPr/YCbCr, IP and fiber. On the 1.5U and 2U chassis you get 3 input card slots, with 2 or 4 channels per card, and the cards are modular hot-swap.

Does it support 4K output for modern LED and LCD walls?

Yes — HDMI 2.0 output at 4K@60 Hz is supported. Output card options are DVI-I, HDMI, Dual-Link DVI and HDBaseT, with 2 output card slots on the 1.5U/2U chassis. Processing is 24-bit color (16,777,216 colors) and all outputs are fully synchronized across the wall.

Is it reliable enough for a 24/7 control room or monitoring center?

It is rated for 7×24 continuous duty. The architecture is pure-hardware FPGA with no internal operating system, so there are no crashes, viruses or compatibility issues, and frequent power cycling is allowed. Operating range is −15 °C to +60 °C at 10–90% non-condensing humidity.

How do I control the processor and manage window layouts?

RS232 serial and network control are standard; iPad control over LAN and Android control are optional. Functions cover single-screen split, overlay and cross-screen display, window roaming, move, scale and crop, with seamless switching between sources. A preview/echo function is also available as an option.

What chassis sizes does the RLmn 2000–12000 series cover?

Five chassis series run from 1.5U up to 26U. The 1.5U and 2U units carry 3 input card slots and 2 output card slots, with 2 or 4 channels per card. Model coding uses m = A–Z and n = 1–99, so confirm the exact card configuration against your wall layout before ordering.

Can it drive LED video walls and decode IP camera streams?

It drives LCD, LED and DLP video walls in 7×24 operation. IP input cards are among the ordering options and the platform supports IP decoding for network sources. Internal digital processing is fully synchronous, so every output stays frame-locked. Input power is 100–240 V AC, 50/60 Hz.
